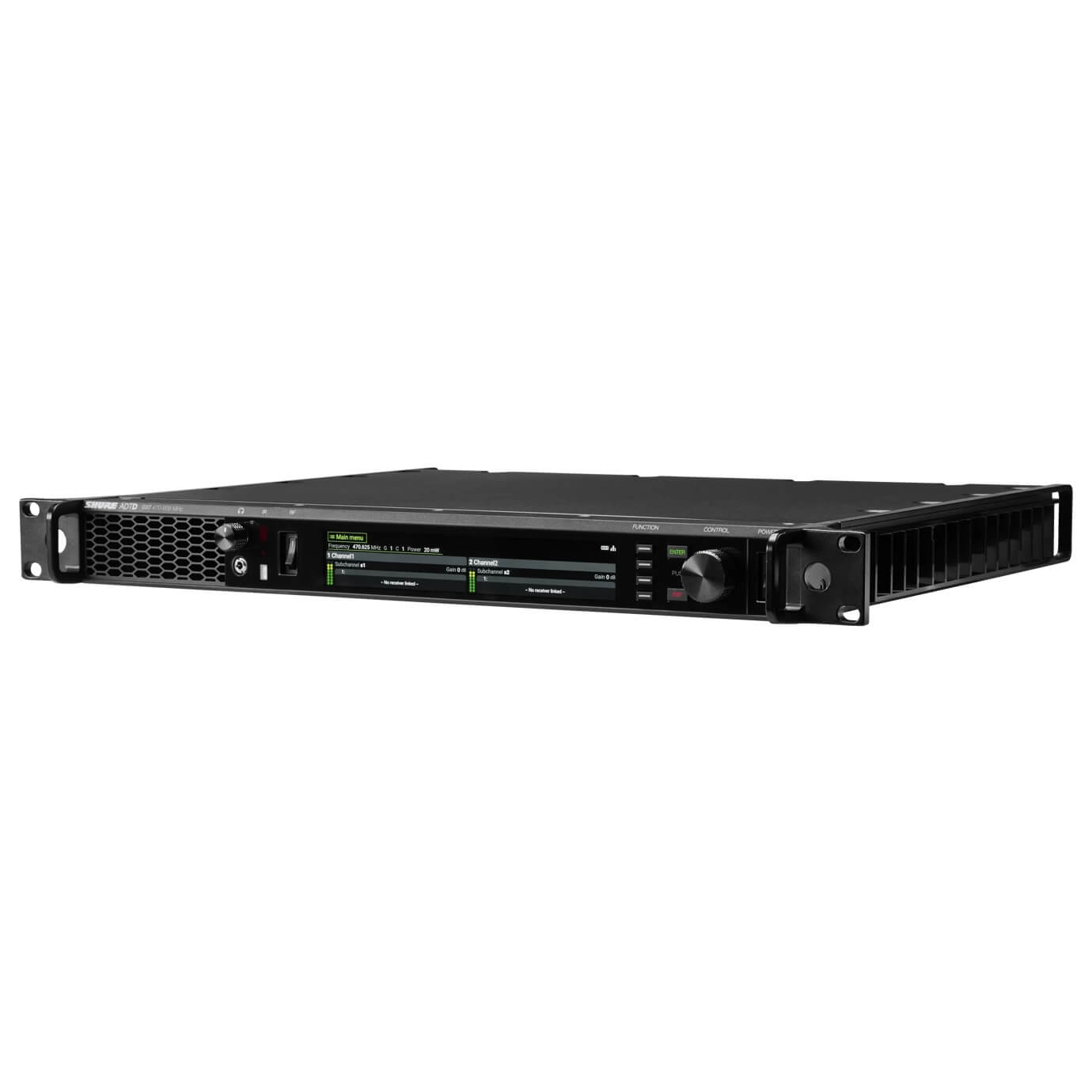

The Shure ADTD Axient Digital PSM Wireless Dual Transmitter reimagines in-ear monitoring wireless transmission. Groundbreaking features includes scalable channel count*, Multichannel Wideband RF, and Spatial Diversity Transmission that ensures faultless performance in the most challenging RF environments. ShowLink® remote control, networkable monitoring with Wireless Workbench®, analog and digital (AES3, AES67, Dante) inputs, and internal antenna combining, bring a new level of management and flexibility to your entire in-ear monitor workflow. Axient Digital PSM ADTD is compatible with the Axient Digital PSM ADXR Bodypack Receiver.
Features
• 470-608 MHz frequency band
• Two-radio, digital wireless stereo transmitter for Shure Axient Digital PSM in-ear monitoring system
• Powered by Shure WMAS innovation*, ADTQ delivers flexible, pioneering spectral efficiency and access to scalable channel count**
• Patented Spatial Diversity transmission defends against multipath interference
• Four different transmission modes to choose from:
- Multichannel Wideband – Shure WMAS innovation* powers the ADTQ to deliver up to four stereo audio channels, not just one, with each ADTQ radio
- Narrowband – Access more RF output power for greater range with this traditional option
- Analog FM – Achieve virtually zero latency performance with updated hybrid technology
- Axient Digital Standard** – Turn the ADTQ into an AD series Axient Digital transmitter and send high-quality, long-distance wireless audio to any Axient Digital wireless receiver
• Wide tuning range to cover more cities, festivals, and events on tour
• Real-time remote control of all ADXR bodypack wireless receiver parameters from the monitor mix position and elsewhere with exclusive ShowLink technology
• Encrypted RF signal ensures every transmission is secure
• Five-segment Channel Quality meter displays RF signal-to-noise
• Large, 6.6-inch front panel color display
• Networked control with Shure Wireless Workbench for extended and enhanced RF monitor and management
• Optional internal antenna combining reduces or eliminates external combiners

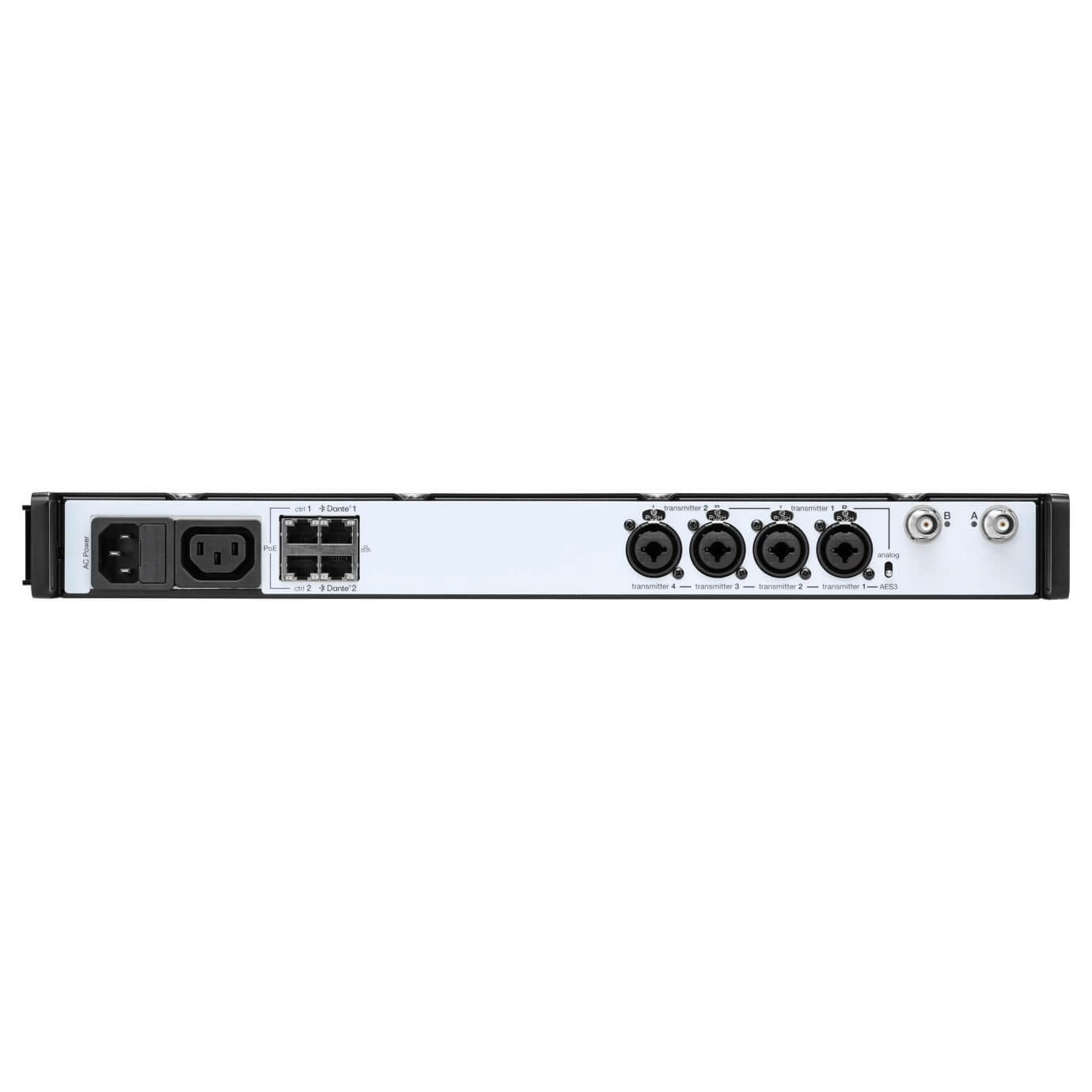

• 4 x switchable combo connectors for analog or AES3 digital options
• 4 x Ethernet ports for network control and Dante/AES67 digital input options
• 2 x coaxial RF antenna output connectors
• 1 x 3.5mm front-panel headphone connector with adjustable volume
• Locking AC power connection that cascades to additional components

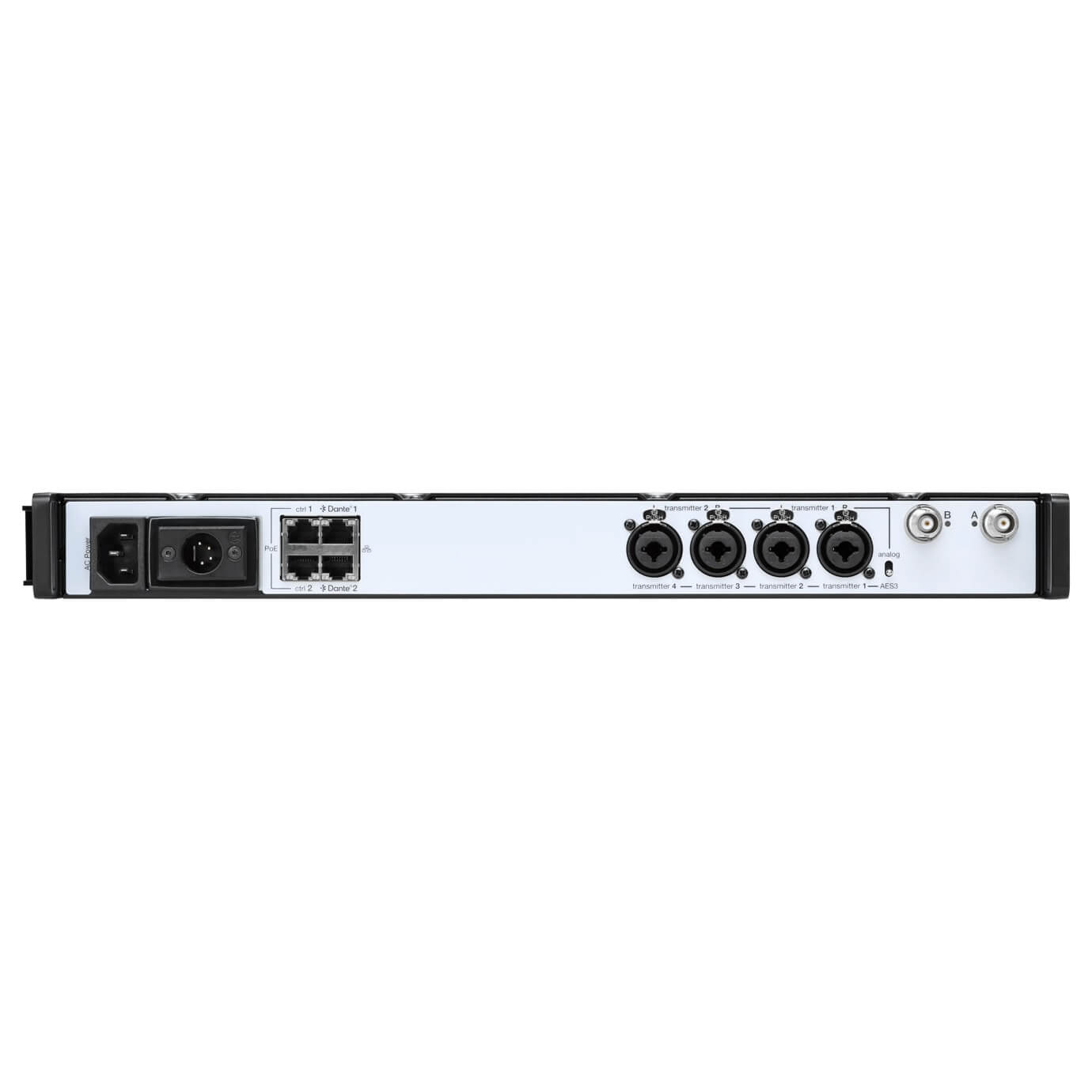

• DC module version available to support redundant power
*Available in planned firmware update, date TBD.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
FCC CONSUMER ALERT (U.S.)
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones.
