Description

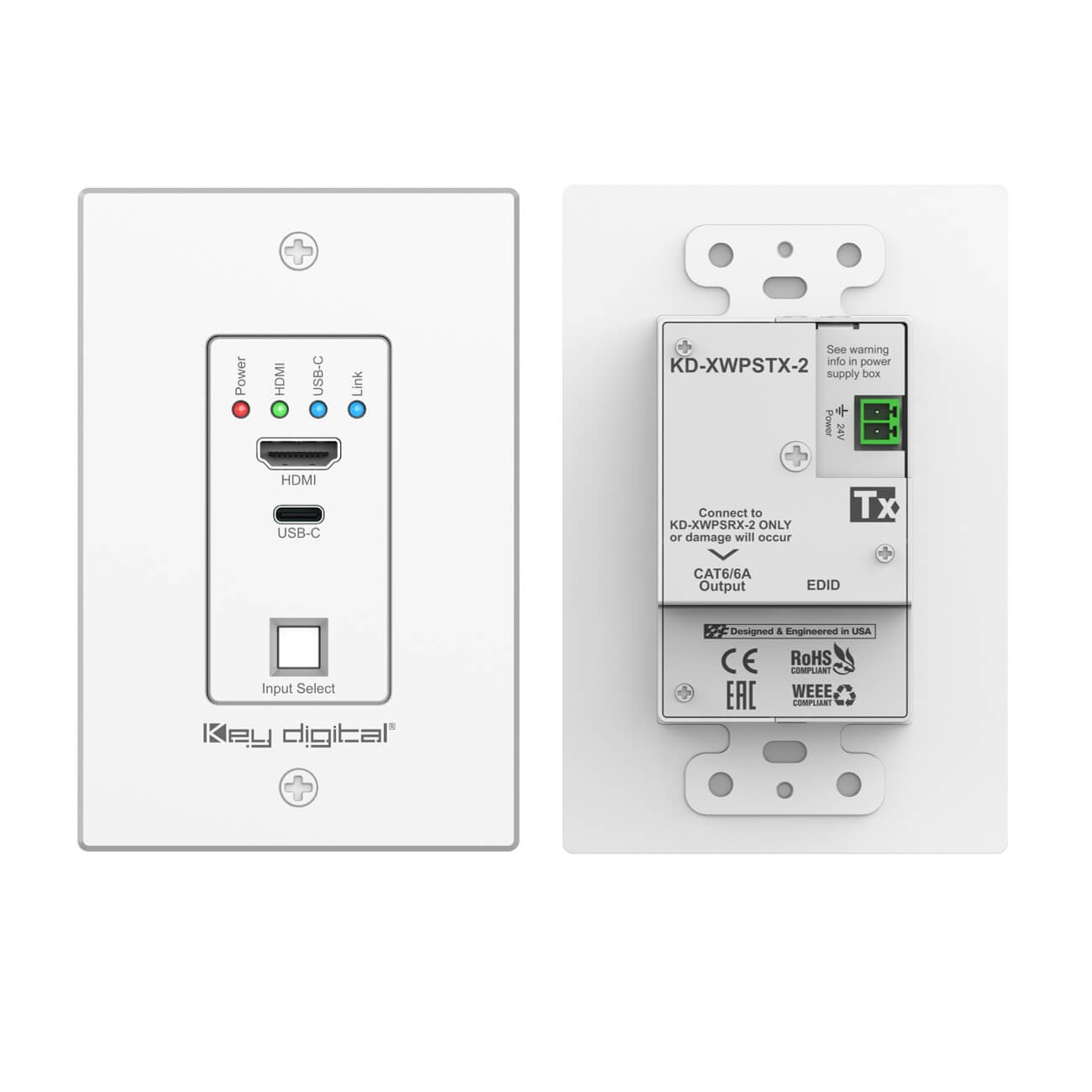

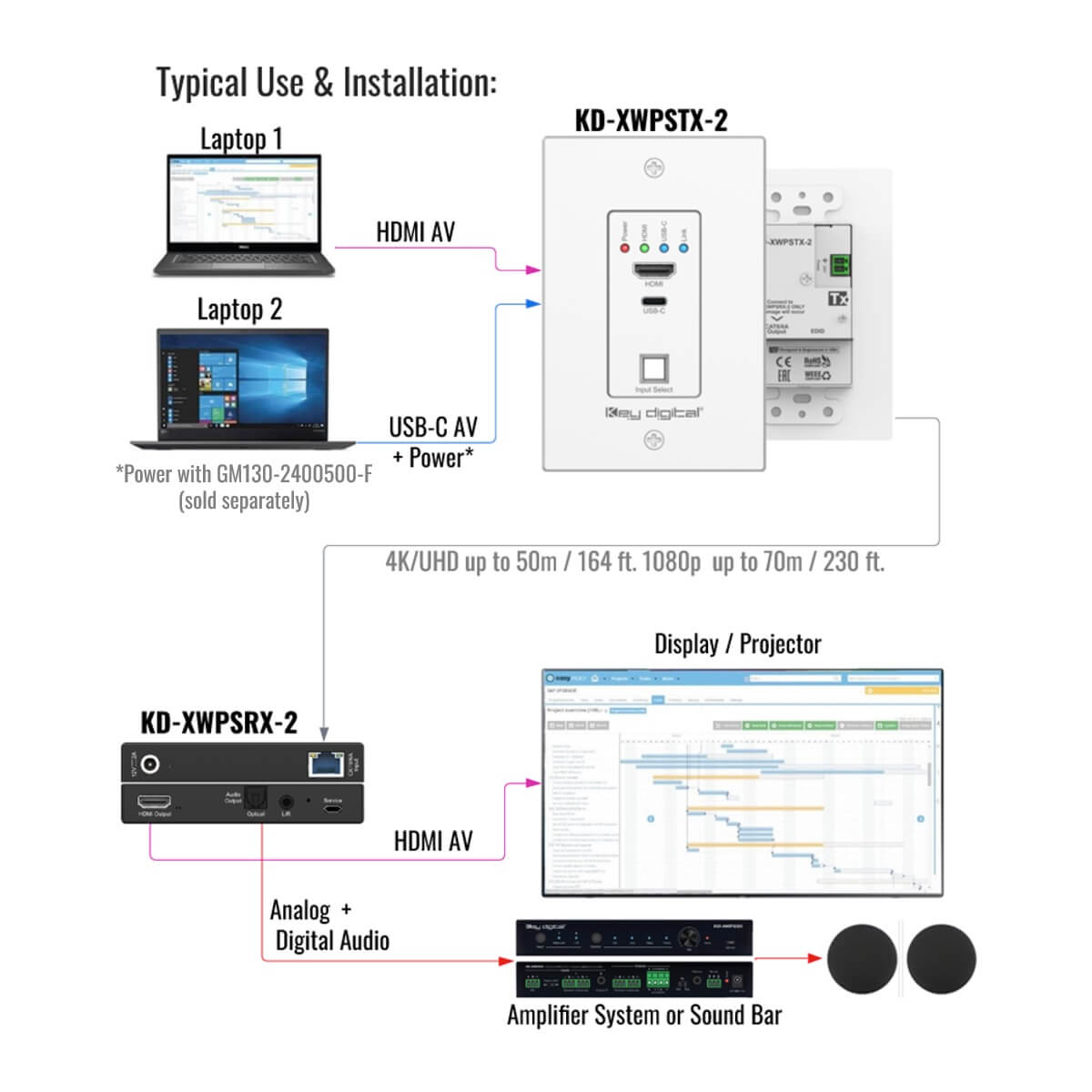

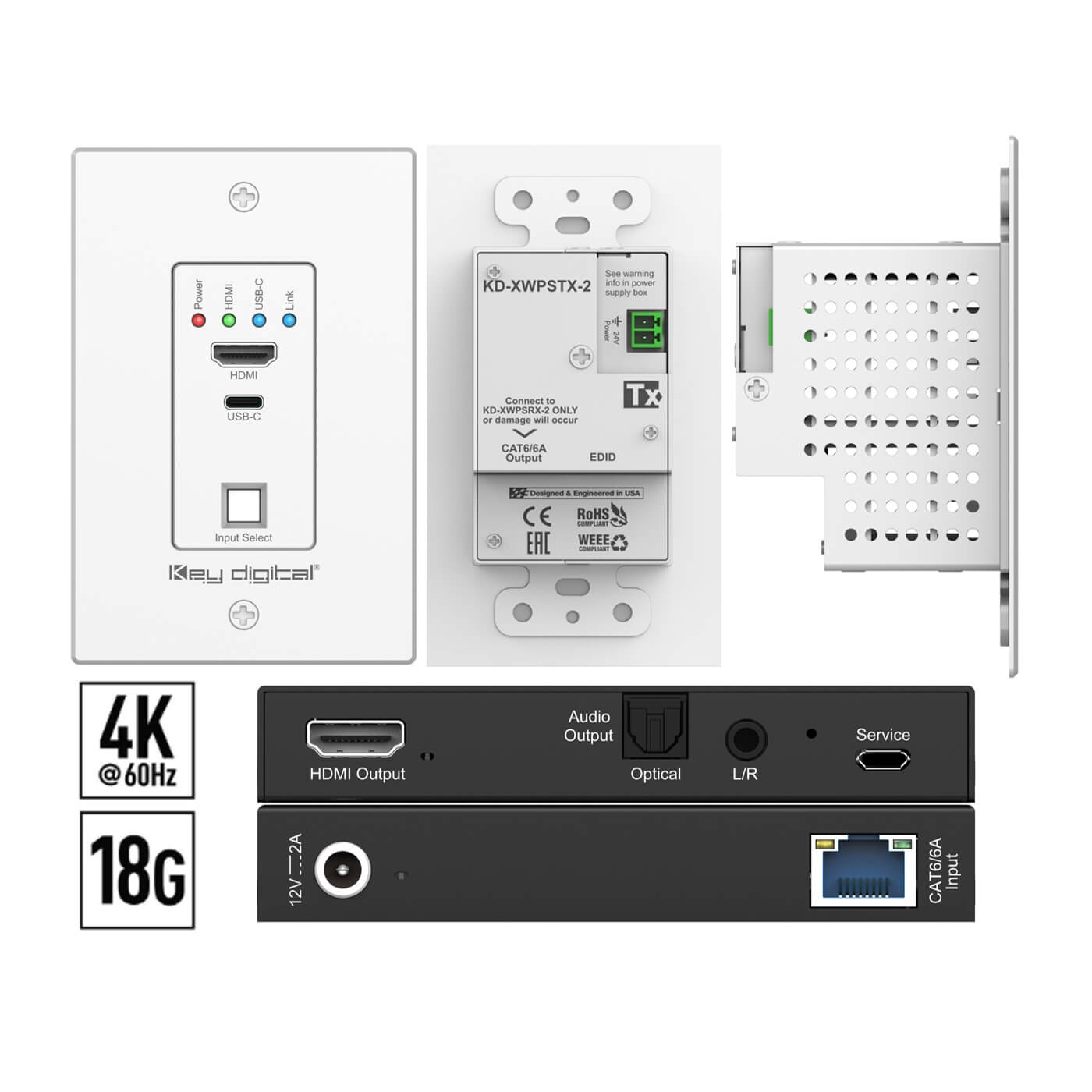

The Key Digital KD-XWPS-2 is a single-gang wall-plate switcher transmitter and receiver kit with one HDMI and one USB-C input ideal for pro AV system installations in conference rooms, huddle spaces, classrooms, and more. KD-XWPS-2 supports 4K/UHD resolution with bandwidth up to 18Gbps and HDCP2.2 compliancy and extends video resolutions up to 4096x2160 at 60hz with 4:4:4 chroma sub-sampling over a single CAT6/6A cable up to 164ft (50m). KD-XWPS-2 features EDID handshake control and audio de-embedding for overcoming common systems integration obstacles. The wall-plate unit fits in a standard US single-gang box and is powered by the Rx unit for convenient installation, or you may integrate with power supply model GM130-2400500-F (sold separately) to connect power at the transmitter plate which can power the Rx unit as well as provide power to device connected to the USB-C port.
Features
• Now with added audio de-embedding at Rx unit (both analog and digital)
• Extends 4K 18Gbps signals with HDR up to 164ft/50m
• Auto Switching transmitter with HDMI and USB-C inputs
• Kit includes transmitter, receiver, power supply, Decora plate, and IR emitter
• Only requires power supply on the Rx unit
• Optional USB-C device powering with GMB36-120200-F power supply (sold separately)
