Description

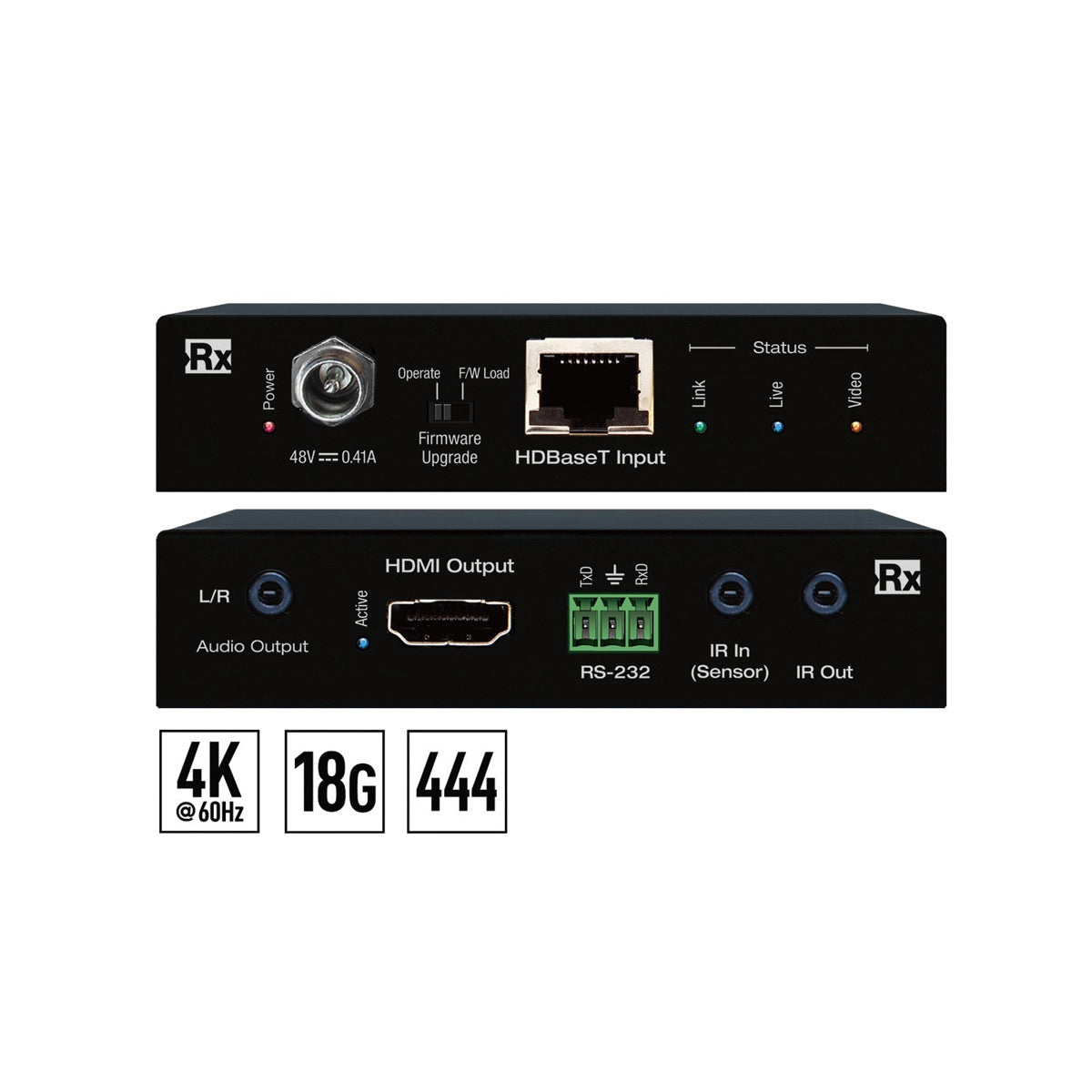

The Key Digital KD-X40MRx is a 4K/18G HDBT Receiver (40m) with L/R Audio De-Embed, IR, RS-232. This is a receiver only.
Features
• Tx Options: Sold a-la-carte to integrate natively with KD-X2x1WDTx and KD-X2x1WVTx wall-plate transmitters (sold separately).
• Flexible Power over HDBaseT: Rx powers Tx when integrated with KD-X2x1WDTx/KD-X2x1WVTx. Rx is powered by Tx when integrated with KD-PS42/KD-UPS42
• Audio De-embedding: Audio of the incoming source is de-embedded at the unit’s analog L/R audio connection for ease of integration with audio systems
• CEC Manager: Passes through CEC control signals for monitors & projectors when integrated with KD-PS42/KD-UPS42.
• Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• 4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• Low Profile: Super slim chassis design
• Signal Extension: For resolution and cable quality
- 4K/UHD (18G) up to 40m/131ft
- 1080p up to 70m/230ft
• 10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension
• HDR10: More life-like images through a greater range of luminance levels
• HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
• Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
• IR Sensor: Sensor powering via +5V on IR In ports collects line-of-sight IR from remote(s) without external IR connecting block
• Up/Down IR: Two channels of IR enable control to/from devices or control systems connected to Tx and Rx units
• RS-232: Bi-Directional control to/from Tx and Rx unit on Phoenix connector
