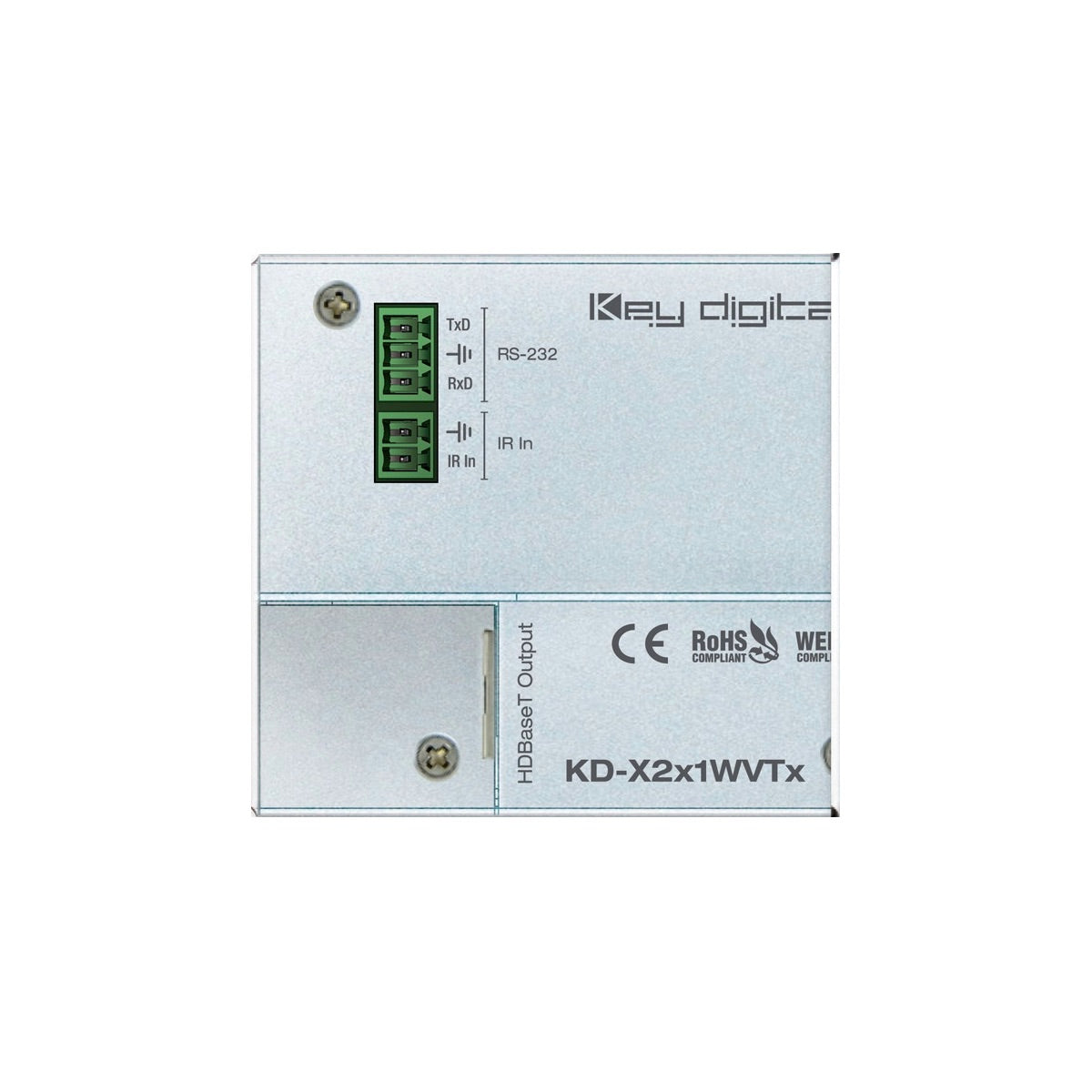

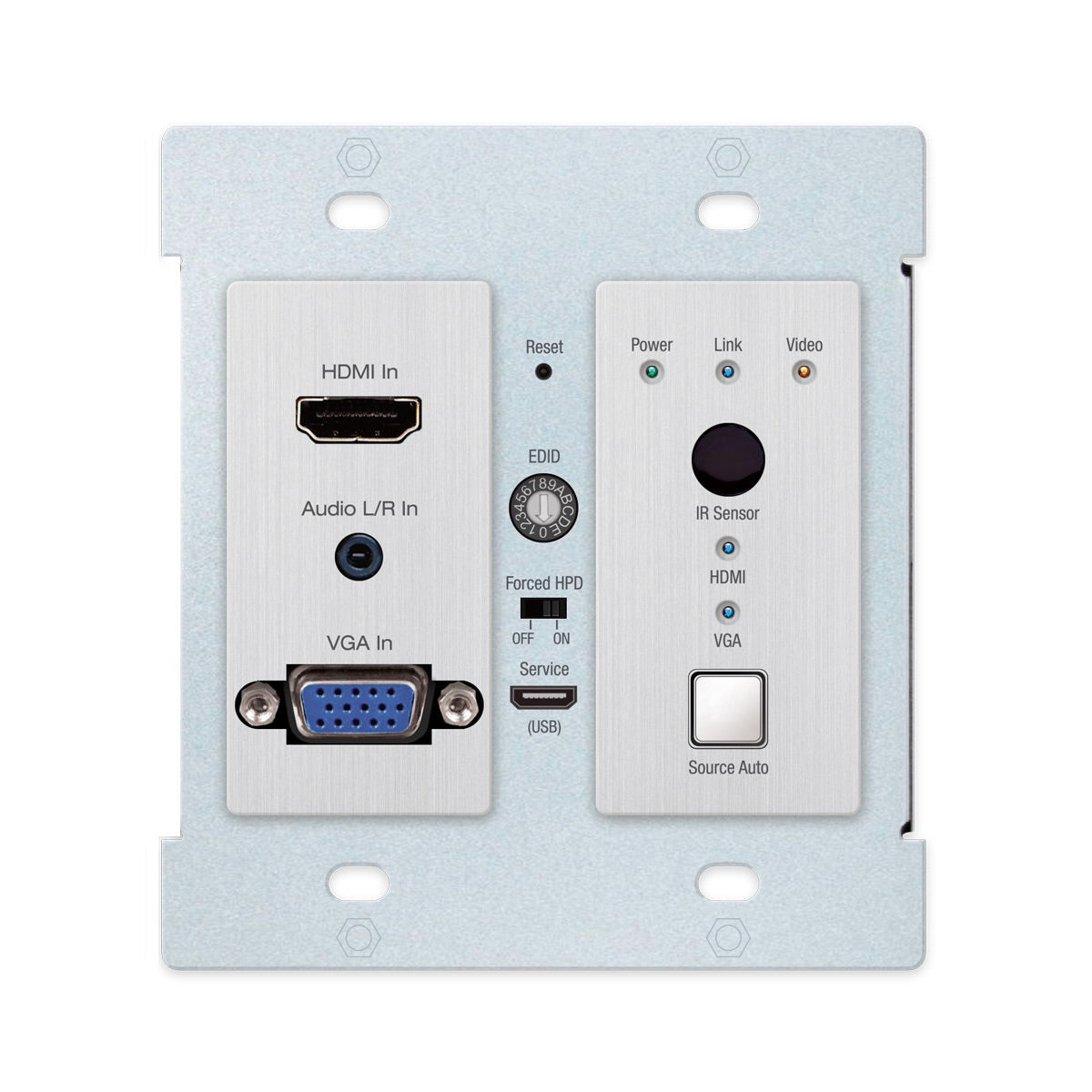

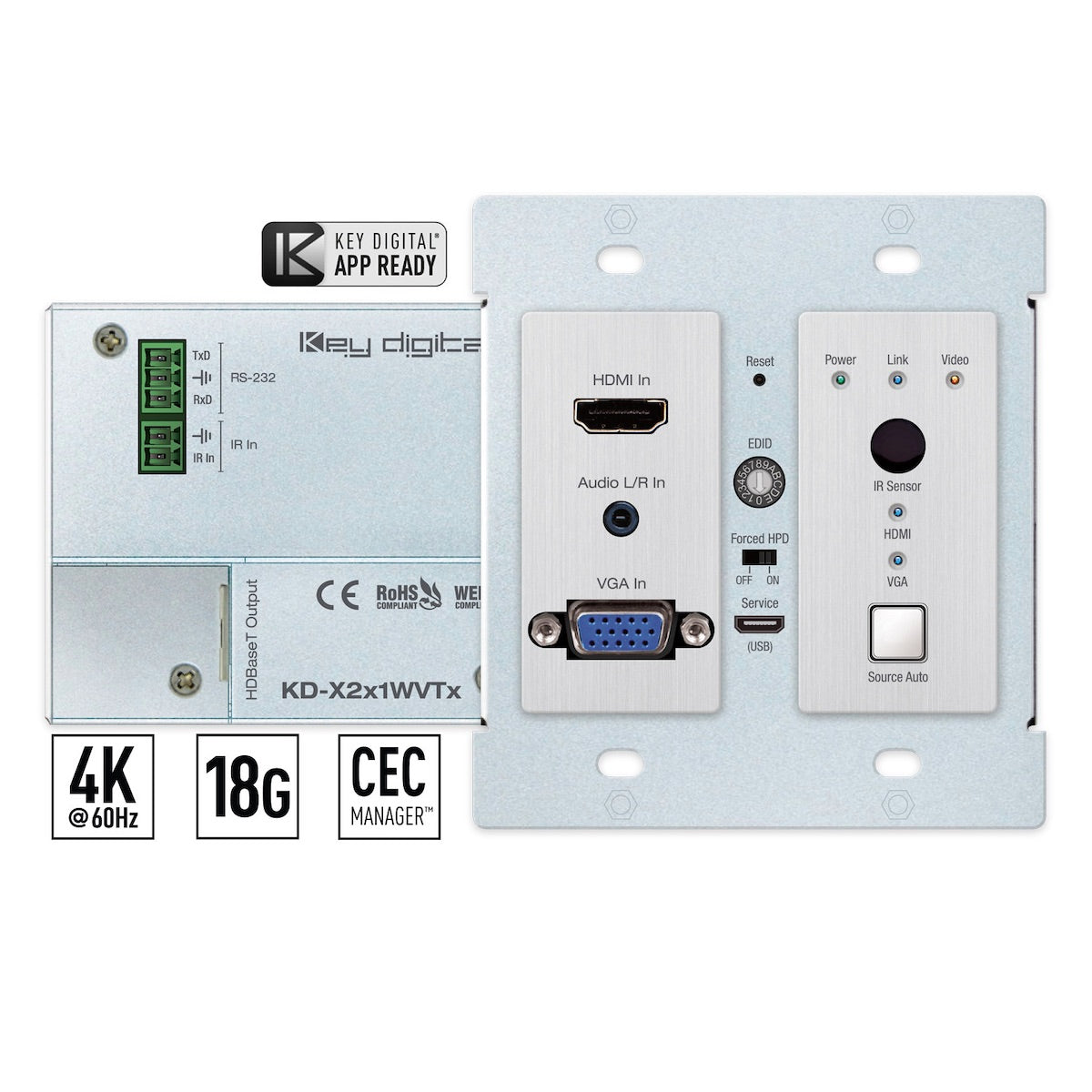

The Key Digital KD-X2x1WVTx is a 2x1 4K/18G 40m HDBaseT PoH Dual-Gang Wall Plate Switcher with HDMI and VGA, IR, RS-232. This is a transmitter only.
Features
• Presentation Switching: 1 HDMI and 1 Display Port/VGA with Analog Audio source selected by push button
• Rx Options: Native integration with KD-X40MRx black box HDBaseT Rx and KD-PS42 Presentation Switcher. Other Rx options available
• Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source when enabled
• Converts (KD-X2x1WVTx only): VGA video and analog audio to HDMI
• Video Scaling (KD-X2x1WVTx only): Aspect ratio, resolution set, image size, image position, image phase, and color tone processing of VGA signals ensures proper display
• HDCP Licensing: Fully licensed and compatible with HDCP 2.2
• HDR10: More life-like images through a greater range of luminance levels
• Power Over HDBaseT: Wall-plate unit powered by Rx/Presentation Switch unit
• Installation: Tx unit designed for installation in standard US dual-gang box. Silver Decora plate included
• Signal Extension: For resolution and cable quality
- 4K/UHD (18G): Up to 40m/131ft
- 1080p: Up to 70m/230ft
• Deep Color Support: Up to UHD/4K 60Hz 4:2:0 12bits or 4:2:2 12bits
• Full Buffer System: Manages TMDS re-clocking/signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage
• EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
• VGA EDID (KD-X2x1WVTX only): Unique EDID handshake provided to VGA source and HDMI source
• IR Sensor: Wall-plate collects line-of-sight IR from remote(s) without external IR wiring
• RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit
• Unit Control: via USB for initial installation steps
• Lossless Compressed Digital Audio: Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, and Dolby Atmos
