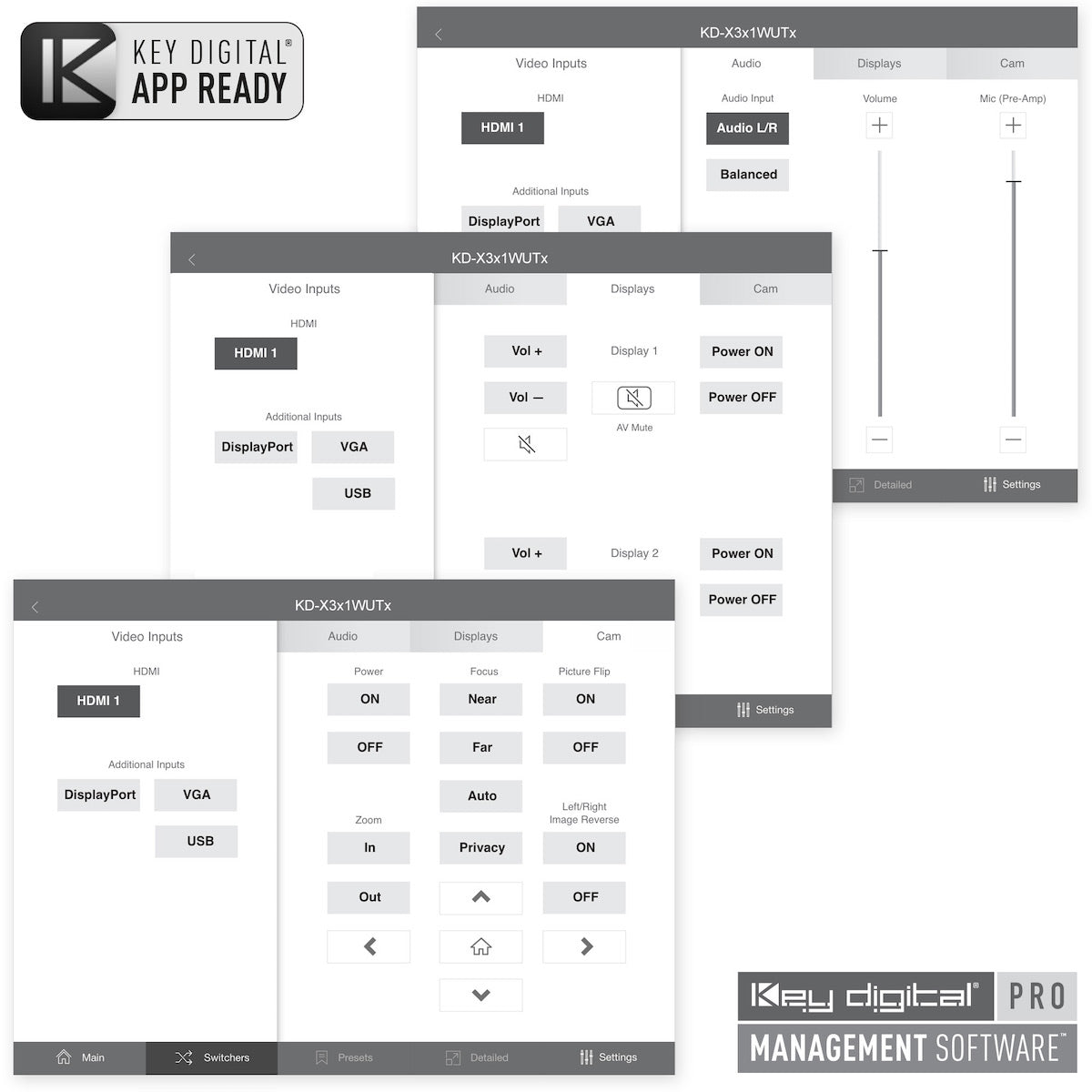

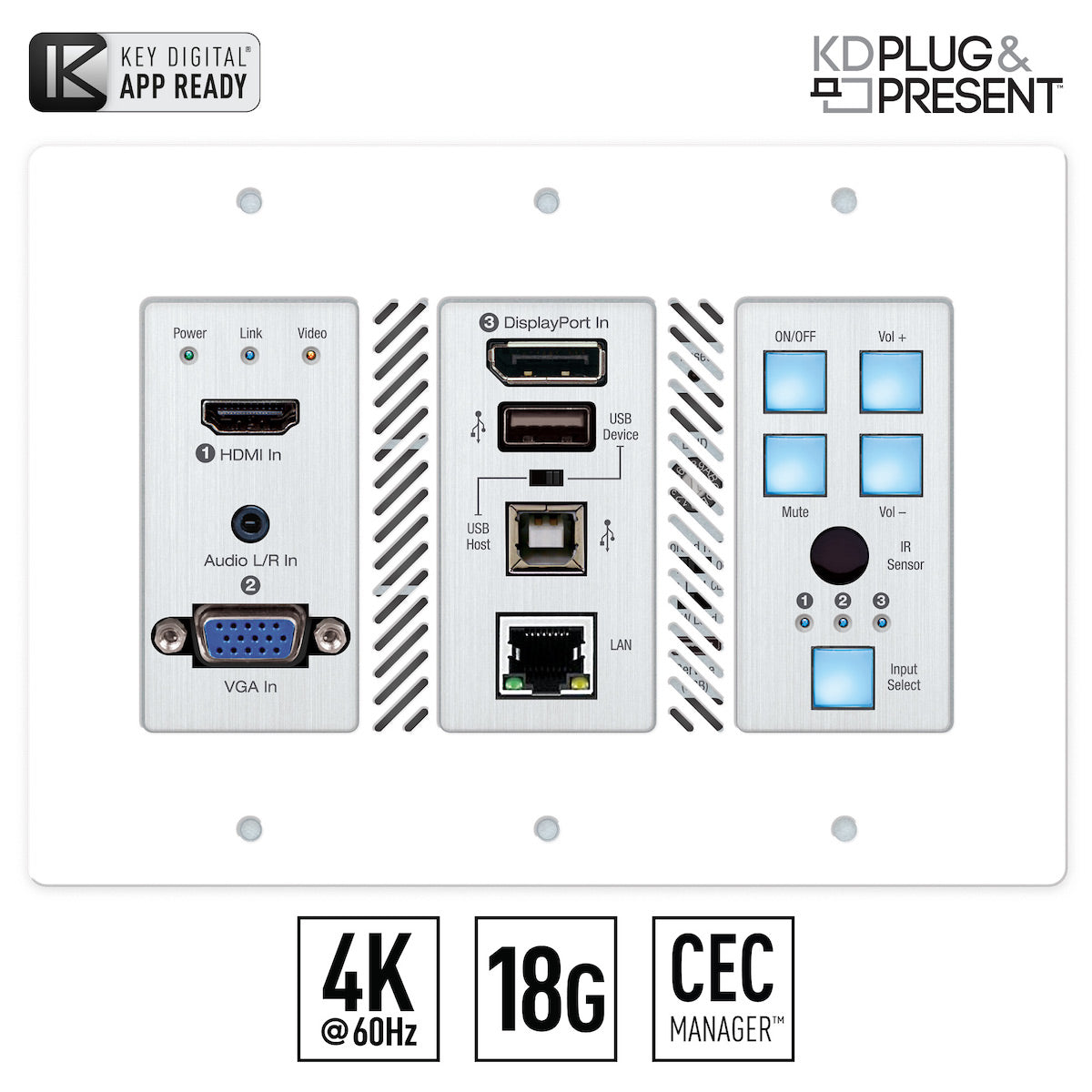

The Key Digital KD-3x1WUTx is an HDBaseT wall-plate transmitter + universal format switcher + soft-codec enabling interface with HDMI, Display Port, and VGA inputs, USB-A and USB-B connections. KD-X3x1WUTx is ideal for professional video installations in conference rooms, class rooms, lecture halls, auditoriums, and more. KD-X3x1WUTx's receivers (sold separately) feature audio de-embedding for ease of integration with audio systems. KD-X3x1WUTx features push-button or IP switching and is KD-App Ready. CEC Display control keypad enables basic controls of the connected display or projector for a simplistic all-in-one integration. In addition to AV signals, KD-X3x1WUTx extends USB 2.0, IR and RS-232 for controlling remotely located equipment. The wall-plate unit fits in a standard US three-gang box and is powered by the Rx unit or Presentation Switcher for convenient installation.
Features
• Auto Switching transmitter with HDMI, Display Port and VGA inputs
• Integrates natively with KD-100MRx or KD-UPS52U (sold separately)
• Extends 4K HDR 18Gbps signals up to 328ft/100m and 1080p signals up to 492ft/150m
• Part of a complete AV + USB 2.0 signal management solution for conference spaces
