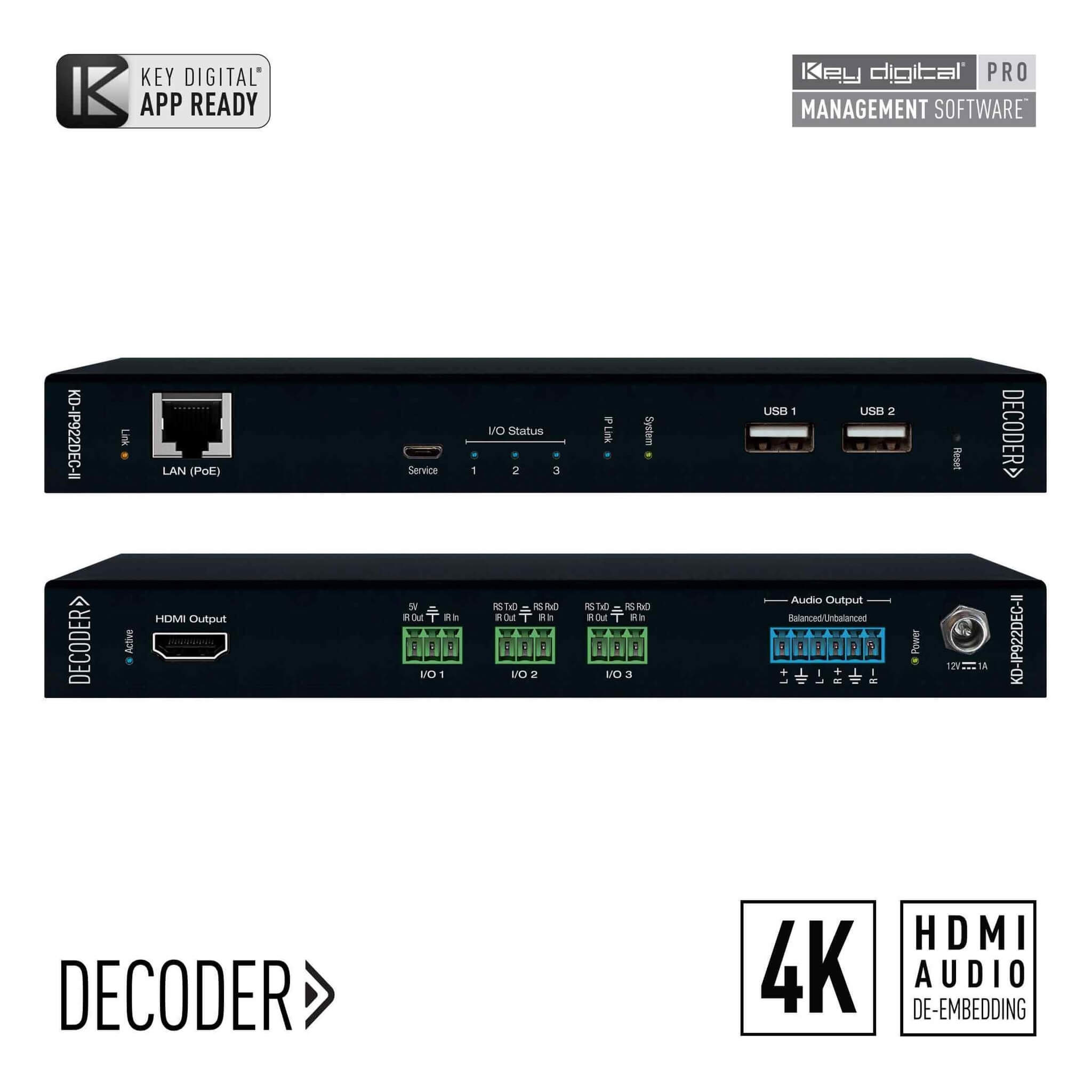

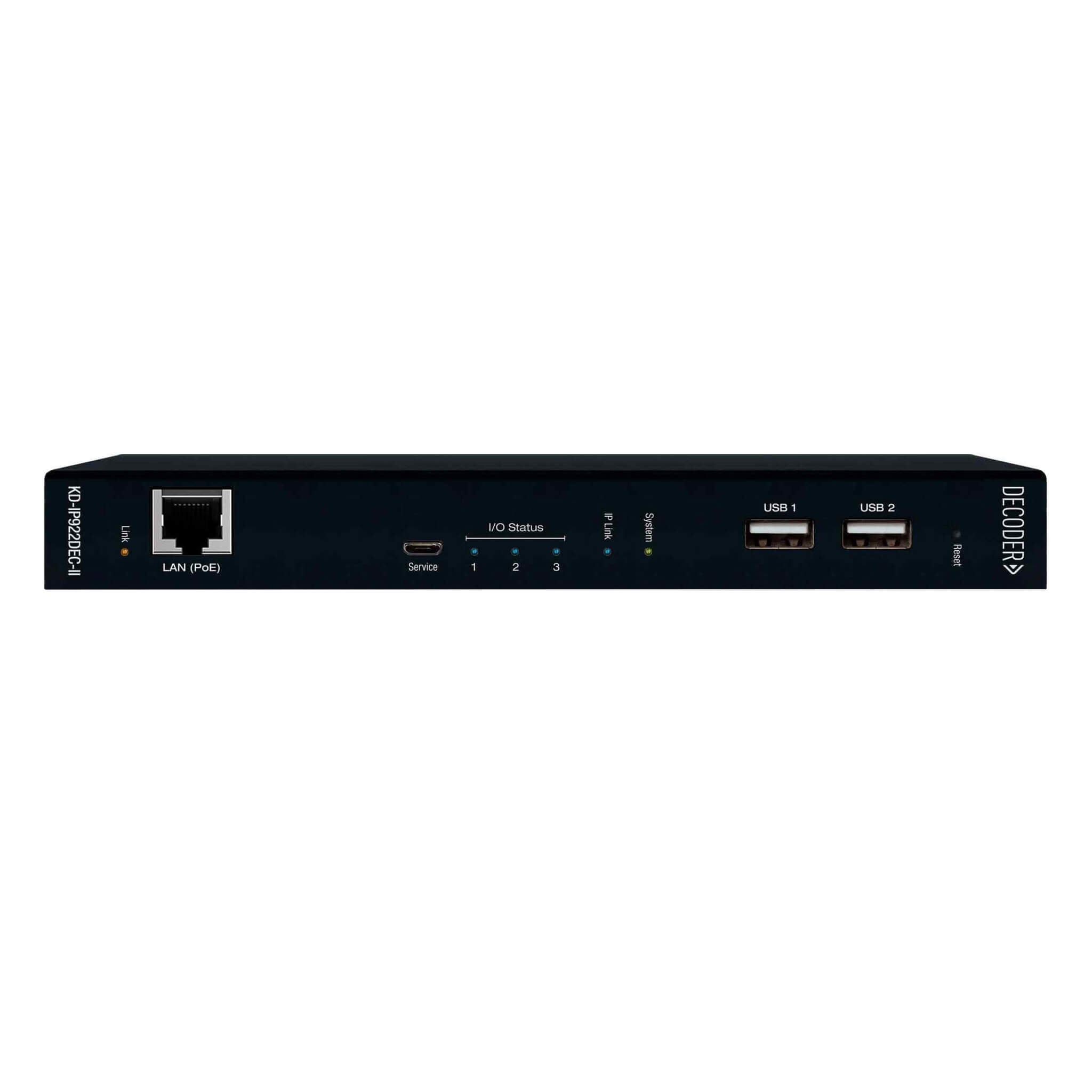

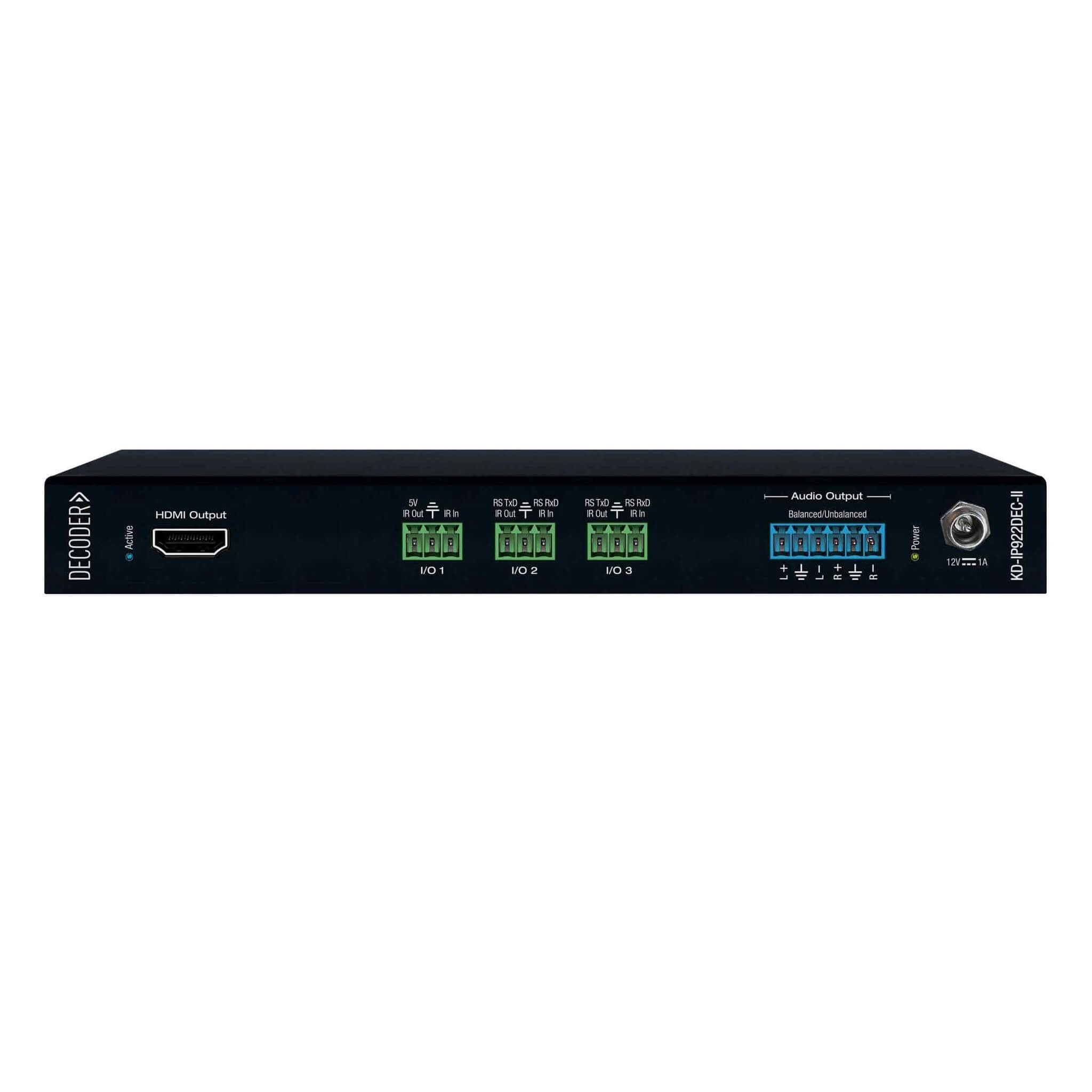

The Key Digital KD-IP922DEC-II is a 4K AV over IP System Decoder with PoE, Open API Control Ports, Analog Audio De-Embedding, and Pre-Amp. This flexible system utilizes a managed gigabit network switch to enable low latency HDMI video distribution, matrix switching, and signal extension. This fully integrated approach ensures that users have access to a complete cohesive AV system with user-friendly control.
Features
-

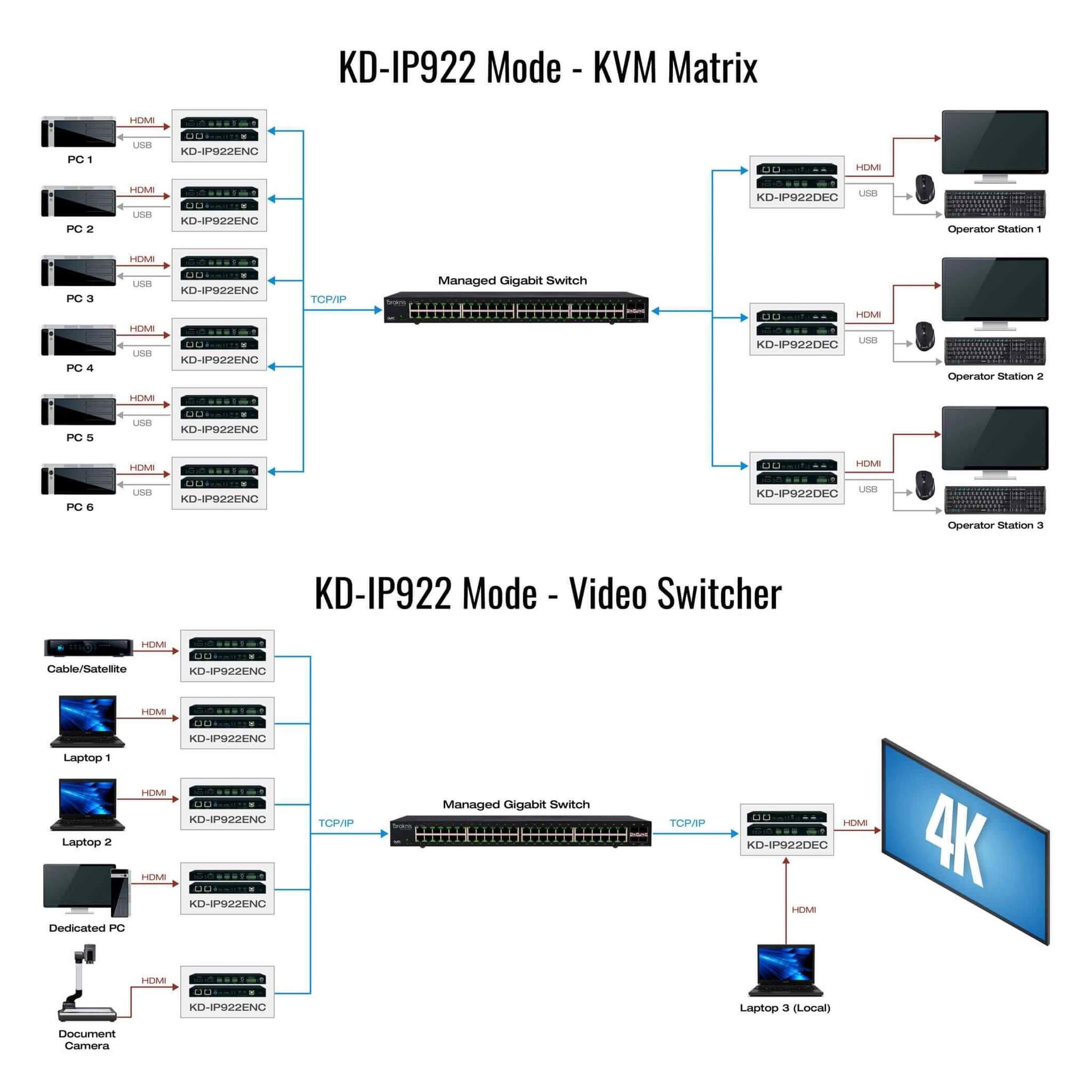

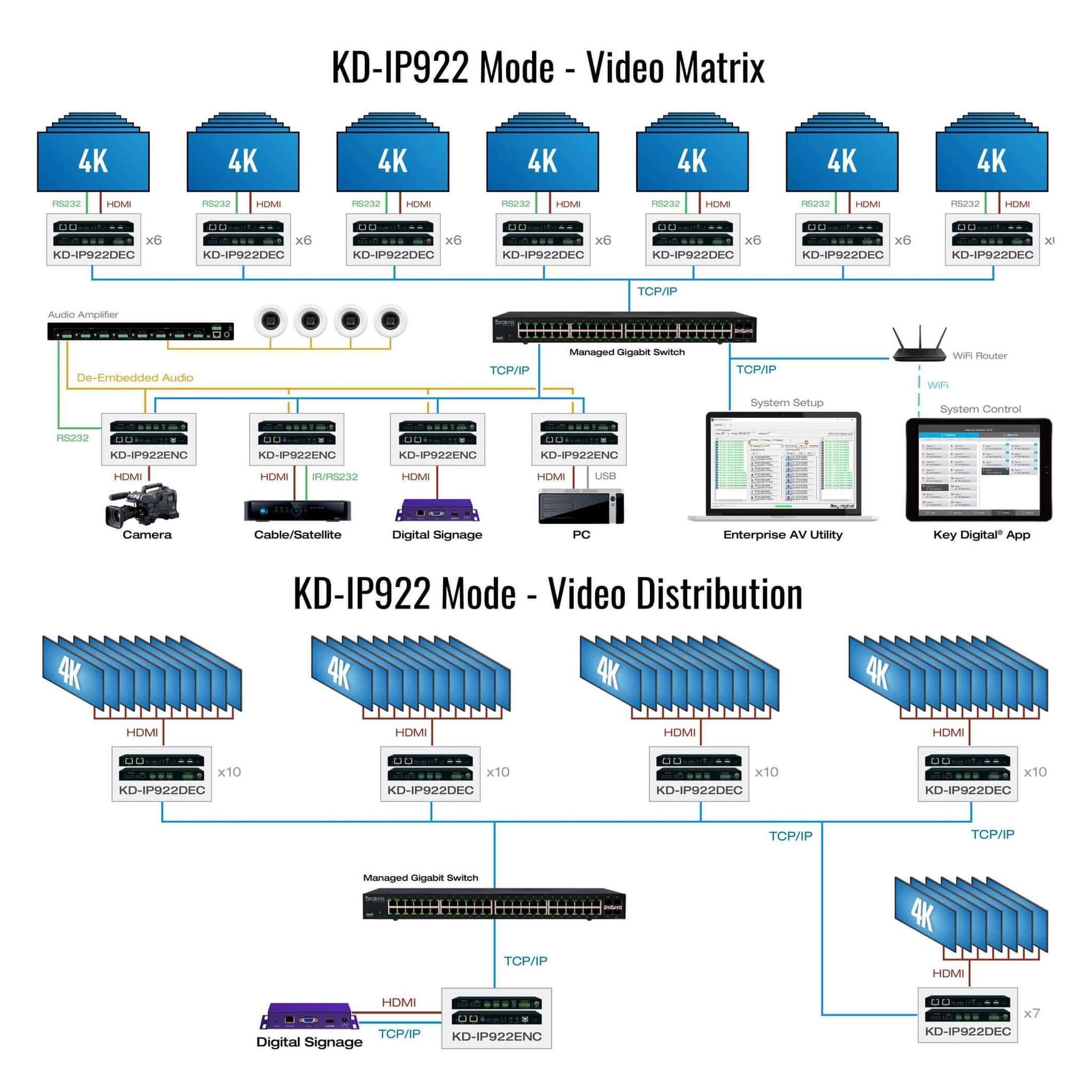

AV Over IP: Utilizes a managed gigabit network switch to enable HDMI video distribution, matrix switching, and signal extension
-
Video Wall Processing: Encoder + Decoder systems create video walls with up to 16x16, 256 total maximum displays
-
Control: 3 multi-function ports may be used as Compass Control® Pro master controller, by IP control systems via KeyCode open API, or as a third-party control interface
-
Key Digital® App Ready: Network scan & detect populates pre-built GUI including optional image preview, finger drag video wall management, source and display control of popular devices via IR, RS-232, and CEC
-
KDMS Pro Ready: PC software for unit & system setup and control UI with clean End-User mode option including optional image preview, mouse-drag video wall management, source and display control of popular devices via IR, RS-232, CEC, and PJ Link
-
CEC HDMI Display Control: Power on and off compatible displays without any additional cabling
-
HDMI Pass-through: Tx unit HDMI Pass-through to connect local monitor, HDMI Audio systems
-
Audio De-Embedding: Audio from the HDMI input is de-embedded through Analog phoenix terminal to enable external audio connectivity with audio systems and amplifiers
-
Audio Pre-Amp: Volume, muting, 3-band EQ, and lip-sync delay controllable on audio de-embed port
-
USB 2.0: Routing follows AV source / display selection with maximum of 4 USB keyboard or mouse devices simultaneously routed to a single host computer / encoder. 1.5Mbps maximum bandwidth. Webcams not supported. For non-keyboard & mouse device inquires, please contact Technical Support before purchase
-
4K/Ultra HD Resolution: Support for 4096x2160 or 3840x2160 24/25/30Hz at 4:4:4/8 Bit (10.2Gbps max bandwidth)
-
4K Down-scale: Incoming 4K resolution can be down-converted to 1080p or 720p at each decoder, enabling monitors to display content at optimal resolution at all times
-
Signal Extension: Up to 330 ft. / 100 m @ 4K 24/25/30(4:4:4) into network switch or or point-to-point
-
Power over Ethernet: Does not require power supply when integrated with compatible PoE network switch
-
Redundant Power Connection: Added reliability for non-PoE integration
-
HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
-
Data Stream Bandwidth: ≤ 850Mbps at 4K, ≤ 250Mbps at 1080K, ≤ 125Mbps at 720p / 1080i
-
Latency: <40ms at 4K. Less at lower resolution
-
Installation: Use KD-SMS16 to cleanly install up to twelve ENC/DEC units in rack
-
RS-232/TCP-IP Control Mode: Provides control of unit as well as connectivity status
-
Surround Audio: Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio™
-
Control System Support: Controllable by all IR, RS-232 & TCP/IP supported control systems via open API
