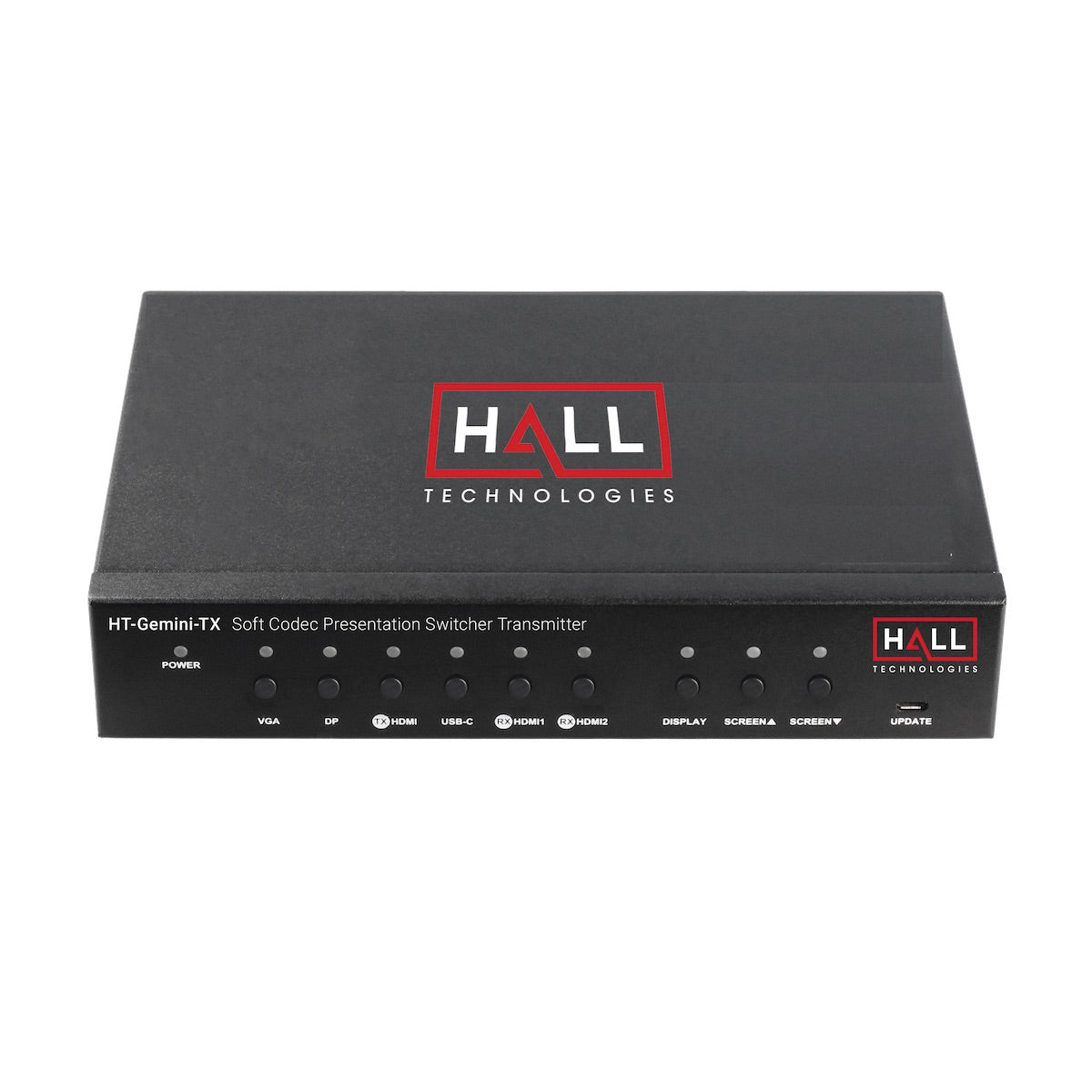

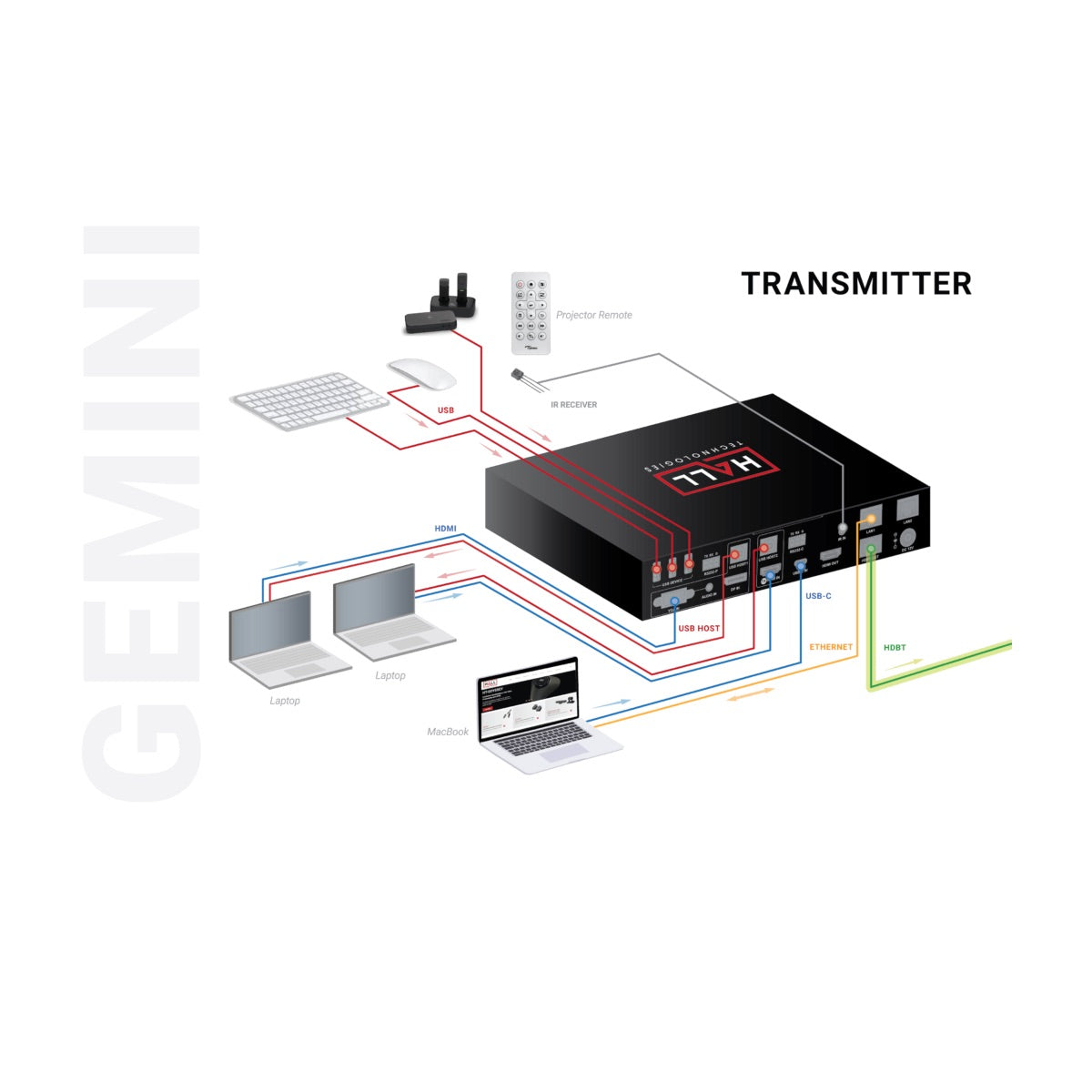

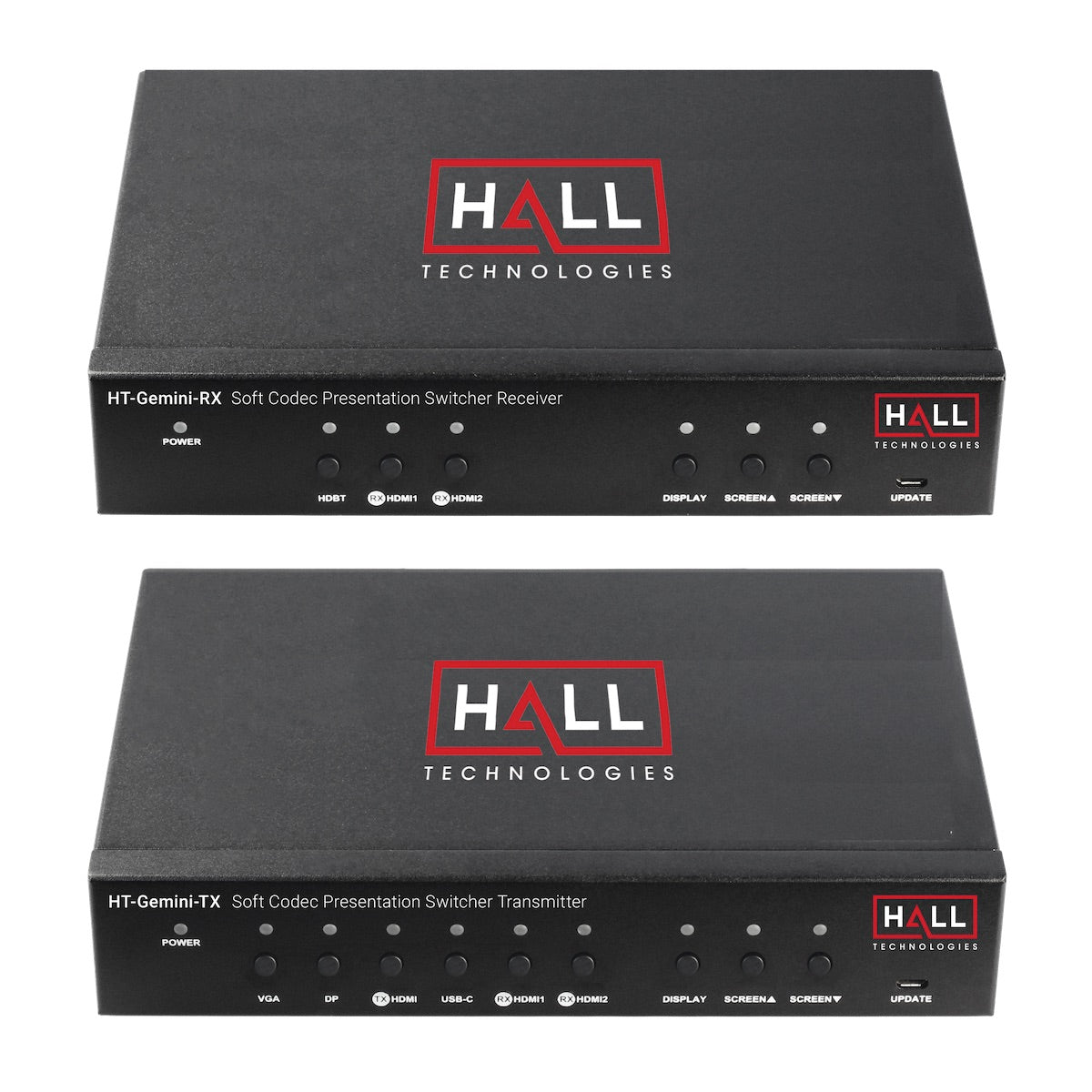

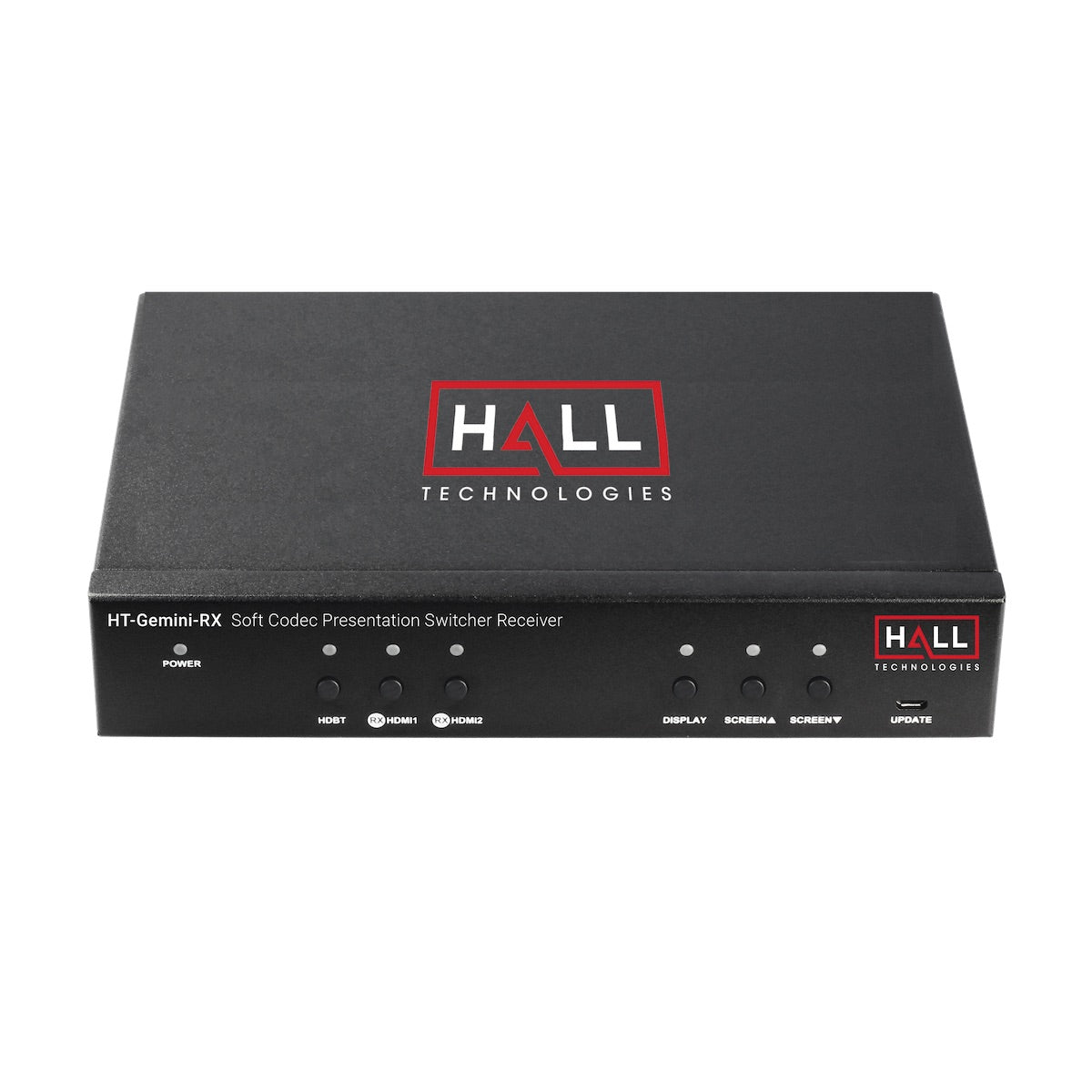

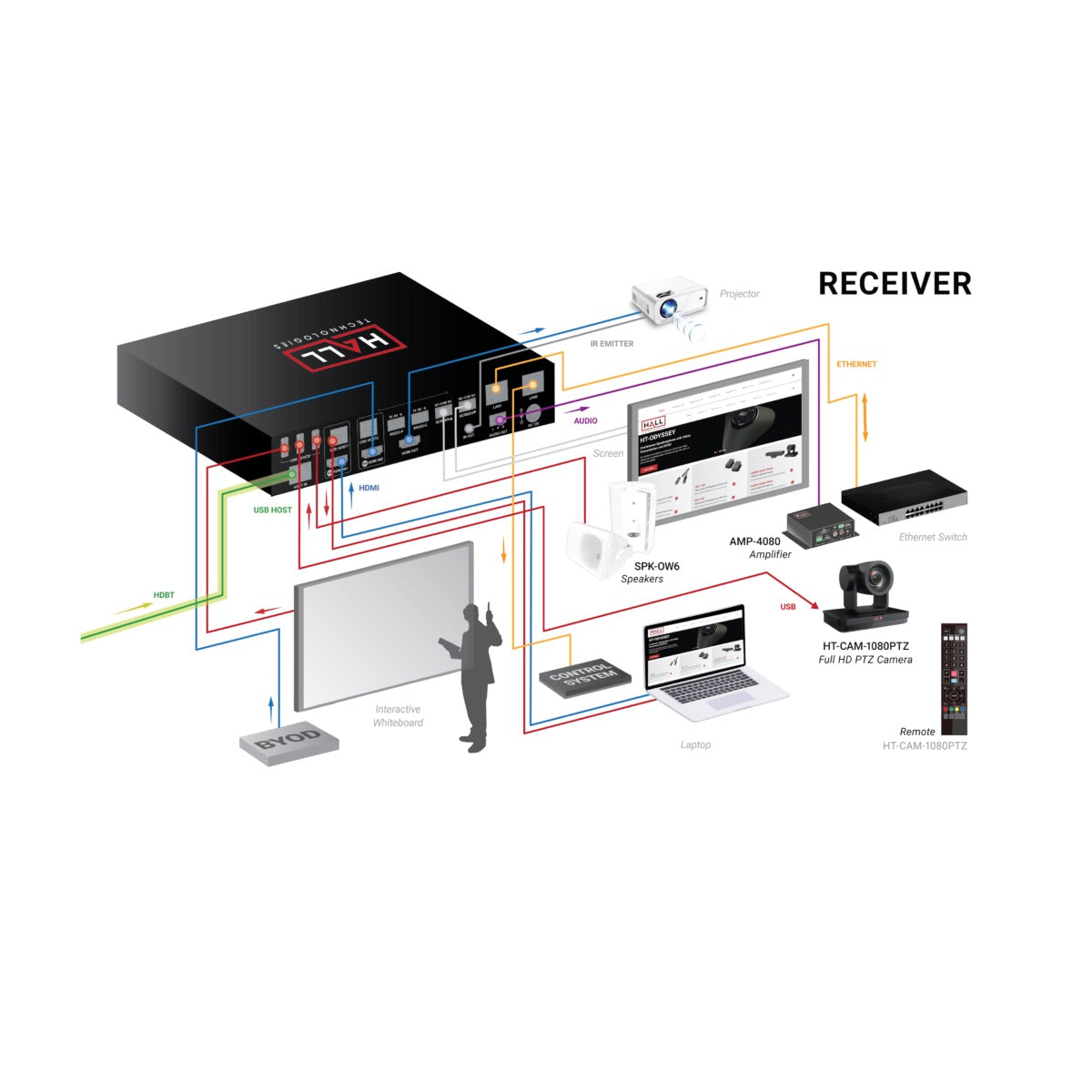

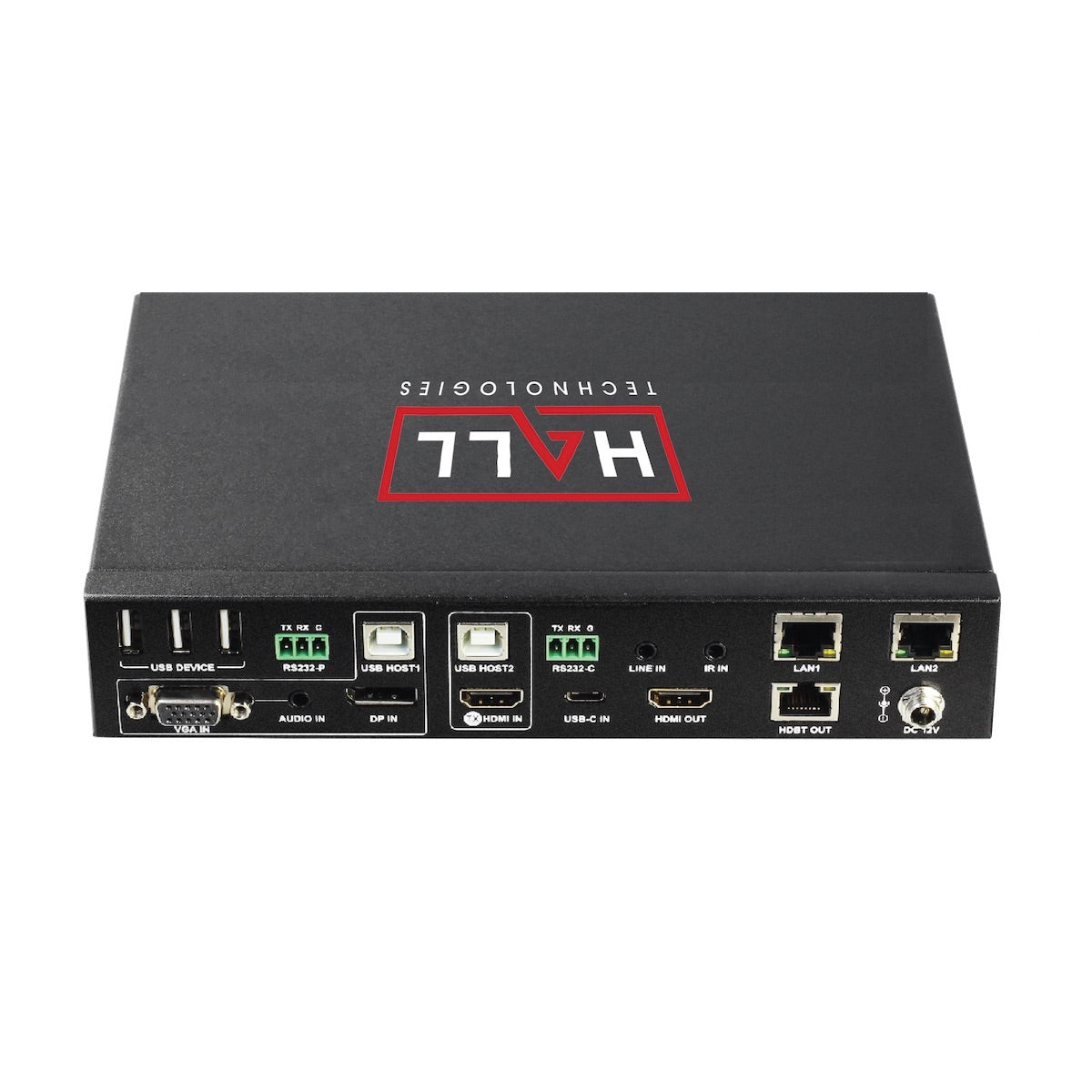

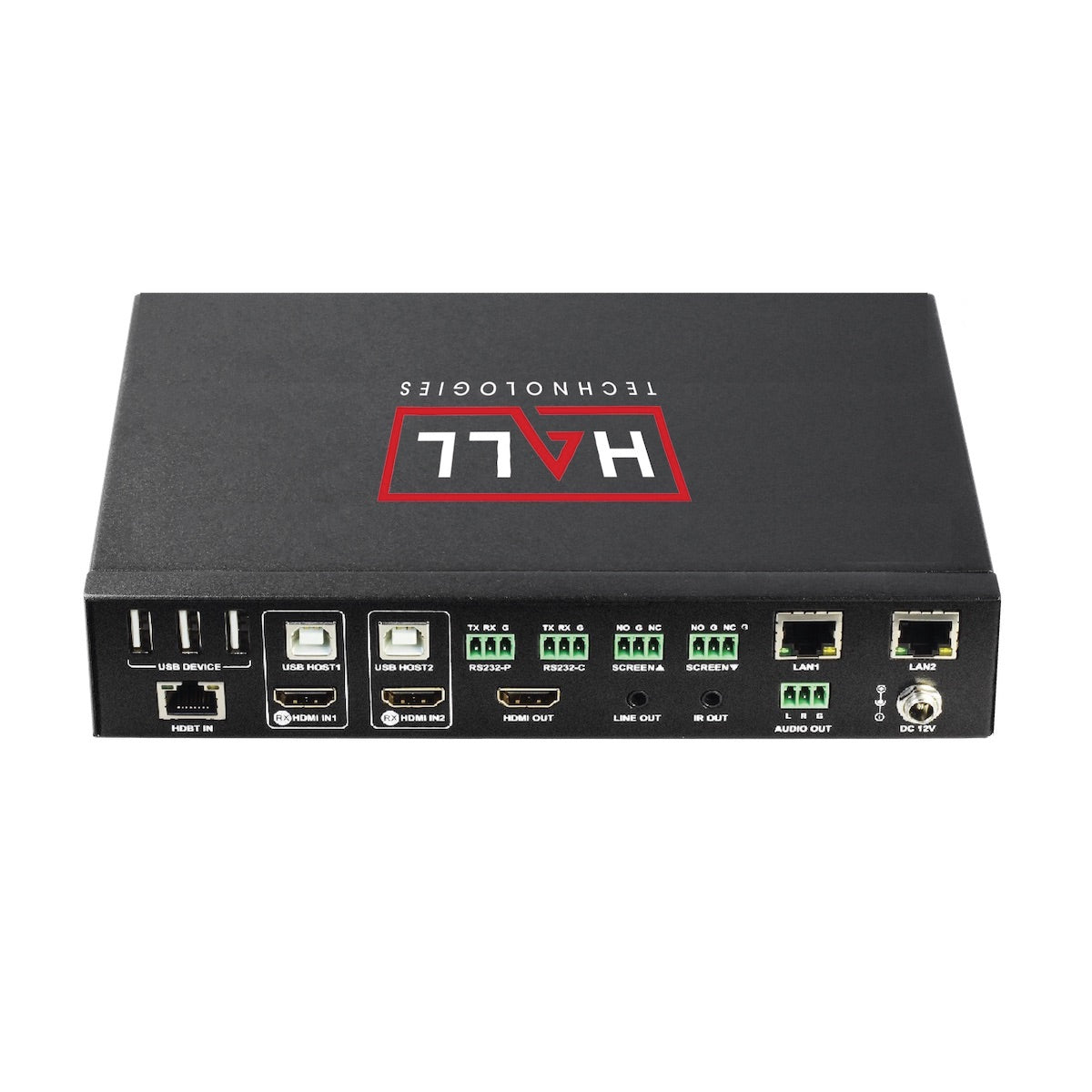

The Hall Technologies HT-GEMINI is a 4K 6-Input multi-format extender switch with USB extension for a soft codec, which provides AV switching, USB, HDMI, DP, VGA, and USB-C extension, plus system control for meeting spaces using PC-based conferencing codecs such as Microsoft Skype, Webex by Cisco and Citrix GoTo Meeting. The kit offers six video inputs shared between both devices for HDMI, Display Port, VGA plus analog audio in and USB-C video signals. To simplify conference room device management, the kit provides four USB Type-B connectors for host computers. Six built-in USB hubs, three on the transmitter and three on the receiver, allow for numerous Human Interface Devices (HID) as well as USB cameras and microphones.
The kit is compatible with Ultra High-Definition source up to 4K/UHD@60 Hz with 4:2:0 color subsampling. All audio, video, data, control, USB, and Ethernet transmission between the two devices is carried over a single, Ethernet-enabled HDBaseT link up to 100m/330ft.
HT-GEMINI simplifies classroom and small office system integration, for installation beneath conference tables and in lecterns, to provide localized presentation switching support.
Features
• HDMI 2.0 with 4k@60Hz (Chroma sub-sampling 4:2:0 8-bit only) and HDCP 2.2 compliance, VGA input up to 1920×1200@60Hz.
• Provides a variety of interfaces including USB-C to simplify meeting room devices management.
• Inputs connected to either the transmitter or the receiver can be displayed on the HDMI out on either the transmitter or the receiver or both simultaneously.
• Automatically detects active inputs when sources are connected.
• Supports USB hosts such as Desktop and Laptop, and peripheral USB devices such as keyboard, mouse, microphone, speaker, camera, and whiteboard for a conference system.
• Ethernet can be connected into either the receiver or the transmitter, providing LAN accessibility for users.
• Allows connected displays to be controlled via CEC commands or front panel buttons.
• Relay commands can be triggered to control relay devices such as projection screens.
• RS232 pass through; IR pass through from TX to RX.
• API Control via LAN interface and RS232-C.
• De-embedded audio can be routed out of the Receiver to an external amplifier.
