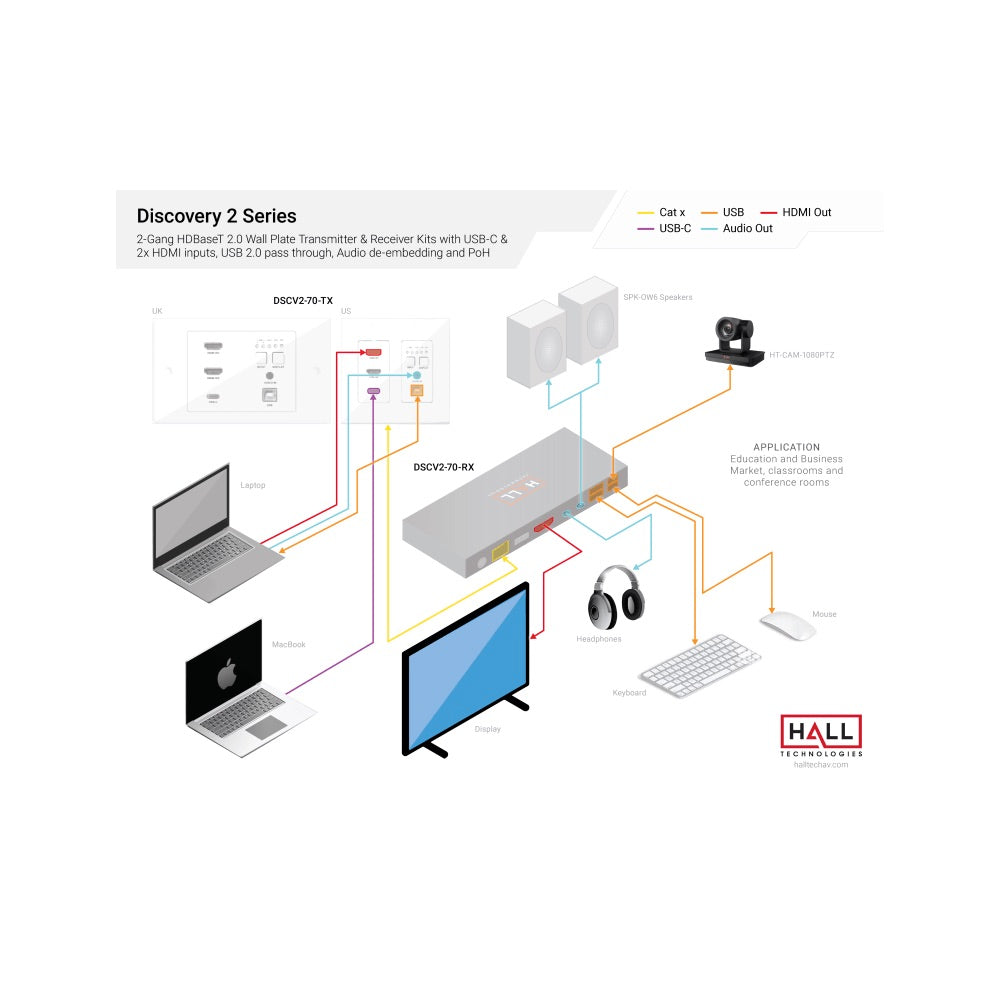

The Hall Technologies DSCV-70-RX is an HDBaseT 2.0 receiver that is designed to work with an HDBaseT wall plate transmitter, reliably extending 4K video, multi-channel audio, USB 2.0, RS232 signal and power over a single Cat 5e/6/6a/7 cable. With a PSE module built-in, it can supply power to the transmitter with PD module via a single power supply.
The DSCV-70-RX supports USB 2.0 pass-through, providing a solution for users who need remote control of PC resources sources such as keyboard, mouse, interactive display, or USB streaming devices over distance. The RS232 port allows bi-directional RS232 serial communication and firmware upgrade, while functions can be set via the DIP switch.
Features
• Simple and cost-effective HDBT 2.0 receiver
• HDMI 1.4 with 4K@60Hz (chroma sub-sampling 4:2:0 8-bit only) and HDCP 2.2 compliant
• Receives 4K signal up to 40m/131ft via a single Cat 6a/7 cable
• Receives 1080p signal up to 70m/230ft via a single Cat 6a/7 cable
• Supports analog audio pass-through from transmitter to receiver
• Supports analog audio de-embedding for HDMI output
• High-speed USB 2.0 pass-through and RS232 pass-through over HDBT
• Supports two-way RS232 serial communication to control a wall plate transmitter
• Supports firmware upgrade through the RS232 port
• Built-in PSE to power remote HDBT wall plate transmitter with PD module
• 4x USB 2.0 device ports, 2 are high-current ports (1.4A) for connecting high-power devices such as camera
