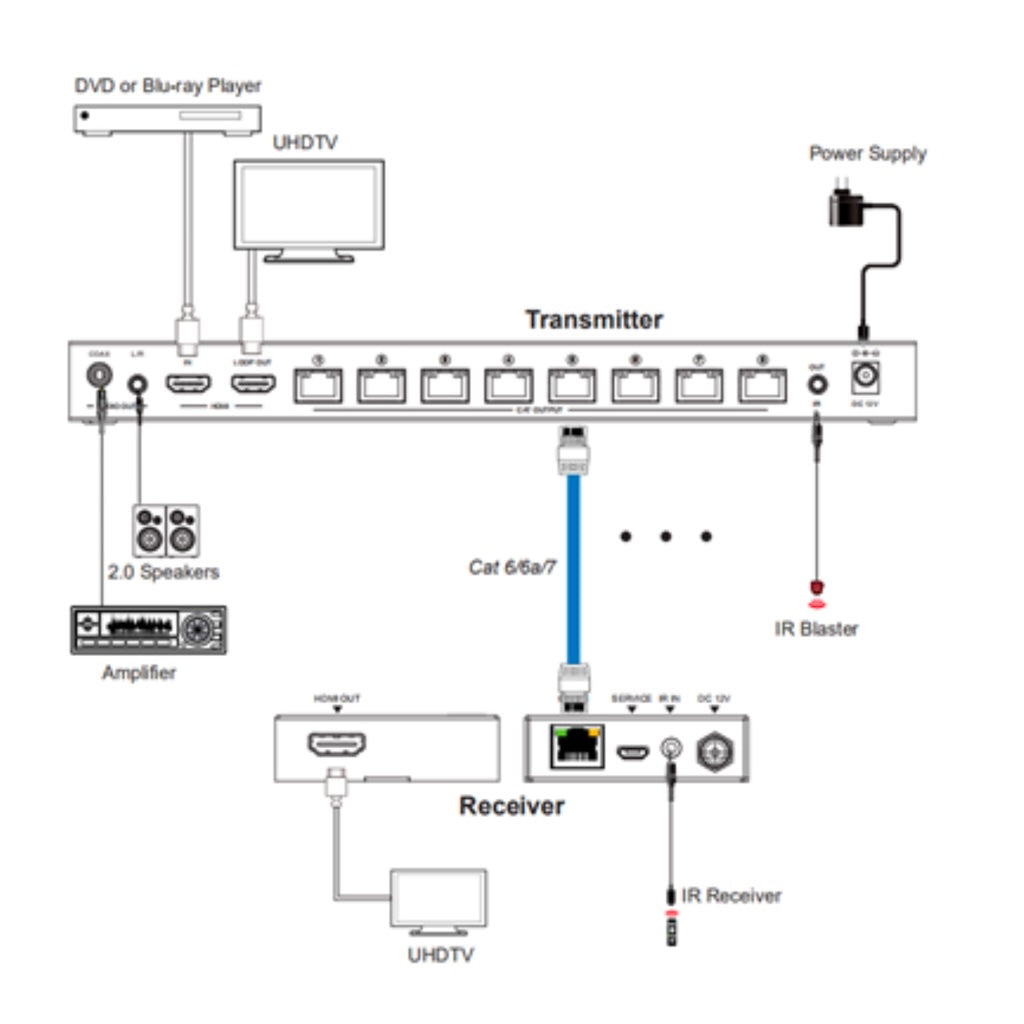

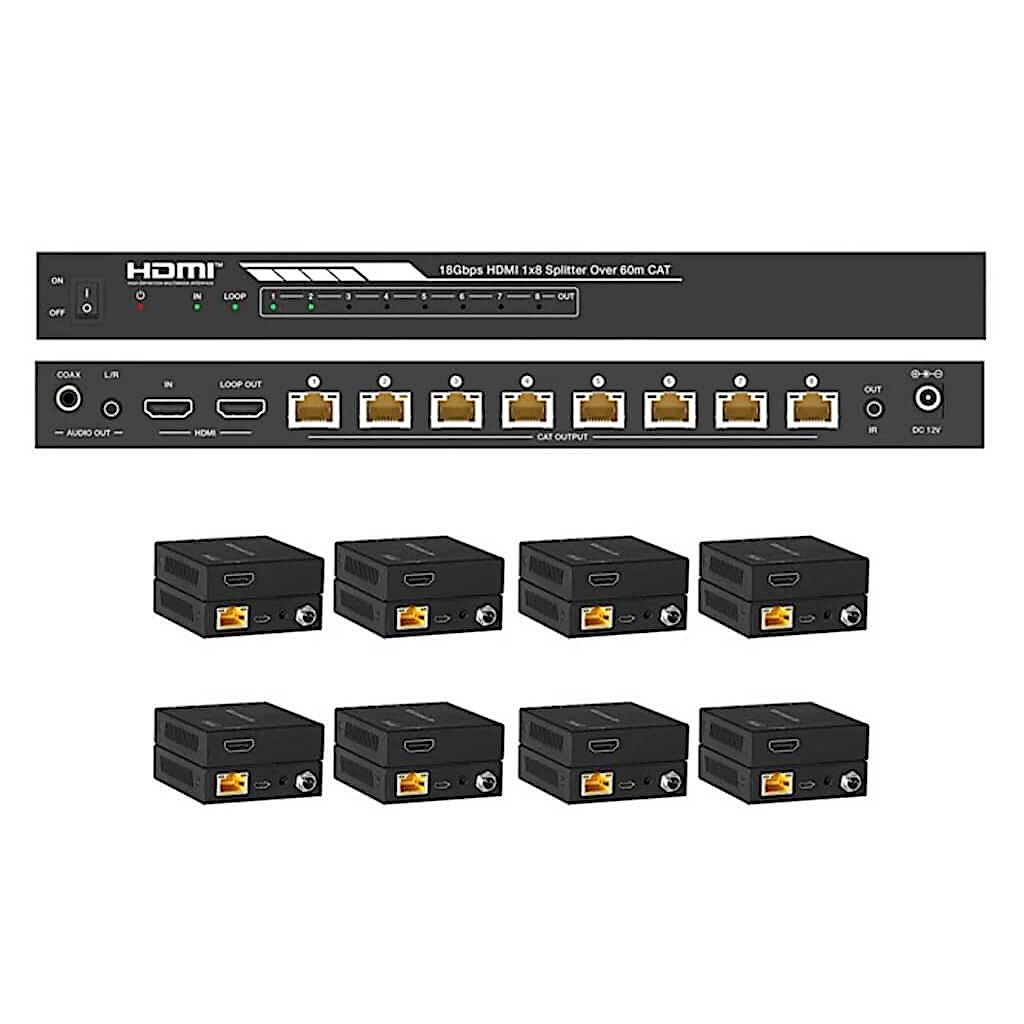

The DVDO Splitter-18-CAT is an 18Gbps 1x8 HDMI splitter that can distribute a single HDMI source signal to any 8 display devices, with supported video resolutions up to 4K2K@50/60Hz 4:4:4. The splitter has 1 HDMI loop output in addition to the 8 Cat outputs and comes with 8 Cat receivers. The HDMI signal transmission distance can be extended up to 115ft/35m at the resolution of 4K2K@60Hz, or 164ft/50m at 4K2K@30Hz, or 197ft/60m at 1080p@60Hz via a single Cat6/6a/7 cable. DVDO-Splitter-18-CAT supports one-way IR control signal pass-through, audio extract function and advanced EDID management.
Features
• Includes 1x8 splitter and 8 CAT receivers
• HDMI 2.0, HDCP 2.2 / 1.x and DVI 1.0 compliant
• 18Gbps video bandwidth
• Supports video resolutions up to 4K2K@50/60Hz 4:4:4
• 3D, HDR, HDR10+, HLG, Dolby Vision
• Up to 7.1CH HD audio pass-through
• Digital and analog audio de-embedded outputs
• Extends 4K60 up to 115ft/35m, 2K30 up to 164ft/50m, and 1080p60 197ft/60m
• 1 HDMI input, 1 HDMI loop output and 8 Cat outputs
• One-way IR control signal pass-through
• Advanced EDID management
• One-way PoC function (only from transmitter to receiver)
