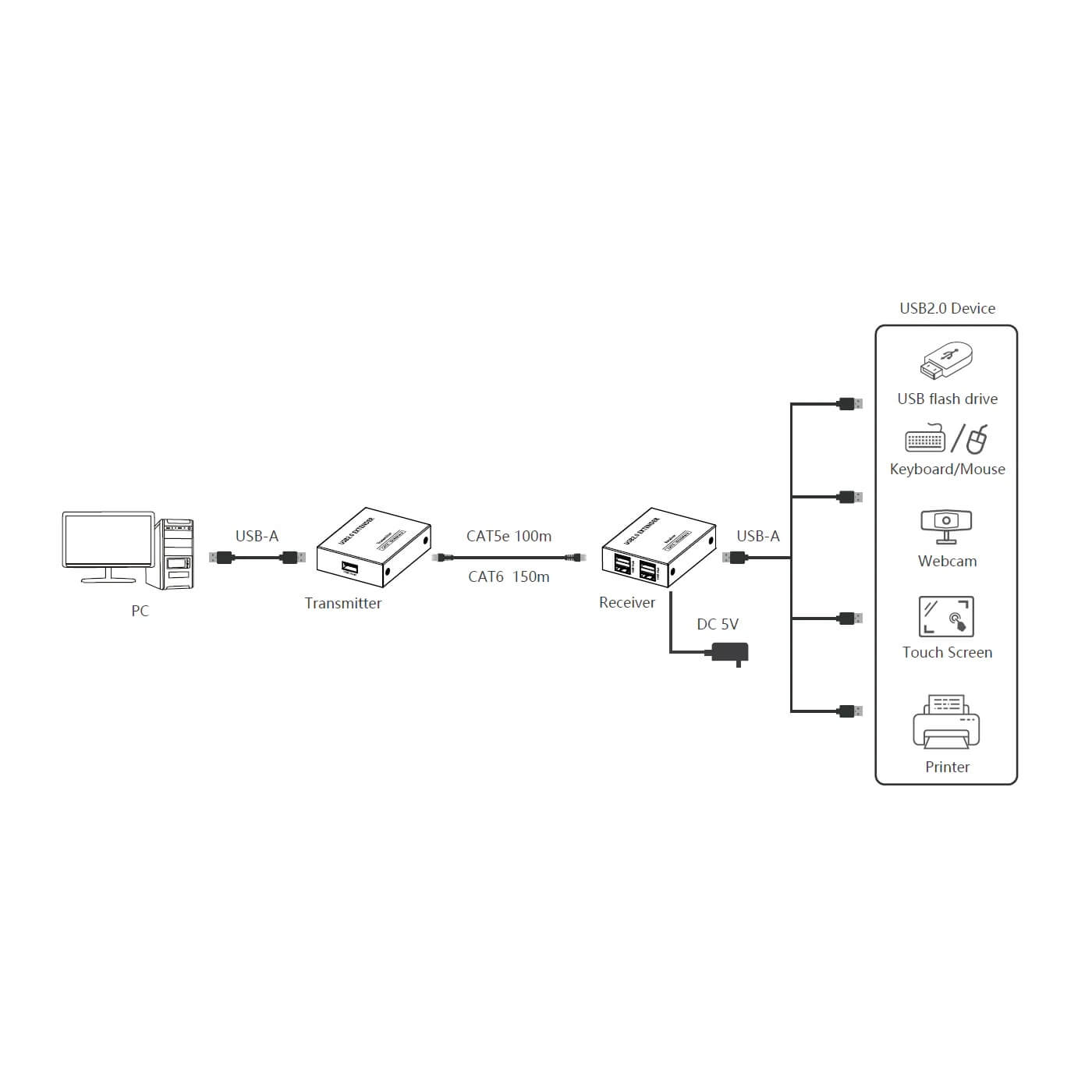

The DVDO USB-Pair-2 is a USB 2.0 extender set that can transmit USB signals up to 150m/492ft via a single Cat6/6a/7 cable. It can be used to transmit signals from USB Devices such as webcams, PTZ cameras, keyboards, mouse devices, USB microphones, flash sticks, printers, scanners, and touch panel displays to a USB Host such as a PC or laptop.

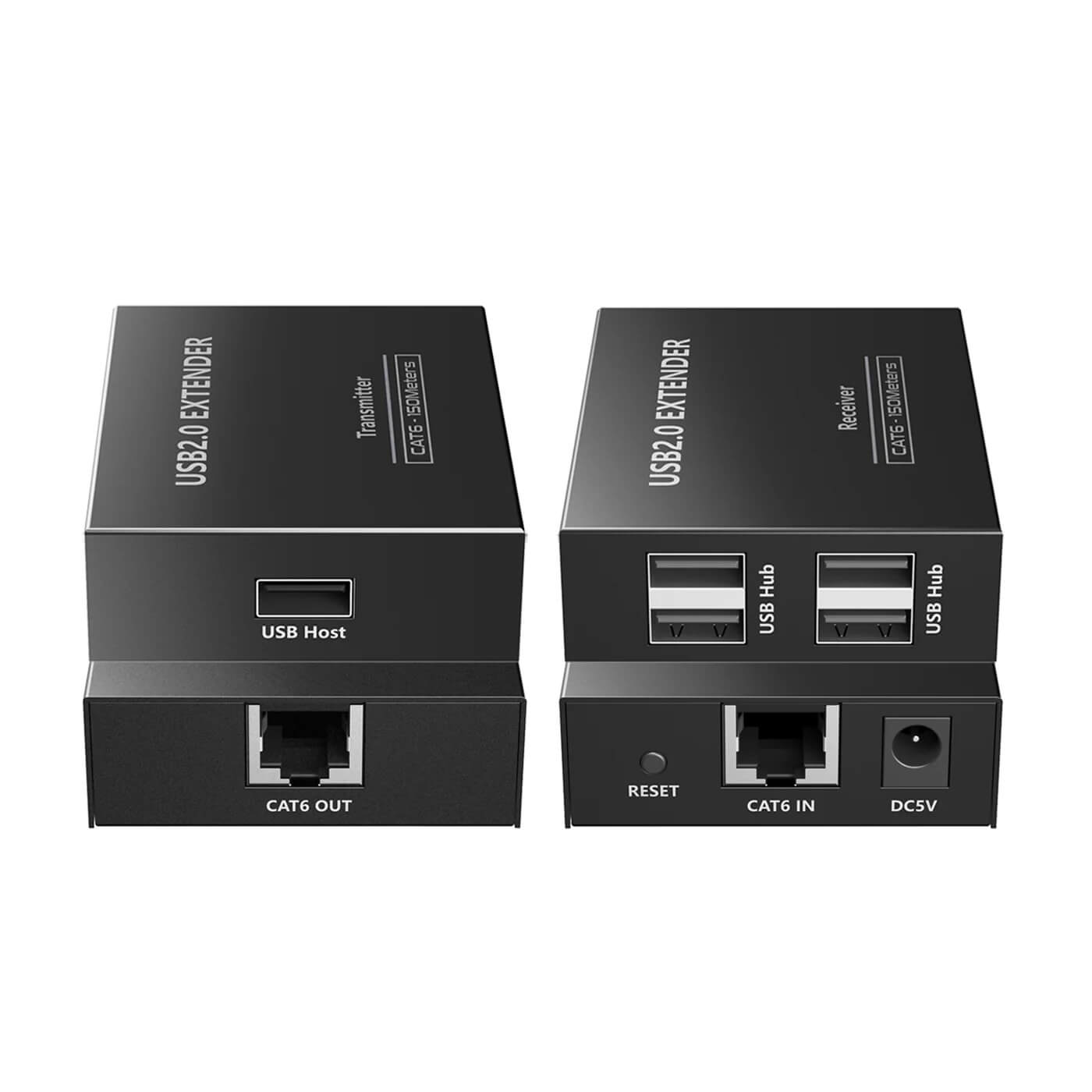

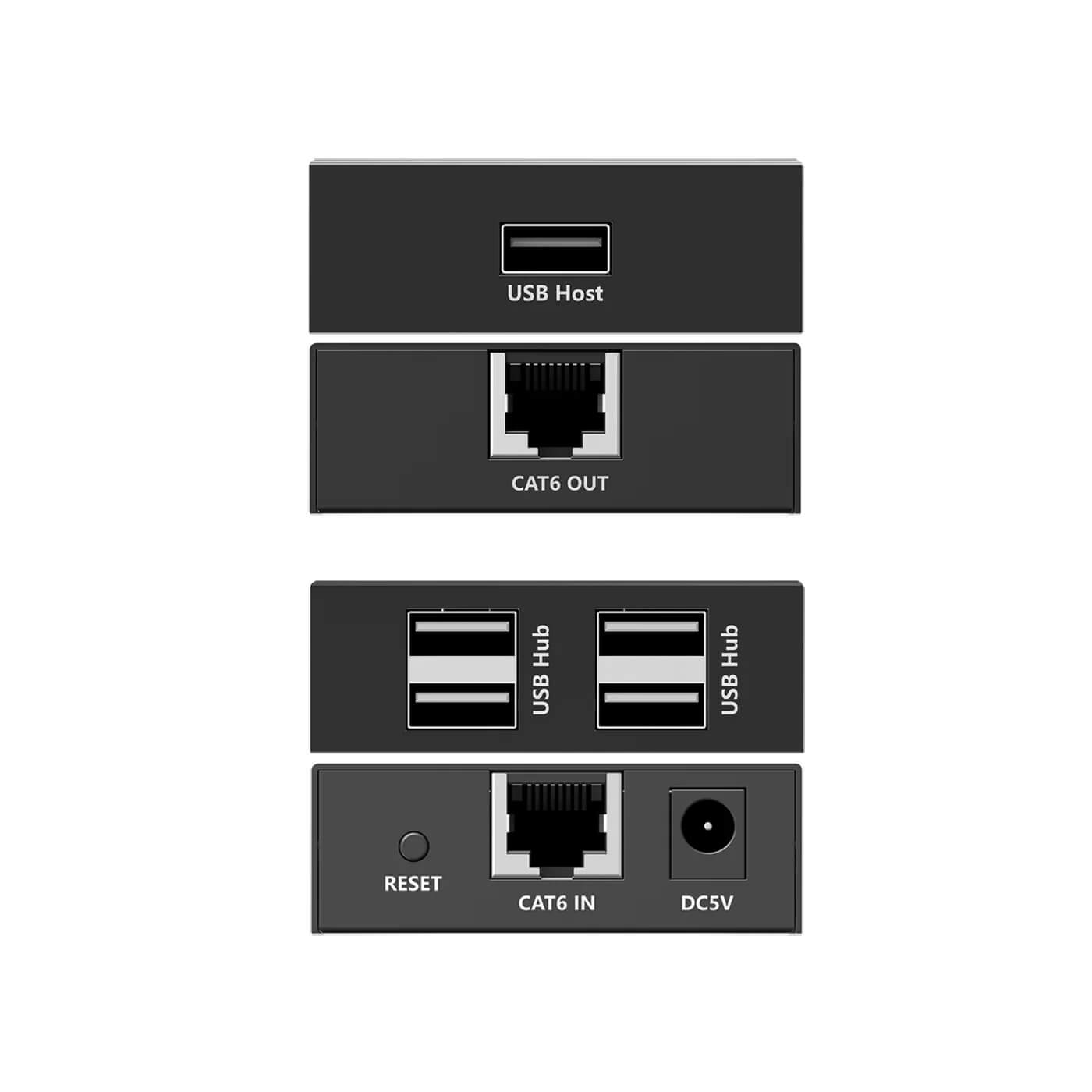

The transmitter includes one USB-A host port. The receiver has a built-in USB hub and includes four USB-A device ports. The transmitter can be powered by the USB host and the transmission distance can be increased with the use of a network switch.
Features
• Supports USB 2.0 High-Speed, USB 1.1 Full-Speed and USB 1.0 Low-Speed
• 1 USB 2.0 Host port on Tx and 4 USB 2.0 Device ports on Rx
• Transmits up to 150m/492ft over Cat6/6A/7 and up to 100m/328ft over Cat5e cable
• Supports USB hub connection
• Tx is powered by the source device, Rx is powered by power supply
• Switch relay: transmission distance can be increased by using a network switch
• USB hot-plug and automatic detection of USB High-Speed, Full-Speed and Low-Speed
• Lightning protection, surge protection, ESD protection
• Plug and play, no driver required
