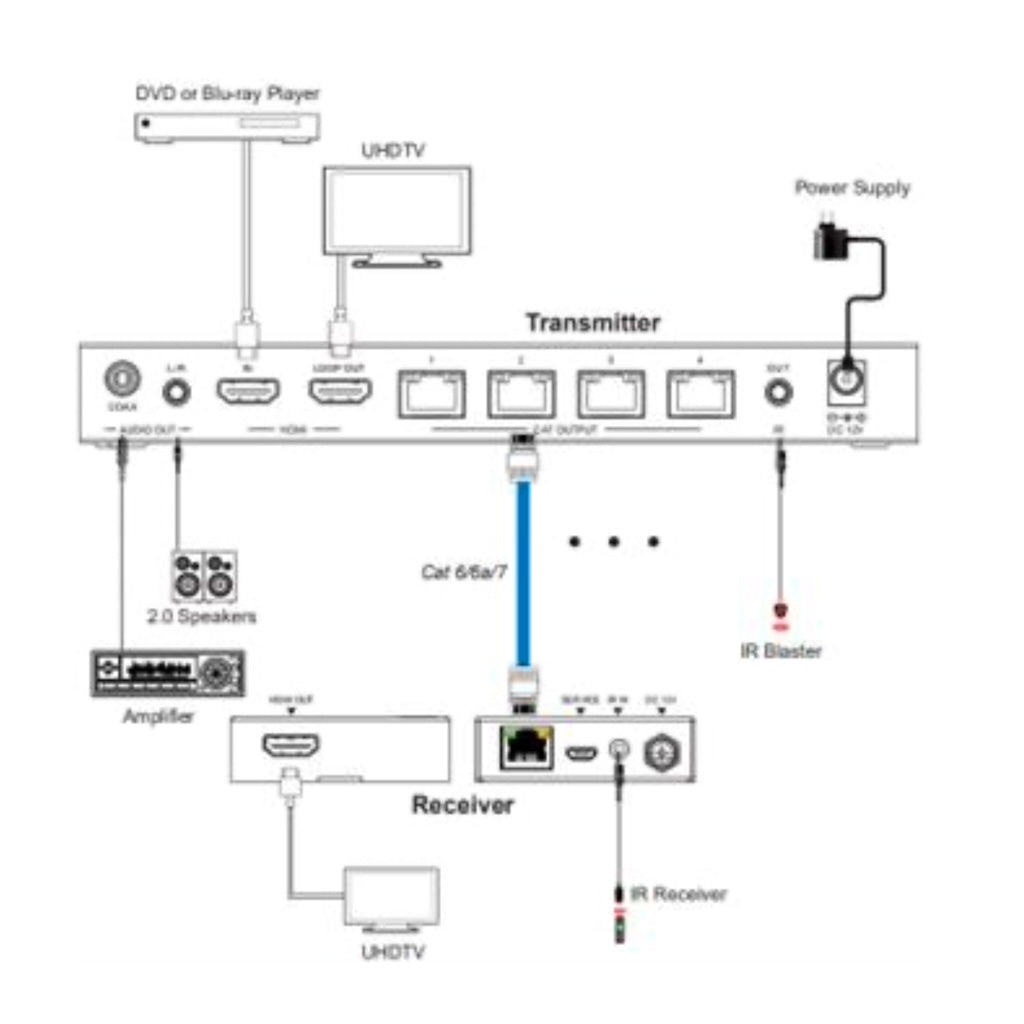

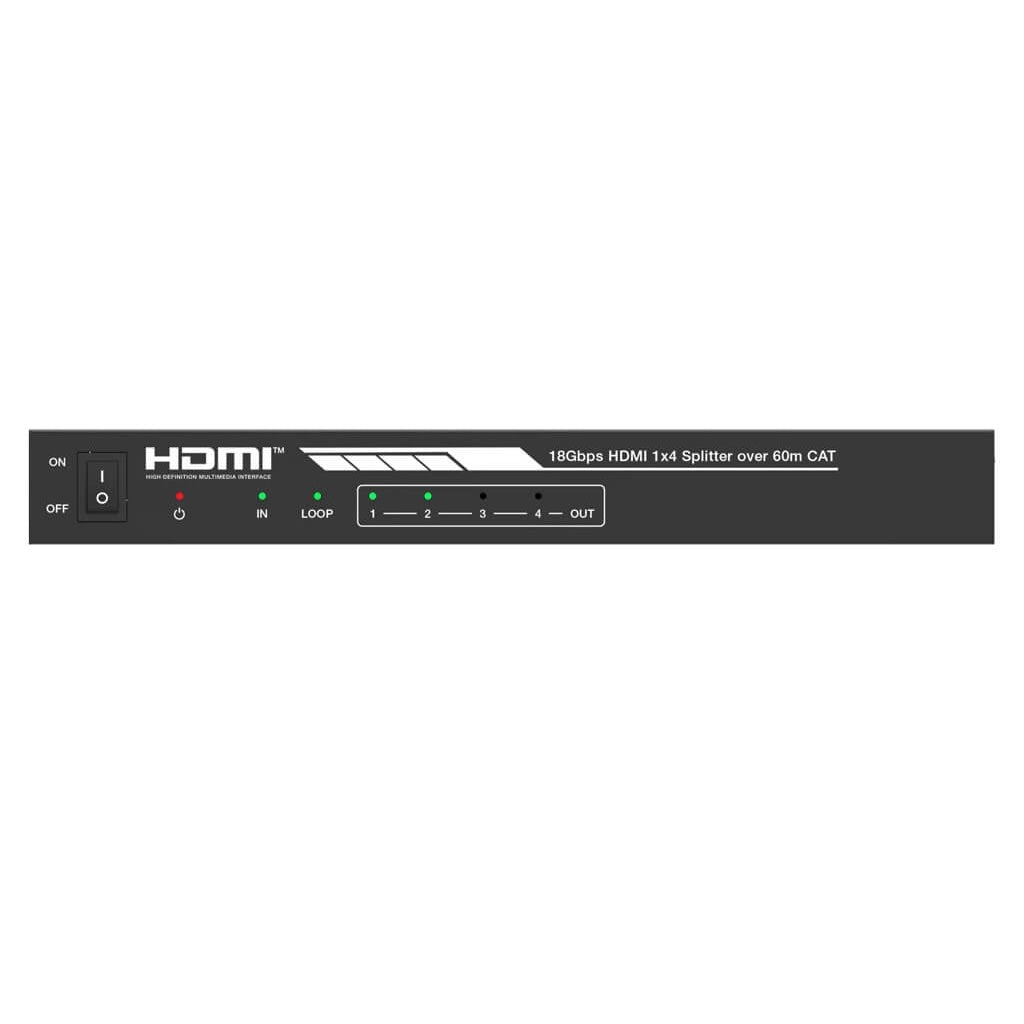

The DVDO Splitter-14-CAT is an 18Gbps 1x4 HDMI splitter that can distribute a single HDMI source signal to any 4 display devices, with supported video resolutions up to 4K2K@50/60Hz 4:4:4. The splitter has 1 HDMI loop output in addition to the 4 Cat outputs and comes with 4 Cat receivers. The HDMI signal transmission distance can be extended up to 115ft/35m at the resolution of 4K2K@60Hz, or 164ft/50m at 4K2K@30Hz, or 197ft/60m at 1080p@60Hz via a single Cat6/6a/7 cable. DVDO-Splitter-14-CAT supports one-way IR control signal pass-through, audio extract function and advanced EDID management.
Features

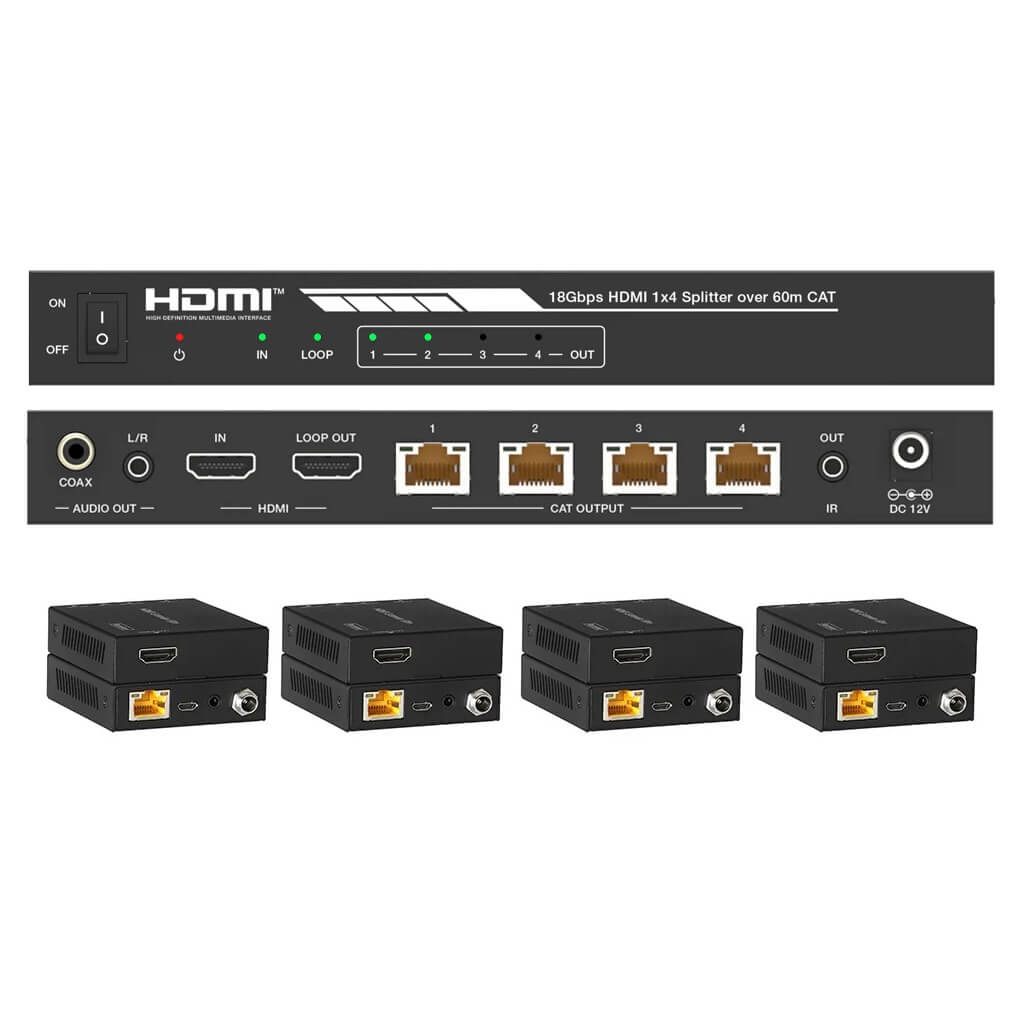

• Includes 1x4 splitter and 4 CAT receivers
• HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
• 18Gbps video bandwidth
• Supports video resolutions up to 4K2K@50/60Hz 4:4:4
• HDR, HDR10+, HLG, Dolby Vision
• Up to 7.1CH HD audio pass-through
• Digital and analog audio de-embedded outputs
• Extends 4K60 up to 115ft/35m, 2K30 up to 164ft/50m, and 1080p60 197ft/60m

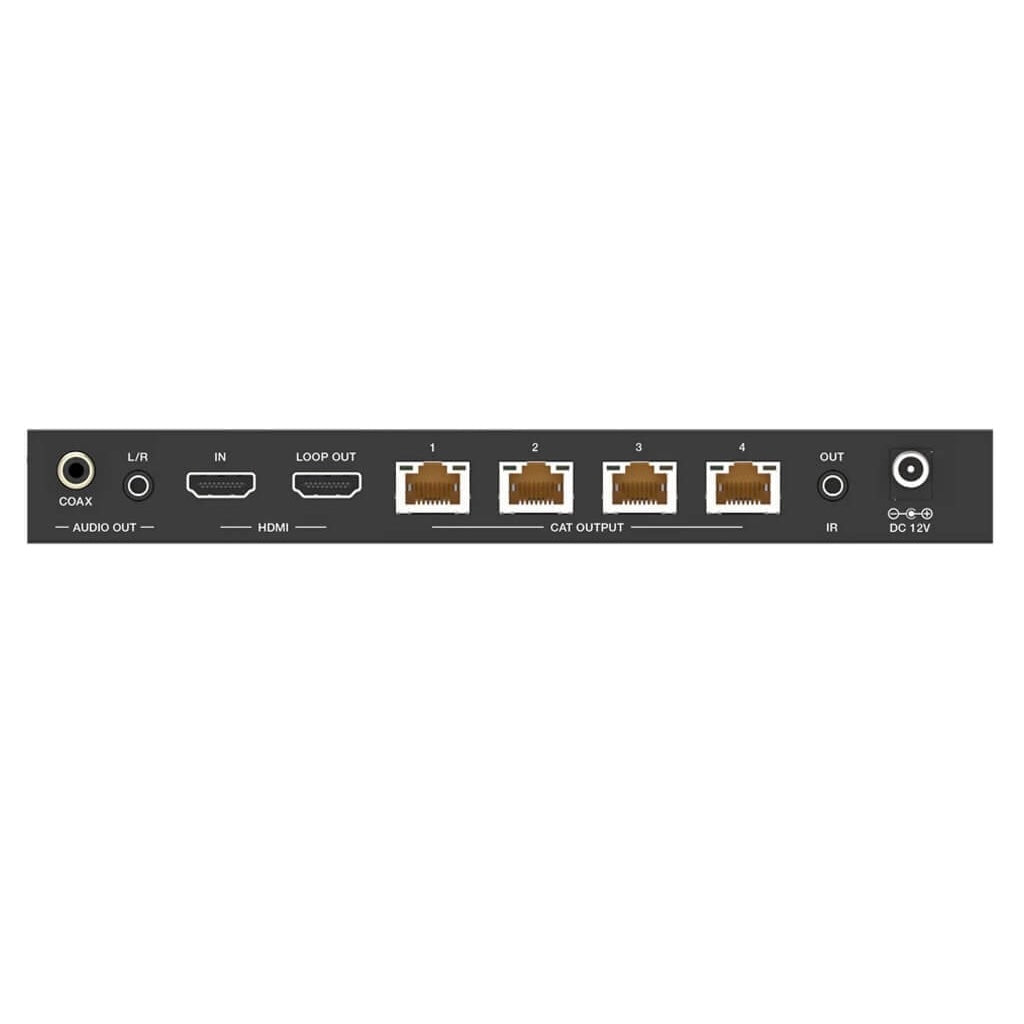

• 1 HDMI input, 1 HDMI loop output and 4 Cat outputs
• 20-60Hz IR control source equipment from Rx side
• Advanced EDID management
• One-way PoC function (only from transmitter to receiver)
