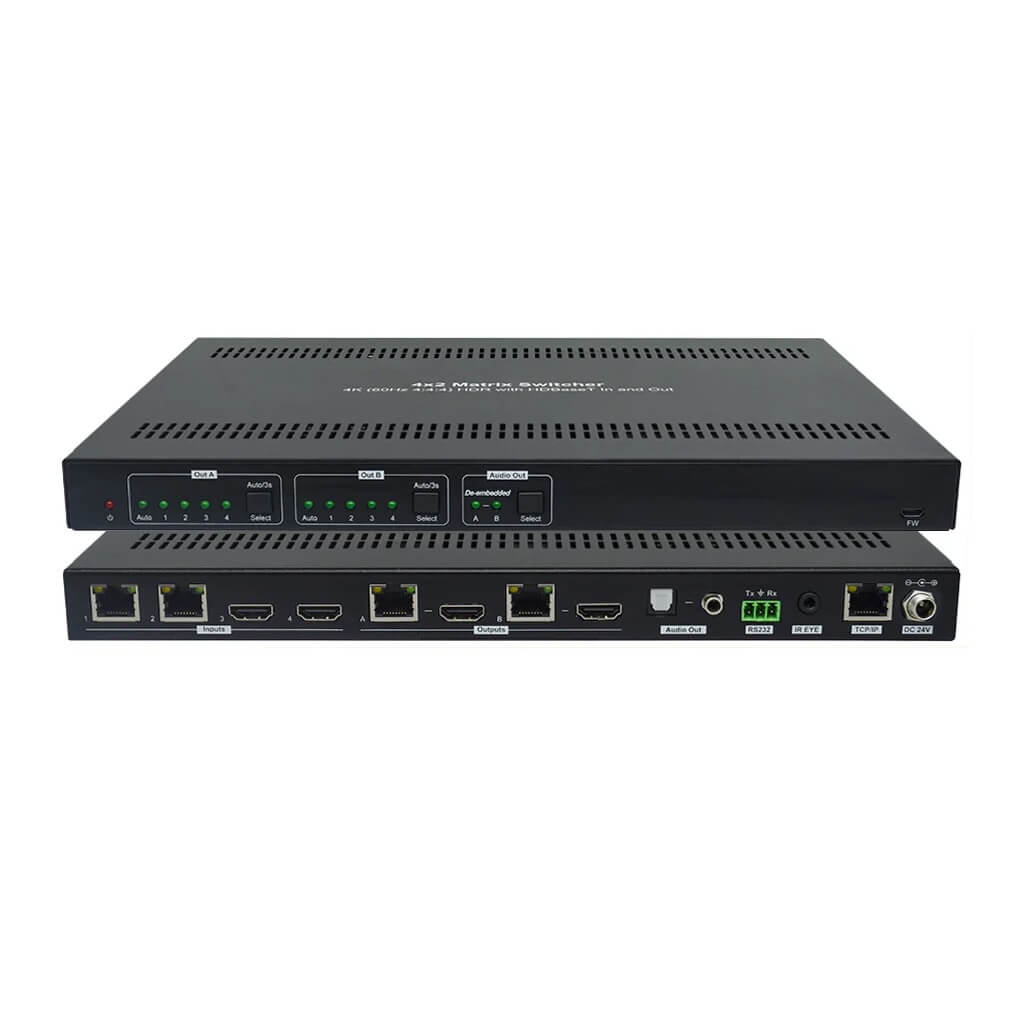

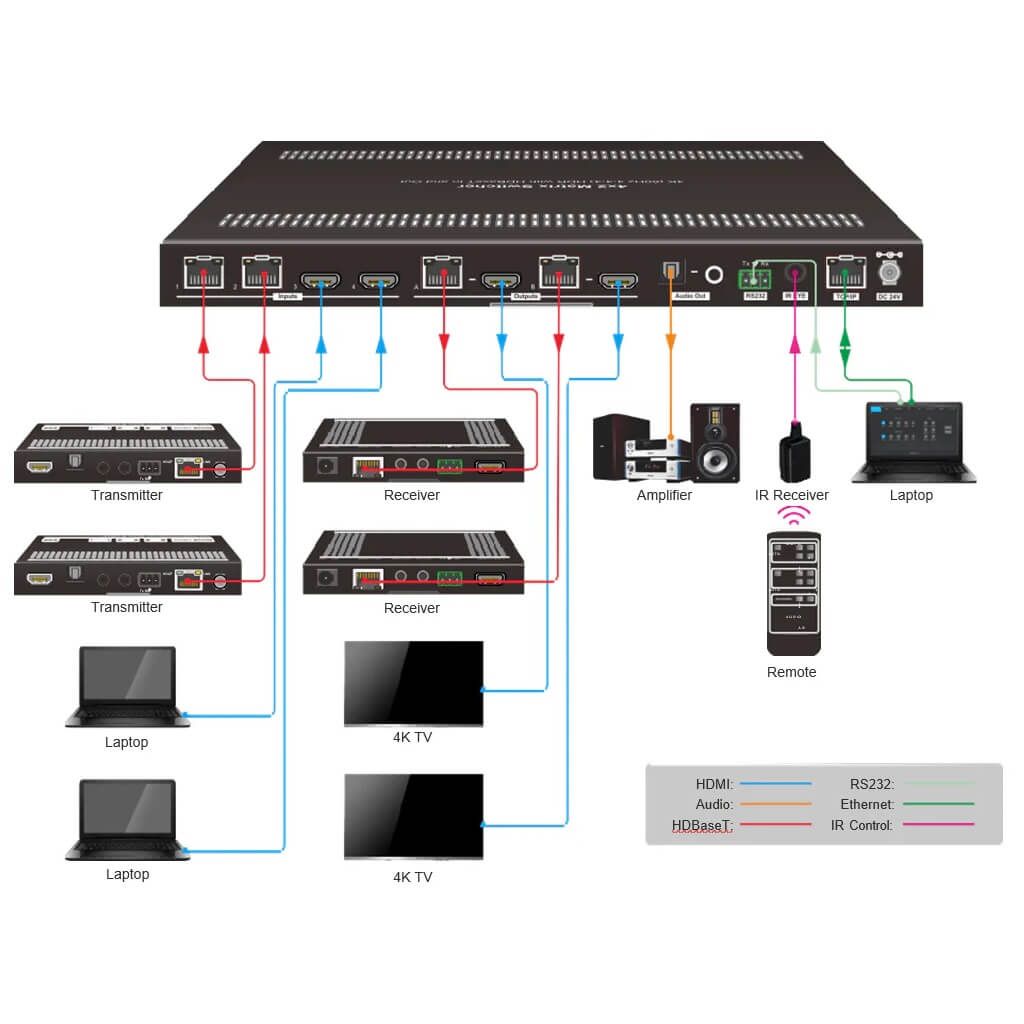

The DVDO Matrix-42-HDBT is a versatile matrix switcher featuring two HDMI and two HDBaseT inputs, along with two HDMI outputs and two mirrored HDBaseT outputs. It enables independent routing of up to four HDMI sources to four different displays. Supporting HDMI resolutions up to 4K60 4:4:4 with 18Gbps bandwidth, the system delivers high-quality video performance. HDBaseT connections can transmit 1080p signals up to 70 meters and 4K signals up to 40 meters, with support for 48V Power over Cable (PoC). The unit includes audio de-embedding via dedicated S/PDIF optical and analog stereo outputs. Additional features include HDR support, 4K-to-1080p downscaling, and advanced EDID management. Control options include front panel buttons, IR, RS-232, and TCP/IP through an intuitive web-based GUI.
Features
• HDMI 2.0, HDCP 2.2
• Video resolutions up to 4K@60Hz 4:4:4 18Gbps

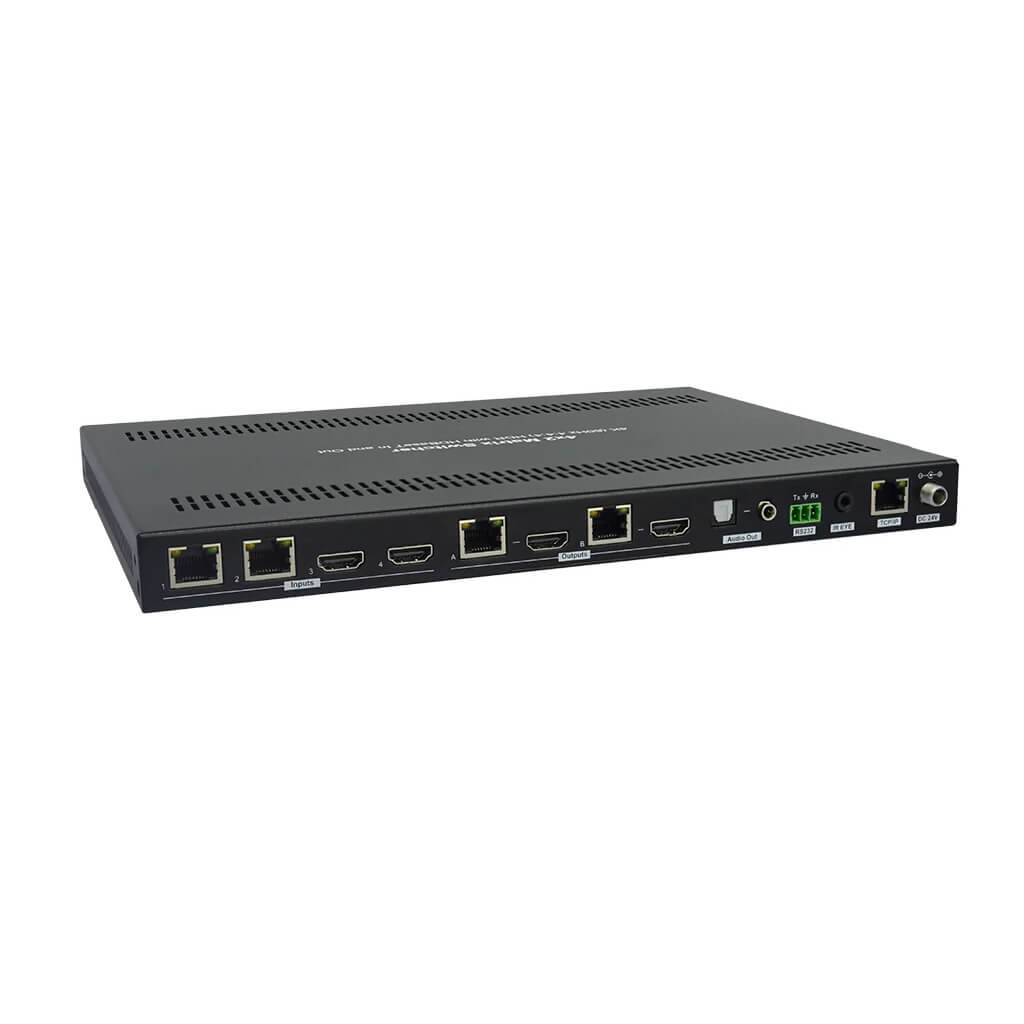

• 2 HDMI + 2 HDBaseT inputs and 2 HDMI with 2 mirrored HDBaseT outputs
• Individual 4K to 1080p downscaling for each output
• Auto-switching
• Audio de-embedding with separate S/PDIF optical and analog L/R audio outputs
• Supports HDR 10 and Dolby Vision
• Advanced EDID management

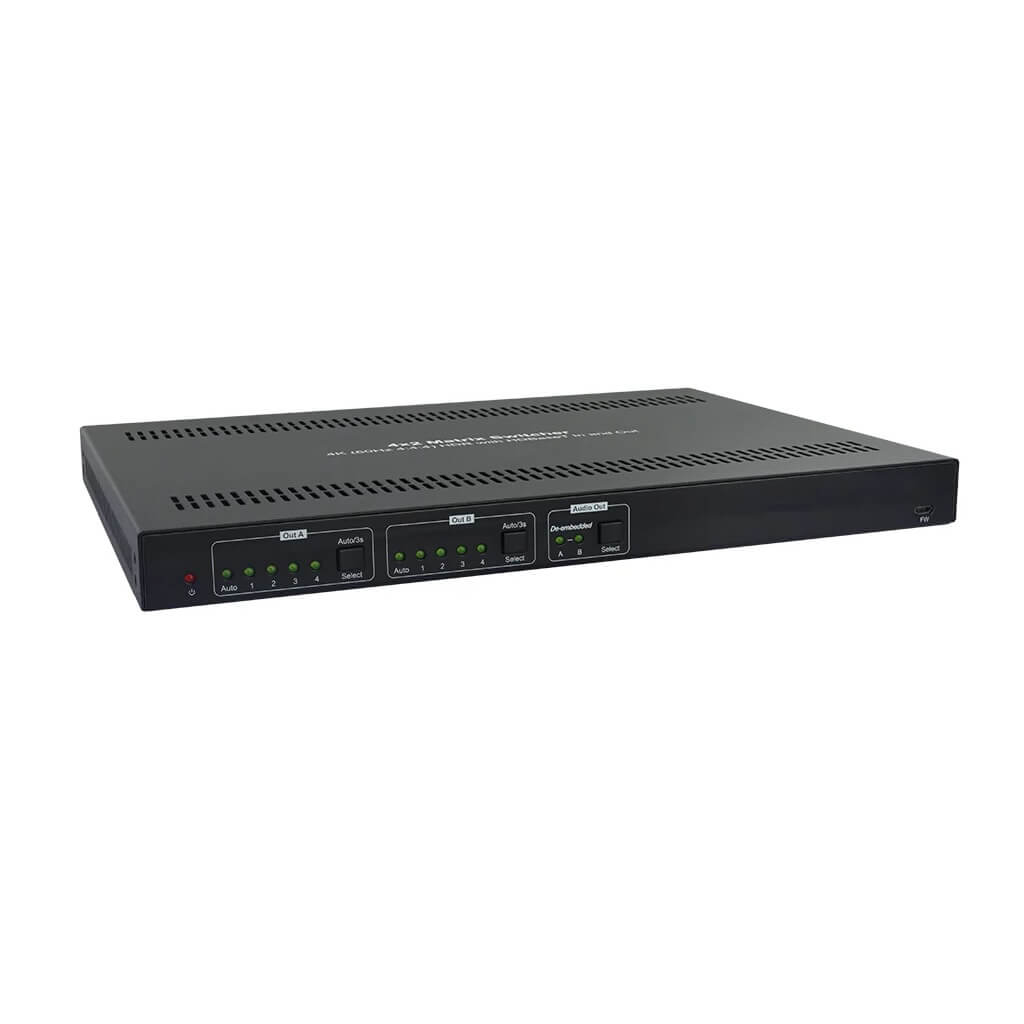

• Control via front panel buttons, IR, RS232 and IP with intuitive web GUI
• HDBaseT inputs and outputs support 48V PoC
• HDBaseT transmission distance: 70m (1080p)/40m (4K)
• HDBaseT transmitter (DVDO-Matrix-HDBT-Tx) and receiver (DVDO-Matrix-HDBT-Rx) to be ordered separately
