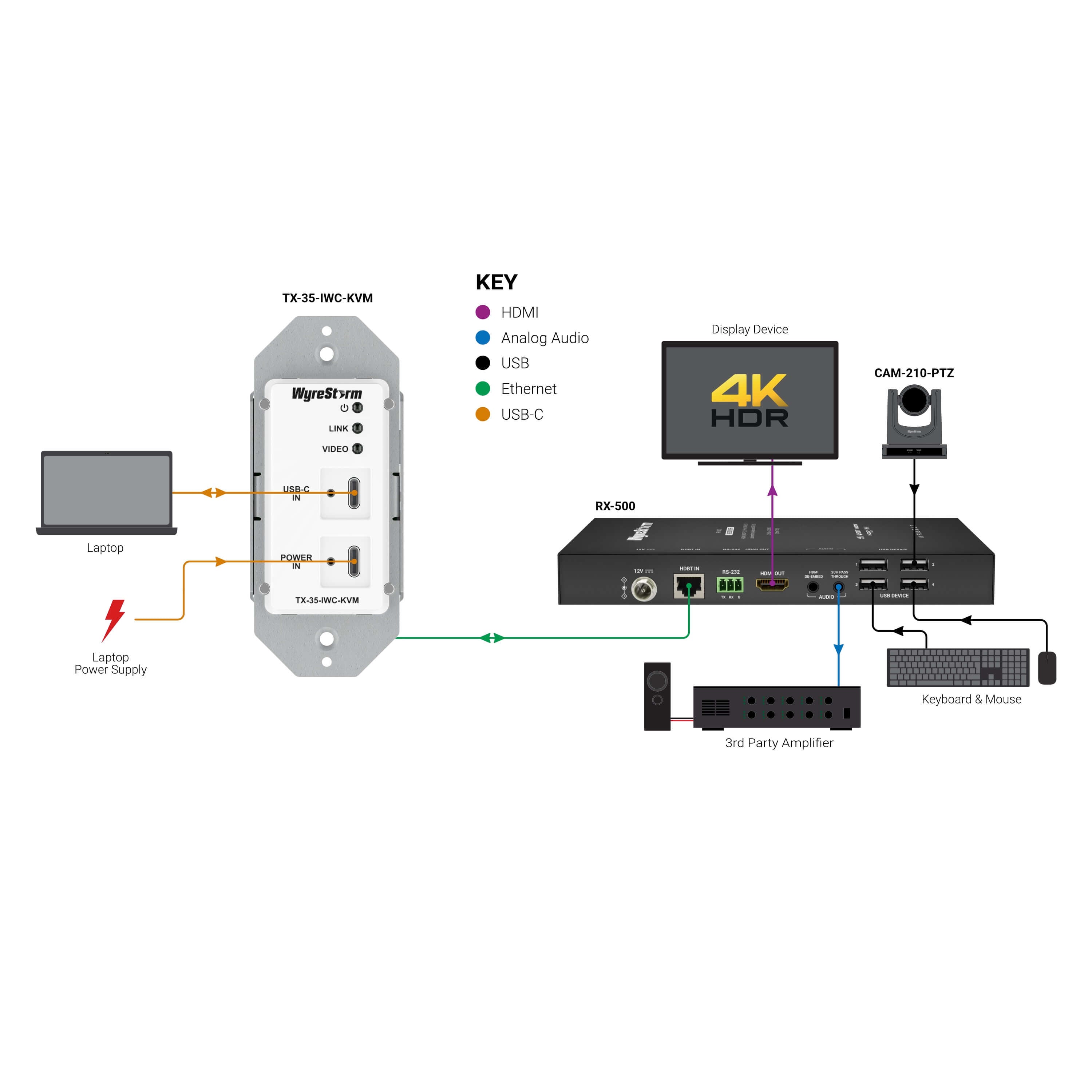

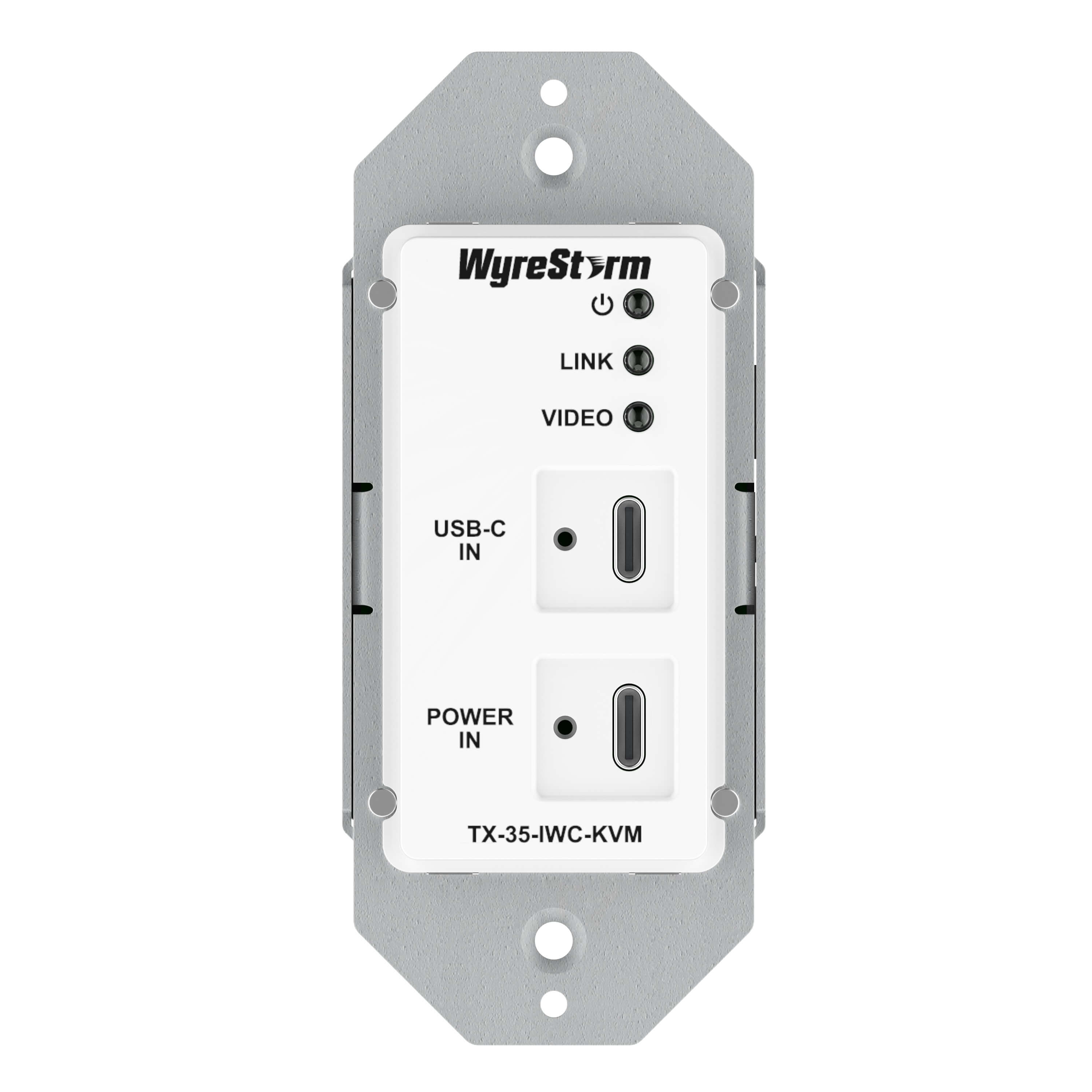

The WyreStorm TX-35-IWC-KVM is a single gang US Style HDBaseT 2.0 Transmitter that provides a practical solution for extending video and control signals. Featuring a USB Type C input, any source support Display Port Alt mode can be extended with ease. With support for 4K 60 maximum resolution and USB 2.0 extension (150Mbps), it’s well-suited for use in conference rooms, classrooms, and training facilities, ensuring that your signals are transmitted effectively to where they are needed. To enhance its performance, pairing it with the RX-500 is recommended. This setup offers a straightforward way to improve signal transmission in any professional environment. Don’t forget to connect a Type C Power supply to the included power input to power your connected device with up to 100W charging.
Features
• Reliable HDMI extension of 4K and HD sources from a 1-Gang US Decora wall plate
• HDBaseT 2.0 supporting 4K transmissions up to 35m (115ft)
• Power over HDBaseT (PoH) by simply connecting to RX-500 receiver

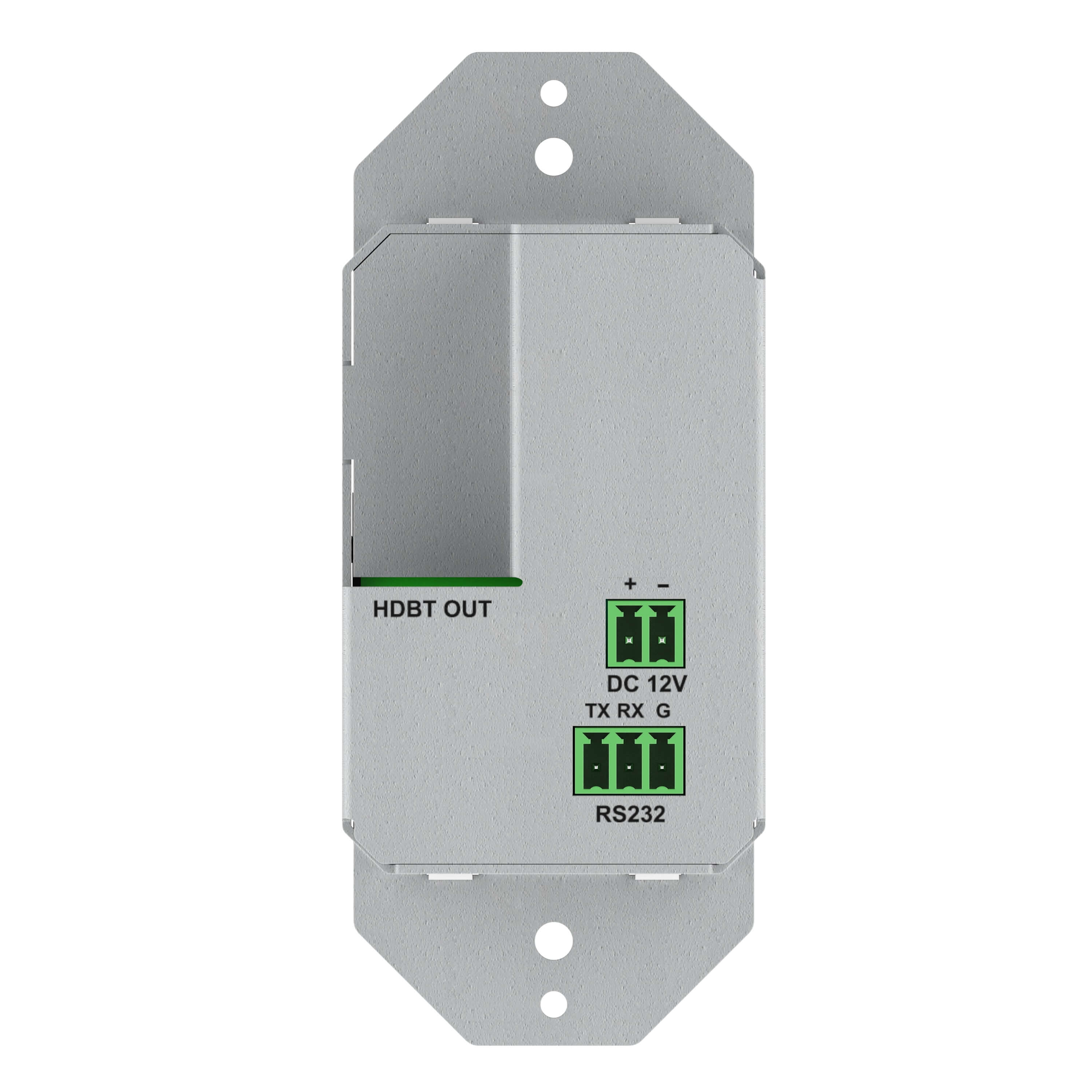

• 12v DC phoenix connection for local power when used with a non-PoH receiver
• Bi-directional RS-232 passthrough via rear facing 3-pin phoenix connection
• Automatic EDID management
• HDCP 2.2 compatible
• Conforms to IEEE-568B standards
• Compact design for convenient and unobtrusive installation
• Included Power Input for charging connected sources
