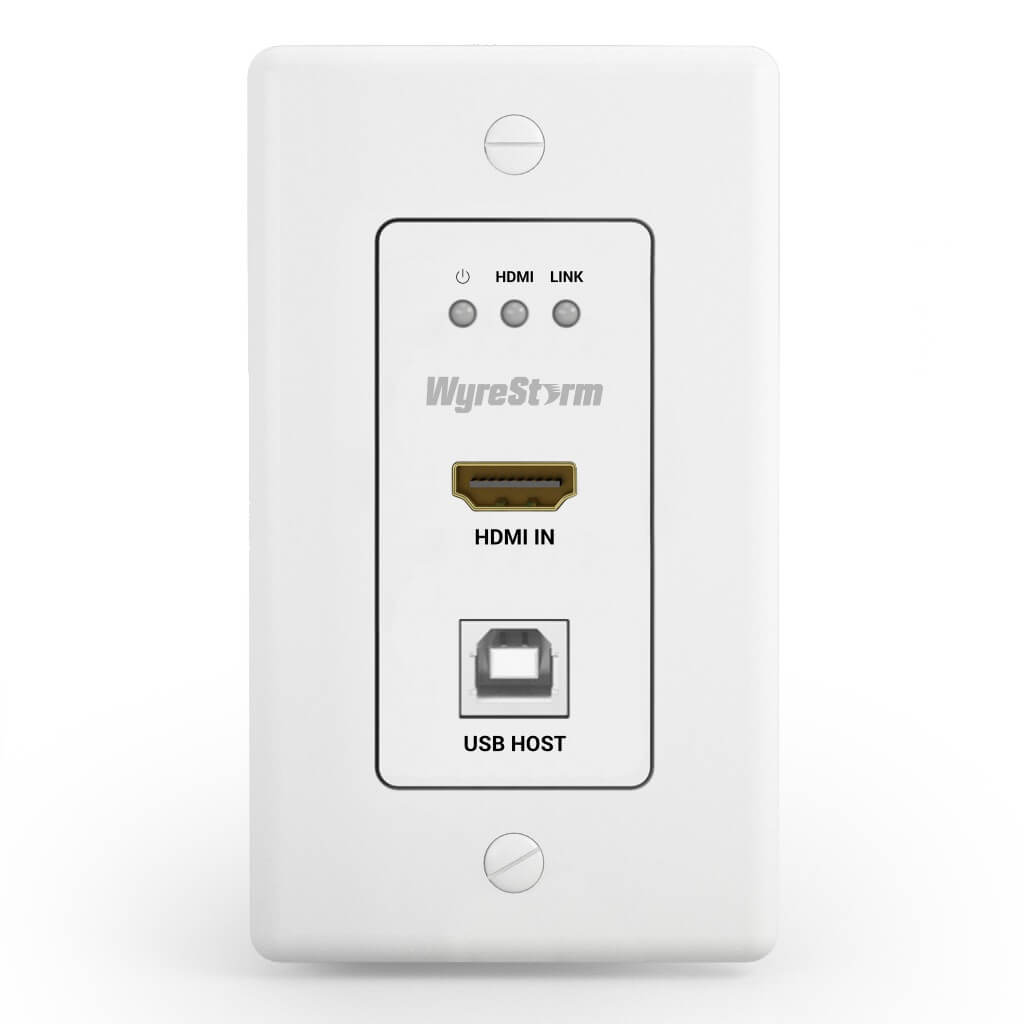

The WyreStorm TX-35-IW-KVM is a single gang US Style HDBaseT 2.0 Transmitter that provides a practical solution for extending video and control signals. With support for 4K 60 maximum resolution and USB 2.0 extension (150Mbps), it’s well-suited for use in conference rooms, classrooms, and training facilities, ensuring that your signals are transmitted effectively to where they are needed. To enhance its performance, pairing it with the RX-500 is recommended. This setup offers a straightforward way to improve signal transmission in any professional environment.
Features
• Reliable HDMI extension of 4K and HD sources from a 1-Gang US decora wall plate
• HDBaseT 2.0 supporting 4K transmissions up to 35m (115ft)

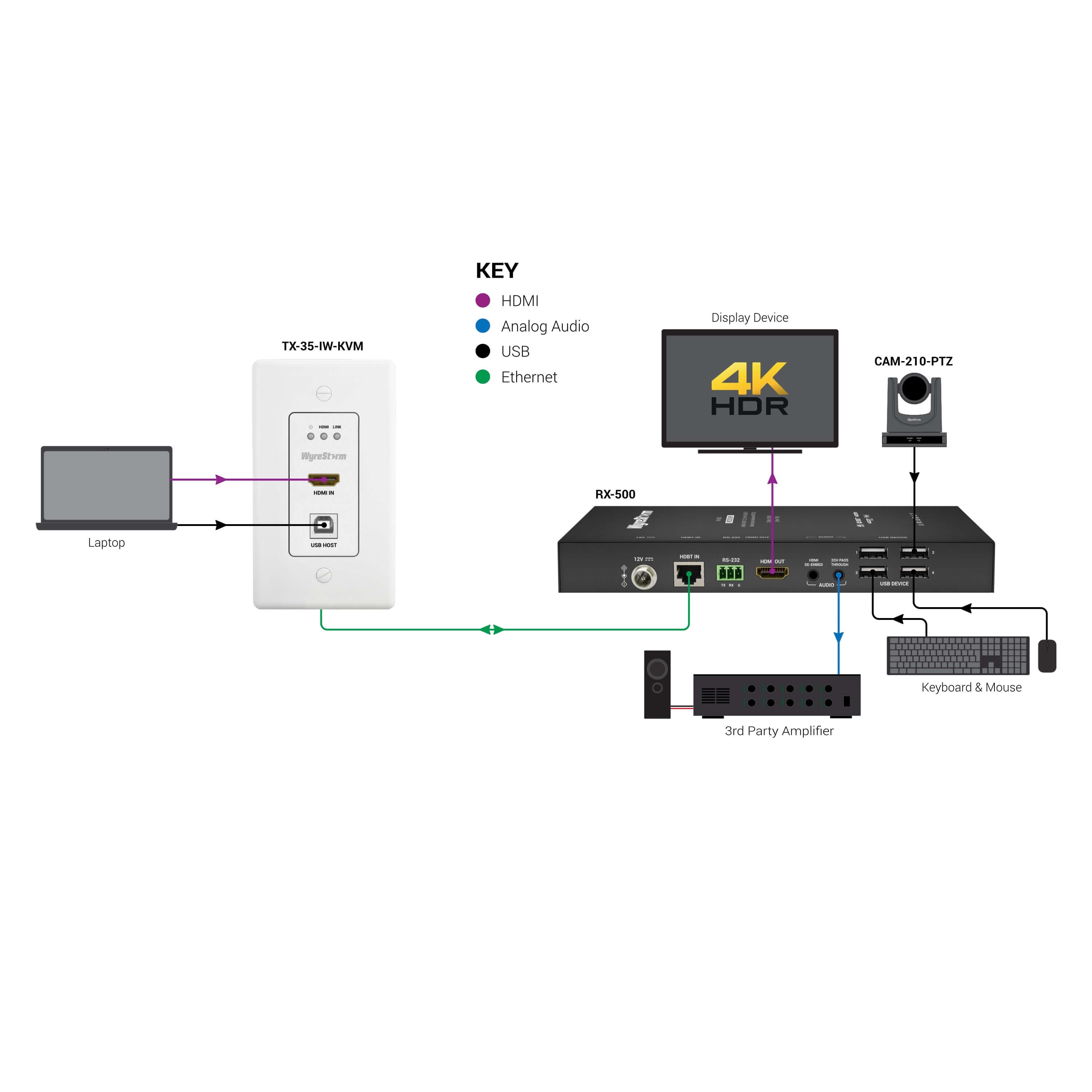

• Power over HDBaseT (PoH) by simply connecting to RX-500 receiver
• 12v DC phoenix connection for local power when used with a non-PoH receiver

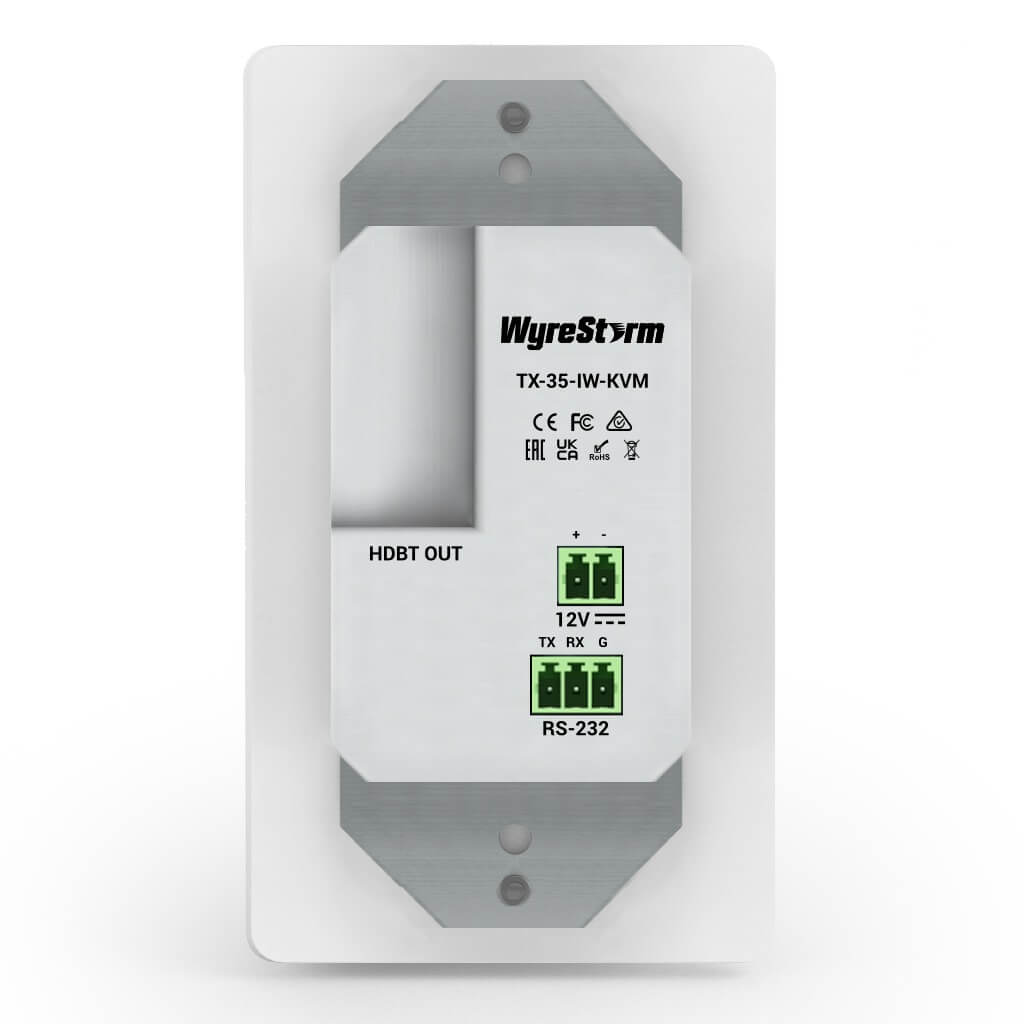

• Bidirectional RS-232 passthrough via rear facing 3-pin phoenix connection
• Automatic EDID management
• HDCP 2.2 compatible
• Front panel LED indication for HDCP presence and transmission link between devices
• Conforms to IEEE-568B standards
• Compact design for convenient and unobtrusive installation
