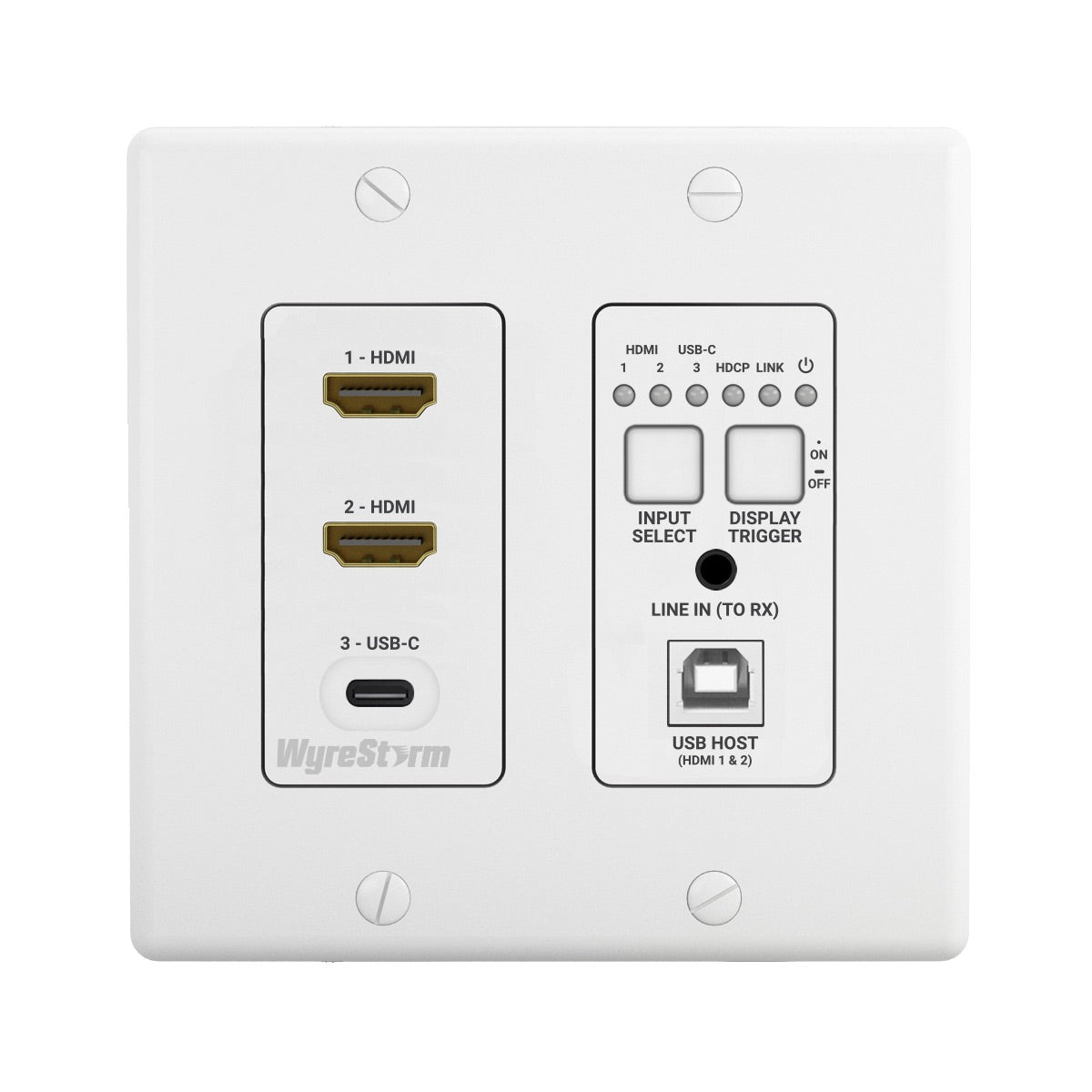

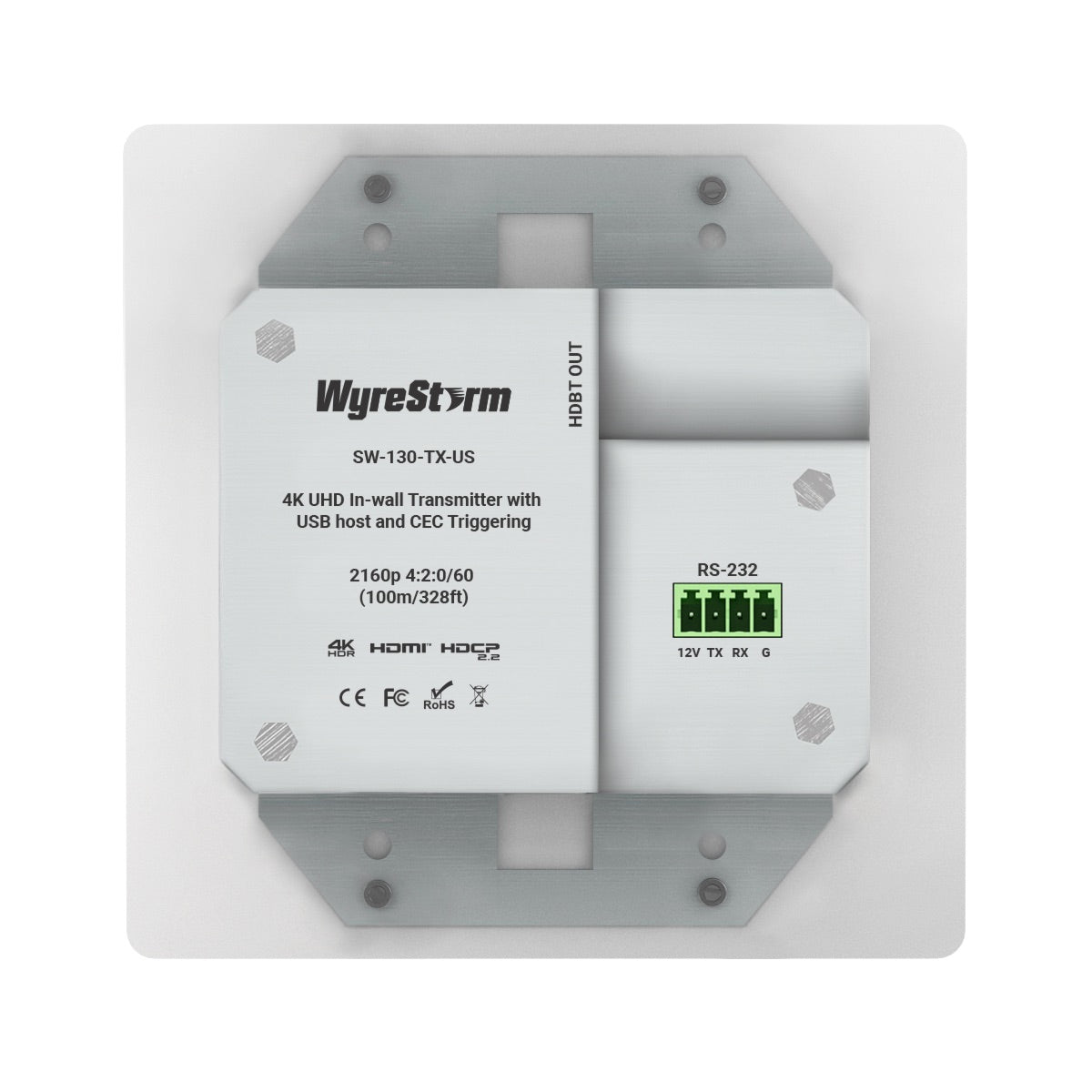

The WyreStorm SW-130-TX-US 4K UHD In-wall HDBaseT Transmitter (2-gang US) is perfect for meeting rooms and classroom environments. Automatic or manual switching of 2 HDMI’s or USB-C and CEC power triggering via HDBaseT mean a simple user experience when it matters most. Further functionality allows USB devices to be routed back to the source via USB host (or natively via USB-C) and charging for the connected USB-C device.
Features
• Professional HDBaseT switcher/transmitter for video conference or meeting rooms
• 3-switchable inputs: 2 HDMI and USB-C supporting:
- Content up to 4K/30 4:4:4 & RGB or 4K/60 4:2:0 8-bit
- The latest HDR standards, including HDR-10 and Dolby Vision™ at 30Hz
- HDCP 2.2 encryption ensuring compatibility with 4K UHD content and sources
- HD Multichannel audio up to DTS:X and Dolby Atmos™
• USB-C port supports alt-mode functionality for A/V and USB data
• USB-C charging for connected devices up to 2A
• Compatible with DVI-I and DP++ v1.3 signals from supported devices
• Additional 2ch analogue audio input for sending separate stereo audio to RX
• USB2.0 host port for connection of far-end devices such as webcams, smart touchscreens and microphones
• Automatic or manual CEC triggering for compatible connected screens or projectors
• Primary power supply via PoH from a supported receiving device (RX-700)
• Additional power input via DC port on rear via 12v 1A PSU (not included). Port shared with RS-232 input
• Control options include automatic switching, manual switching & CEC trigger and RS-232 control
• Compatible with TS-280 touchscreen for control with 12v power outlet
• White 2-gang decora fascia, removable
• Use with RX-500 receiver for 35m 4K distance or use with RX-700 for 100m 4K distance.
