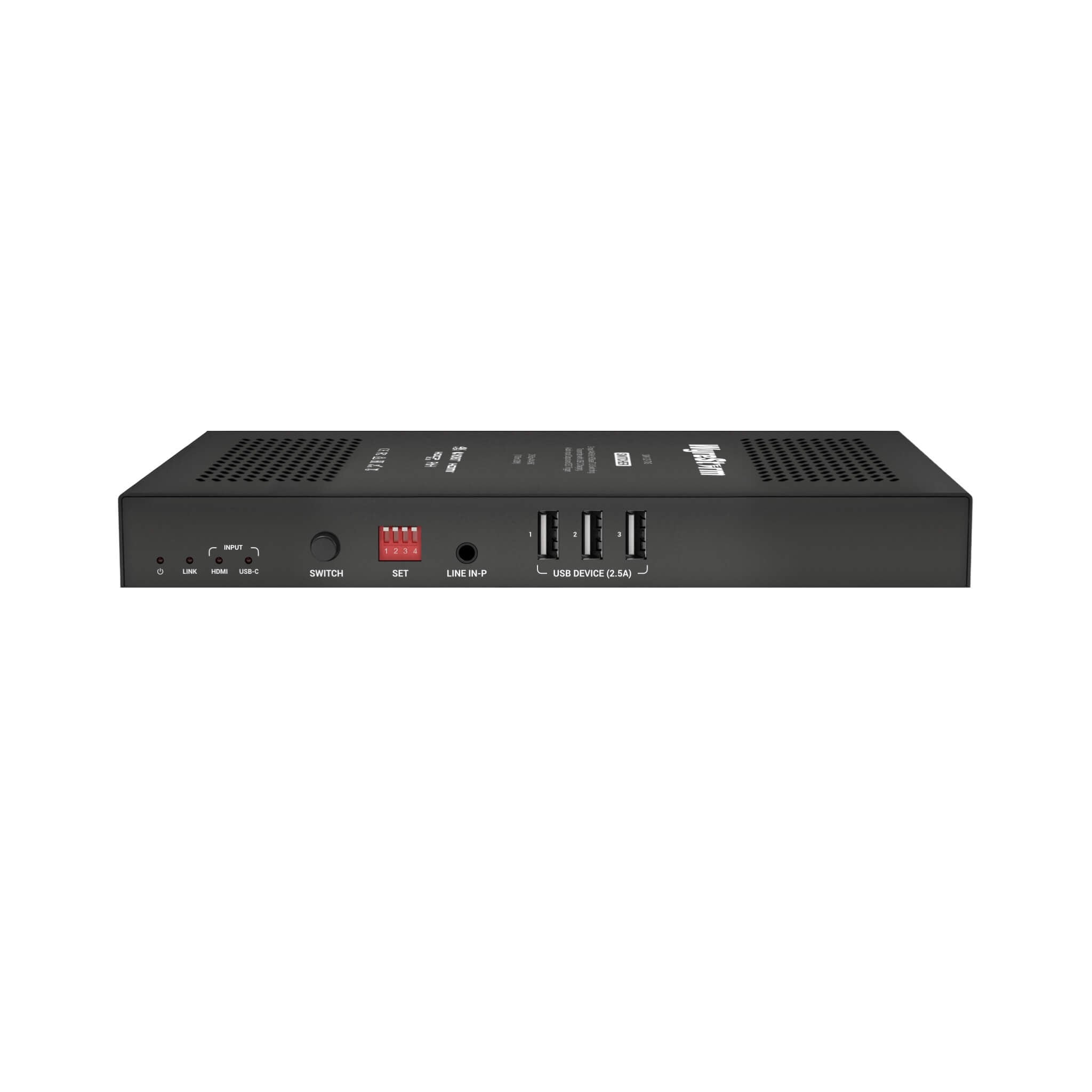

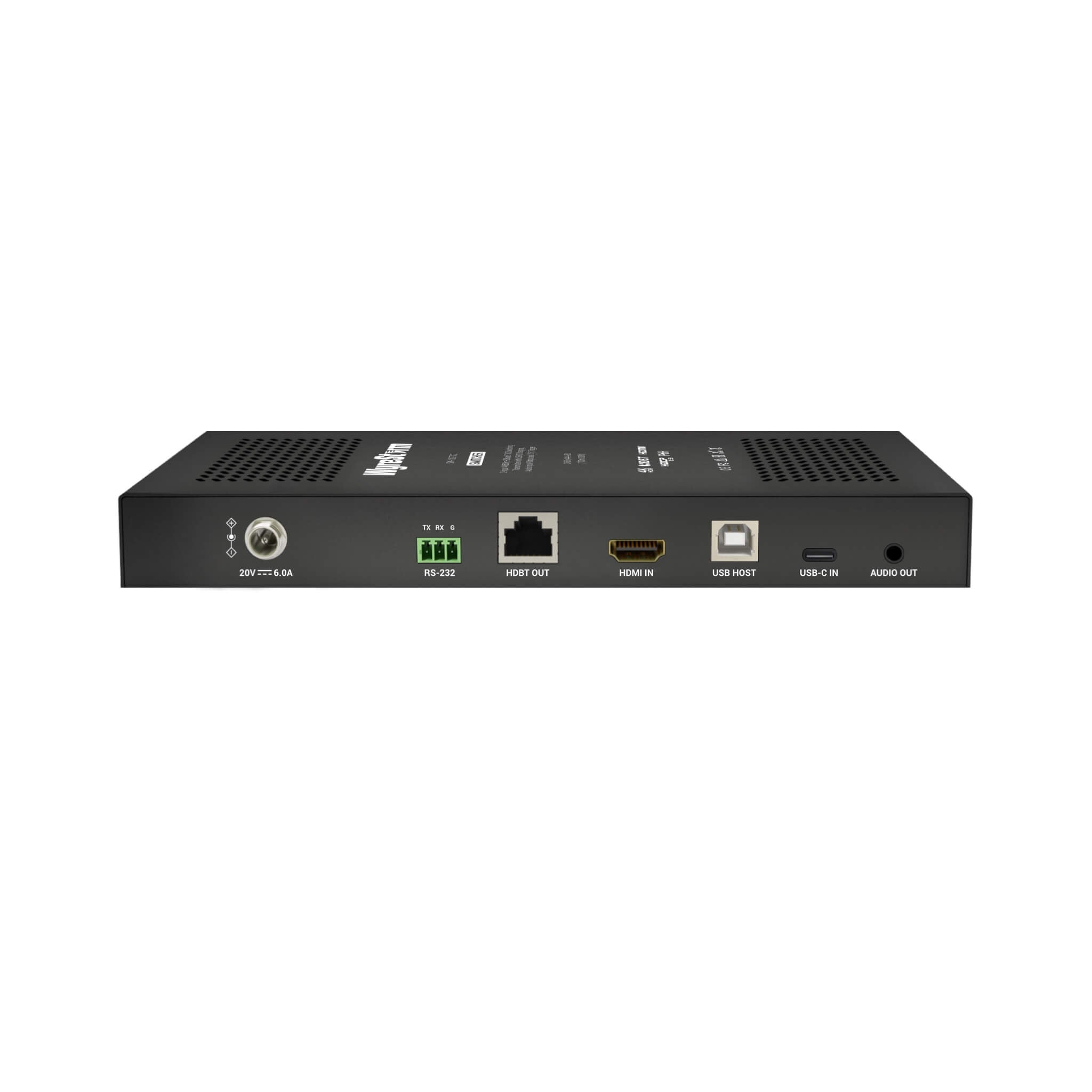

The WyreStorm SW-120-TX3 features two inputs and powerful HDBaseT 3.0 transmission, making it perfect for higher education classroom/lecture hall and corporate environments. Automatic or manual switching of HDMI or USB-C and CEC power triggering via HDBaseT means a simple user experience when it matters most. Further functionality allows USB devices to be routed back to the source via USB host (or natively via USB-C) alongside 3 additional USB device ports locally available for a total of 6 devices that can simultaneously used in conjunction with each input. Rounding out it’s long feature list, the SW-120-TX3 boasts 60 watts of charging over the connected USB-C device.
Features
• HDBaseT 3.0 Switching Transmitter supporting:
- Uncompressed content up to 4K@60Hz 4:4:4 8bit
- HDCP 2.3 encryption compatible with 4K UHD content and sources
- HD Multichannel audio up to DTS:X and Dolby Atmos via HDMI
• Compatible with DVI-I and DP++ v1.3 signals from compatible devices
• USB 2.0 passthrough offering 300Mbps transfer and HID extension
• Features USB-C charging of up to 60 watts (with compatible PSU, not included)
• Supports independent analog audio lane (pass-through) transmitter to receiver
• Bidirectional RS-232 and CEC pass-through communication
• Shared RS-232 port; API control or passthrough to RX
• Backwards compatible with HDBaseT 1.0 transmission and receiving devices
• Bidirectional PoH
