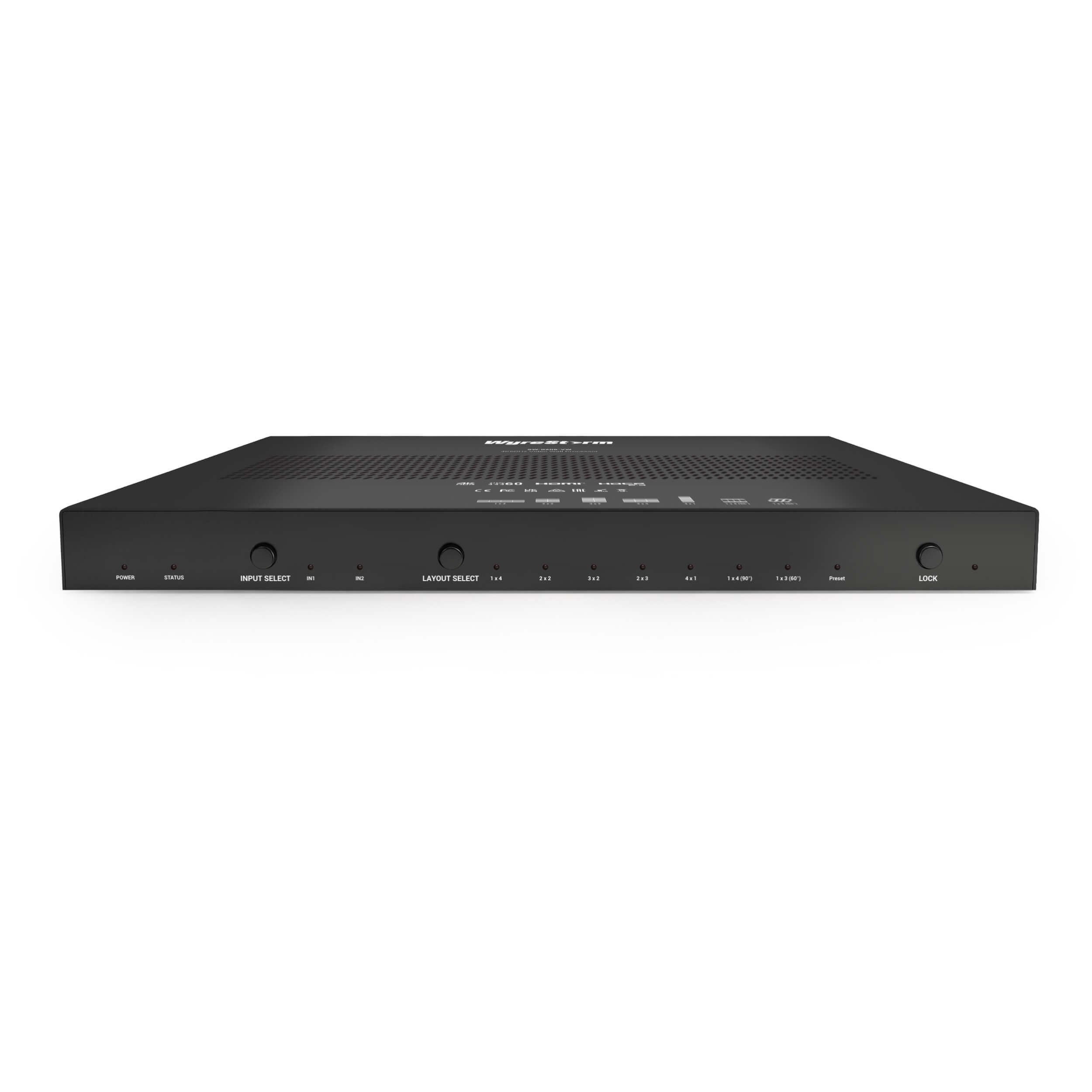

The WyreStorm SW-0206-VW is a 4K Video Wall Processor for multiple splicing layout, aiming to provide extreme viewing experience for customer. It offers 2 HDMI inputs (alternative) and 6 HDMI outputs to create a multiple splicing video wall, while it also provides 4K and ultra-wide resolution support, independent analog audio output and imaging scaling to establish a fully immersive experience. For flexible control, SW-0206-VW also supports various methods, such as a user-friendly Web-UI, front panel control button, RS232 and Telnet control options.
Features
• Capable of processing to multiple splicing video wall

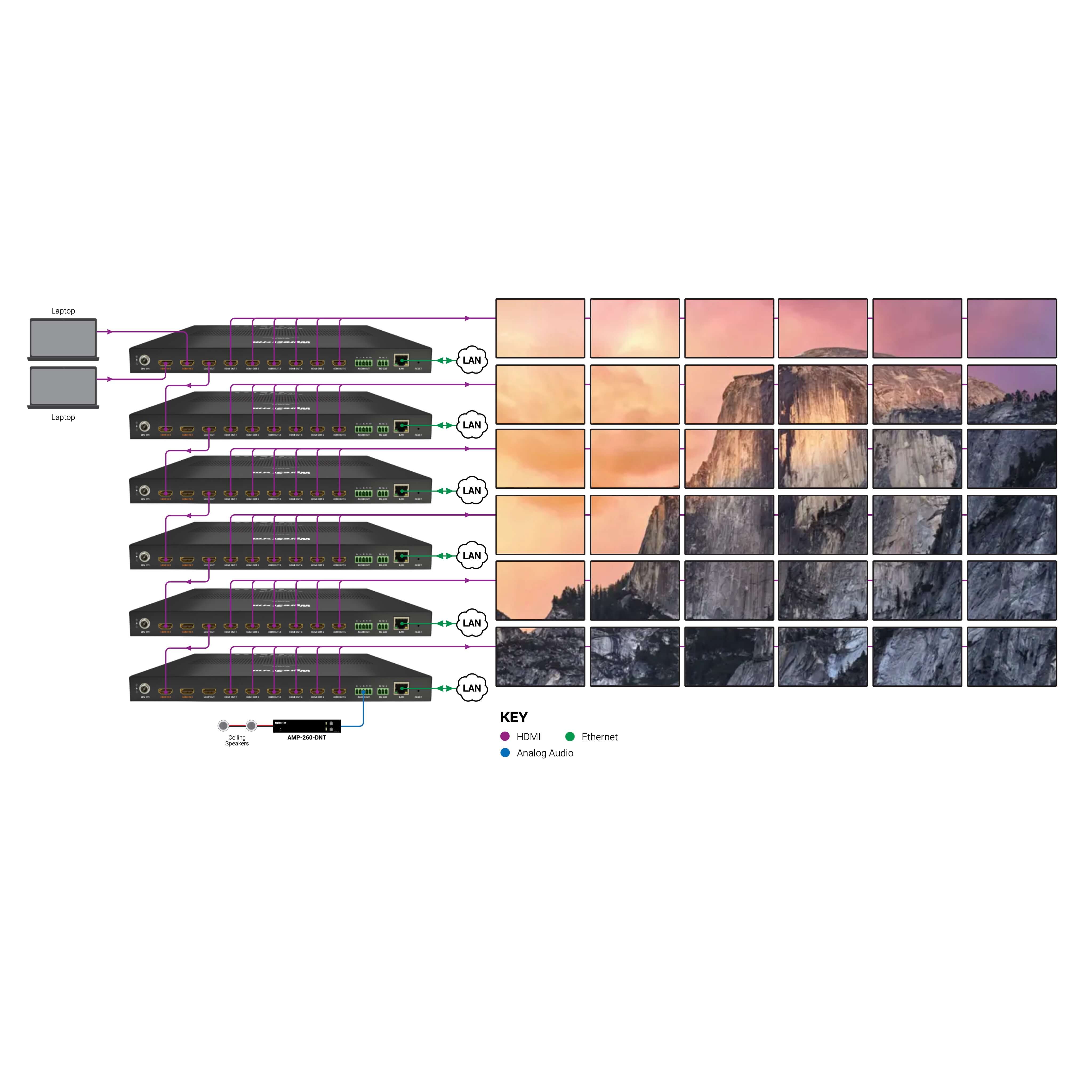

• Cascading connection supports, max 6×6 36 screens

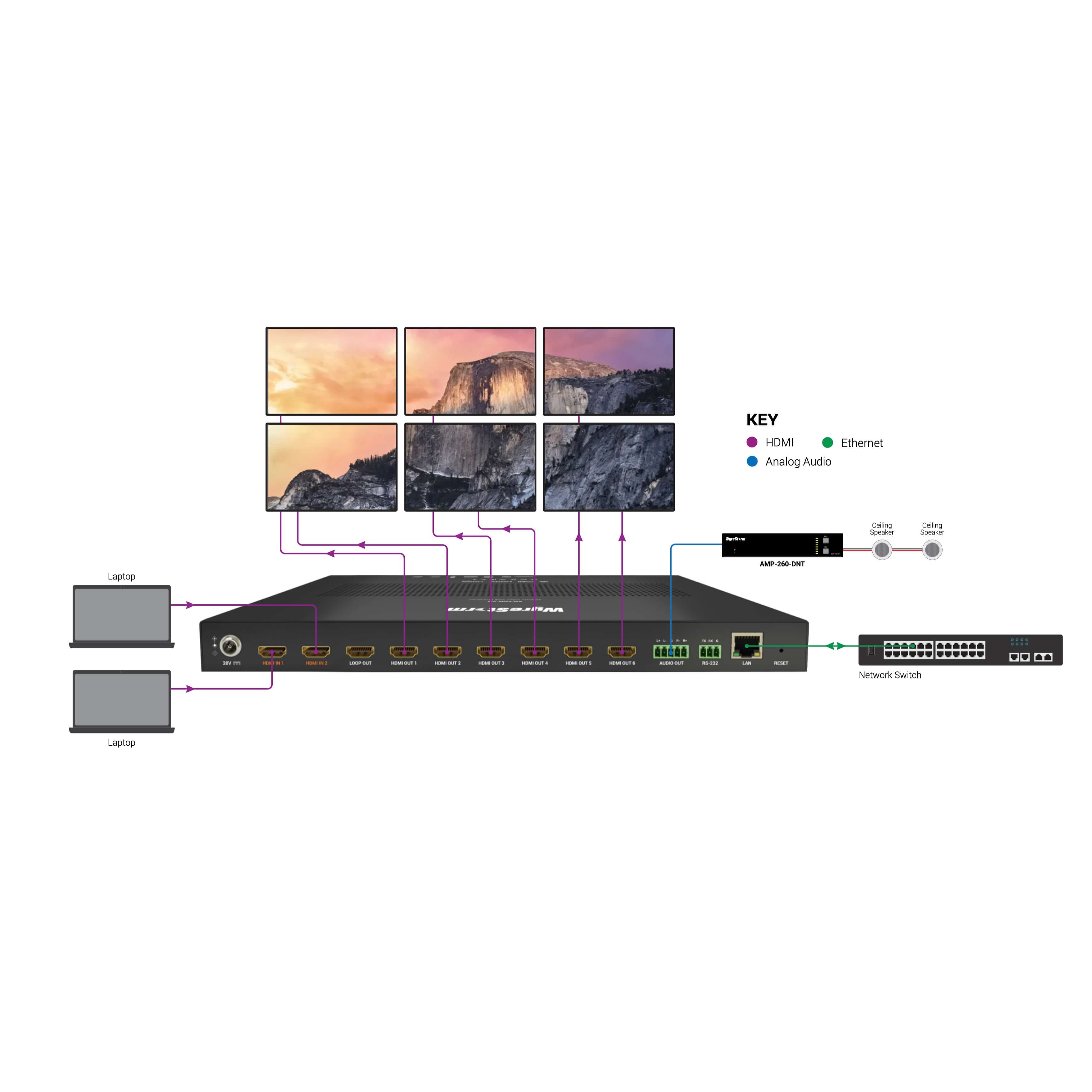

• HDMI 2.0 video connection include 2 HDMI inputs and 6 HDMI outputs
• HDCP 2.3 compliant and backward compatible for secure content transmission
• Supports up to 4K@60Hz 4:4:4 8bit video content
• Image scaling up and down to any resolution – up to 4K@60Hz.
• Audio features including HDMI audio de-embed and MUTE
• Bezel adjustment for video wall
• Video-Wall rotation 0°, 90°, 180°, 270°
• OSD feature supports for each HDMI OUTPUT
• EDID management for efficient control and customization of connected displays
• Control by button, Web-UI, RS232 and Telnet
• Firmware update via Web-UI
• 20v/3a DC with AU, EU, UK, US Power cables included
Includes
• 1x SW-0206-VW Video-Wall Processor
• 1x DC 20V 3A Power Adapter
• 1x AC Power Cord (With AU, EU, UK, US pins)
• 1x 3.5mm 3-pin Phoenix Male Connector
• 1x 3.5mm 5-pin Phoenix Male Connector
• 2x Mounting Brackets (with Screws)
• 1x QuickStart Guide
