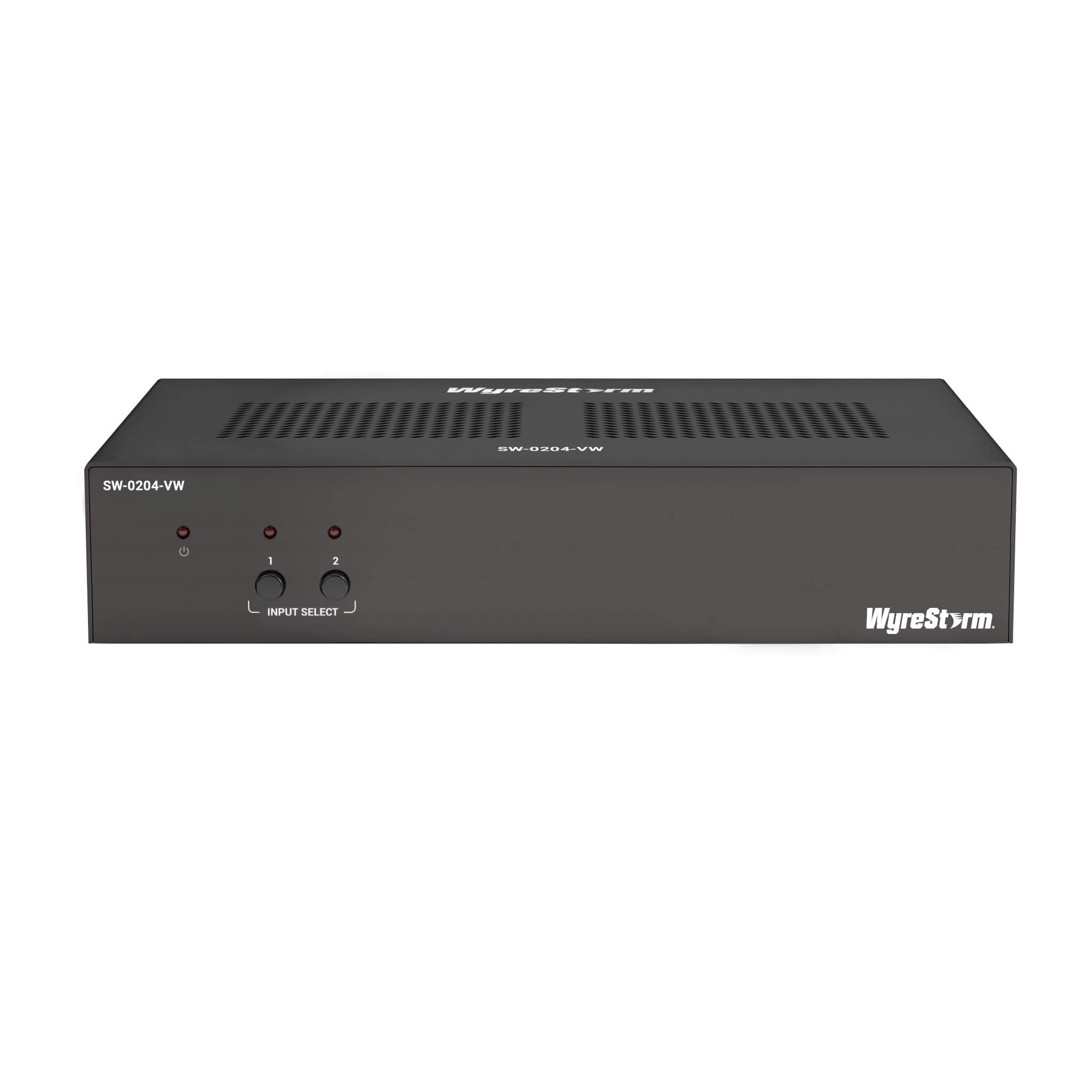

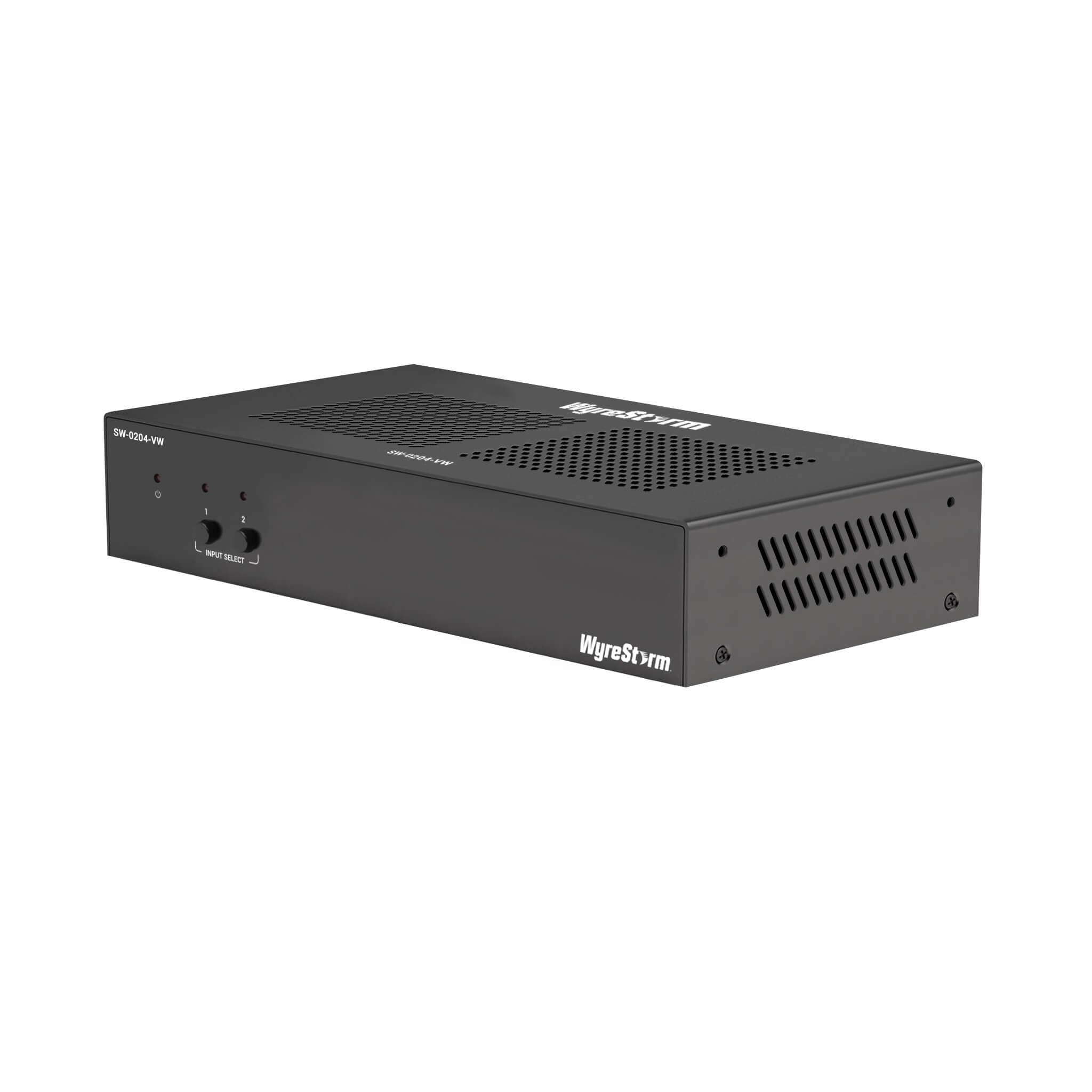

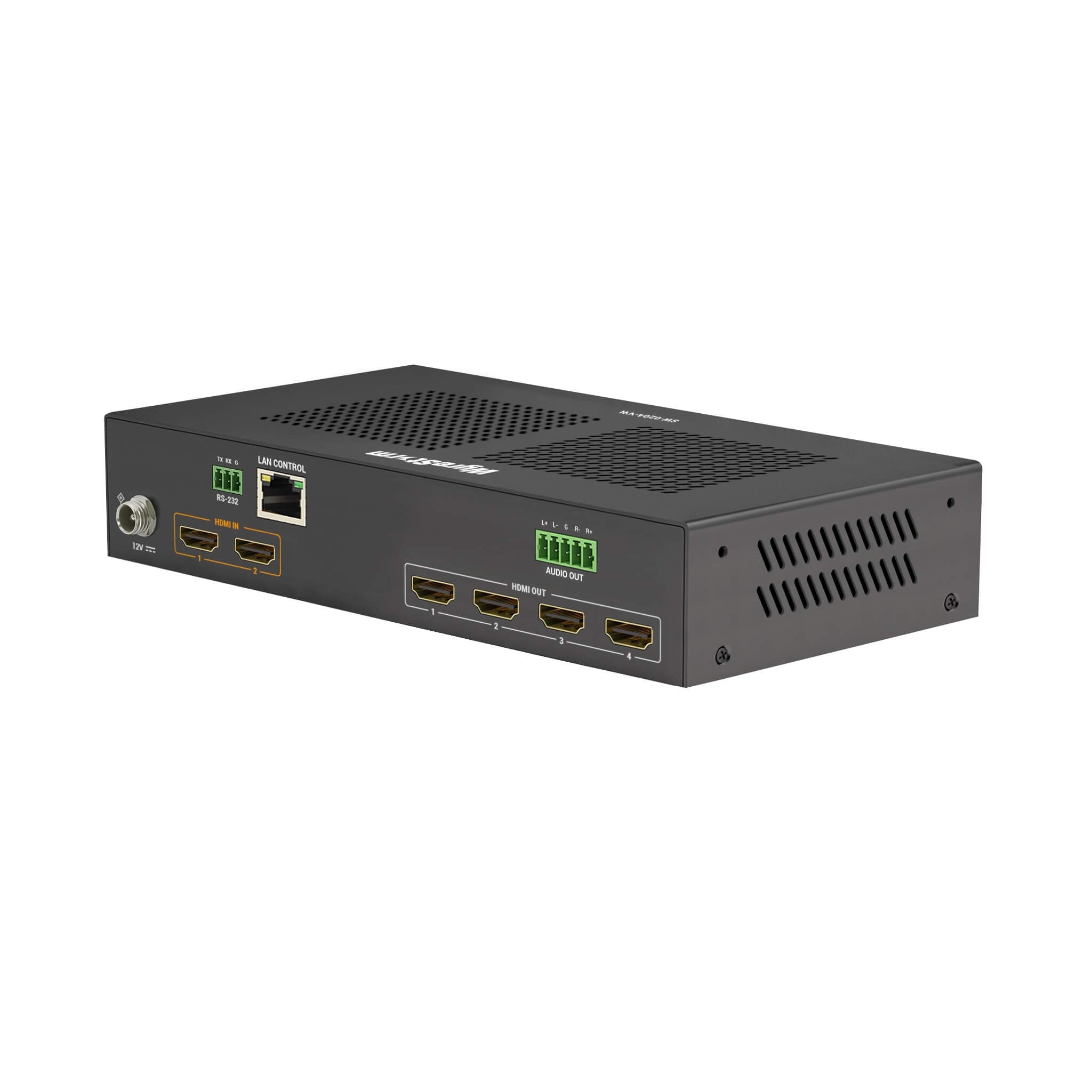

The WyreStorm SW-0204-VW 4x HDMI 2.0 Video Wall processor is an advanced 2x inputs (alternative) and 4x outputs video wall processor, providing video wall layout of 1×4 and 2×2 (rows x columns) with 4K and ultra-wide resolution support, independent analog audio output and image scaling. It also supports a user-friendly Web-UI, RS232 and Telnet for optimal flexibility control.
Features

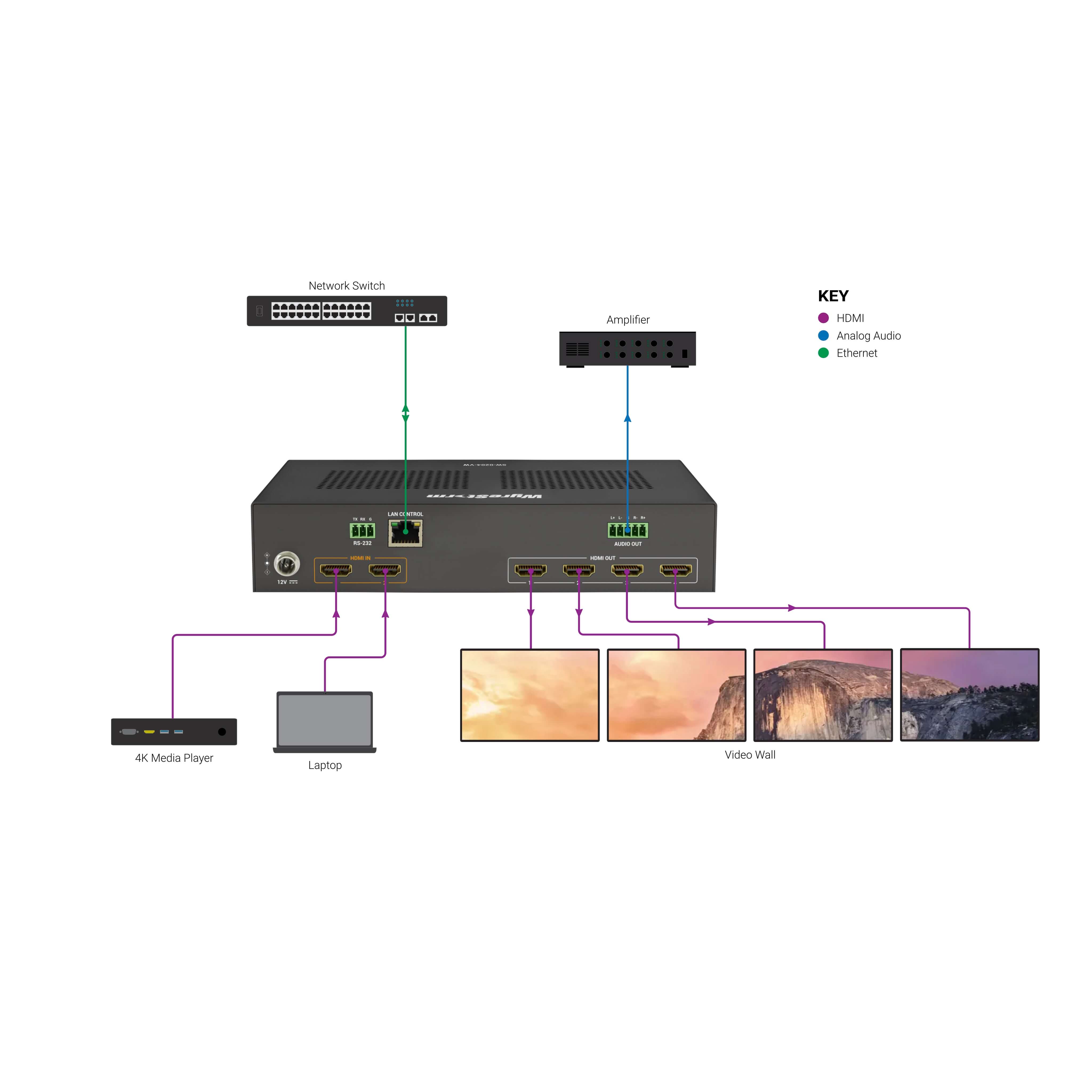

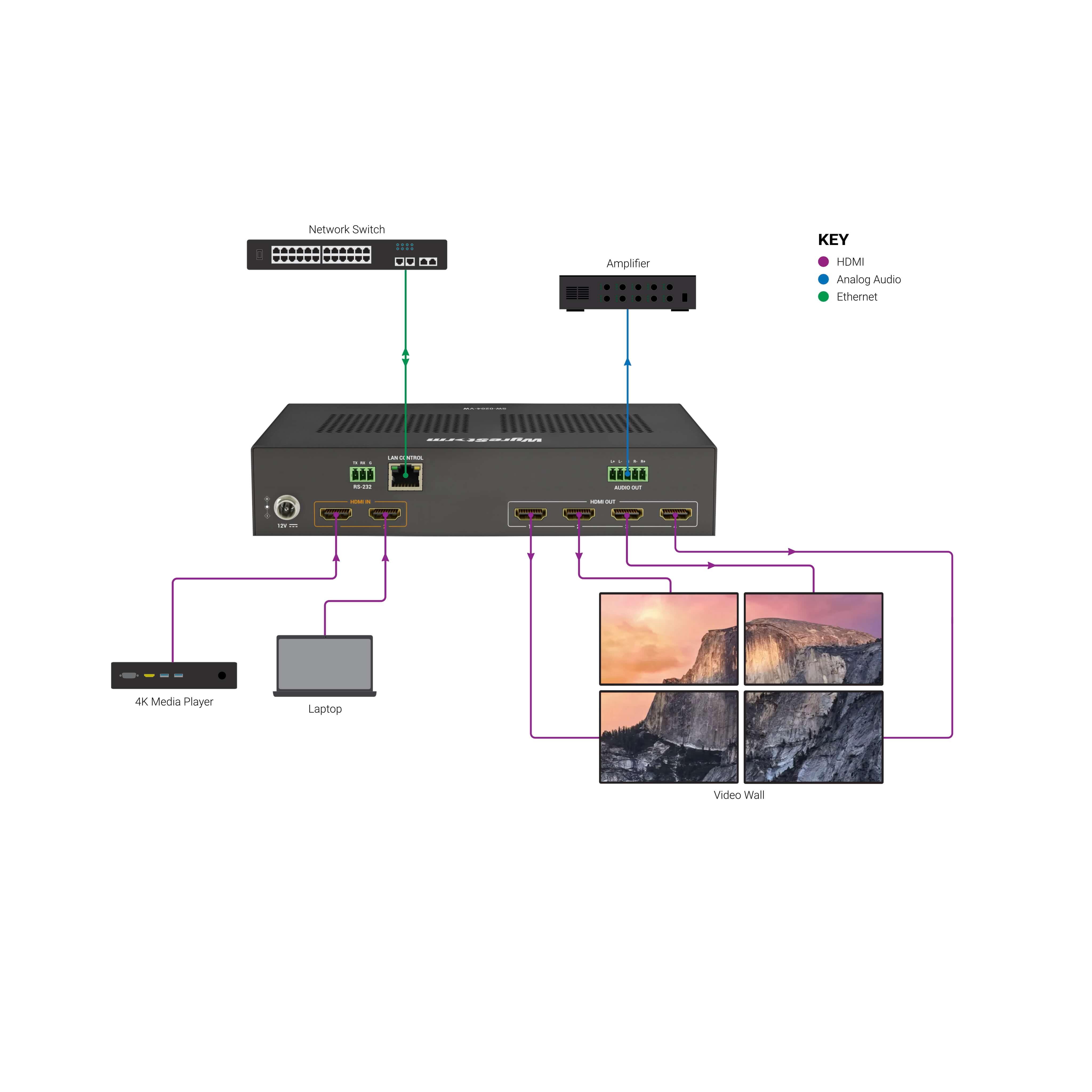

• Capable of processing to a 1×4 or 2×2 (rows x columns) video wall

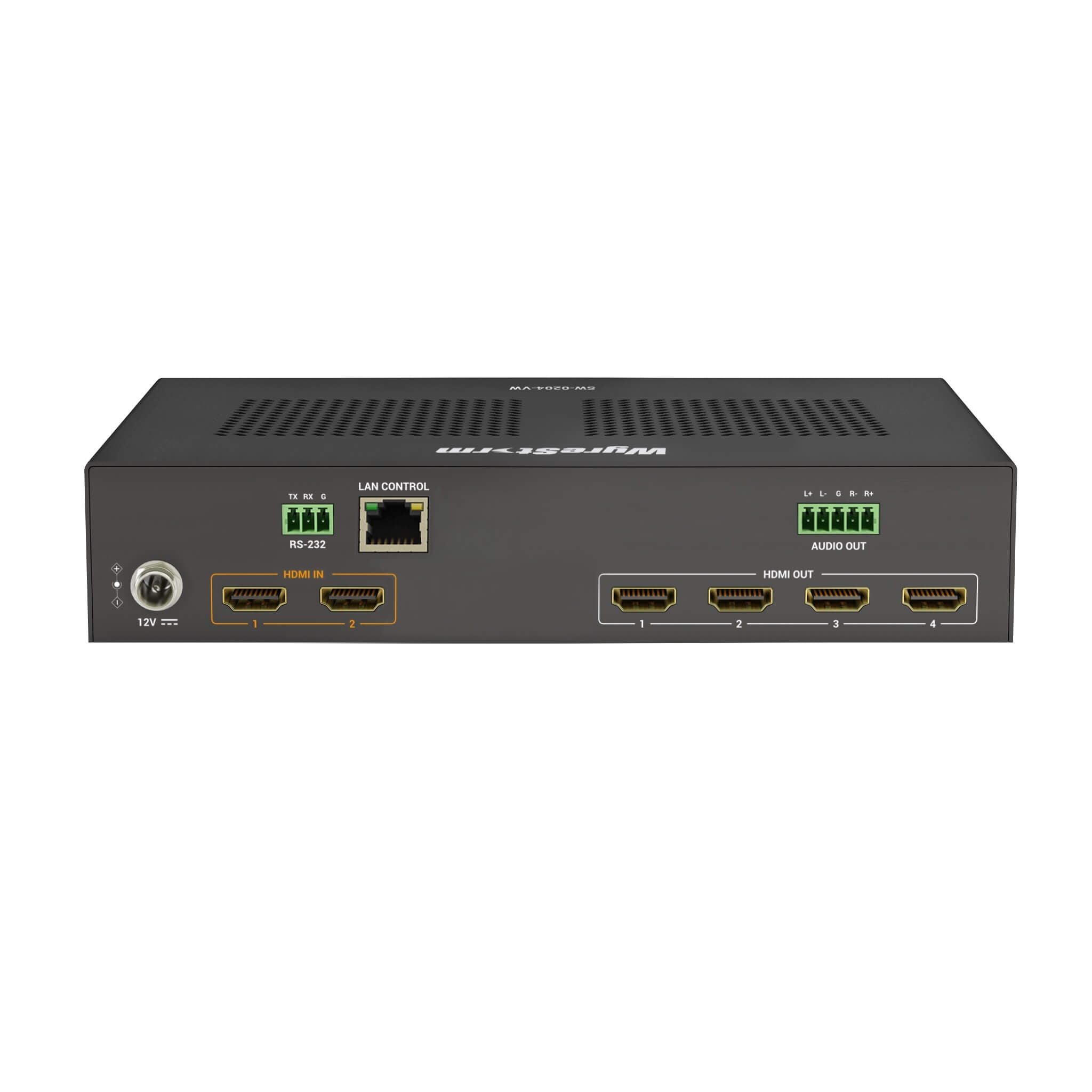

• HDMI 2.0 video connection include 2 HDMI inputs and 4 HDMI outputs
• HDCP 2.3 compliant and backward compatible for secure content transmission
• Supports up to 4K@60Hz 4:4:4 8bit video content
• Image scaling up and down to any resolution — up to 4K@60Hz
• Audio features including HDMI de-embed audio and MUTE
• Bezel correction
• Video-Wall Flip in full screen layout
• EDID management for efficient control and customization of connected displays
• Control by Web-UI, RS232 and Telnet
• Firmware upgrade via Web-UI
• Locking DC power jacks
• 12v/3a DC with AU, EU, UK, US Power cables included
Includes
• 1x SW-0204-VW Video-Wall Processor
• 1x DC 12V 3A Power Adapter
• 1x AC Power Cord (with AU, EU, UK, US Pins)
• 1x 3.5mm 3-pin Phoenix Male Connector
• 1x 3.5mm 5-pin Phoenix Male Connector
• 4x Mounting Brackets (with Screws)
• 1x Quick Start Guide
