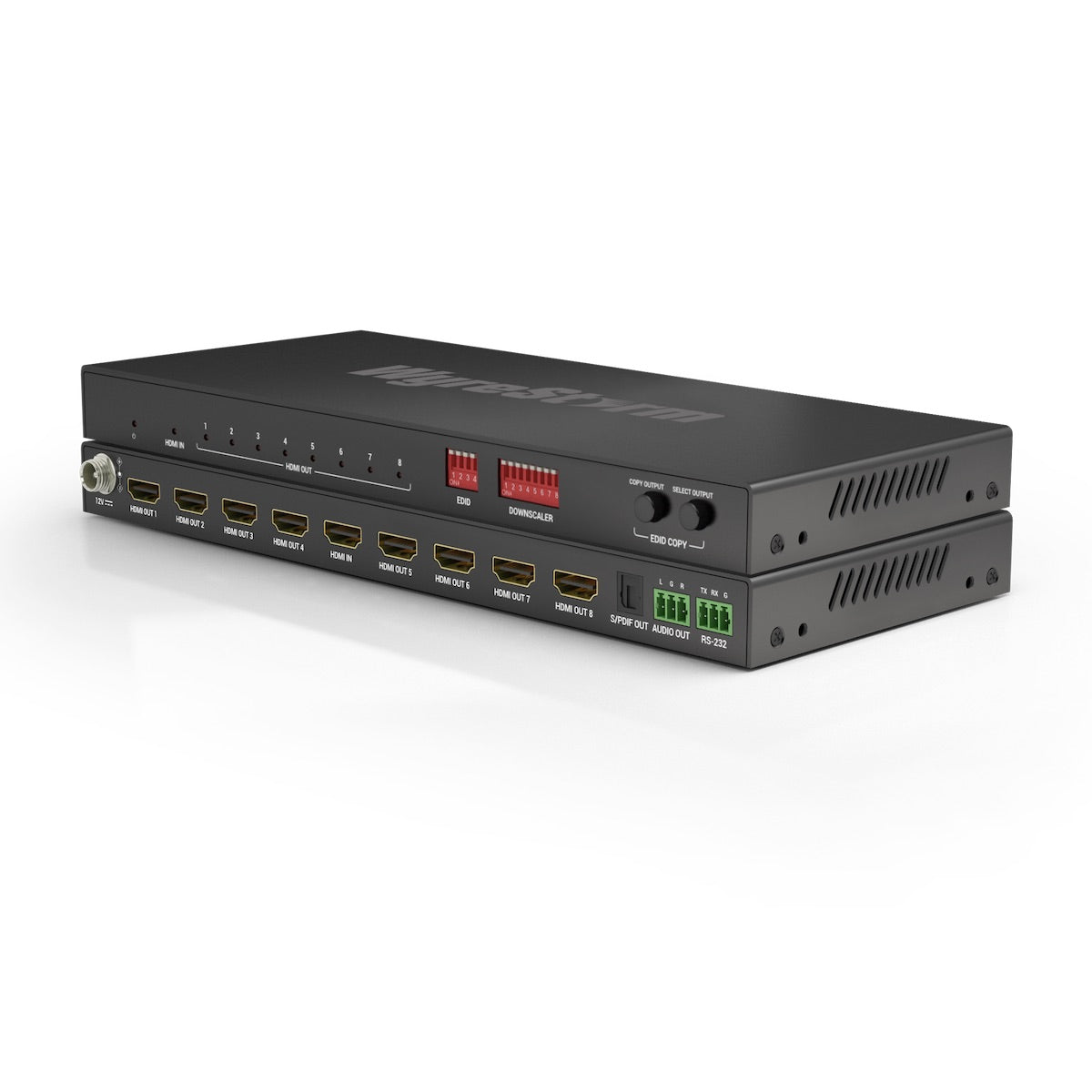

The WyreStorm SP-0108-SCL is a small and compact, yet powerful HDMI splitter that can be used in many applications, from digital signage, education, to retail or hospitality. Each HDMI output of the SP-0108-SCL features a 4K to 1080p down scaler, allowing for mixed resolution displays to be used simultaneously without suffering from compatibility limitations. An analog and digital S/PDIF audio de-embed allows easy connection for external amplifiers or DSPs.
Features
• Uncompressed HDMI signal distribution of 4K60 444 video content at 18Gbps
• Compatible with latest HDR video standards including HDR10, HDR10+ Dolby Vision and HLG
• Balanced analog audio de-embed and a digital S/PDIF de-embed

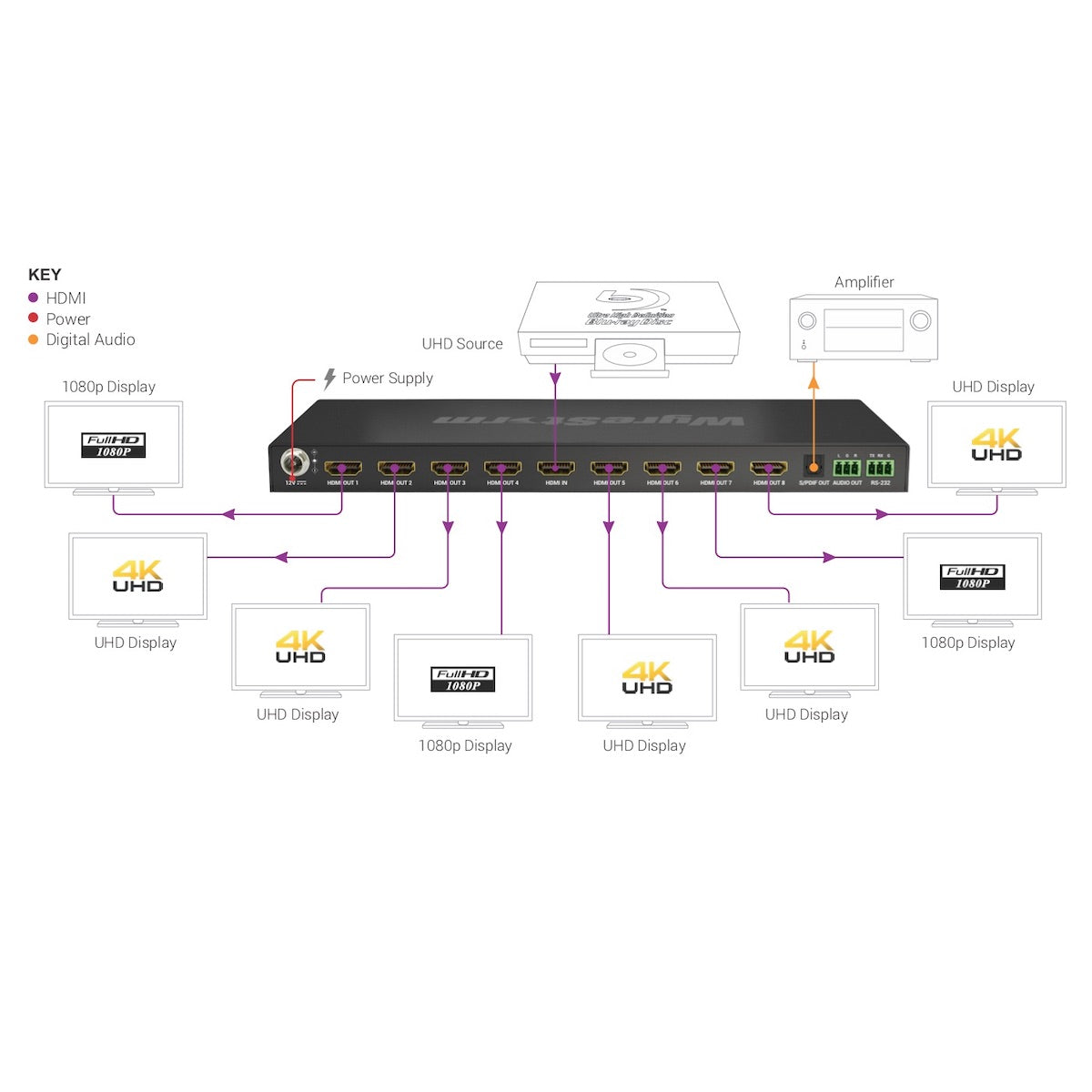

• Each HDMI output supports 4K to 1080p downscaling to support mixed resolution systems
• Small compact design allows the splitter to be mounted locally and discreetly
• Download PC software or connect a control system to the provided RS232 port
• Send API or use dipswitches to control EDID settings
• CEC power off delay up to 30 mins upon loss of sink
• Output downscaling controlled through easy to use dipswitches
• EDID Management through RS232 API, dipswitches, or front panel Read and Select buttons
• RS-232 API for controlling EDID settings and querying HDMI connection status, resolution, etc.
