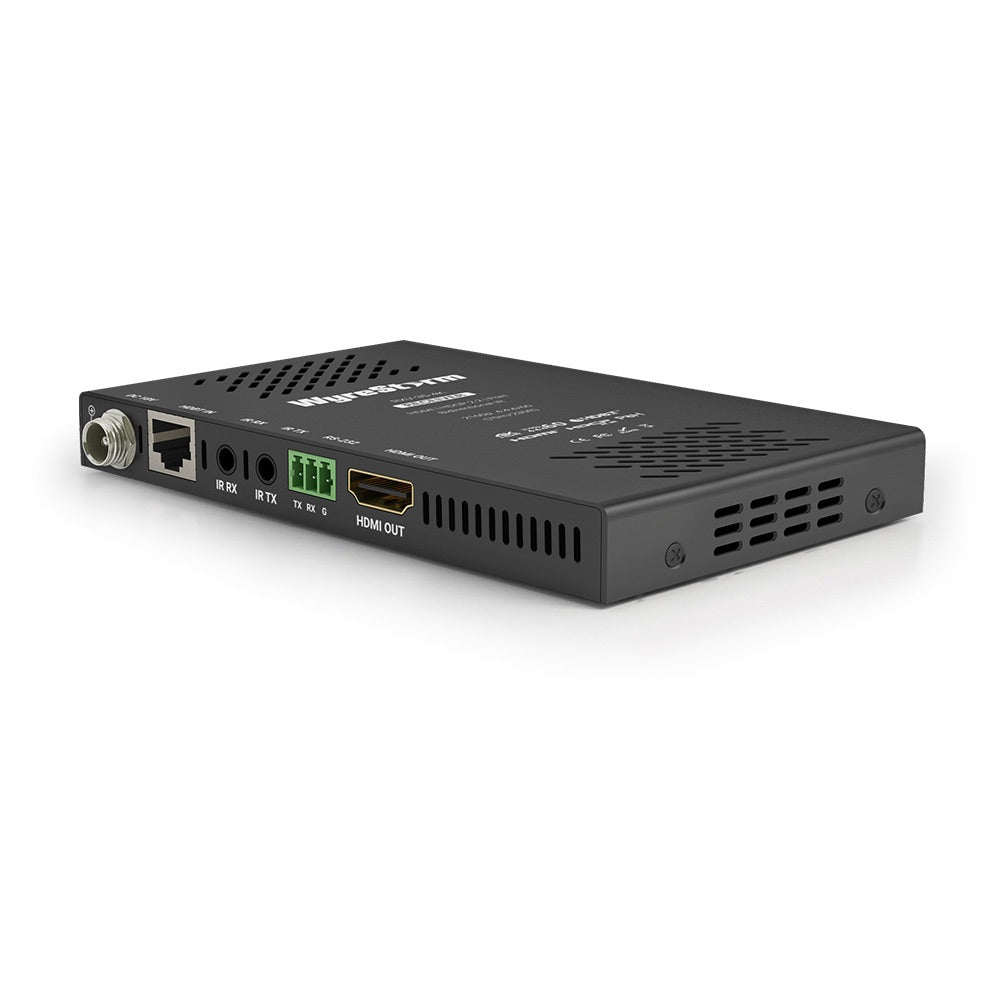

The WyreStorm RXV-35-4K is a 4K HDR HDBaseT receiver for exclusive use with WyreStorm's Class B 4×8, 6×6 & 8×8 MXV-H2A range of matrix switchers.
Consumer HDMI content is now breaking through the once comfortable HDBaseT ceiling of 10Gbps, with HFR (High Frame Rate). HDR is here already in the form of Blu-Ray, Satellite & Cable (HLG) and gaming content. The RXV-35-4K is the perfect companion for WyreStorm’s MXV line-up of matrices when distances of under 35 meters are required. This is the perfect solution for the TX-H2X-VLC modular card, found in the H2XC line.
Features
• Uses WyreStorm’s proprietary compression technology for lossless transmission of 4K HDR content, without latency
• Reliable HDBaseT-HDMI conversion over distance using single Cat6 cable
• 4K UHD signals up to 35m/131ft (2160p 4:4:4 60Hz 8-bit) and 2K signals up to 70m/230ft (1200p 60Hz 16-bit)
• Supports HDMI2.0 video standard up to 18Gbps
• Compatible with HDR standards including HDR-10, HDR-10+, HLG and Dolby Vision (Dolby Vision supported up to 30Hz)
• Class B HDBaseT supporting the transmission of video, multichannel audio, bidirectional control and PoH
• Powered remotely via PoH from MXV matrix
• HDCP 2.2 compatibility
• Bidirectional IR supported with both IR TX & RX ports
• RS-232 port for routed 2-way serial communication
• LED indication for HDCP presence within signal and transmission link between devices
• Ventilated steel chassis
• Conforms to IEEE-568B standards
• Compact design for convenient and unobtrusive installation
• Wall mounting brackets and IR accessories included
