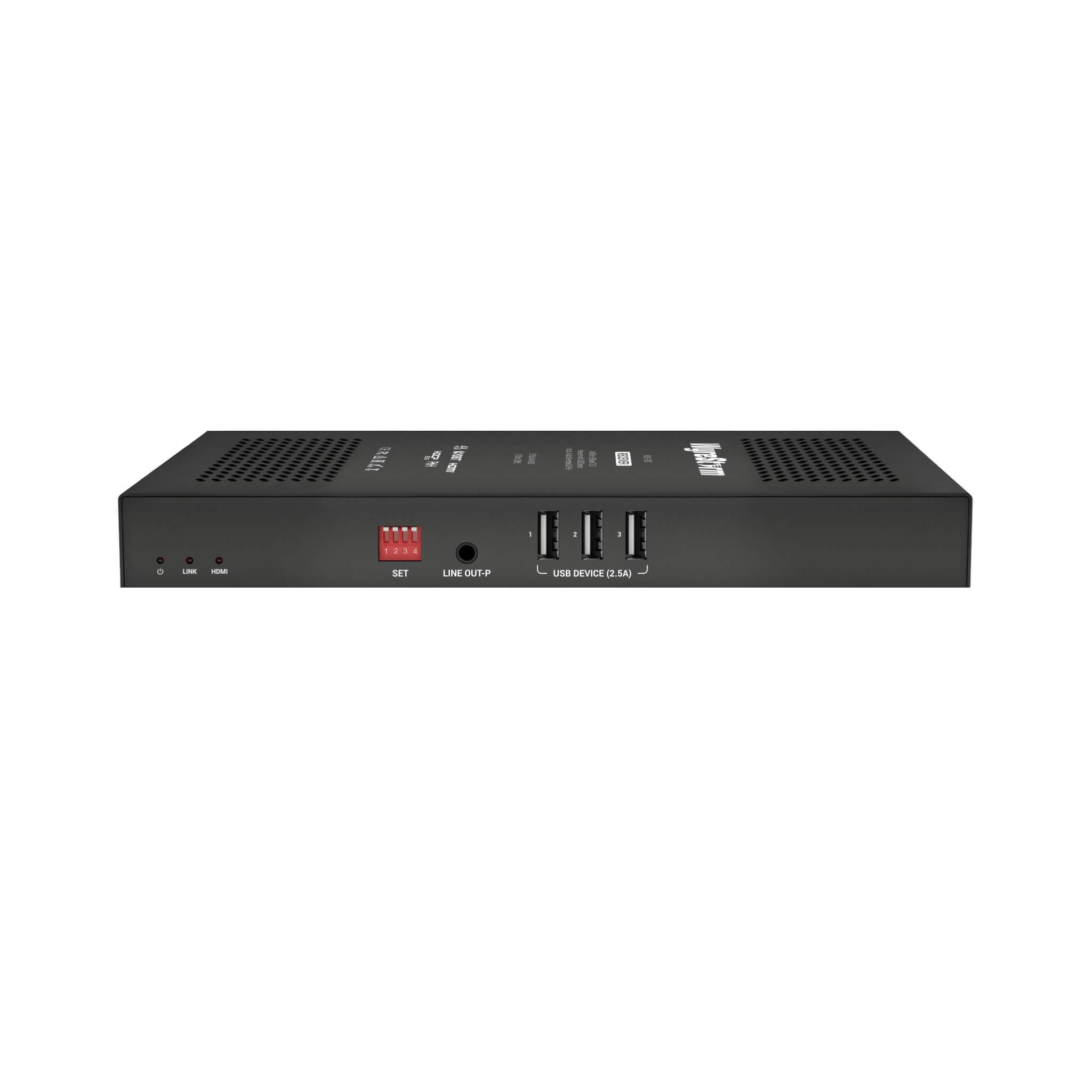

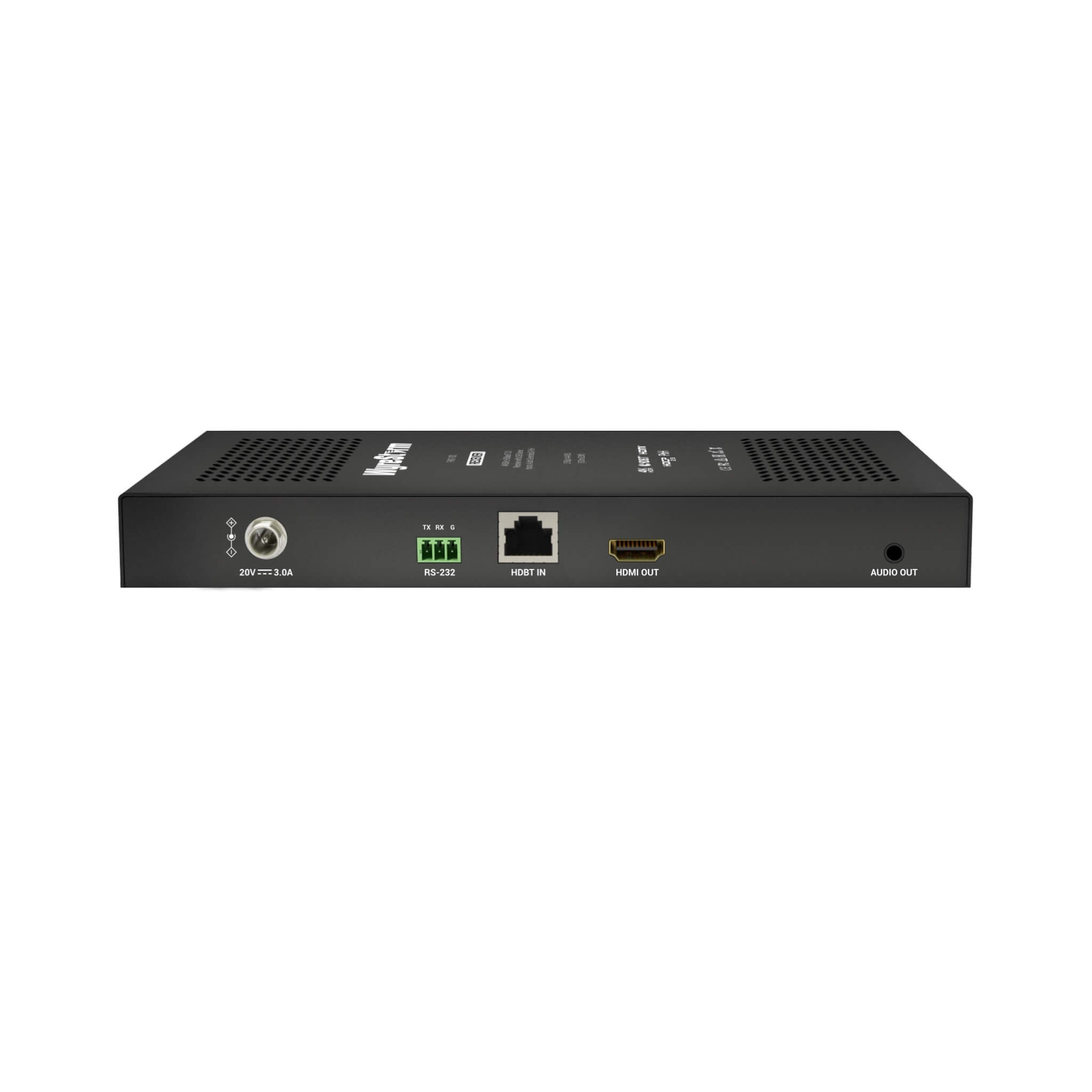

The WyreStorm RX3-100 is an uncompressed 18G HDBaseT 3.0 receiver that achieves signal transmission up to 100m/328ft at 4K@60Hz via Cat.6A cable. With HDBaseT 3.0, experience USB data transfers of up to 300Mbps, nearly doubling HDBaseT 2.0’s capability of 190Mbps. This heightened capacity supports high-speed connections to 4K webcams, whiteboards, and data drives. The RX3-100 seamlessly pairs with any of WyreStorm’s HDBaseT 3.0 transmitter options, such as the SW-120-TX3 and SW-120-TX3-Ux for a powerful switching extender solution.
Features
• HDBaseT 3.0 Receiver supporting:
- Uncompressed content up to 4K@60Hz 4:4:4 8bit
- HDCP 2.3 encryption compatible with 4K UHD content and sources
- HD Multichannel audio up to DTS:X and Dolby Atmos via HDMI
• Compatible with DVI-I and DP++ v1.3 signals from compatible devices
• USB 2.0 passthrough offering 300Mbps transfer and HID extension
• Features 3x USB device ports
• Supports independent lane analog audio pass-through from transmitter to receiver
• Backwards compatible with HDBaseT 1.0 transmission and receiving devices
