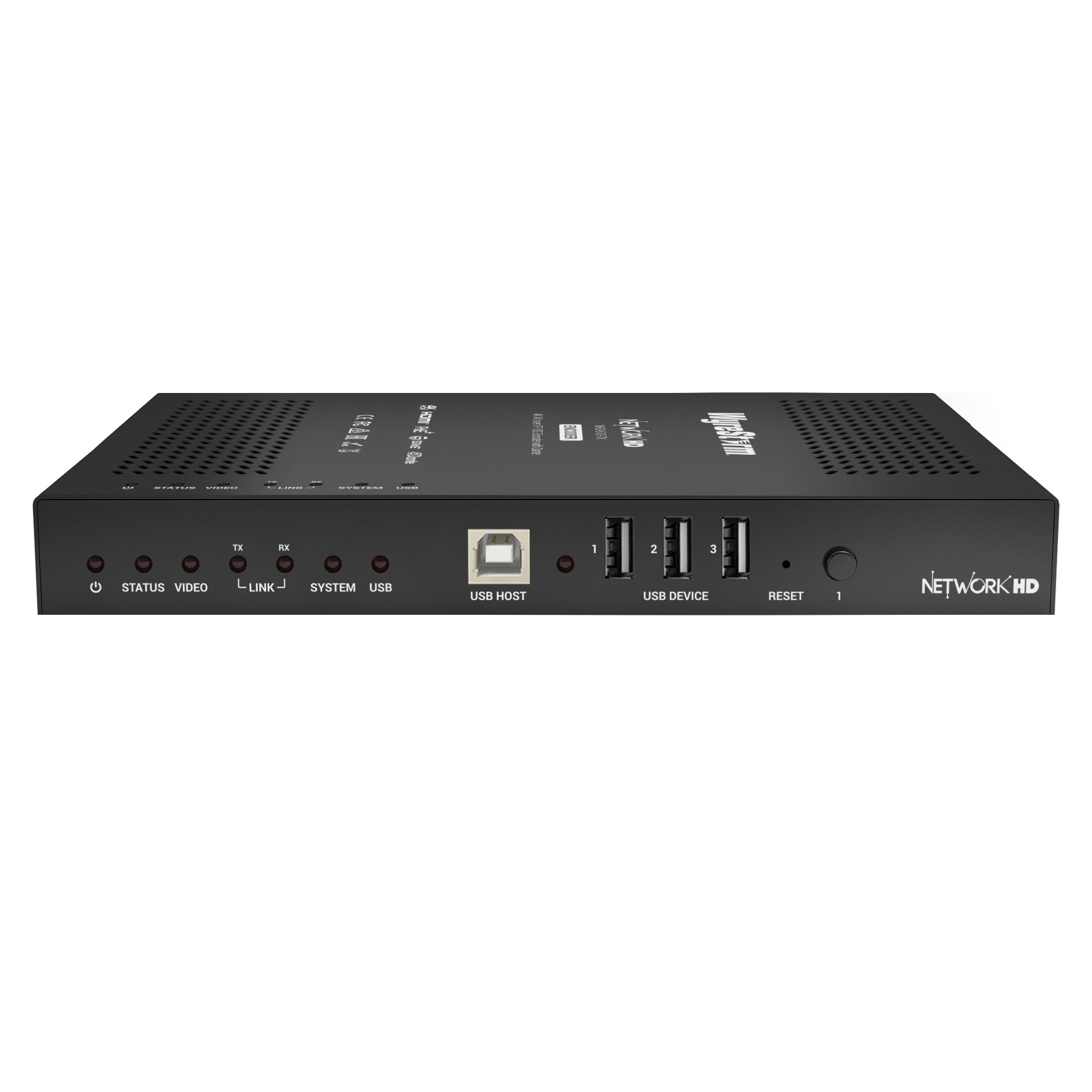

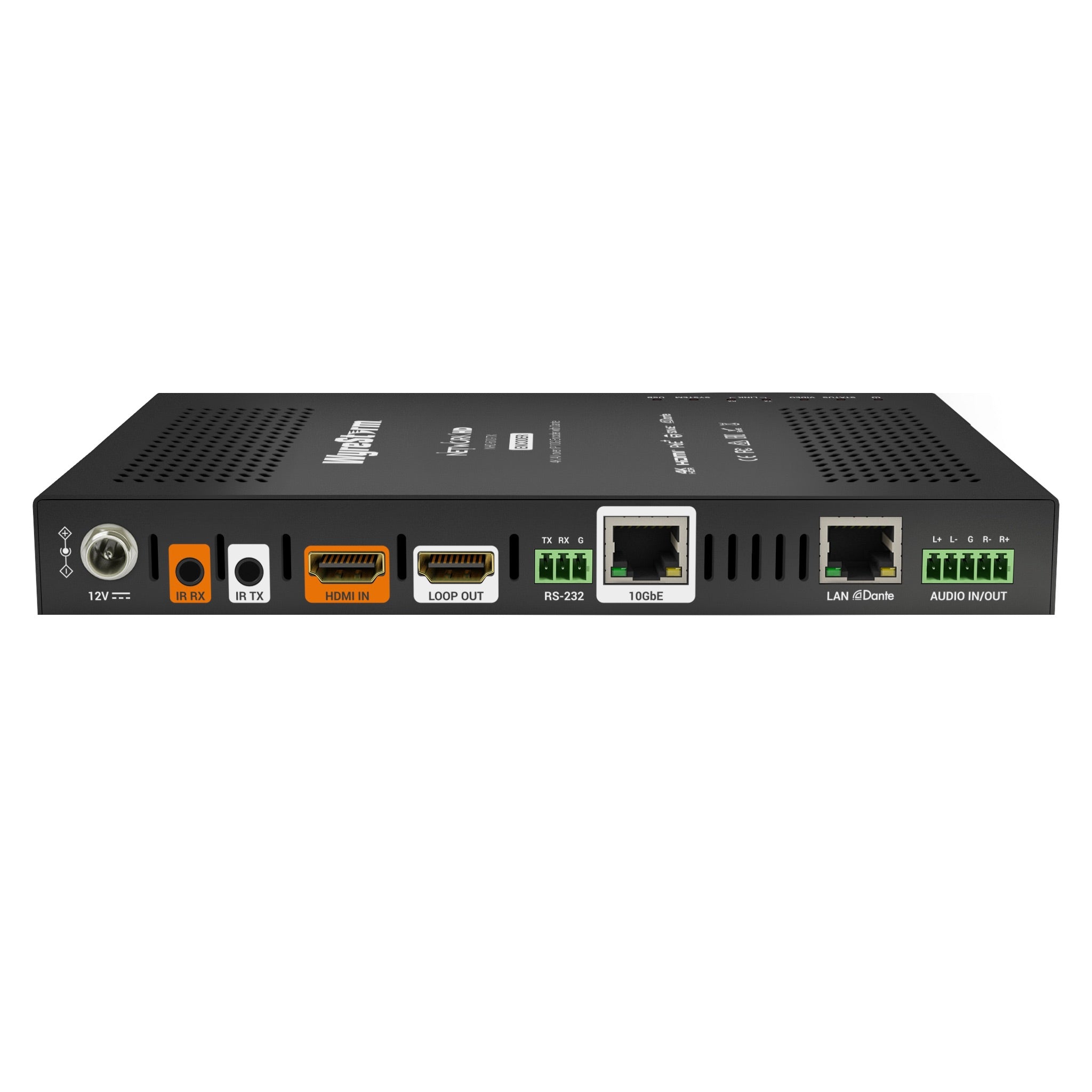

The WyreStorm NHD-610-TX-V2 expands the functionality of the powerful SDVoE 600 series product line. The 610-TX retain many of the capabilities found on the other models, such as full HDMI 2.0 encoding, zero latency transmissions, video wall and multiview processing. However, the 610 packs an extra punch by incorporating a Dante/AES67 output, allowing audio from the HDMI or analog audio input to transmit to Dante/AES67 enabled amplifiers, DSP or mixers. The TX is also equipped with a full speed USB 1.1 HID chipset, maximizing compatibility with thousands of USB peripherals for extension over the network, such as a keyboard/mouse, webcams, touchscreens, or just simple data transfers.
Features
• High-bitrate multichannel audio passthrough, including Dolby Atmos and DTS:X
• Powerful video scaling can match a connected display to the video source
• Video resolution, framerate and color space conversion using SMPTE/ITU
• Genlock scaler mode for zero end-to-end latency
• Supports seamless AV source switching via Fast Switch mode
• Bidirectional IP to Infrared/RS-232 functionality via the API or 3rd-party drivers
• Matrix functionality routes control of all audio, video, RS-232 and IR signals
• Compatible with NHD-000-RACK4 for easy rack mounting
• Secure A/V transmissions using AES encryption methods
In the Box
• 1x NHD-610-TX
• 1x 12V DC PSU (US/UK/EU/AU)
• 1x IR Emitter (TX)
• 1x IR Receiver (RX)
• 1x Pair of Rack Brackets (TX)
• 1x Pair of Wall Brackets
• 1x 3-pin Terminal Block
• 1x 5-pin Terminal Block
