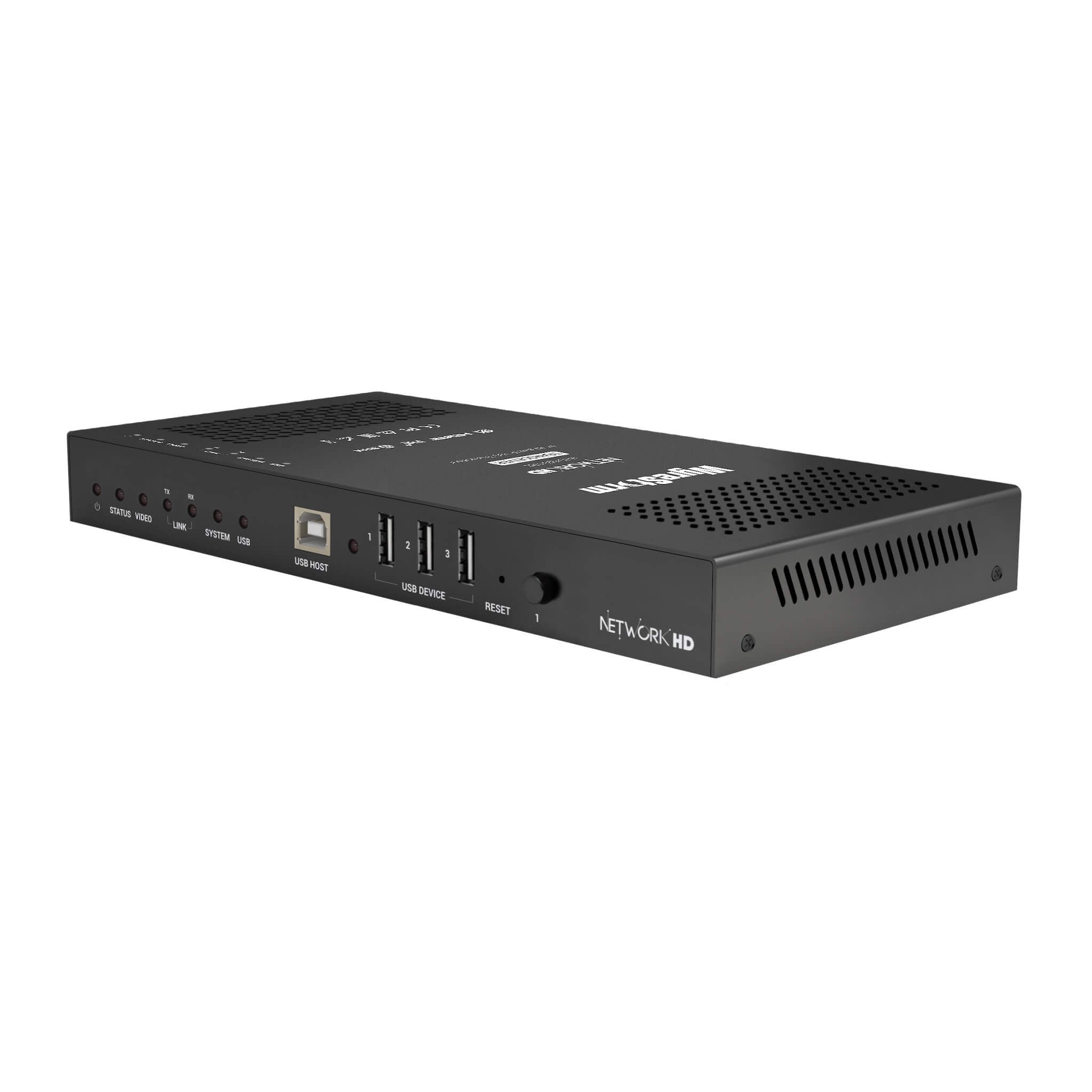

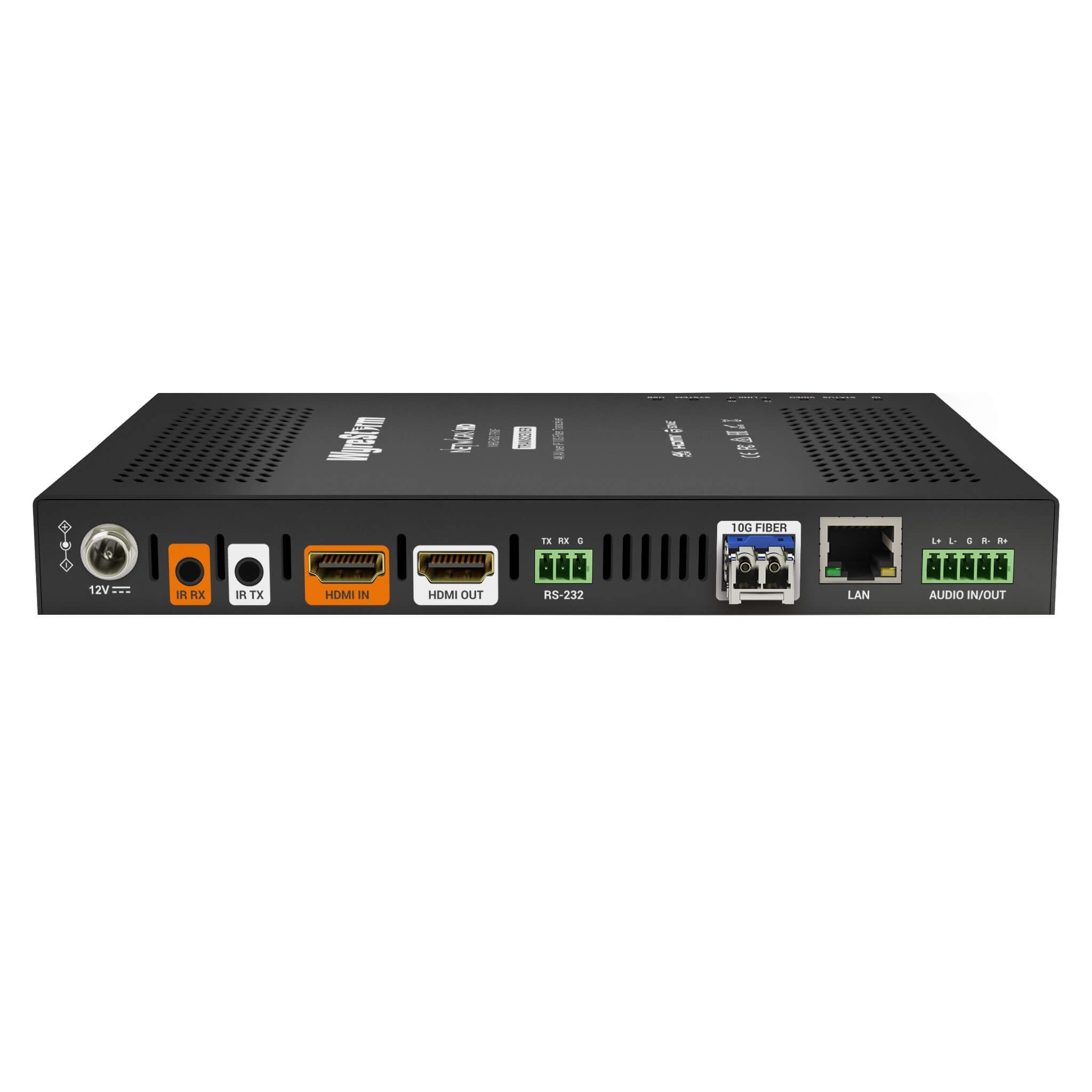

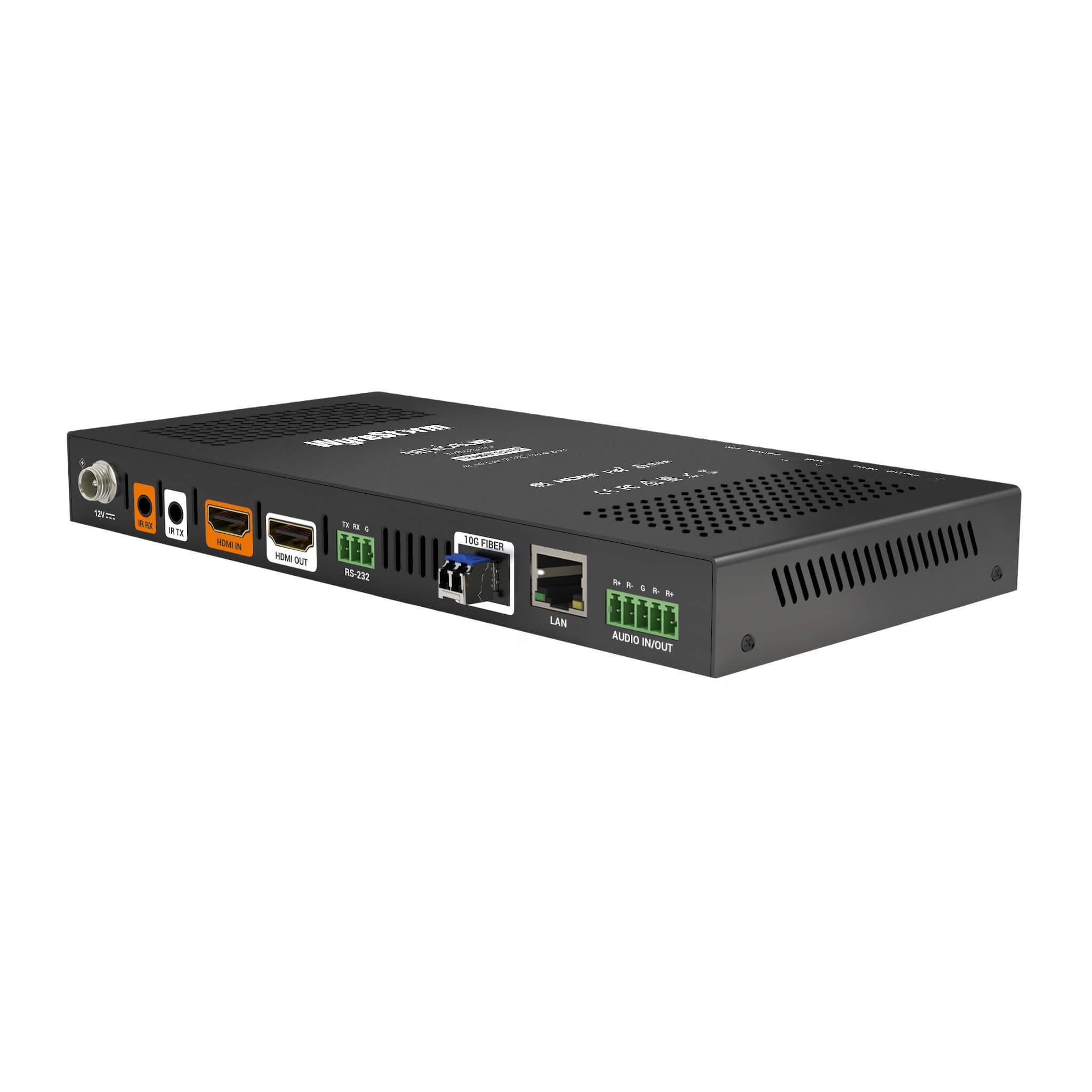

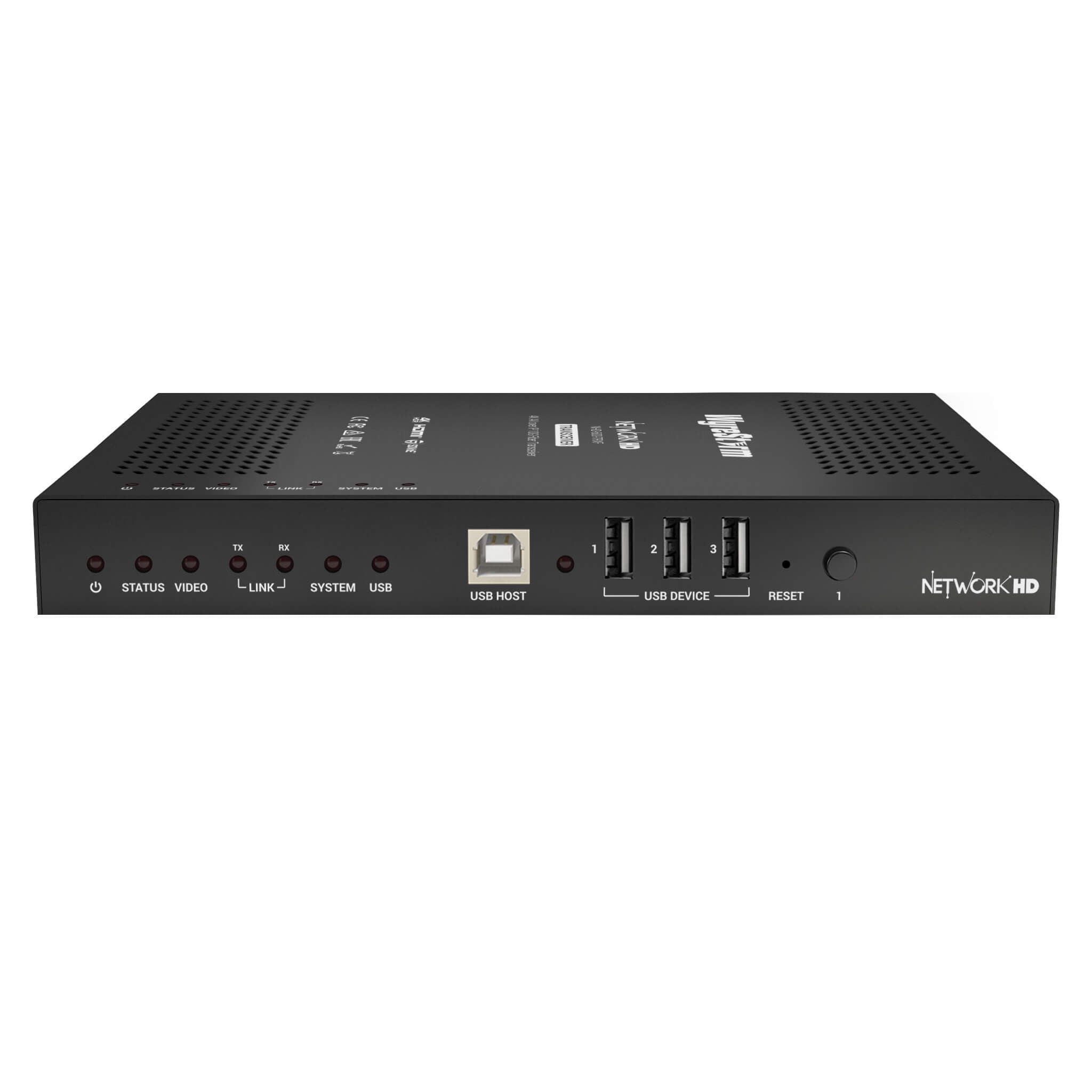

The WyreStorm NHD-600-TRXF is a SDVoE fiber transceiver capable of lossless & latency-free 4K60 over a 10Gb network. The TRXF allows you to transmit and receive A/V simultaneous through a single device or be programmed to act as a dedicated TX or RX. The SFP+ GBIC supports up to 300m (984ft) transmission distance for extremely long reach commercial applications. 3 x High-Speed USB 2.0 ports allow extension for keyboard & mouse applications and even compatibility with webcams, touchscreens, and media storage.
Features
• Supports 4K UHD and DCI resolutions up to 60fps RGB or YUV 4:4:4
• Supports Dolby Vision, HDR10, HLG HDR formats and ITU-R BT.2020, BT.2100 color spaces
• Equipped with an SFP+ GBIC, transmit or receive 4K60 video up to 300m (984ft) with zero latency and lossless video using multi-mode fiber.
• Capable of high-bitrate multichannel audio passthrough, including Dolby Atmos and DTS:X
• HDCP 2.2 and HDCP 1.x support
• 3x USB 2.0 ports for extension of keyboard/mouse, webcams, touchscreens & media storage
• Powerful video scaling can match a connected display to the video source, leaving the original source content unaltered
• Video resolution, framerate and color space conversion using SMPTE/ITU
• Genlock scaler mode for zero end-to-end latency
• Supports seamless AV source switching via Fast Switch mode
• Secondary video stream with alternate scaling options for multiview source content
• Fully featured multiview image compositing includes arbitrary source window placement, resizing, image duplication and image offset functions
• Video wall processing including display bezel compensation
• Balanced analog audio port can be configured as an input or output for a discrete audio stream or HDMI de-embedding
• Bidirectional IP to Infrared/RS-232 functionality via the API or 3rd-party drivers
• Auxiliary 1GbE channel for network connectivity of attached source devices
• Powerful matrix functionality includes routing control of all audio, video, RS-232 and IR signals
• Compatible with NHD-000-RACK4 for easy rack mounting
• Secure A/V transmissions using AES encryption methods
*Preview streams not supported
