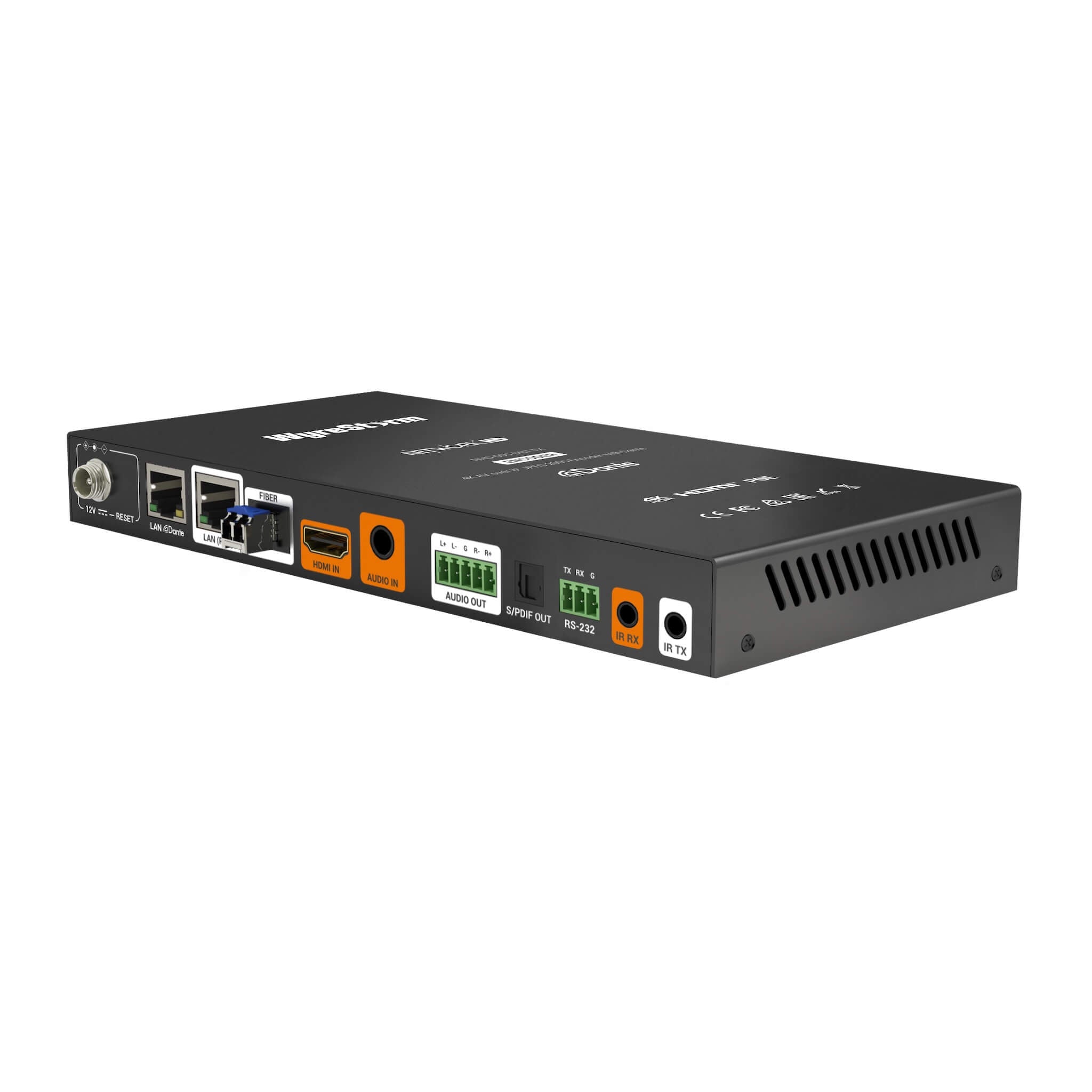

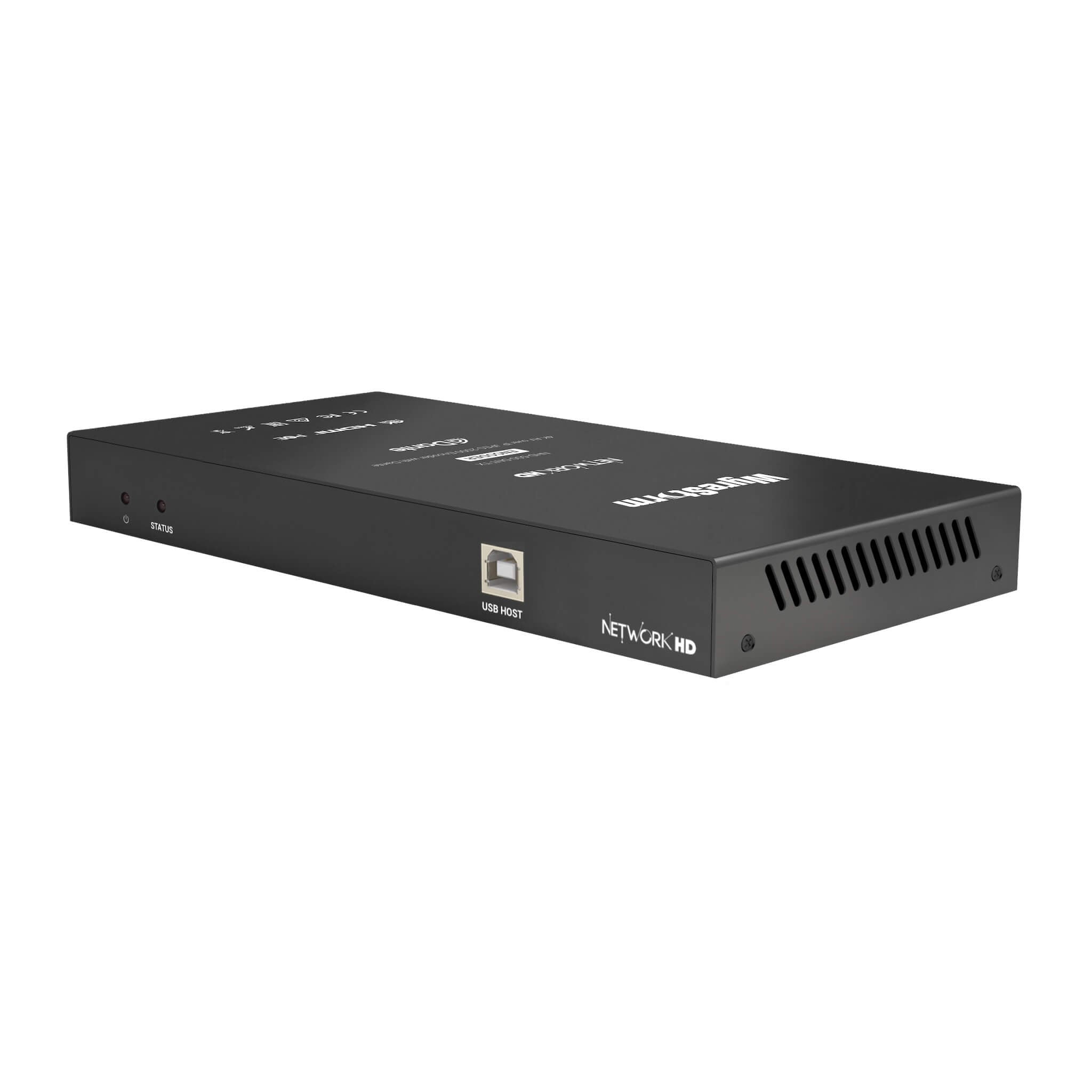

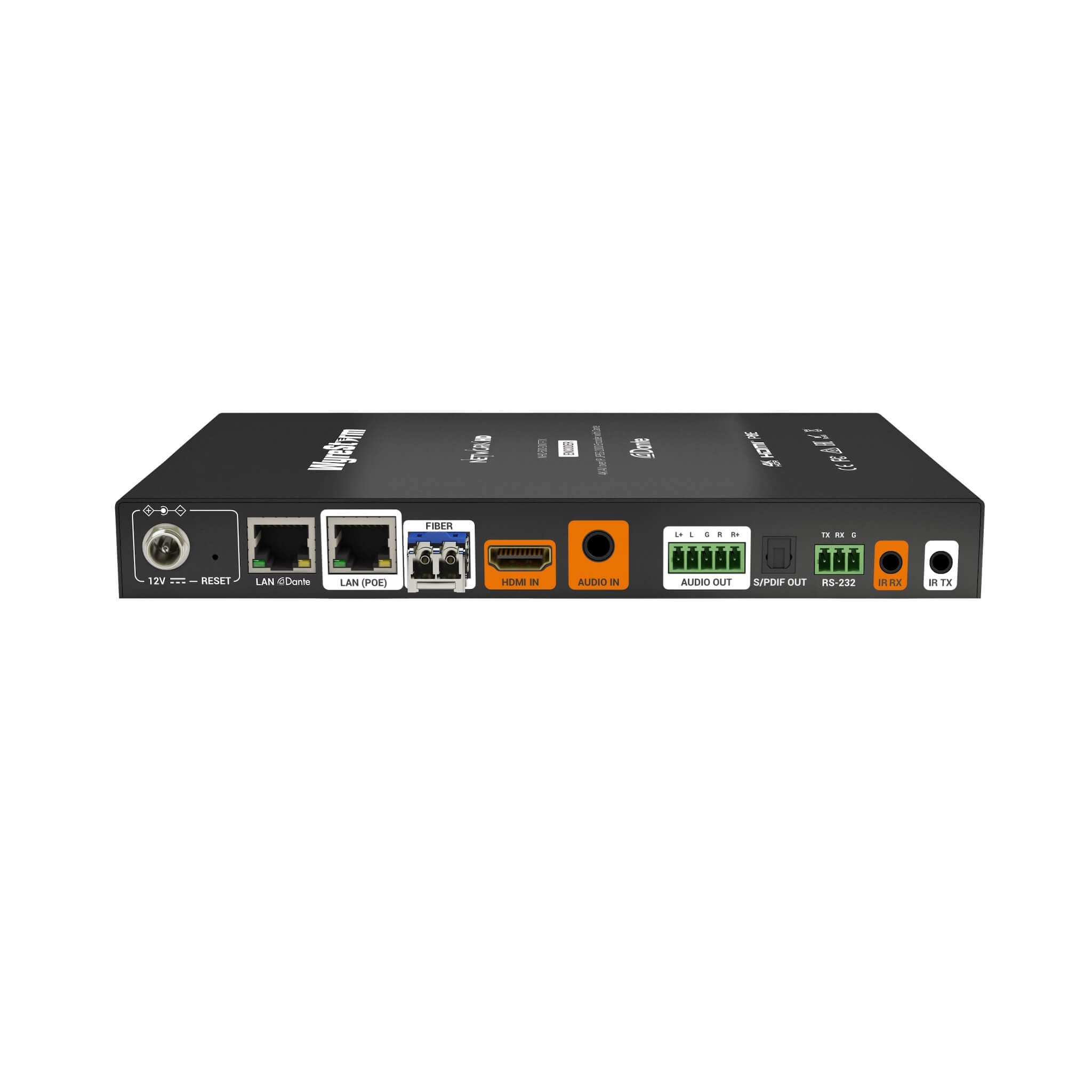

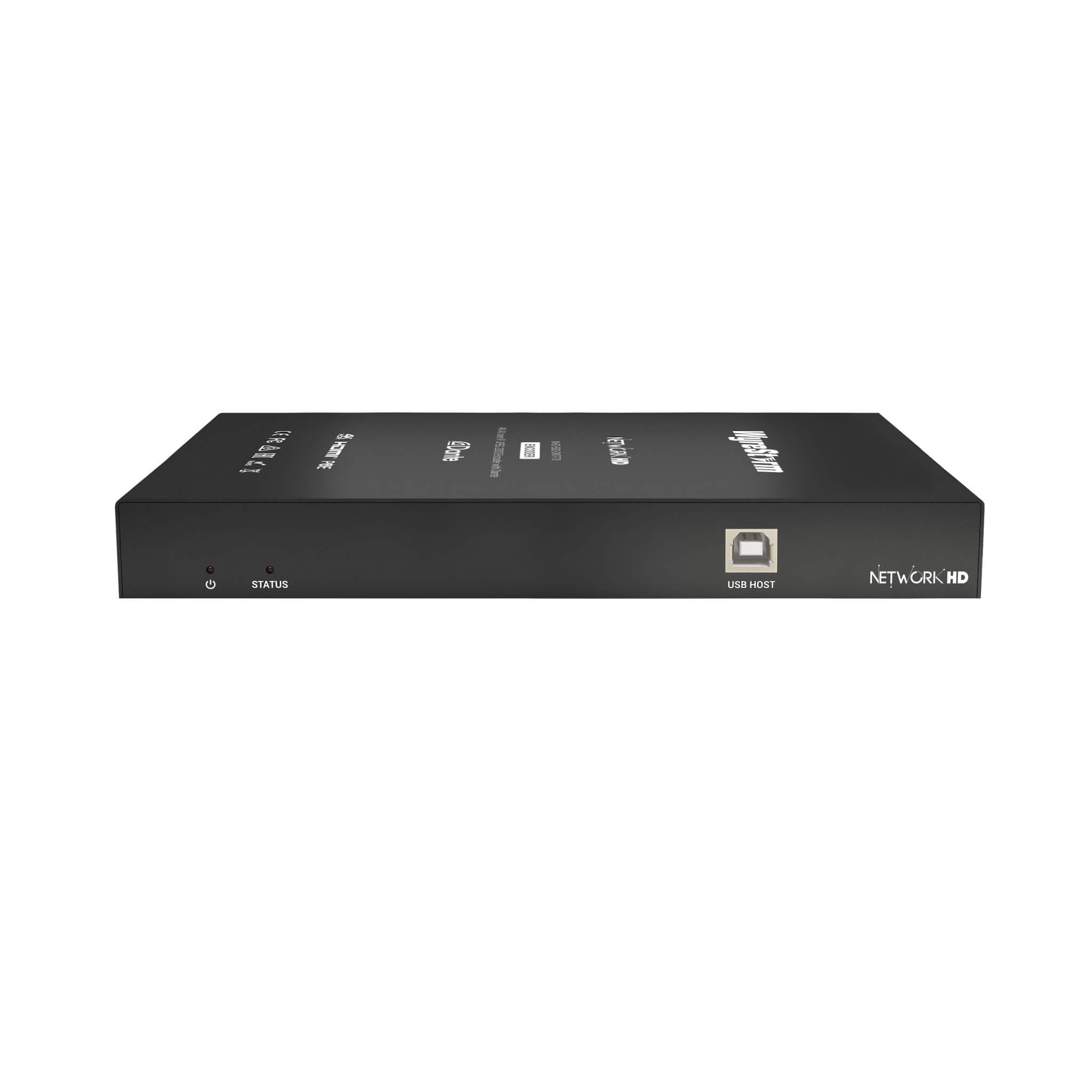

The WyreStorm NHD-500-DNT-TX is part of the powerful NetworkHD 500 series family of products. Capable of encoding up to 4K60 including Dolby Vision, HDR10 and HLG content. The 500 series comes loaded with a number of advanced features such as the flexibility of Ethernet or Fiber as a transport method. Ultra-low latency encoding and incredibly fast matrix switching speeds enhance the experience. Unique to this encoder is an integrated 2 channel Dante & AES67 audio output.
Features
• Supports multi-channel audio passthrough including DTS:X & Dolby Atmos
• Hugely scalable I/O, utilizing multicast technology
• CEC One-Touch Play & Standby, bidirectional IR or RS-232 control of connected devices
• Custom “No Source” idle image upload for branded down time
• Analog audio de-embed output with volume control
• Batch firmware update and settings functions reduces installation times
• Custom EDID management with import/export
In the Box
• 1x NHD-500-DNT-TX Transmitter
• 1x IR Emitter
• 1x IR Receiver
• 2x Wall Mounting Brackets
• 2x Rack Mounting Brackets
• 1x 3-pin Terminal Block
• 1x 5-pin Terminal Block
