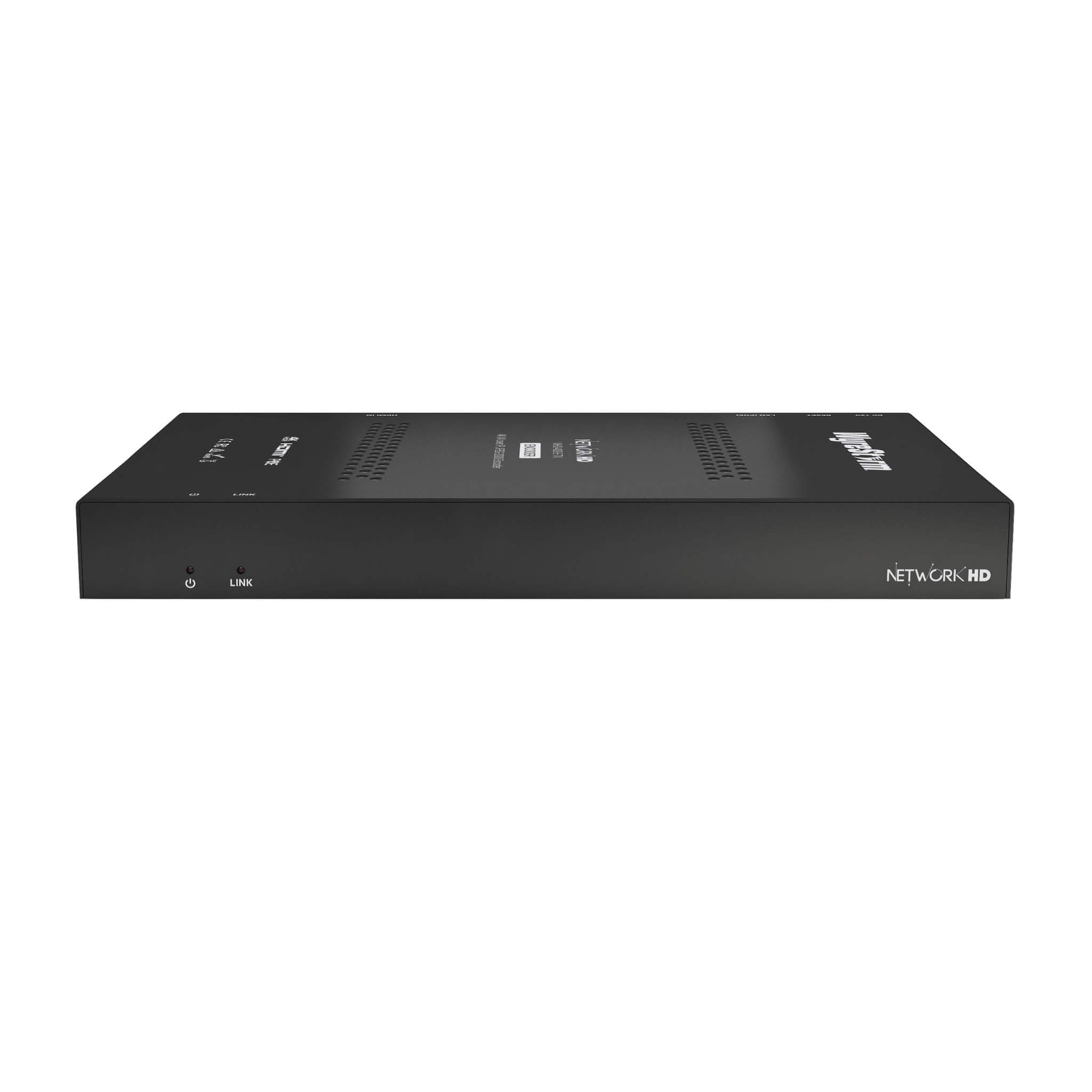

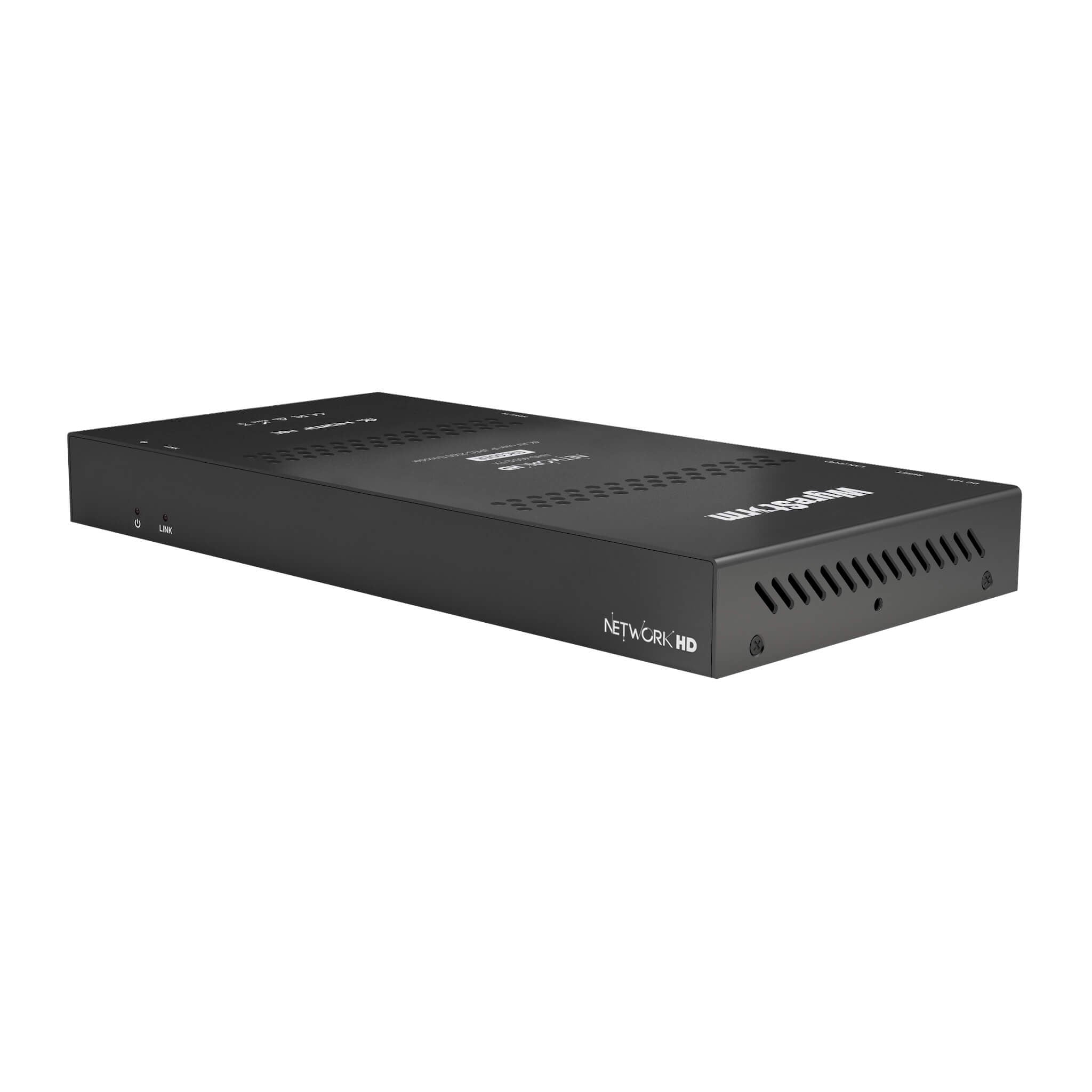

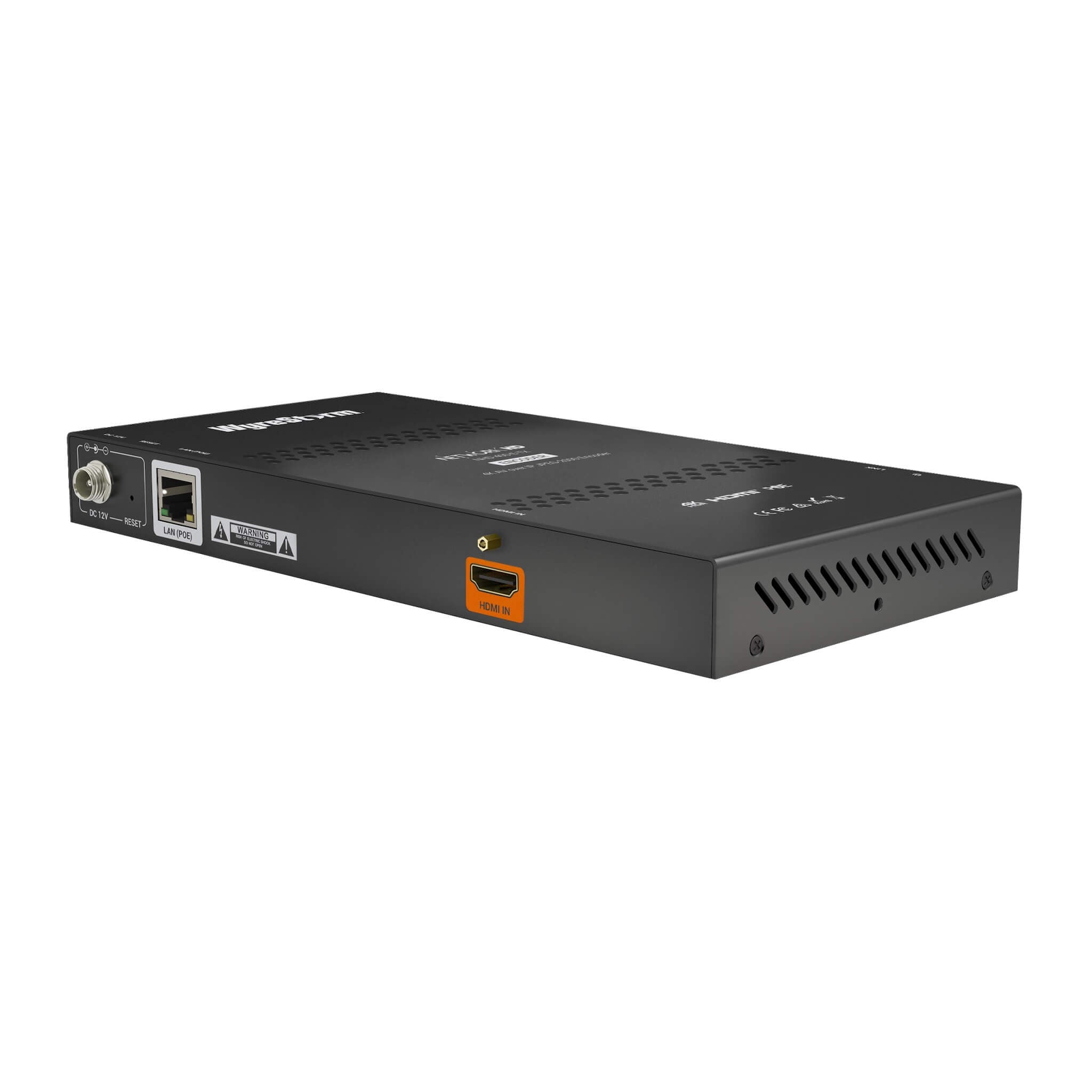

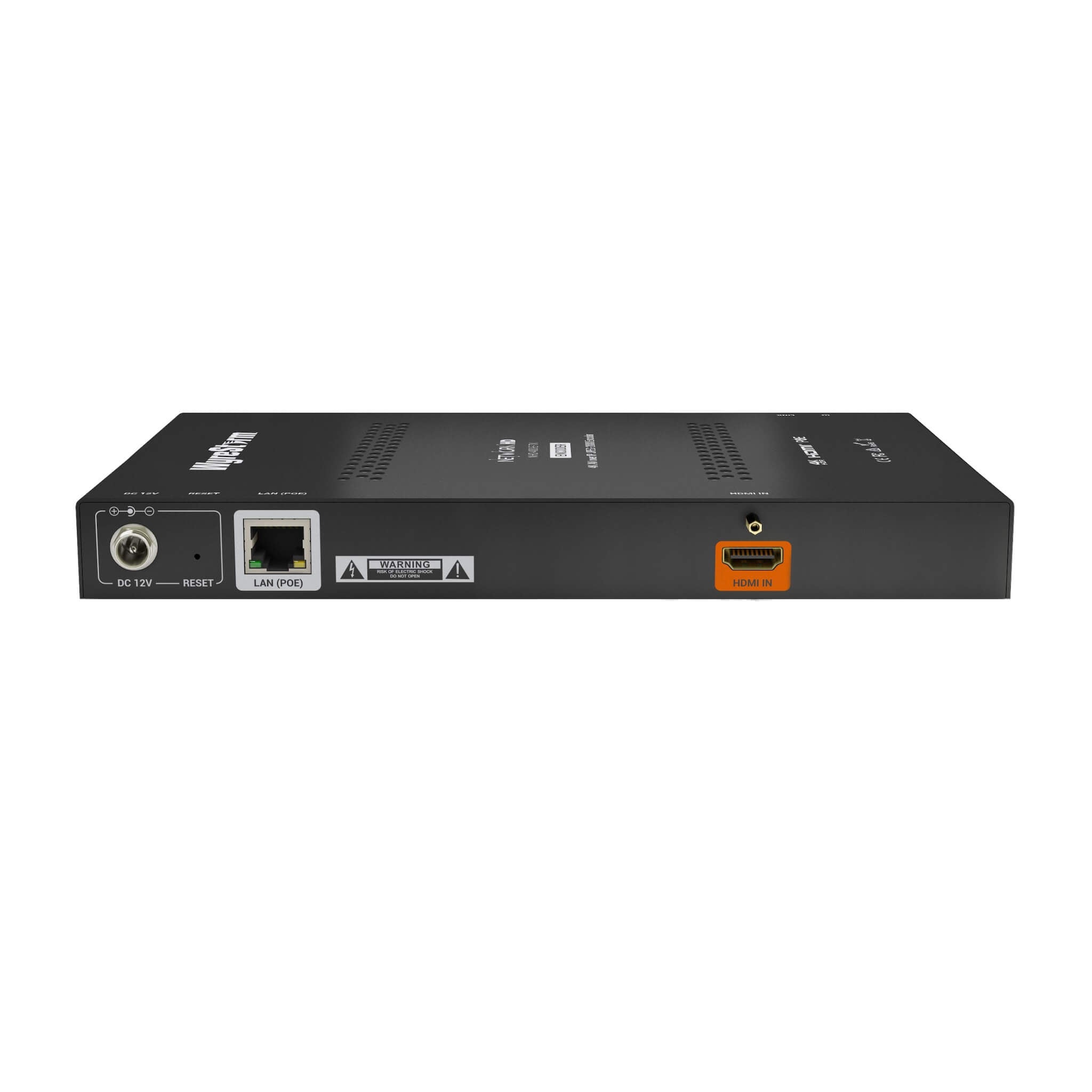

The WyreStorm NHD-400-E-TX encoder offers stunning 4K HDR video, multichannel audio support and 4K/2K scaling to seamlessly handle mixed resolution HDMI sources for matrix and video wall functionality. The reduced cost Type E version removes some control ports but retains the 400 Series core features. Featuring incredible low latency the 400 Series is the ideal AV over IP solution for systems where high quality and low delay are key requirements, making it perfect for demanding commercial applications.
The NHD-400-E-TX JPEG 2000 encoder is intended for use with any 400 Series JPEG 2000 decoder (sold seperately) to provide a complete end-to-end video distribution system. When used in conjunction with the NHD-000-CTL system controller complete control integration is quick and simple.
Features
• Uses security protocols such as SSH, HTTPS and AES to encrypt data
• Stunning visually lossless 4K UHD HDMI video with HDR over 1GbE/IP networks
• Ultra-low end-to-end latency – only a single video frame (16ms at 60fps)
• Multi-channel audio including DTS:X & Dolby ATMOS supported over HDMI
• Image scaling with 400 Series decoders – use a mix of 4K & 1080p displays throughout an installation
• Easy network set-up using standard Layer 2 or Layer 3 managed switches
• Hugely scalable I/O, utilizing multicast technology
• Live video unicast preview streams for use with NetworkHD Touch or a custom control UI
• Powerful audio matrix functionality – route audio separately from video to any decoder
• 400 Series supports up to 16×16 video walls with image scaling, bezel compensation and rotation
• 400 Series supports custom “No Source” idle image upload for branded down time
• Support all SD, HD and UHD video formats, including interlaced content
• Batch firmware update and batch settings functions offers a massive reduction on installation times
• Custom EDID management with import/export
• HDCP 2.2 Compliant
• IEEE 802.3af PoE compliant PD
• Compatible with NHD-000-RACK4 rack mounting kit (brackets included with encoder)
• WyreStorm Pro AV 5 Year Warranty
