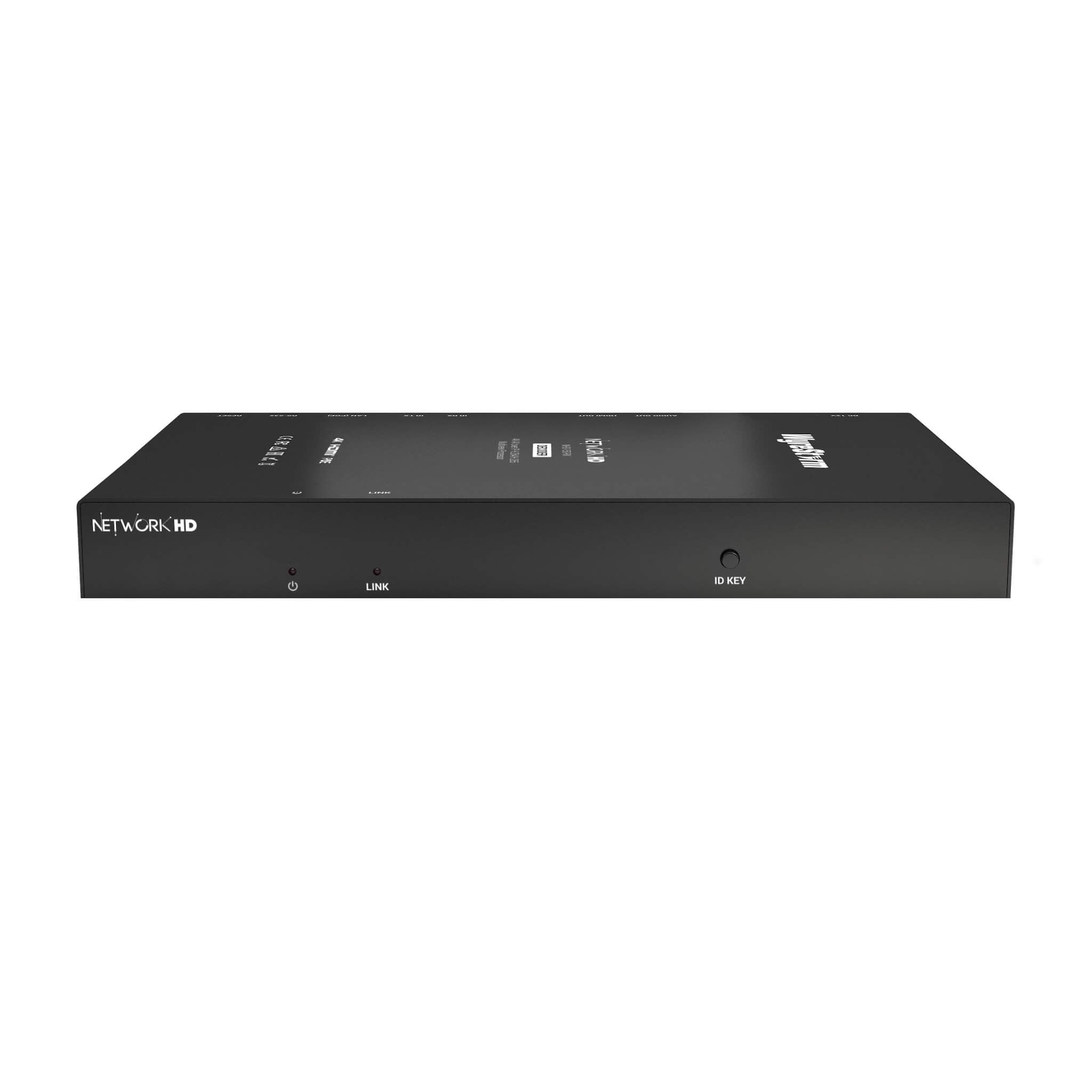

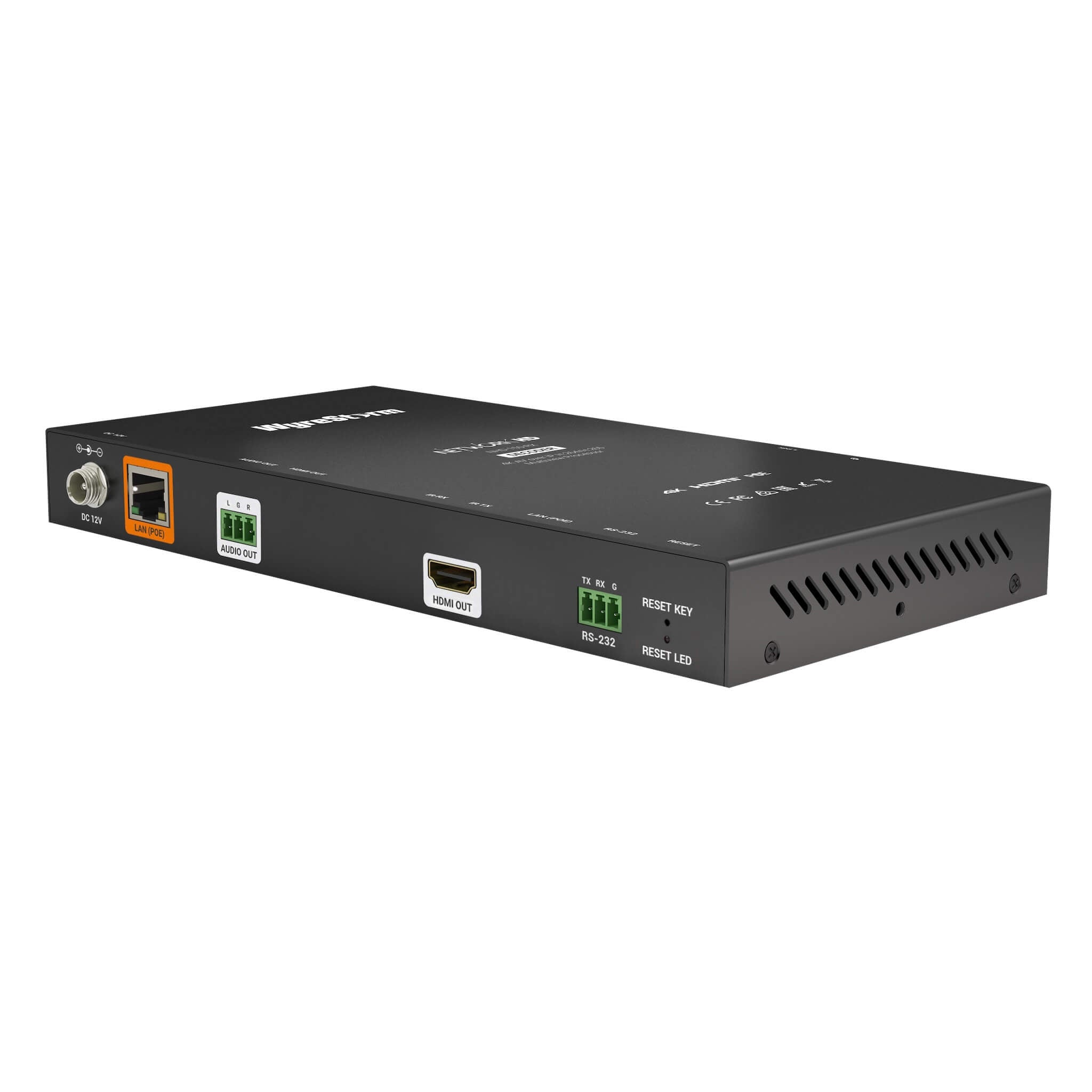

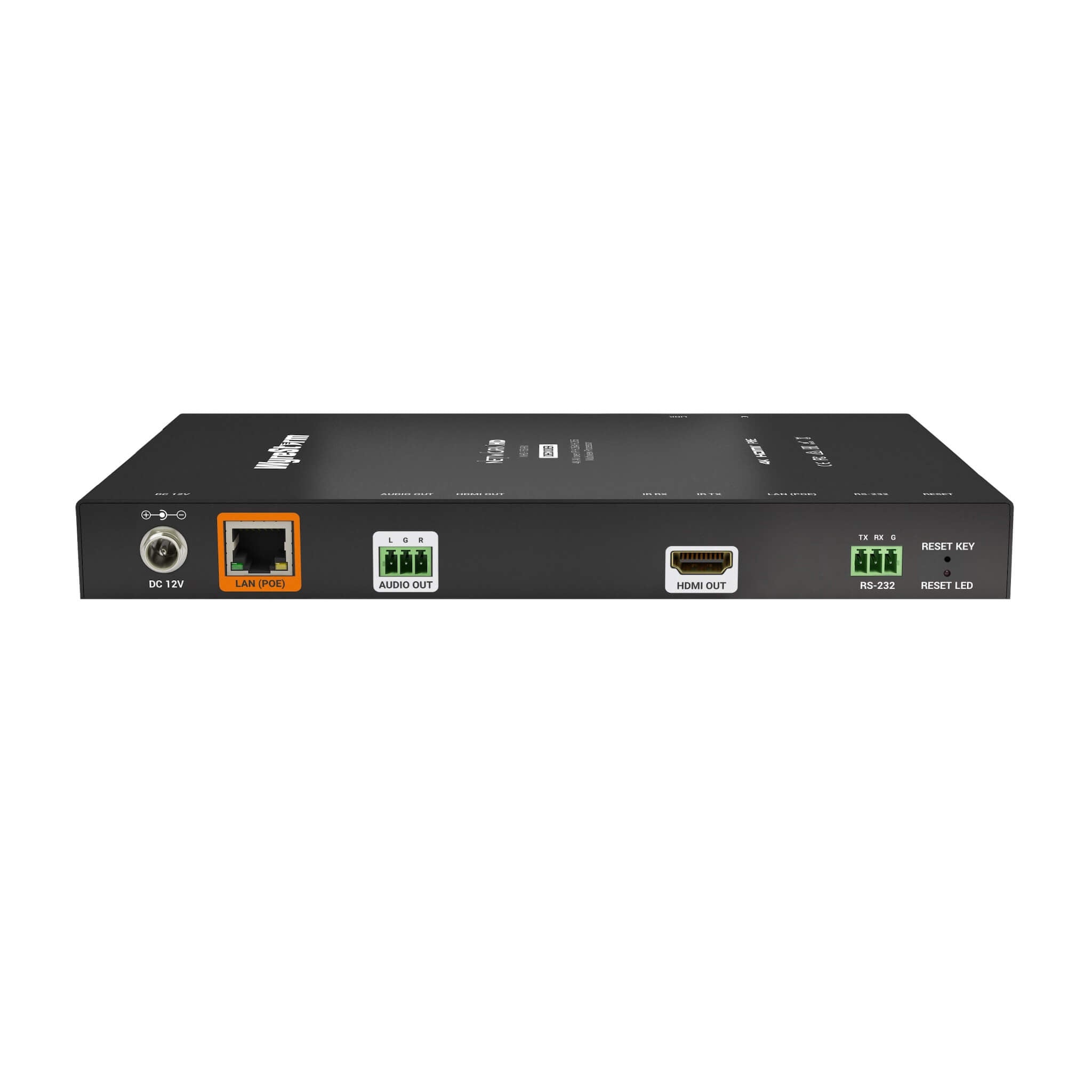

The WyreStorm NHD-150-RX is an enhanced 8-window MultiView display decoder compatible with the NetworkHD 120 Series. It's an ultra-low bandwidth AV over IP solution for distribution of point-to-point, one-to-many, and many-to-many over a managed network. The NHD-150-RX decoder is intended for use with 120 Series encoders (sold separately) to provide a complete end-to-end video distribution system. When used in conjunction with the NHD-CTL-PRO system controller, complete control integration is simple.
Features
• Provides 4K @ 60Hz multiview video content
• Capable of processing up to eight 4K30 inputs at the same time
• Flexible encoding using low bandwidth encoding.
• Encoding is configurable between a constant bitrate or variable bitrate
• Low bandwidth (~150ms) or high-quality (~400ms) transmission methods
• Analog audio de-embed for easy connection to external audio DSP or amplifier
• Hugely scalable I/O, utilizing multicast technology
• Touch control app for live previews with drag and drop source selection
• Flexible IP address settings: AutoIP/Static/DHCP
• Customizable RS-232 and CEC control of connected display
• Infrared signal generation via API – supports Hex Global Cache format
• Batch firmware update and batch settings functions reduce installation time
• Custom EDID management with import/export
• HDCP 2.2 compliant
• Supports AES-128 for audio/video decryption
• Supports HTTPS/SSH/LDAP/802.1X
• IEEE 802.3af PoE compliant PD
• Includes Wall and Rack mounting brackets
• Compatible with NHD-000-RACK4 rack mounting kit
