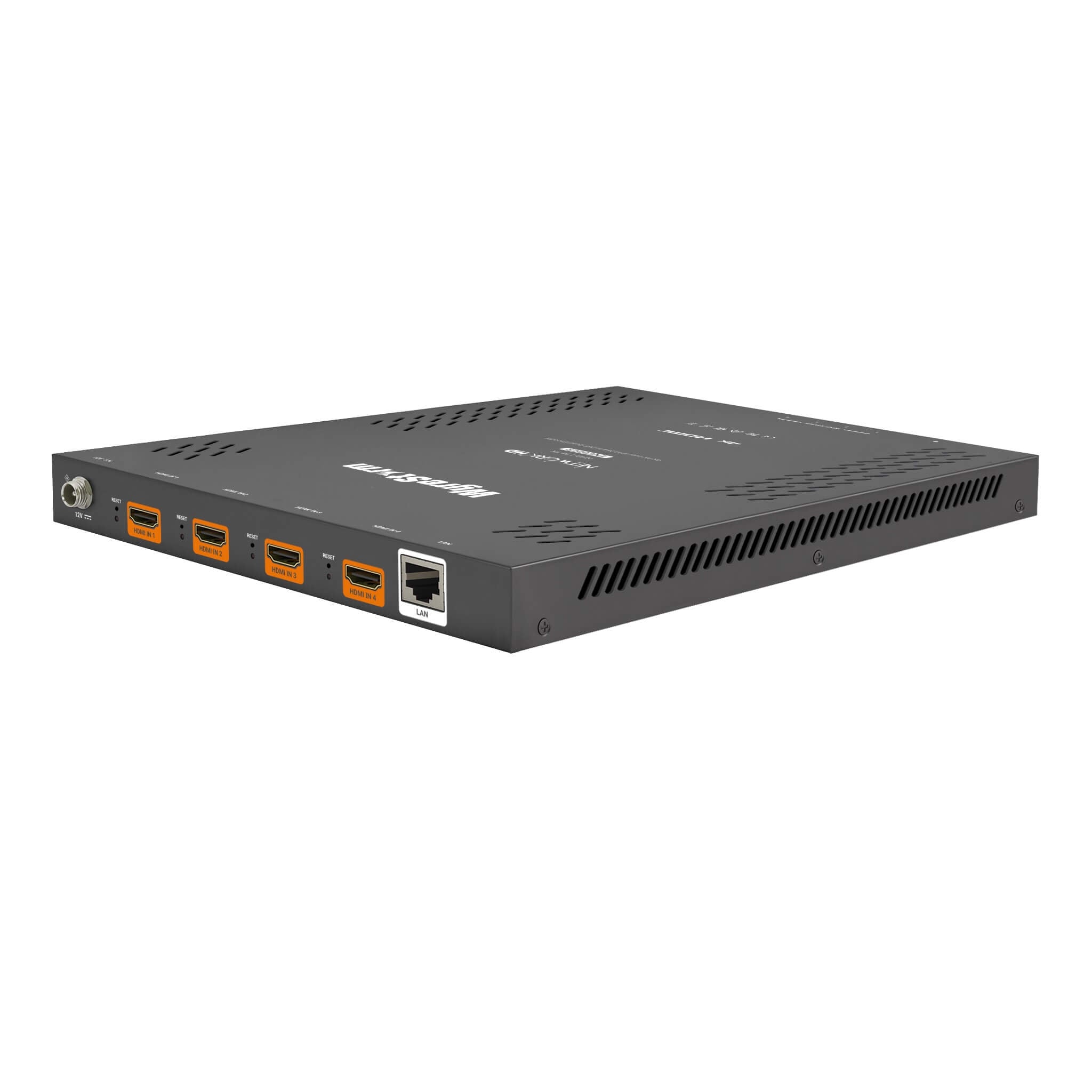

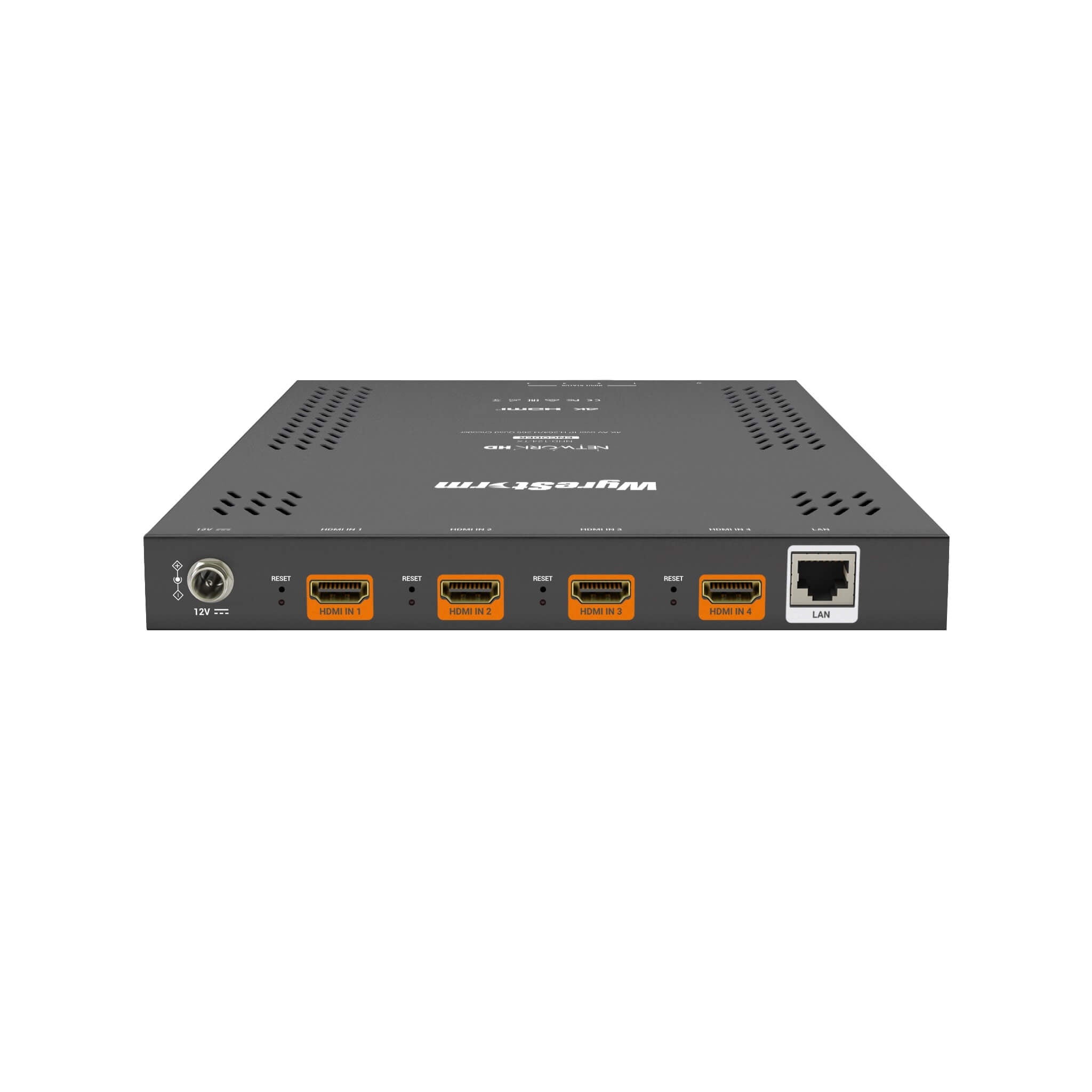

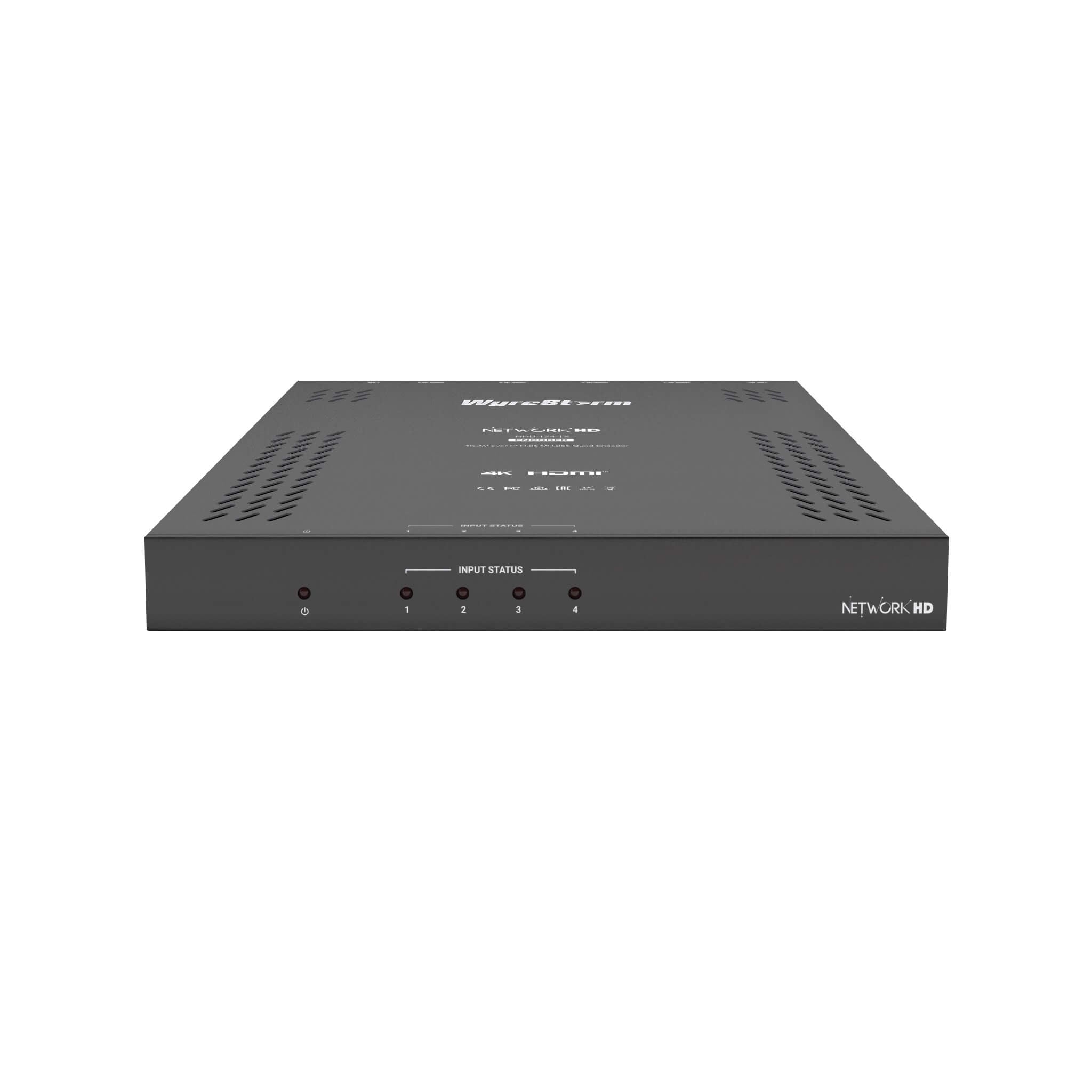

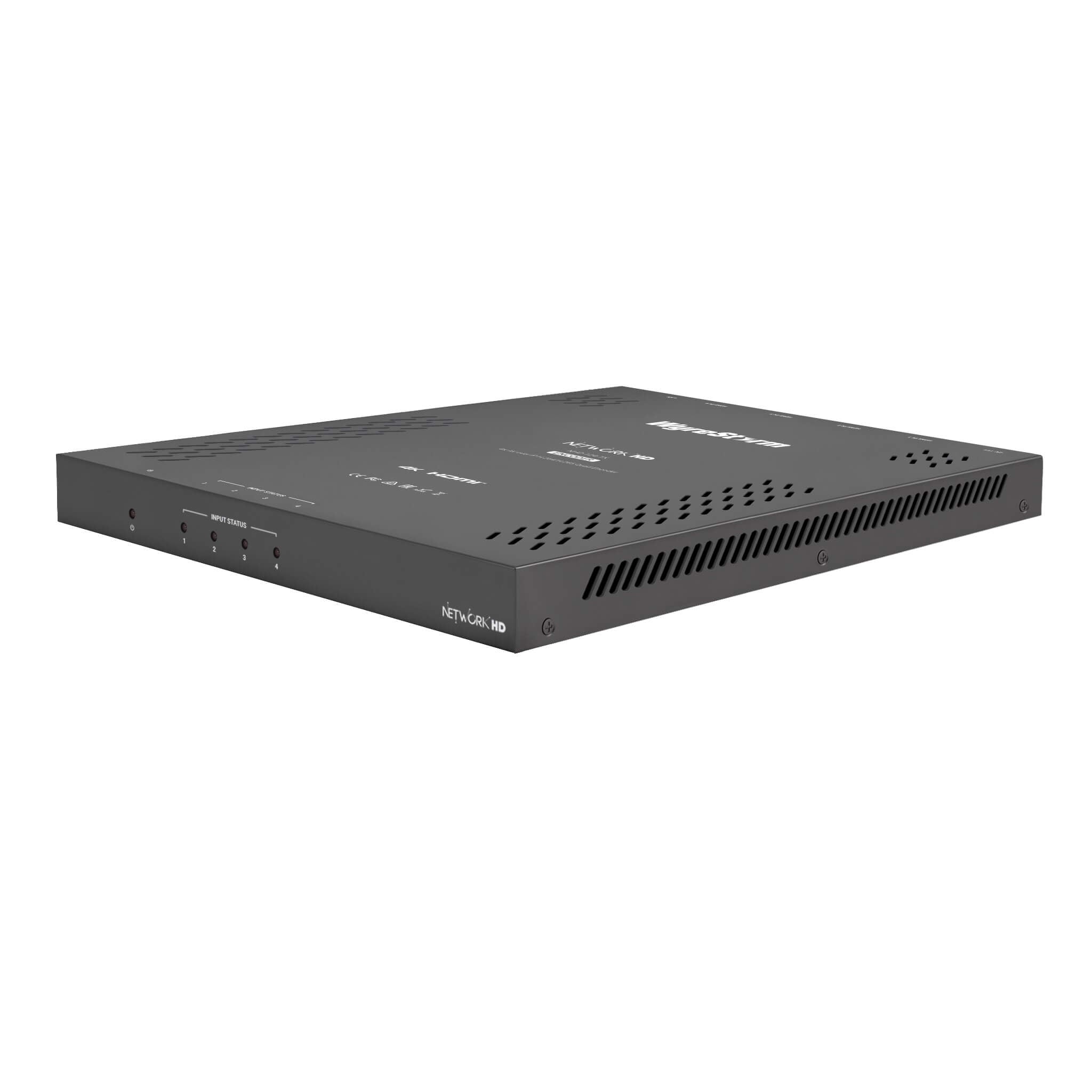

The WyreStorm NHD-124-TX is an ultra-low network bandwidth encoder for 4 simultaneous HDMI inputs to 4 streams over 1 Ethernet connection. It's compatible with the NetworkHD 100 Series for distribution of point-to-point, one-to-many, and many-to-many over a managed network. With its standards-based approach to video encoding, fast and simple system configuration and robust feature set, it provides the best value in networked video distribution.
The NHD-124-TX encoder is intended for use with NetworkHD 120 Series decoders (sold separately) to provide a complete end-to-end video distribution system. When used in conjunction with the NHD-CTL-PRO system controller, complete control integration is simple.
Features
• Supports up to 4K @ 30Hz video content
• Up to 100m (328ft) distance over standard Cat5e cable
• Flexible encoding using low bandwidth technology.
• Encoding is configurable between a constant bitrate or variable bitrate.
• Low bandwidth (~150ms) or high-quality (~400ms) transmission methods
• Seamless video switching – no black screens or freeze frames
• Support all SD and HD formats – including interlaced content
• Compatible with NHD-150-RX Multiview receiver
• Touch control app for live previews with drag and drop source selection
• Flexible IP address settings: AutoIP/Static/DHCP
• Batch firmware update and batch settings functions reduce installation time
• Custom EDID management
• HDCP 2.2 compliant
• Supports AES-128 for audio/video decryption.
• Supports HTTPS/SSH/LDAP/802.1X.
• IEEE 802.3af PoE compliant PD
