The WyreStorm NHD-120-RX-S takes the award-winning 100 series and elevates to a new level. This “S” model has been treated with Sealoc’s Weatherloc technology to resist the elements such as water, moisture, humidity, dust, salt-fog, salt-air, acidic products and more. With 4K resolution, video transmissions look better than ever and use up to 6x less bandwidth. AV streams are fully secure over the network using AES 128-bit encryption methods, ensuring any sensitive data cannot be maliciously accessed. Of course, the series would not be complete without retaining the powerful video wall and Multiview processing. This decoder does one better by adding screen rotation and mosaic video wall ability.
Features

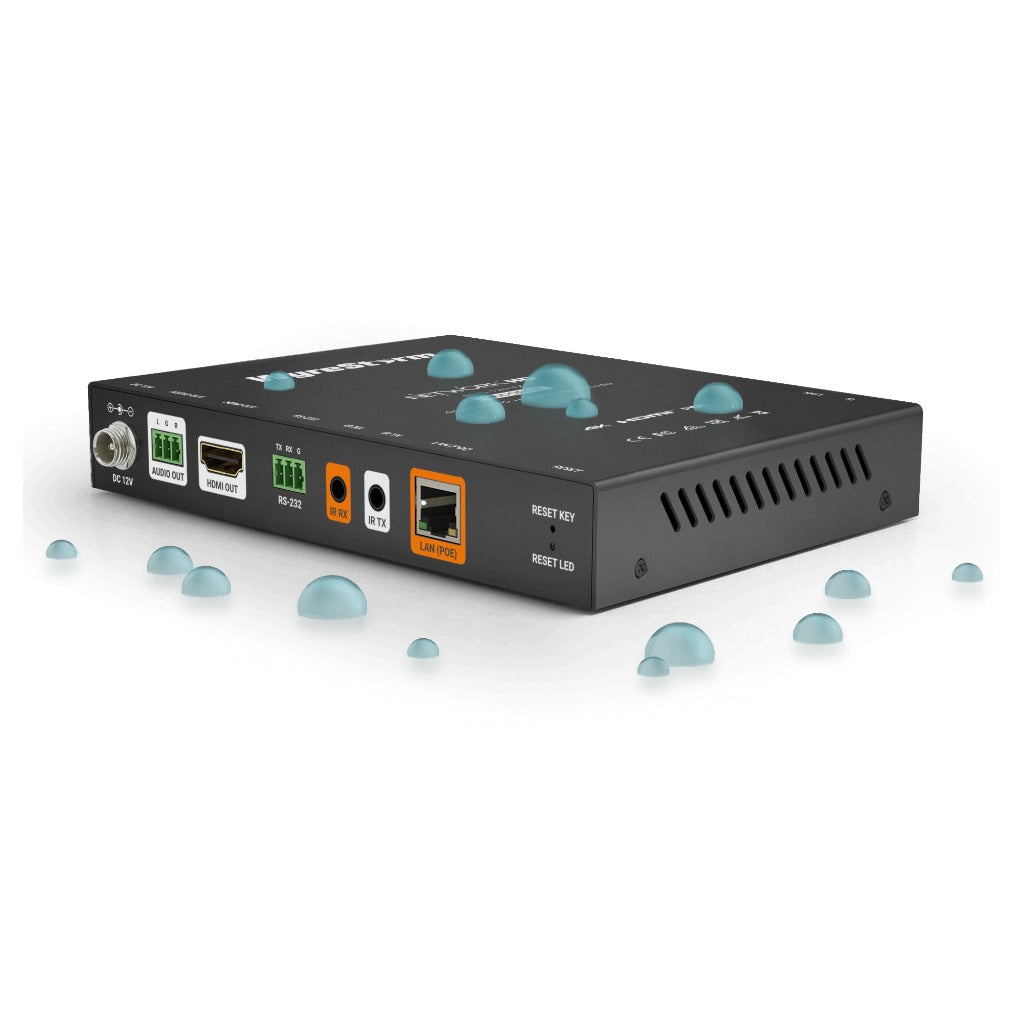

• Sealoc's Weatherloc proprietary nano coating protects against the elements
• Supports up to 4K @ 30Hz video content
• Support all SD and HD formats – including interlaced content
• Analog audio de-embed for easy connection to external audio DSP or amplifier
• Image scaling – use mixed resolution displays throughout an installation
• Seamless video switching – no black screens or freeze frames
• Hugely scalable I/O, utilizing multicast technology
• Flexible IP address settings: AutoIP/Static/DHCP
• Customizable CEC, IR or RS-232 control of connected devices
• Up to 16×16 video walls with image scaling, bezel compensation and rotation
• Mosaic video walls for custom screen orientation.
• Custom “No Source” idle image upload for branded down time
• Breakaway, independent routing of all video, audio, IR, and RS-232 streams
• Infrared signal generation via API – supports Hex Pronto format
• Batch settings and firmware update offers a massive reduction on install times
• HDCP 2.2 compliant
• IEEE 802.3af PoE compliant PD
• Includes Wall and Rack mounting brackets
