The WyreStorm MXV-0808-H2A-KIT delivers the same powerful performance as the standalone MXV-0808-H2A matrix switcher, now bundled with 6 standard HDBaseT receivers and 2 scaling receivers—making it an ideal solution for installations with a mix of 4K and 1080p displays. Capable of transmitting full 18Gbps HDMI content up to 35m/115ft using WyreStorm’s advanced lossless compression (VLC), this kit maintains perfect signal integrity without compromising color fidelity—unlike other methods such as CSC that permanently discard color data. With 8 HDBaseT zone outputs and 4 mirrored HDMI outputs, plus CEC triggering across all 12 display connections, the MXV-0808-H2A-KIT ensures seamless video distribution in residential or commercial environments where display compatibility and reliability are key.
Features
• HDBaseT Transmission of 4K/60 4:4:4 up to 35m/115ft to 8 zones
• S/PDIF Toslink audio matrix outputs with De-embed from source independently
• Supports 60Hz HDR-10 & HLG & Dolby Vision(LLDV) and more
• 4 mirrored HDMI outputs offering 18Gbps throughput
• API triggered standby mode puts unit into low power state during downtime
• A/V mute function cuts signal to any output on demand
• Automatic or API power triggers for all compatible connected screens or projectors
• Supports routable and customizable RS232 and CEC commands

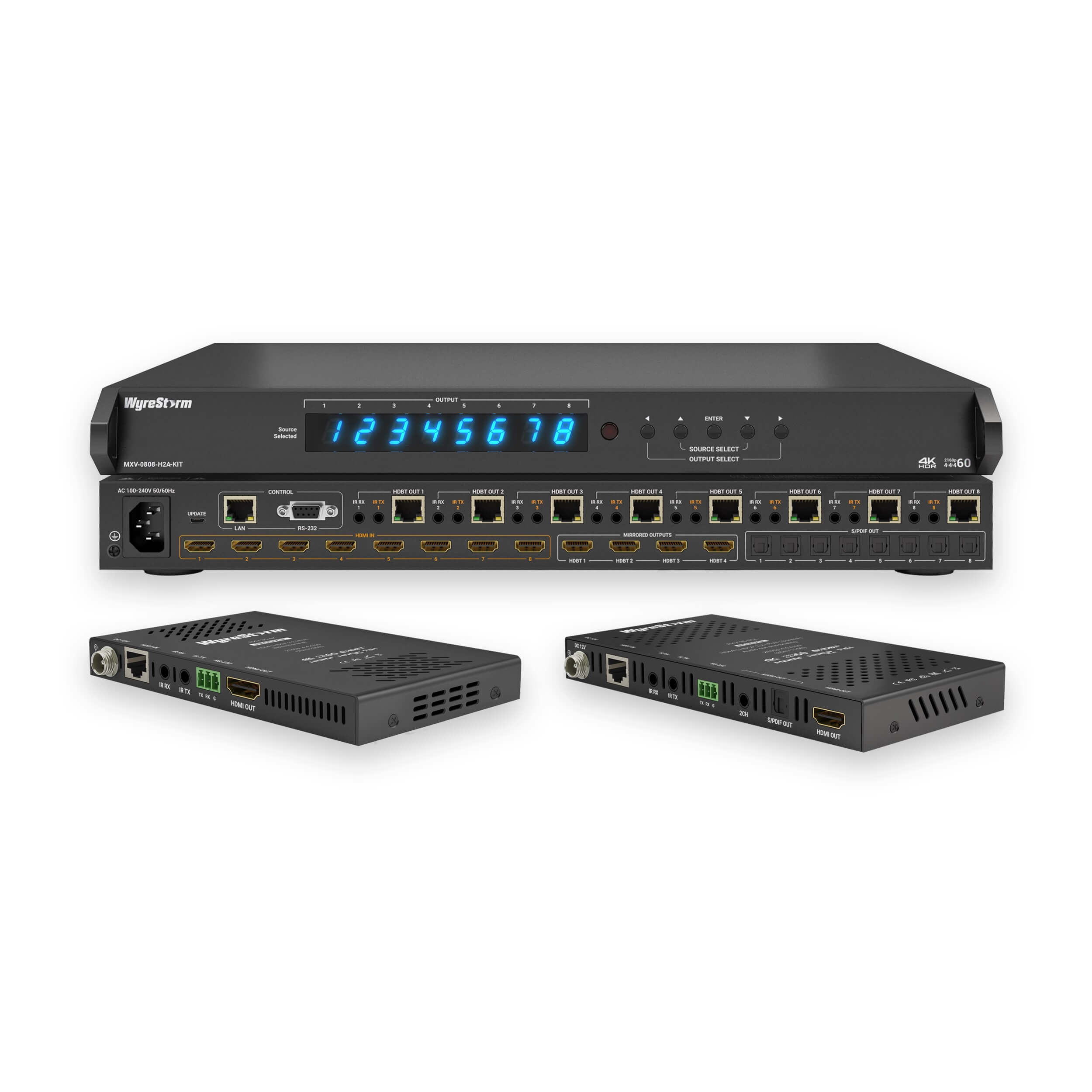

Includes
• 1x MXV-0808-H2A v3 Matrix

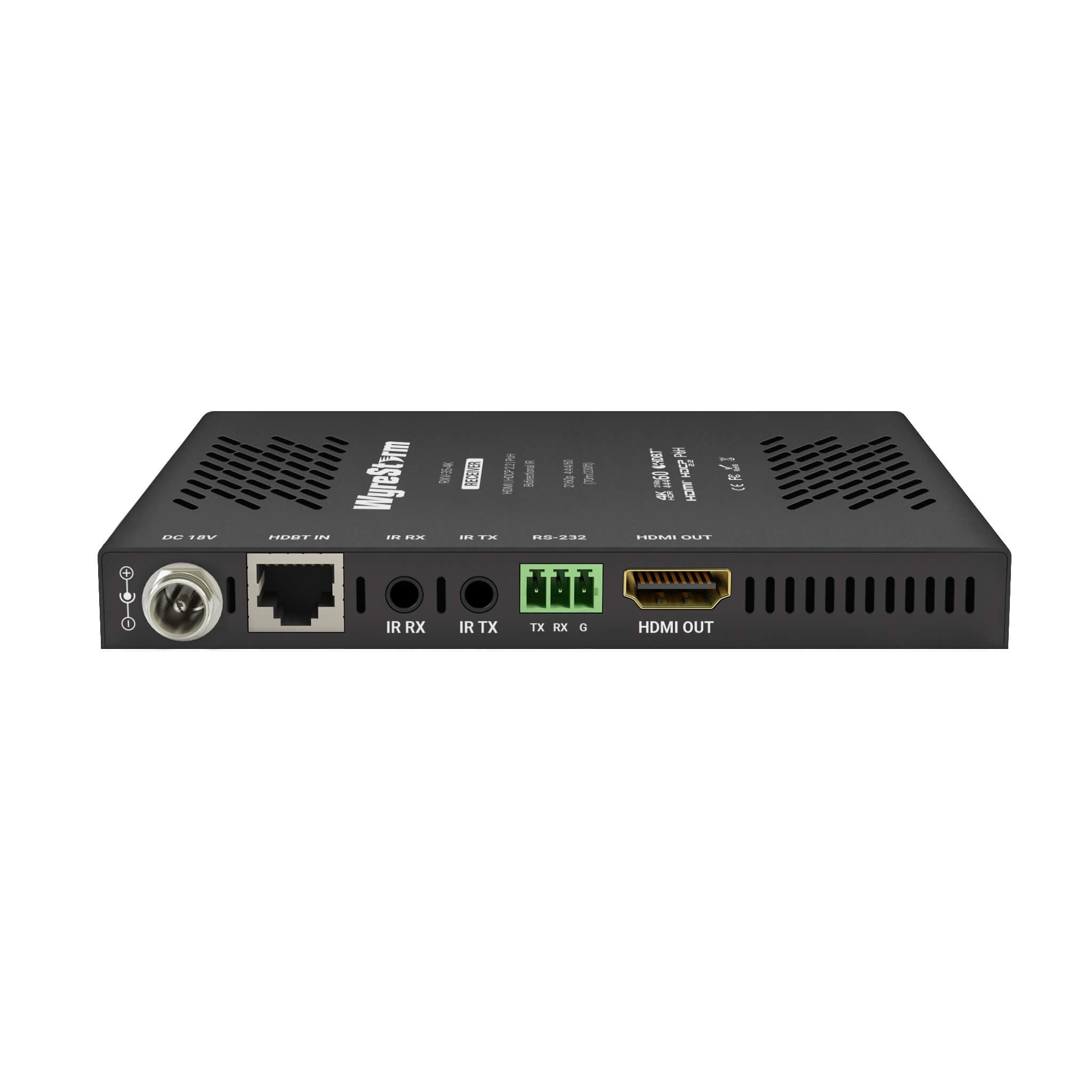

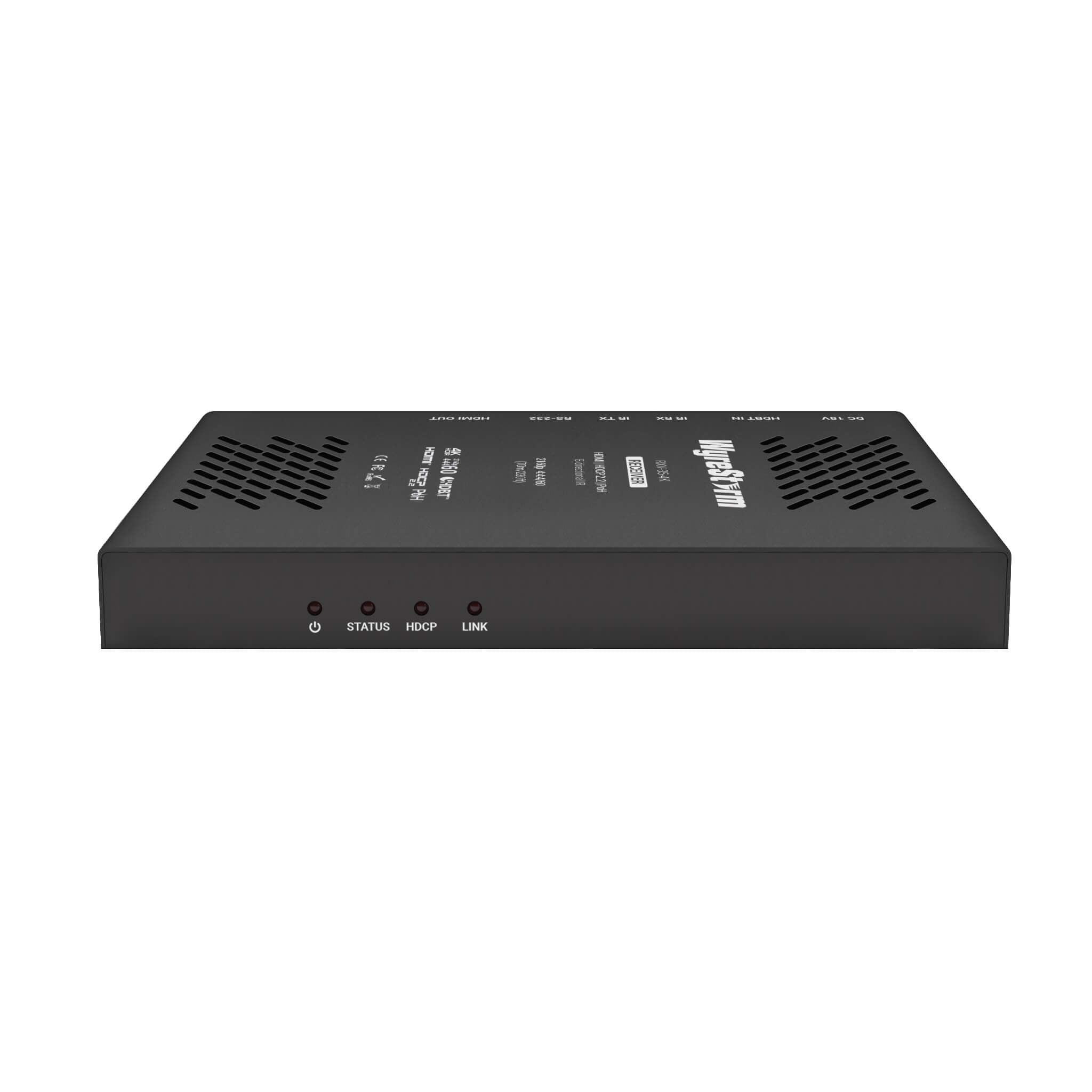

• 6x RXV-35-4K Receivers

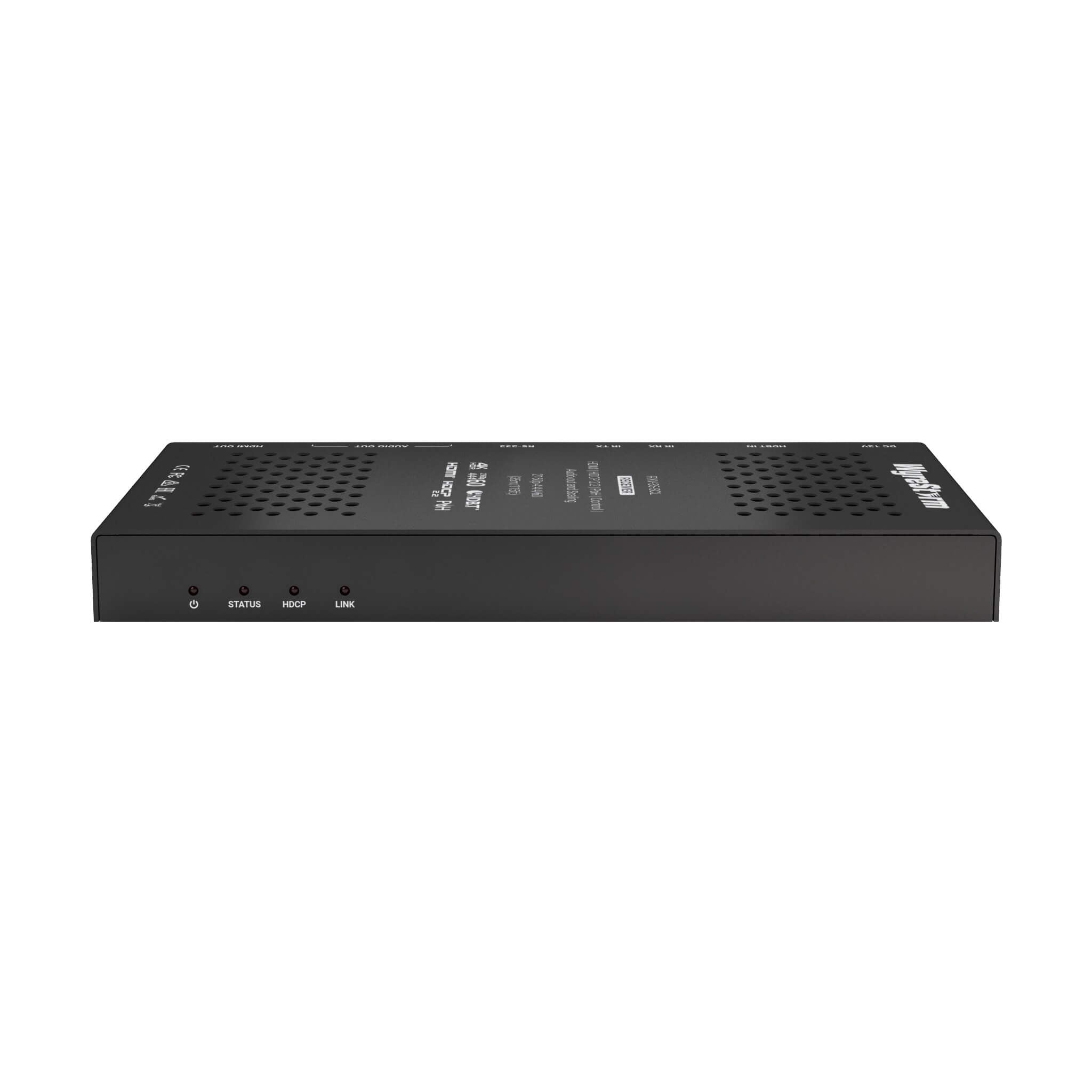

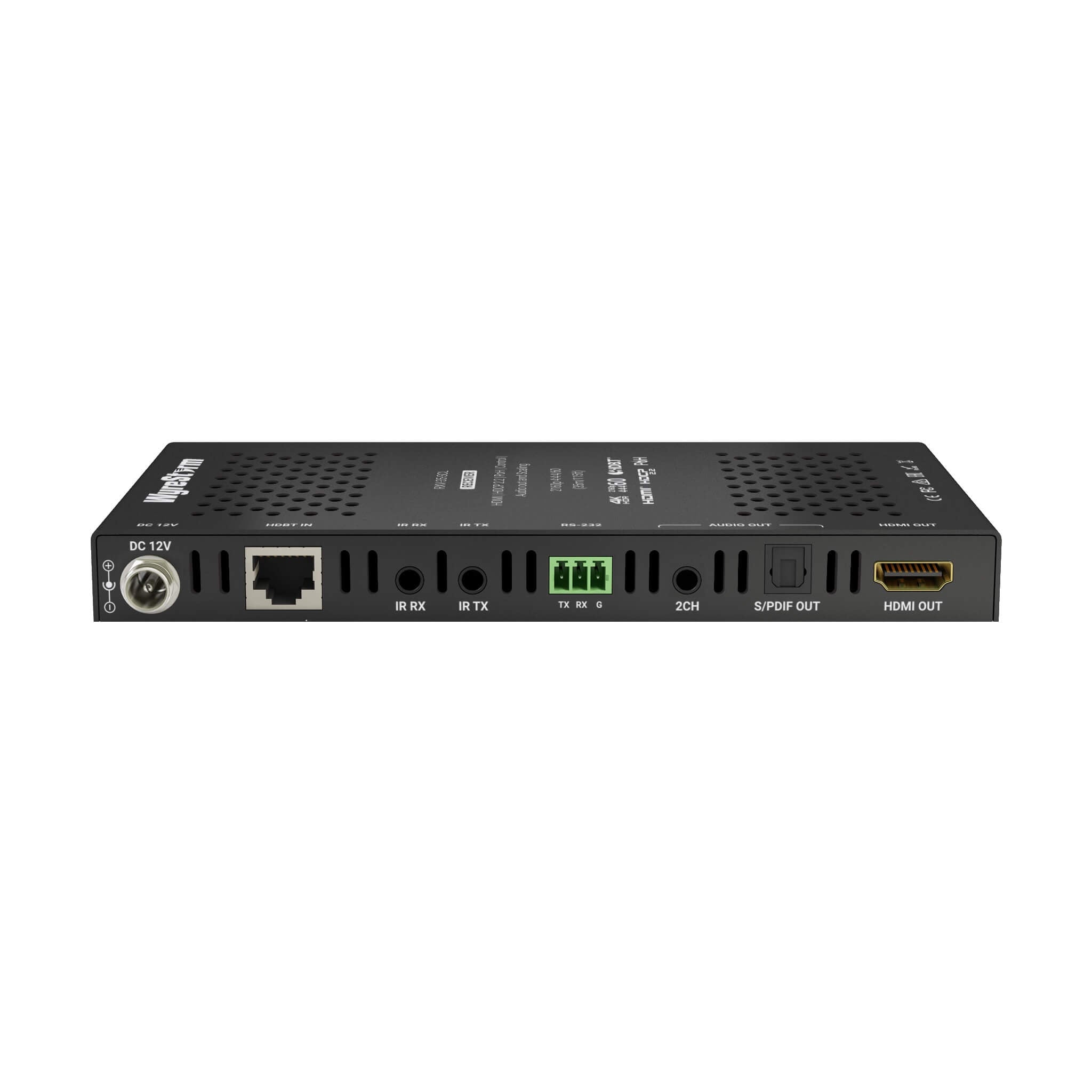

• 2x RXV-35-SCL Receivers
• 1x IR Remote
• 8x IR Emitters
• 8x Broadband IR Receivers (30-50KHz)
• 8x Phoenix Male Connector (3.5mm 3-Pin)
