The WyreStorm MX-0808-KIT-V2 shares many of the same powerful features of version 1, but with a vision of lite commercial installations in mind. Offering the same transmissions of 4K UHD up to 35m/115ft, but now up to 8 HDBaseT outputs with included receivers. Additionally, version 2 is equipped with 4 mirrored outputs, which can be paired with any of our HAOC hybrid optical HDMI cables to connect to 4 additional screens. Also new and fitting are 4 balanced analog audio outputs 2ch support to connect to ceiling/over–hanging speakers or to an audio amplifier. Lastly, still enjoy the same great features of version 1, including CEC triggering, A/V mute and standby mode to extend the life of the matrix during downtime.
Features
• True 8×8 matrix with 8 HDBaseT zones and 4 mirrored HDMI outputs
• SmartEDID detects display/source capabilities and outputs highest resolution
• Additional EDID management through DIP switches for global setting or via WebUI
• Embedded WyreStorm WebUI enables simple source switching and installer set-up
• WebUI includes full EDID management to copy EDID from connected devices
• Independent user control interface with separate password-protected settings
• Personalize switching interface with source and output labelling
• Hide unused I/O for cleaner appearance and navigation
• API triggered standby mode puts unit into low power state during downtime
• 2-way IR for far-end device control from control system or source control
• US, UK, EU & AU Power cables included
• Compact 1U chassis with adjustable depth rack mounting brackets included

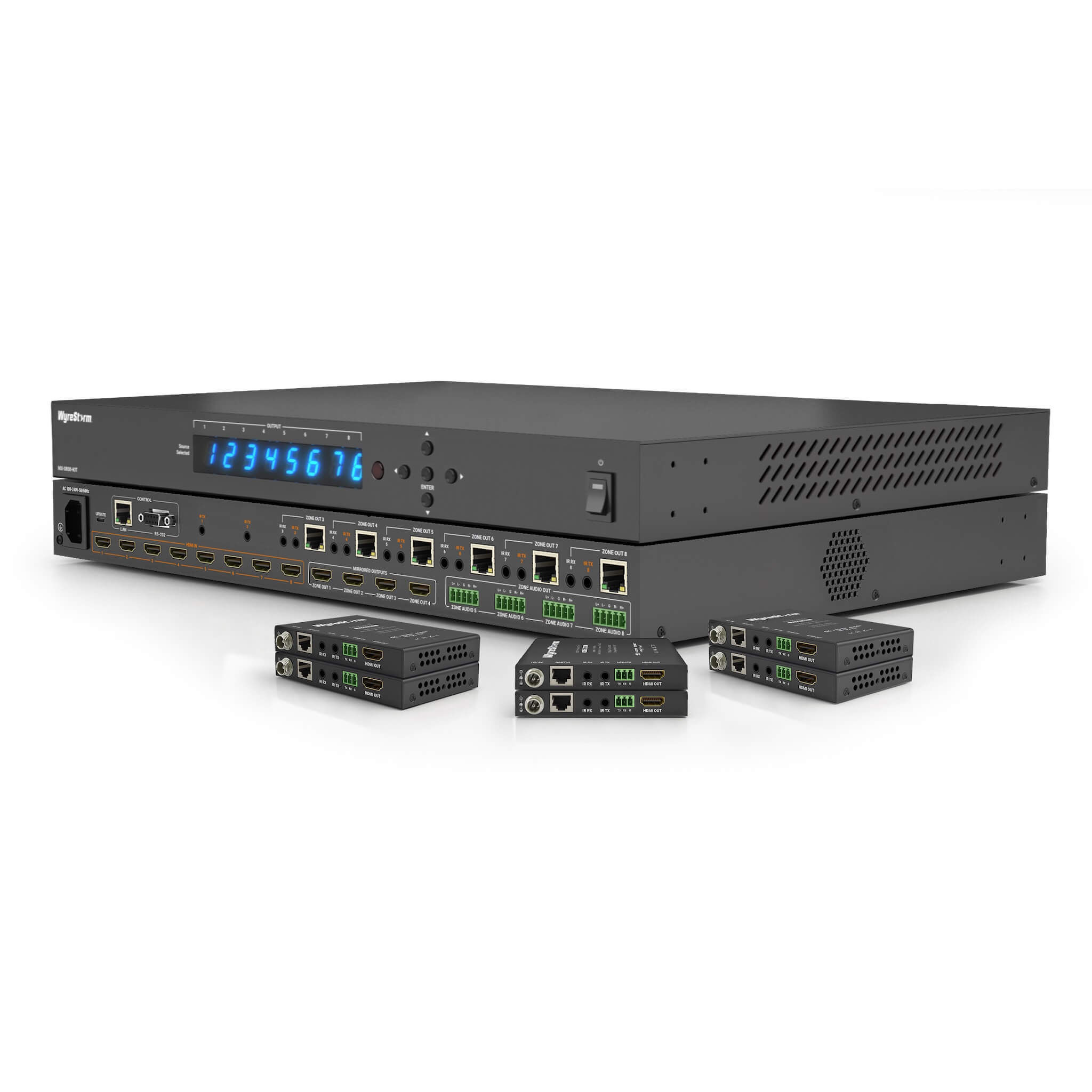

Includes
• 1x MX-0808-KIT Matrix
• 8x MX-KIT-RX Receivers
• 1x AC Power Cord (UK/US/EU)
• 1x Remote (battery not included)
• 8x IR Emitters
• 8x IR Receivers
• 2x Matrix Mounting Brackets (2 per RX)
• 1x Quickstart Guide
