WyreStorm MX-0404-KIT - 4K 4×4 HDBaseT Matrix with 3 Receivers

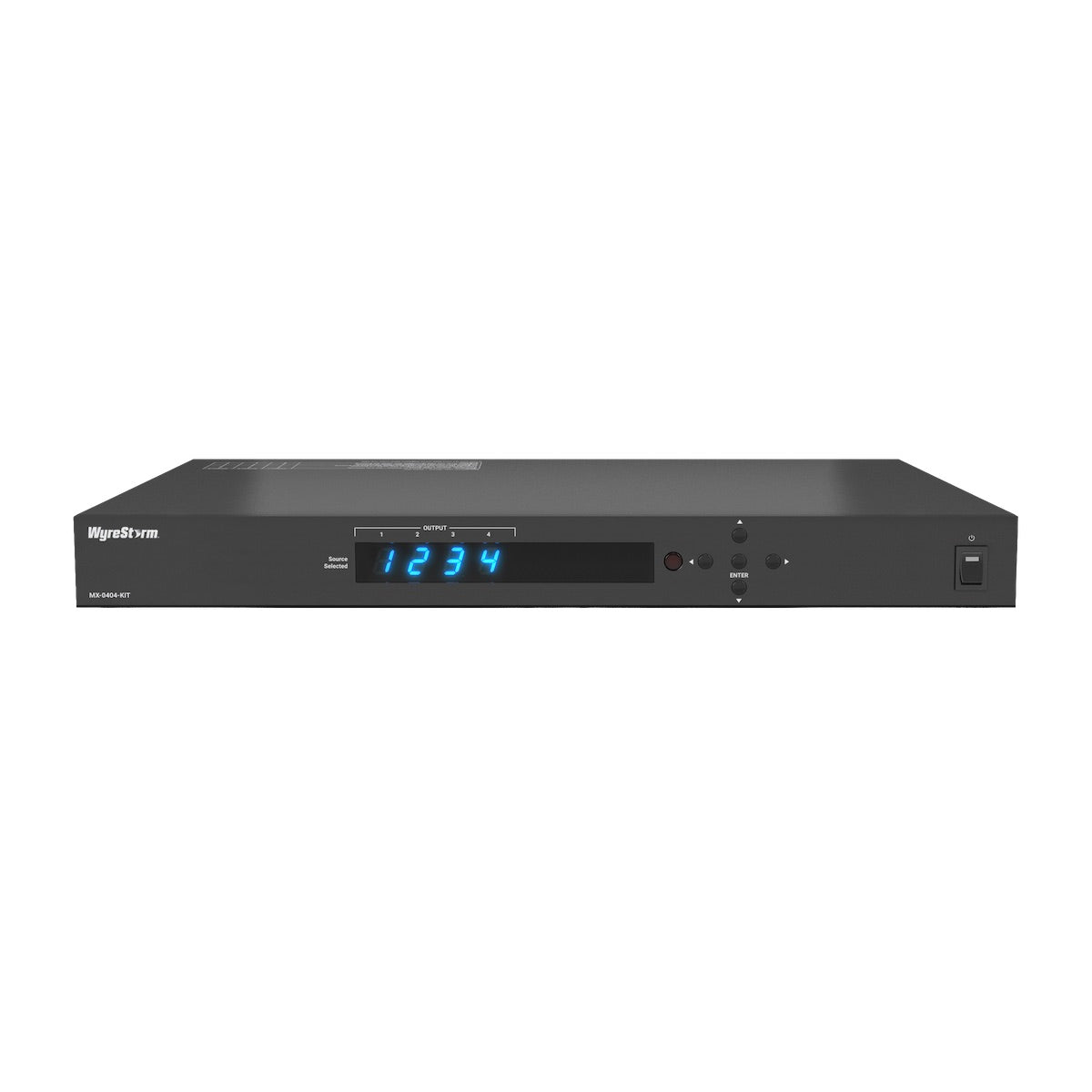

The WyreStorm MX-0404-KIT packs a wealth of technology into a powerful yet compact 1U chassis. Offering transmission of HDMI content up to 4K UHD and HDR content to 35m/115ft, pairing HDBaseT with WyreStorm’s powerful crosspoint HDMI switching chipset.

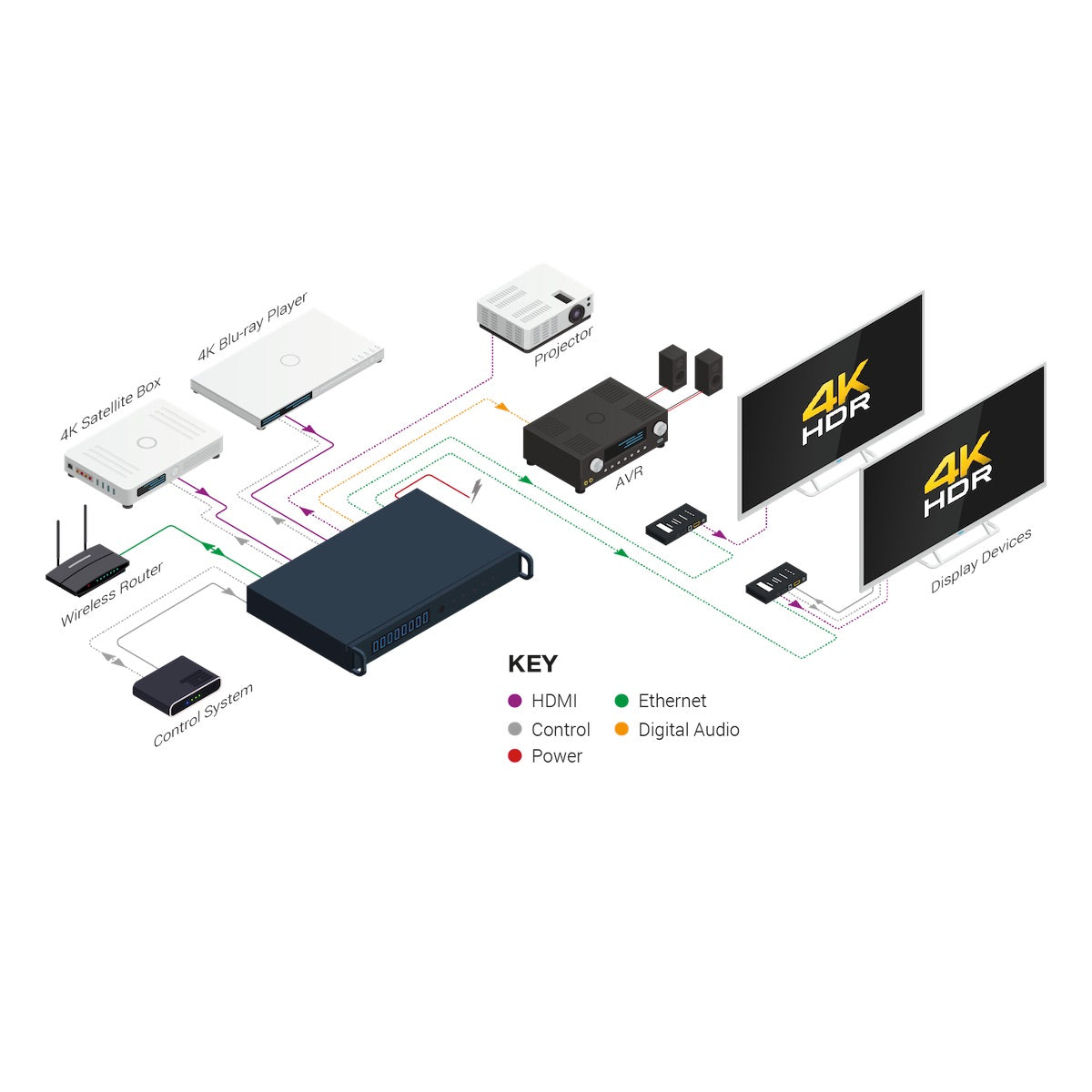

The MX-0404-KIT has 3 HDBaseT zone outputs with PoH and a single switched HDMI output which can be paired with WyreStorm’s HAOC hybrid optical HDMI cables or any extender for transmission via HDBaseT or OM3 fiber. The MX-0404-KIT doesn’t stop there, offering zone audio breakout via S/PDIF, CEC triggering for all connected screens and the A/V mute function enhances the offering for the modern home or commercial installation.

Features
• 4K UHD HDBaseT 4×4 Matrix Switcher with 3 HDBaseT Receivers
• Content up to 4K/60 4:2:0 8-bit or 4K/30 4:2:0 10-bit
• The latest HDR standards, including 30Hz HDR-10 & Dolby Vision
• HDCP 2.2 ensures compatibility with the latest 4K UHD content and sources
• HD Multichannel audio up to DTS:X and Dolby Atmos to all outputs
• HDBaseT enables 60Hz 4K UHD content to be sent over HDBaseT to 35m/115ft
• Compatible with DVI-I and DP++ v1.3 signals from compatible devices
• 4 audio outputs allow audio to be independently de-embedded from outputs
• Automatic (signal sensing) or manual (API operated) CEC power triggering of all connected screens or projectors (CEC compatibility required)
• A/V Mute function gives complete distribution control to a user allowing the signal to any zone to be independently switched off
• SmartEDID feature also dynamically detects display/source capabilities and automatically outputs the highest possible resolution
• Additional EDID management through DIP switches for global setting or via WebUI for independent management of EDID per source
• Embedded WyreStorm WebUI enables simple source switching and installer set-up & configuration
• WebUI includes full EDID management to read, copy, store or import EDID from connected devices
• Assign a different EDID to each connected source device
• API triggered standby mode puts unit into low power state during downtime
• Flexible control options – front panel buttons, infrared remote control, local IR, RS-232, Telnet or WebUI
• 3.5mm jack input for receiving local IR commands out of line-of-sight
• Simple switching matrix remote control included, which can also be learned into a universal remote handset to allow the control of multiple devices from one handset
• 2-way IR for far-end device control from control system or source control from a zone.
• Compact 1U chassis with adjustable depth rack mounting brackets included
• US, UK, EU & AU Power cables included
• Can be combined with WyreStorm EXP-CON-DAC-D digital audio converter to downmix Dolby Digital 5.1 content to mix stereo and surround sound zones
• Transmit content from HDMI output 1 up to 50m/164ft using a WyreStorm HAOC HDMI cable
