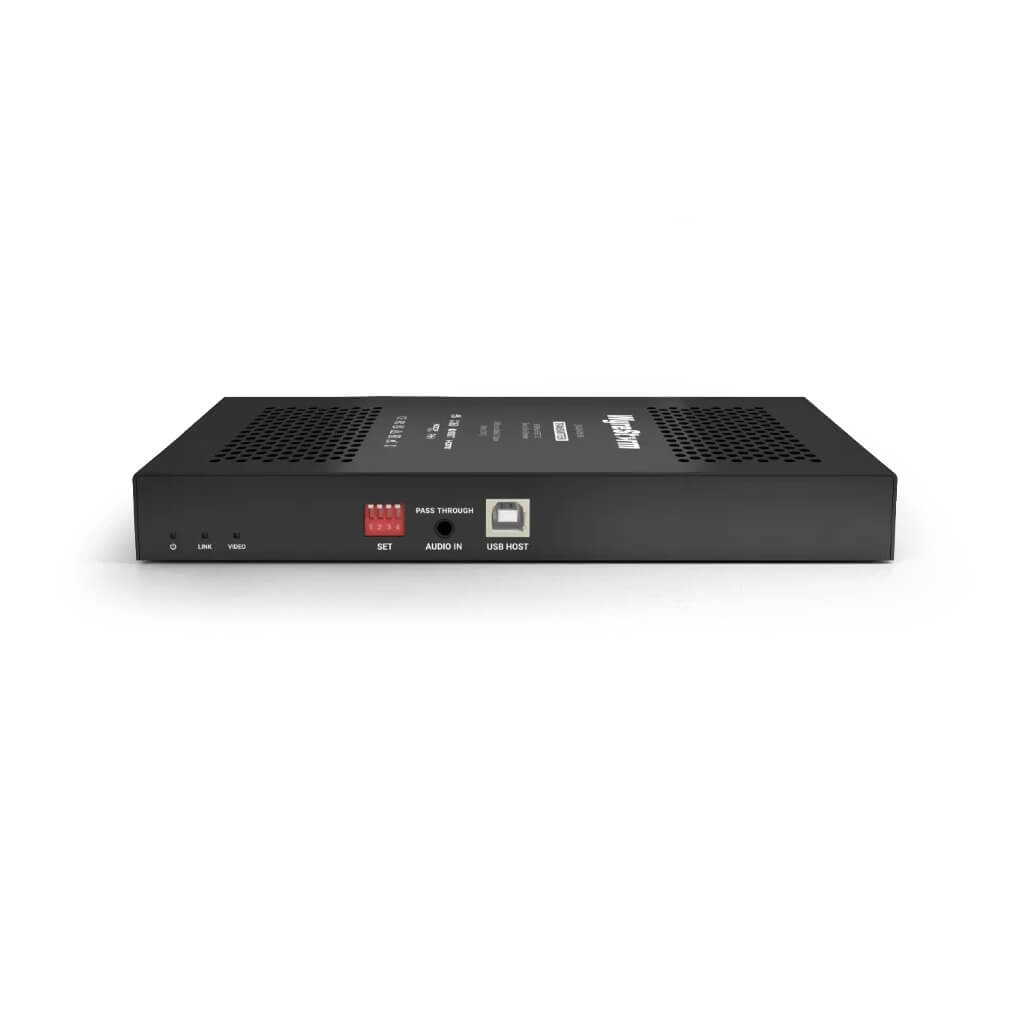

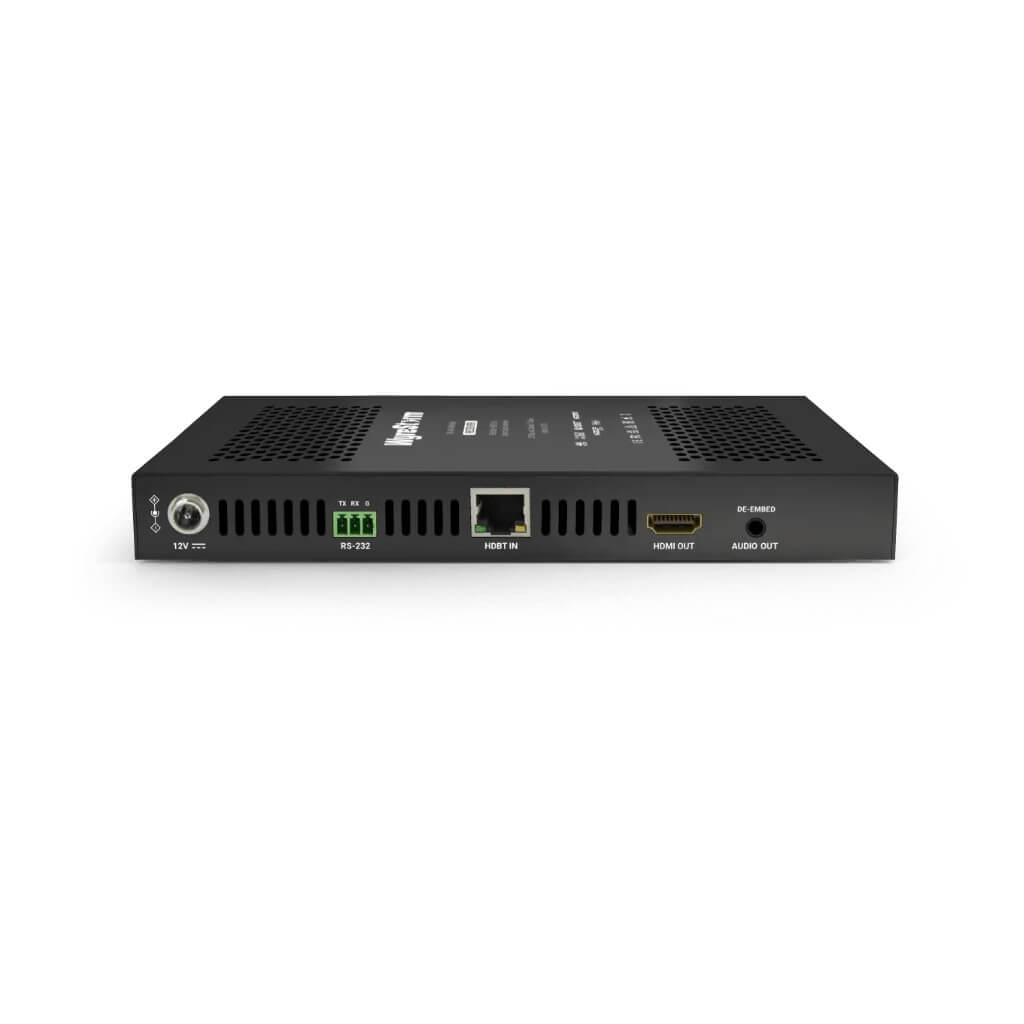

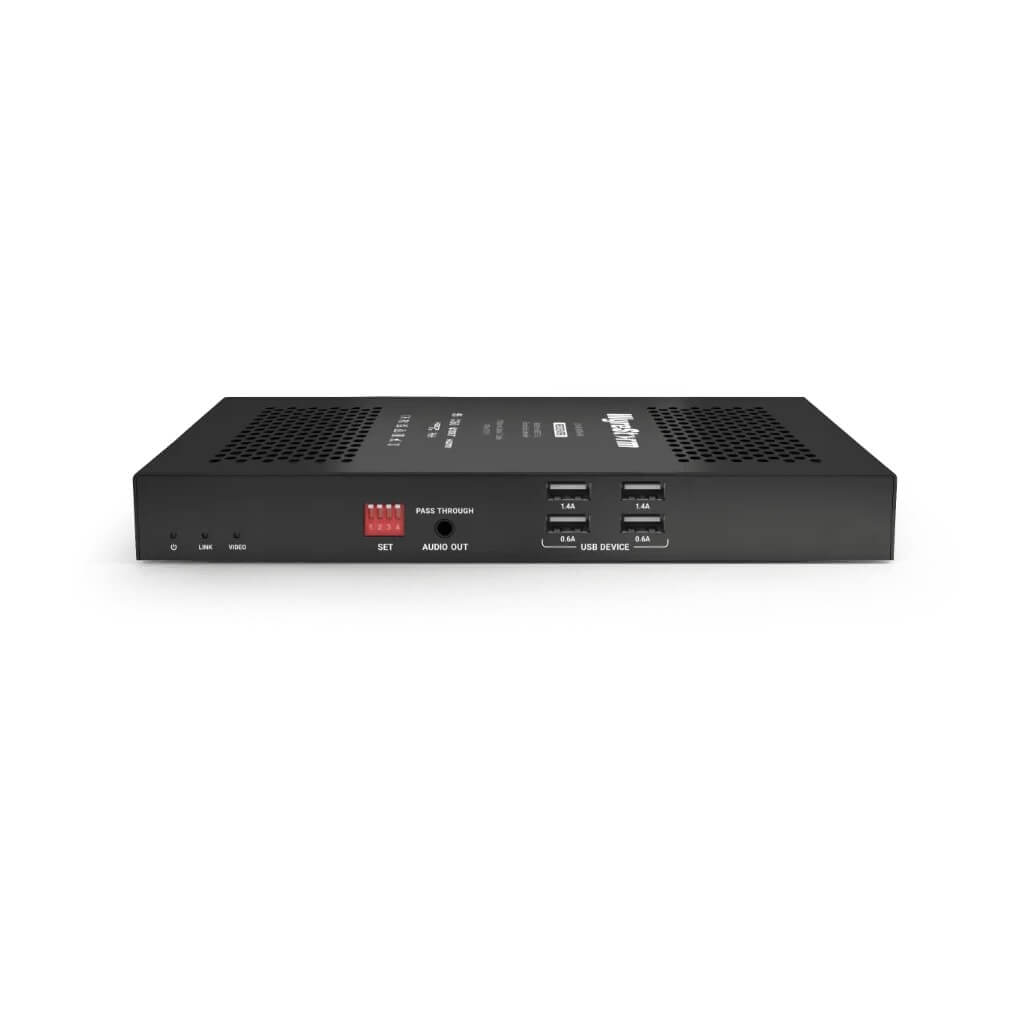

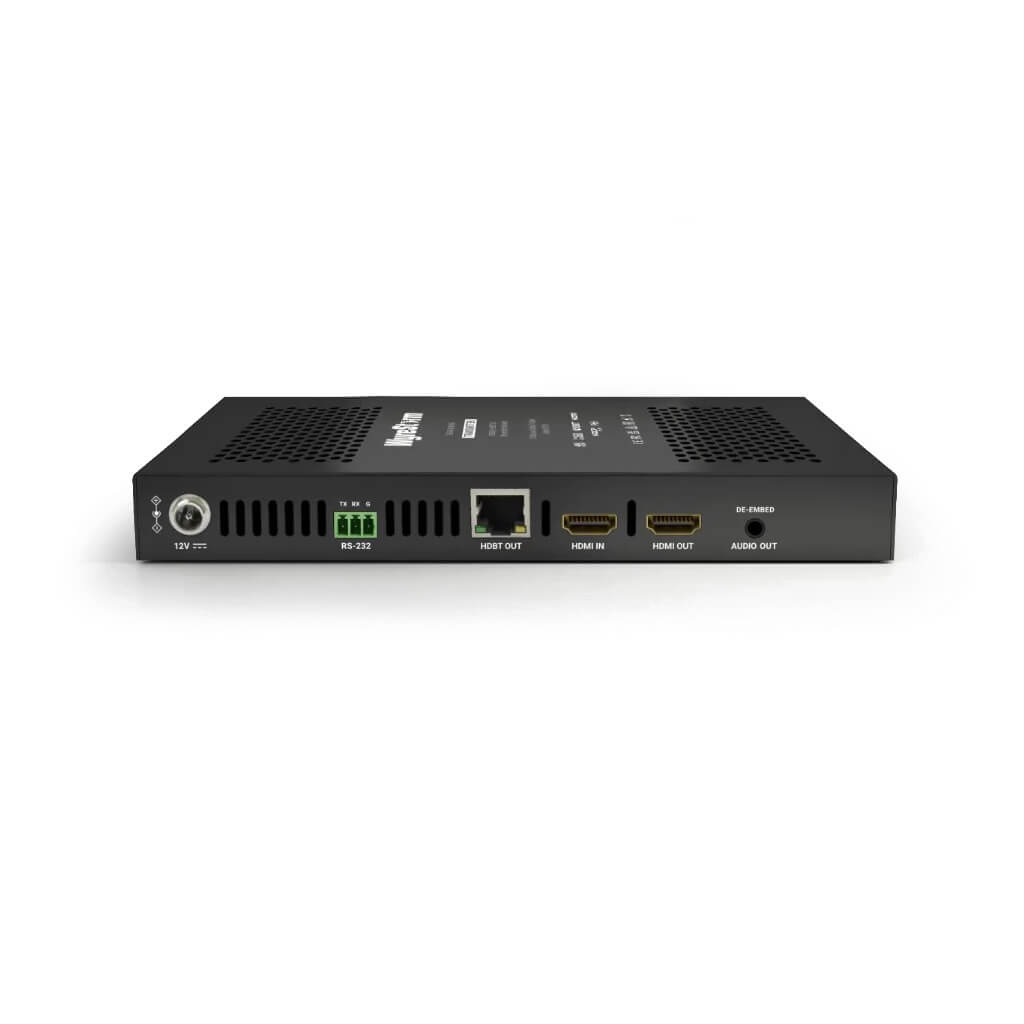

The WyreStorm EX-40-KVM-5K is a box-to-box HDBT 3.0 extender kit that delivers uncompressed video up to 5K@30Hz and 5120×1440@60Hz, with full support for 4K@60Hz 4:4:4 and all HDR formats. It supports USB 2.0 pass-through with 1x USB-B on TX and 4 x USB-A on RX, making it ideal for KVM applications. Audio features include HDMI audio format support, analog audio pass-through from TX to RX, and de-embedding on both ends. An HDMI loop-out is provided on the TX for local preview. RS-232 port functions are configurable via DIP switch for control signal pass-through and firmware updates.
Features
• Supports HDMI 2.0b and HDCP 2.3
• Supports all HDR formats, including HDR10, HLG, Dolby Vision, and HDR10+
• Uncompressed HDMI 2.0 video transmission
• Fully supports audio formats in HDMI 2.0 specification
• Support update FW through RS232 port (setup by DIPSwitch)
• One power adaptor connected to RX can power supply both TX and RX
• 4-pin DIP Switch for configuration and upgrade
• EDID copy from the display
• 12V/3A DC with US, EU, UK, AU Power cables included
• Mounting brackets included
