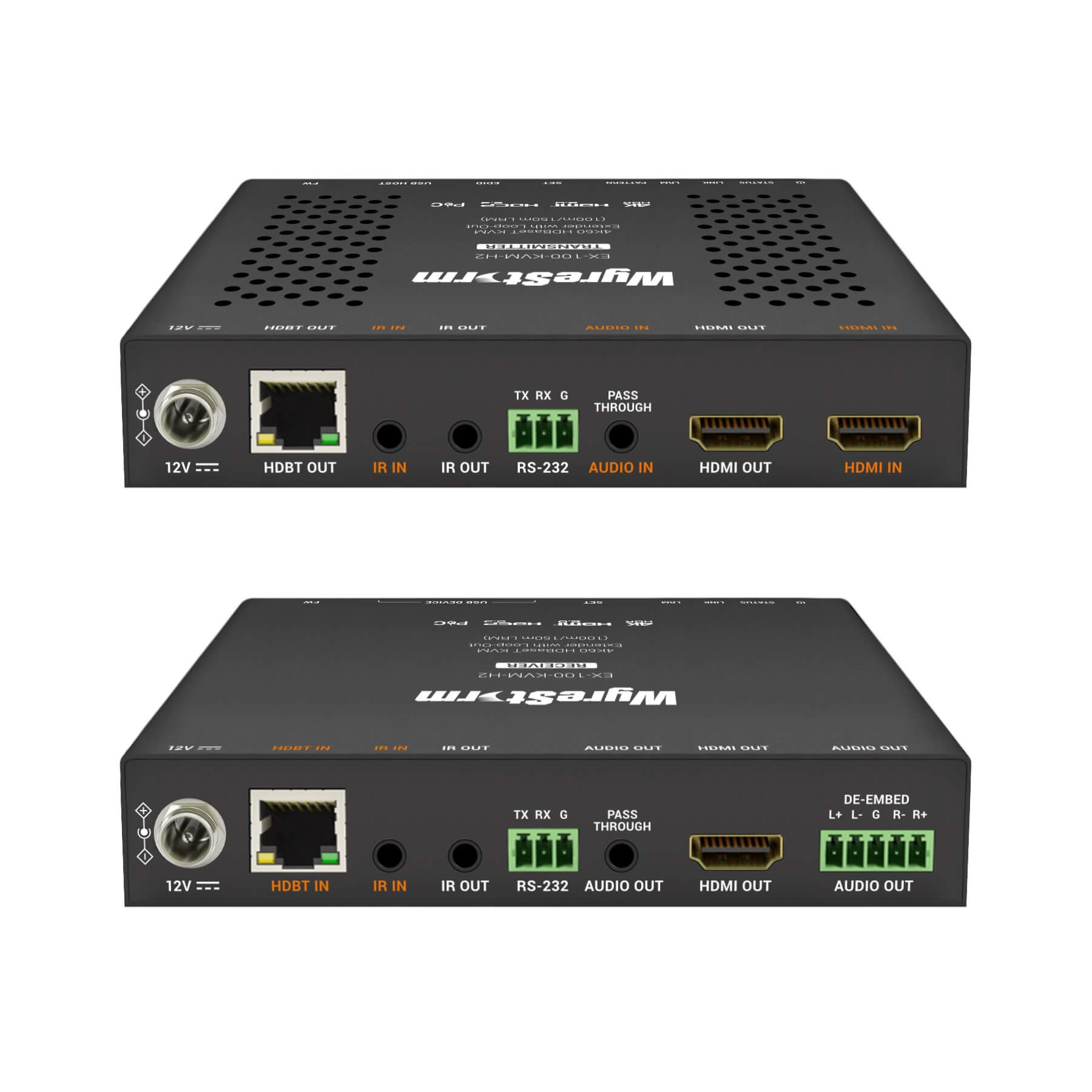

WyreStorm EX-100-KVM-H2 - 4K60 HDBaseT KVM Extender Set with Loop-Out

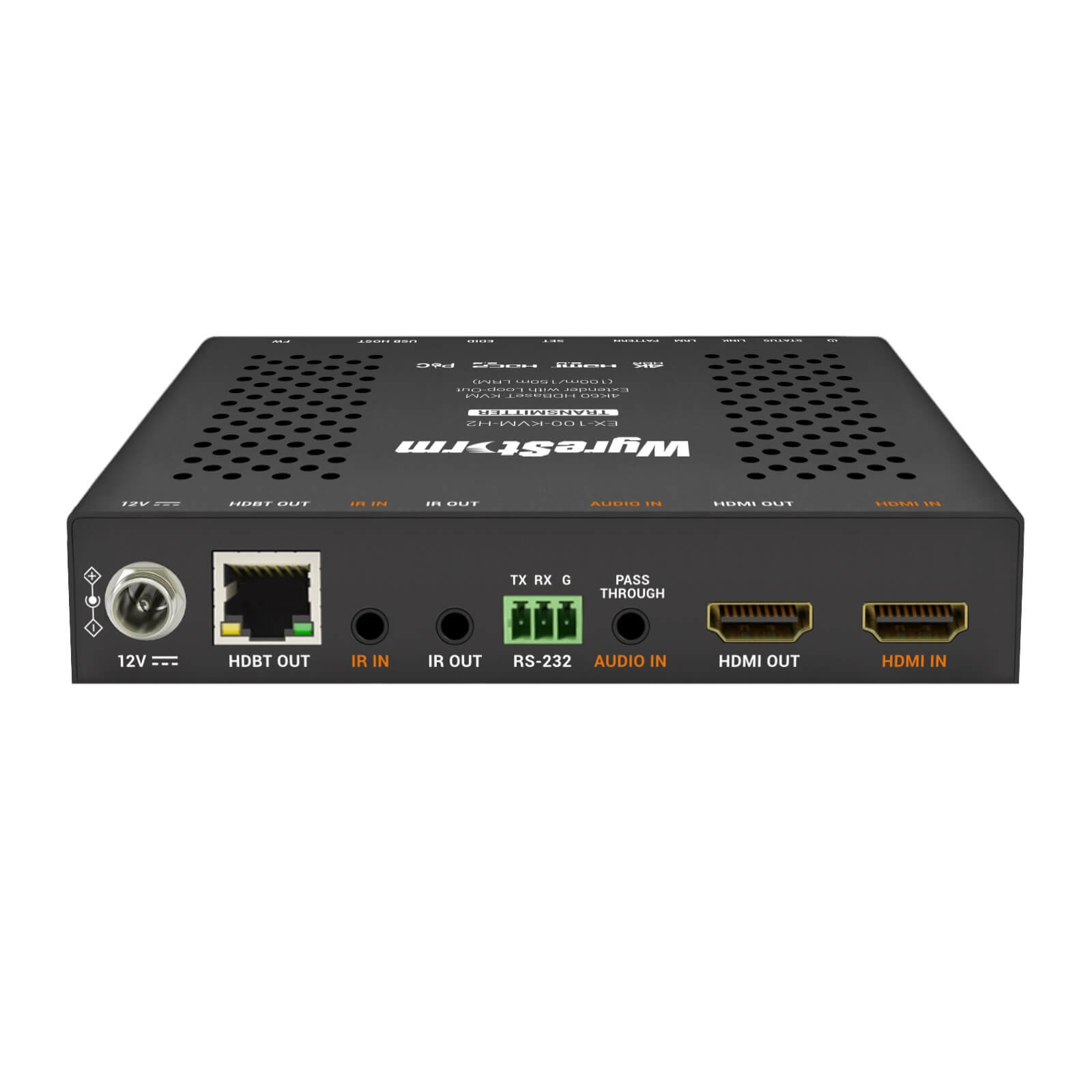

WyreStorm EX-100-KVM-H2 - 4K60 HDBaseT KVM Extender Set with Loop-Out, TX rear

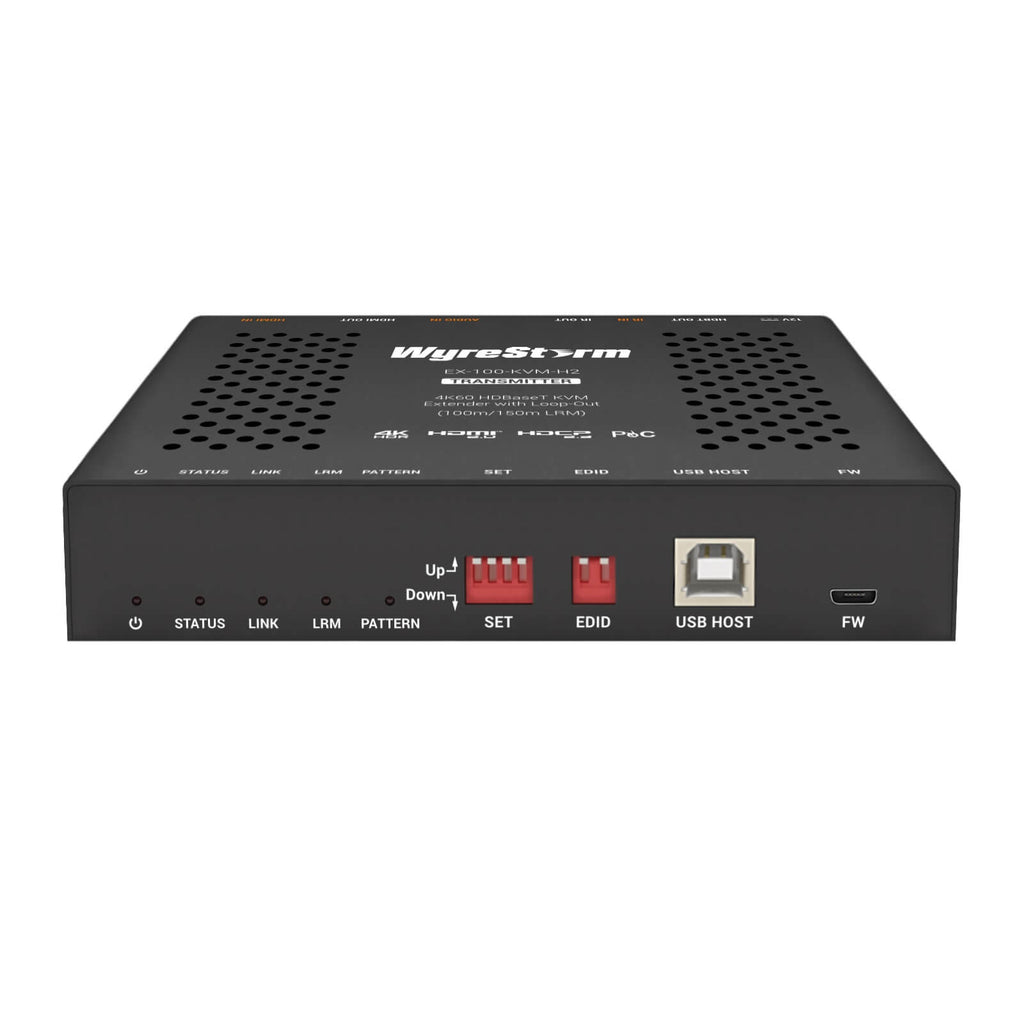

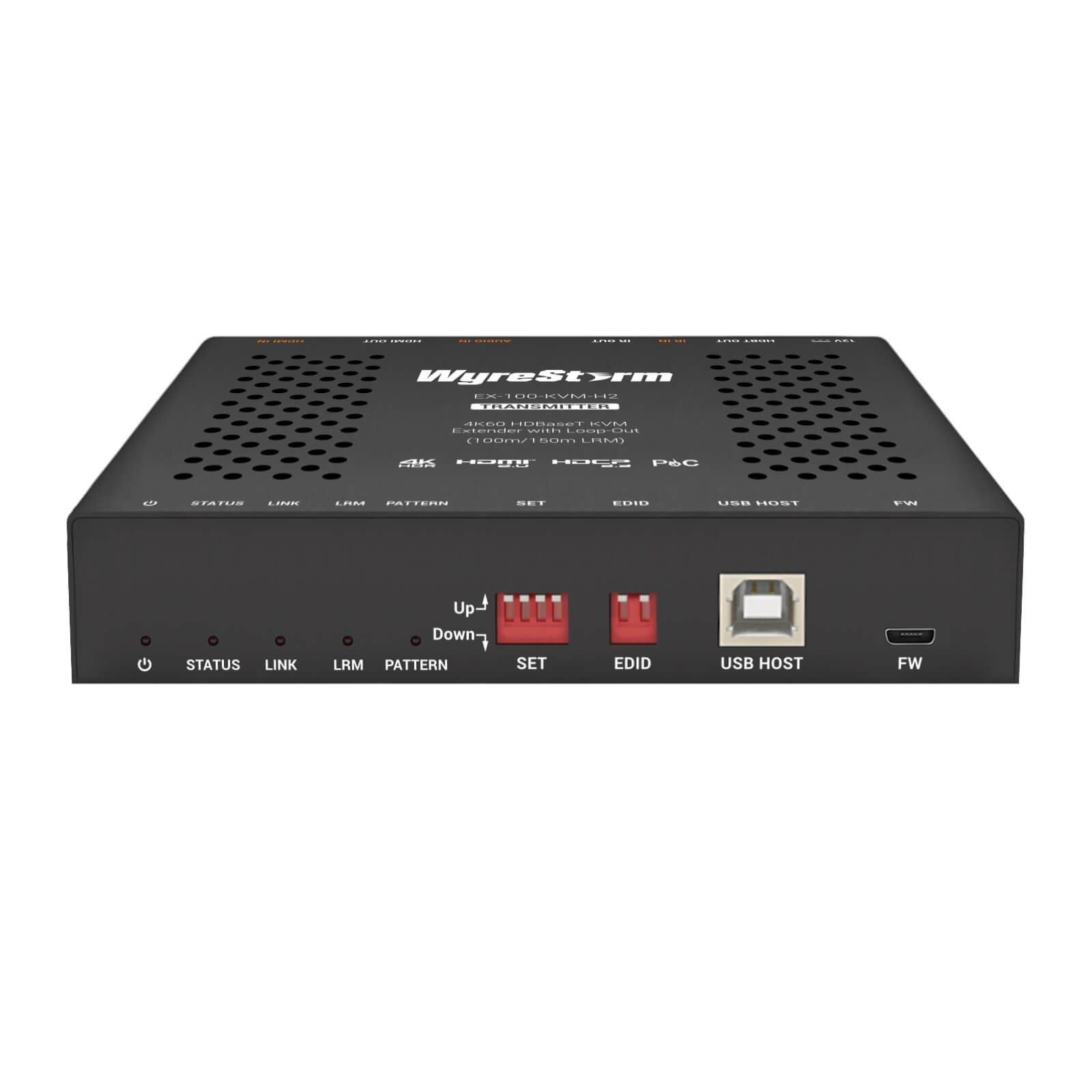

WyreStorm EX-100-KVM-H2 - 4K60 HDBaseT KVM Extender Set with Loop-Out, TX front

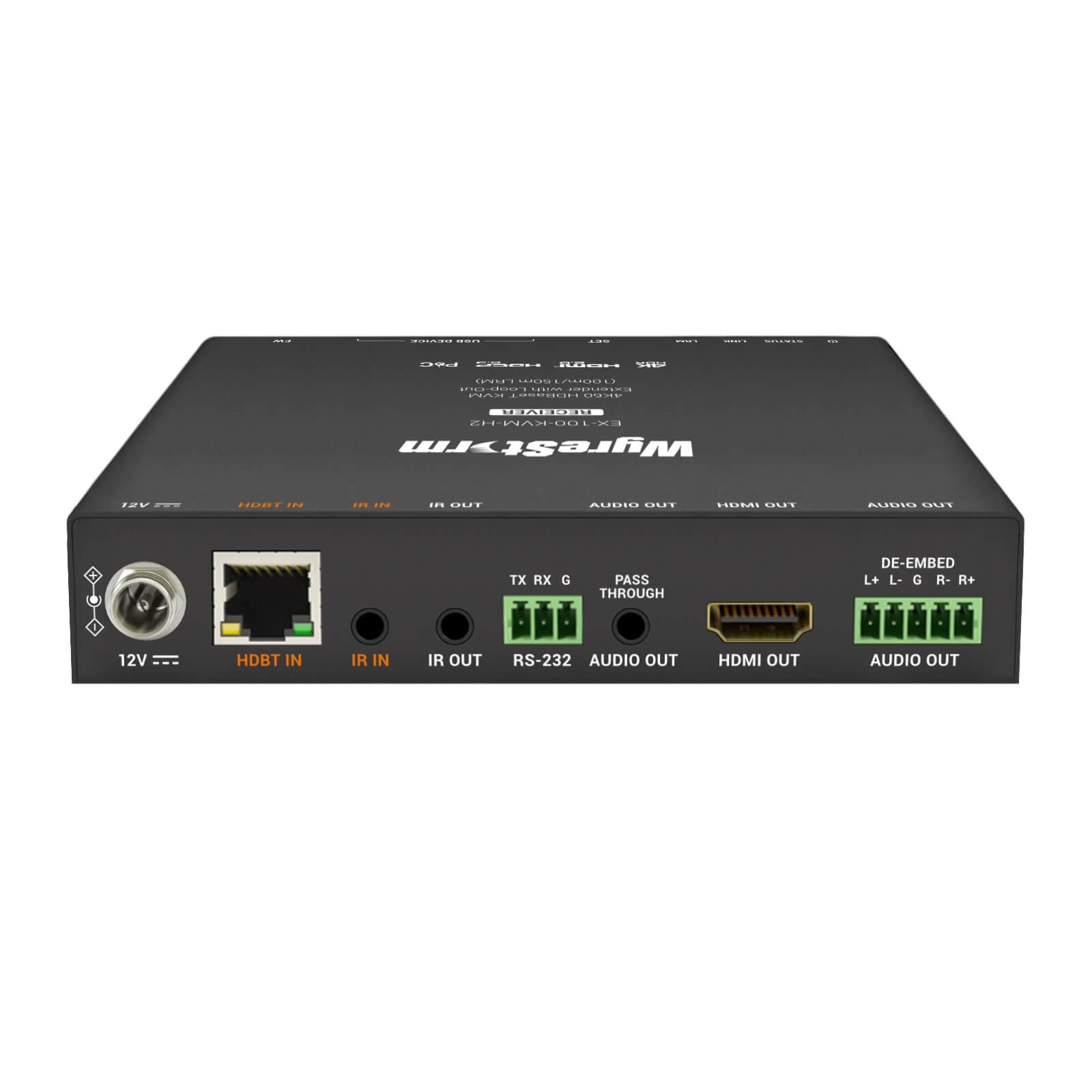

WyreStorm EX-100-KVM-H2 - 4K60 HDBaseT KVM Extender Set with Loop-Out, RX rear

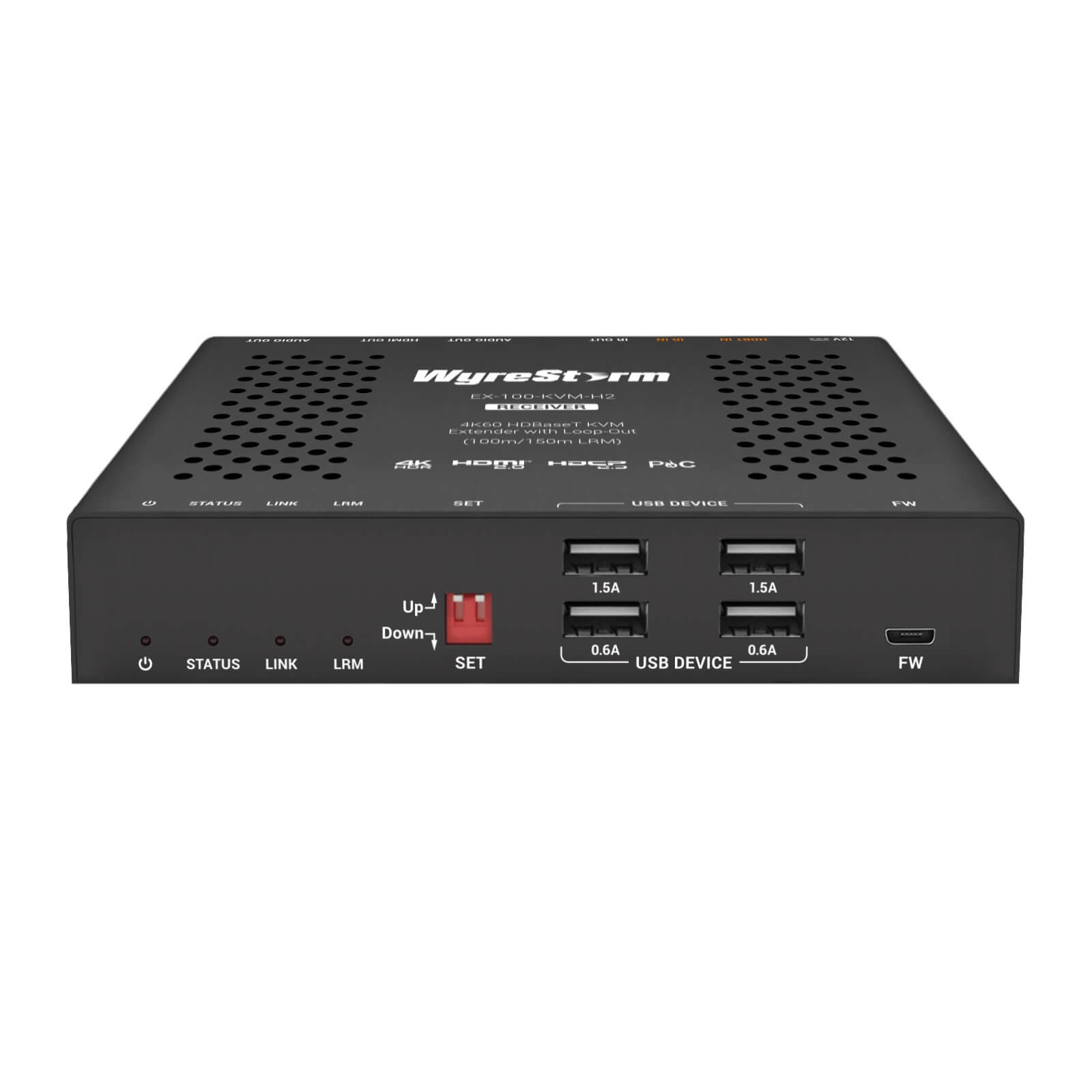

WyreStorm EX-100-KVM-H2 - 4K60 HDBaseT KVM Extender Set with Loop-Out, RX front

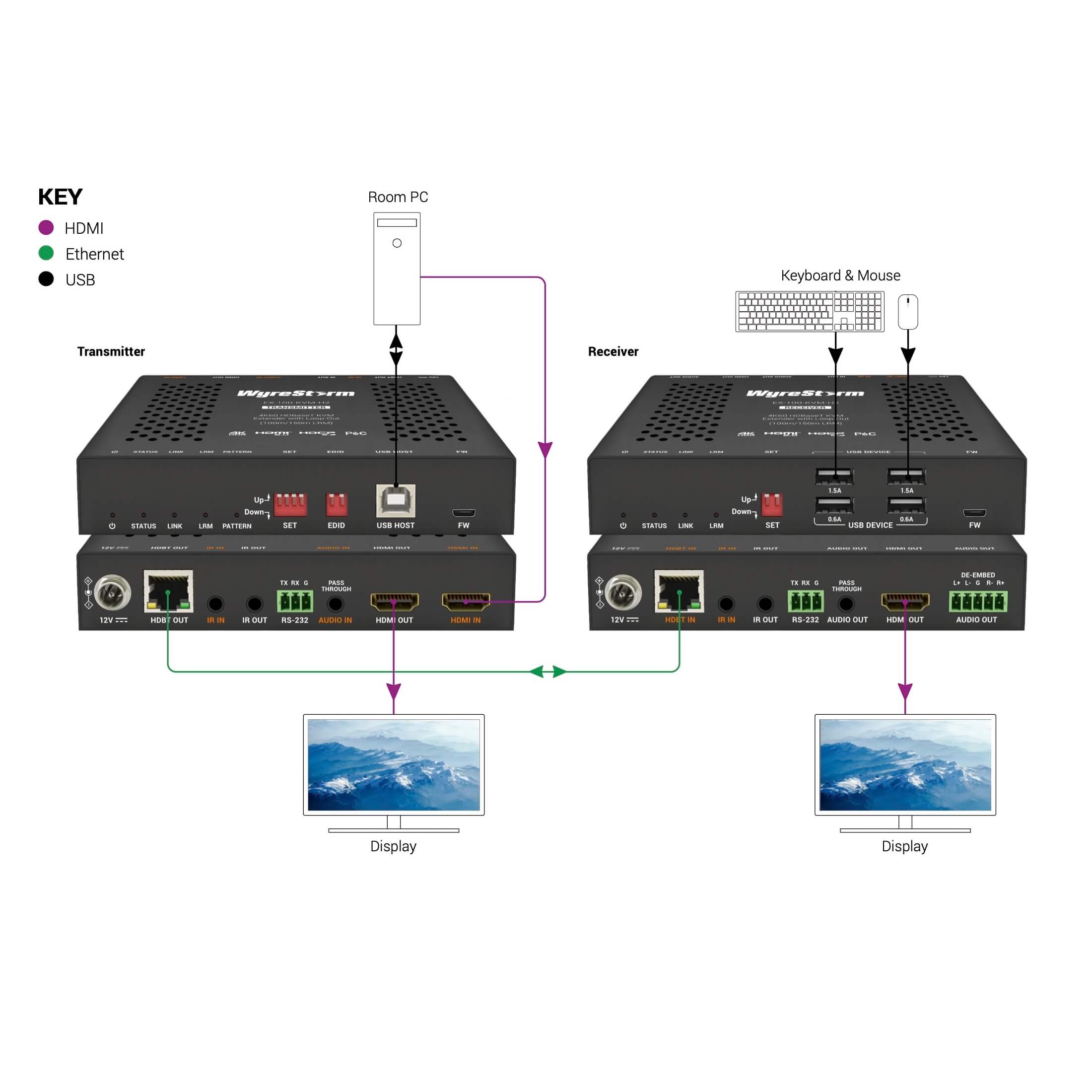

WyreStorm EX-100-KVM-H2 - 4K60 HDBaseT KVM Extender Set with Loop-Out, diagram
Roll over image to zoom in Click on image to zoom
WyreStorm EX-100-KVM-H2 - 4K60 HDBaseT KVM Extender Set with Loop-OutWyreStorm EX-100-KVM-H2 - 4K60 HDBaseT KVM Extender Set with Loop-Out, TX rearWyreStorm EX-100-KVM-H2 - 4K60 HDBaseT KVM Extender Set with Loop-Out, TX frontWyreStorm EX-100-KVM-H2 - 4K60 HDBaseT KVM Extender Set with Loop-Out, RX rearWyreStorm EX-100-KVM-H2 - 4K60 HDBaseT KVM Extender Set with Loop-Out, RX frontWyreStorm EX-100-KVM-H2 - 4K60 HDBaseT KVM Extender Set with Loop-Out, diagram

WyreStorm EX-100-KVM-H2 - 4K60 HDBaseT KVM Extender Set with Loop-Out

WyreStormSKU: EX-100-KVM-H2 Product Data Sheet
Price:
$963.00
Stock:
Ships in 1-3 Business Days

Description

The WyreStorm EX-100-KVM-H2 is a professional 4K60 HDMI and USB 2.0 KVM extender designed to transmit video, USB peripherals, audio, and control signals up to 100 meters over a single Cat6 cable. Supporting HDMI 2.0, HDCP 2.3, HDR10, and bi-directional PoC, the system enables reliable remote workstation control with zero compromise in video quality.

Ideal for conference rooms, education environments, and control systems, the extender simplifies installation while delivering seamless keyboard, mouse, and peripheral extension alongside ultra-high-definition video.

Features
• HDMI 2.0 signal extension supports up to 4K@60Hz 4:4:4 and HDCP 2.3
• Supports two transmission modes:
  – HDBaseT Mode: Up to 328 ft with full 4K60 video and USB 2.0 performance
  - Long-Reach Mode (LRM): Up to 492 ft for extended infrastructure flexibility
• Extends USB devices alongside video, enabling complete remote control of PCs
• HDMI loop-out on the transmitter provides local video output
• Beyond video and USB, the EX-100-KVM-H2 transports: RS-232 control, bi-directional IR, embedded audio pass-through, and balanced audio de-embedding
• Built-In Installation and Diagnostic Tools
• EDID DIP switch configuration
• Audio pass-through & balanced de-embed
• Bi-directional IR
• One-way PoC power
• 5 year warranty
