Whirlwind pcDI - Personal Computer/Stereo Line Interface Passive Direct Box

The Whirlwind pcDI is perfect for interfacing the outputs of CD players, computer sound cards, iPODs / MP3 players, tape decks, etc. with professional, balanced, low impedance equipment.

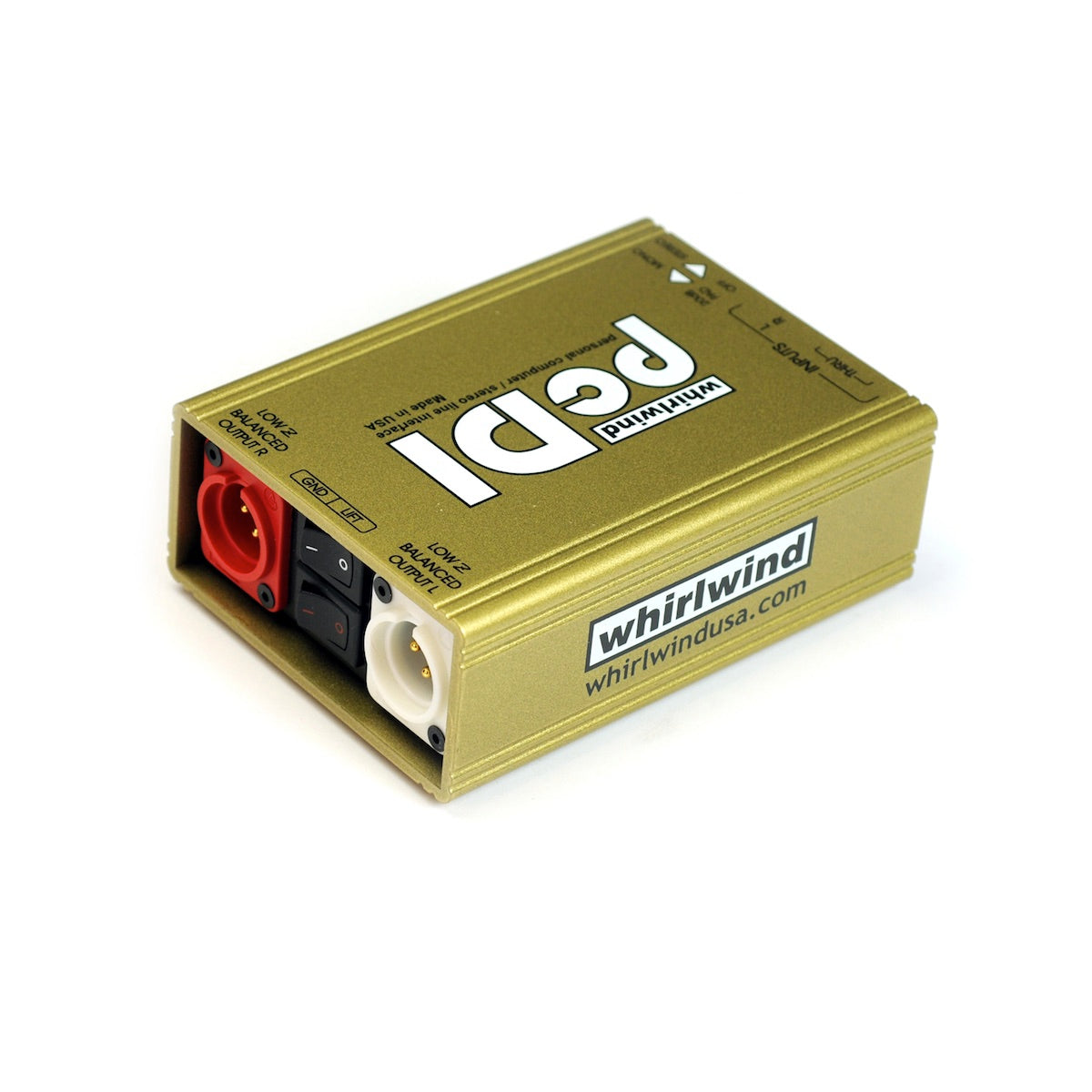

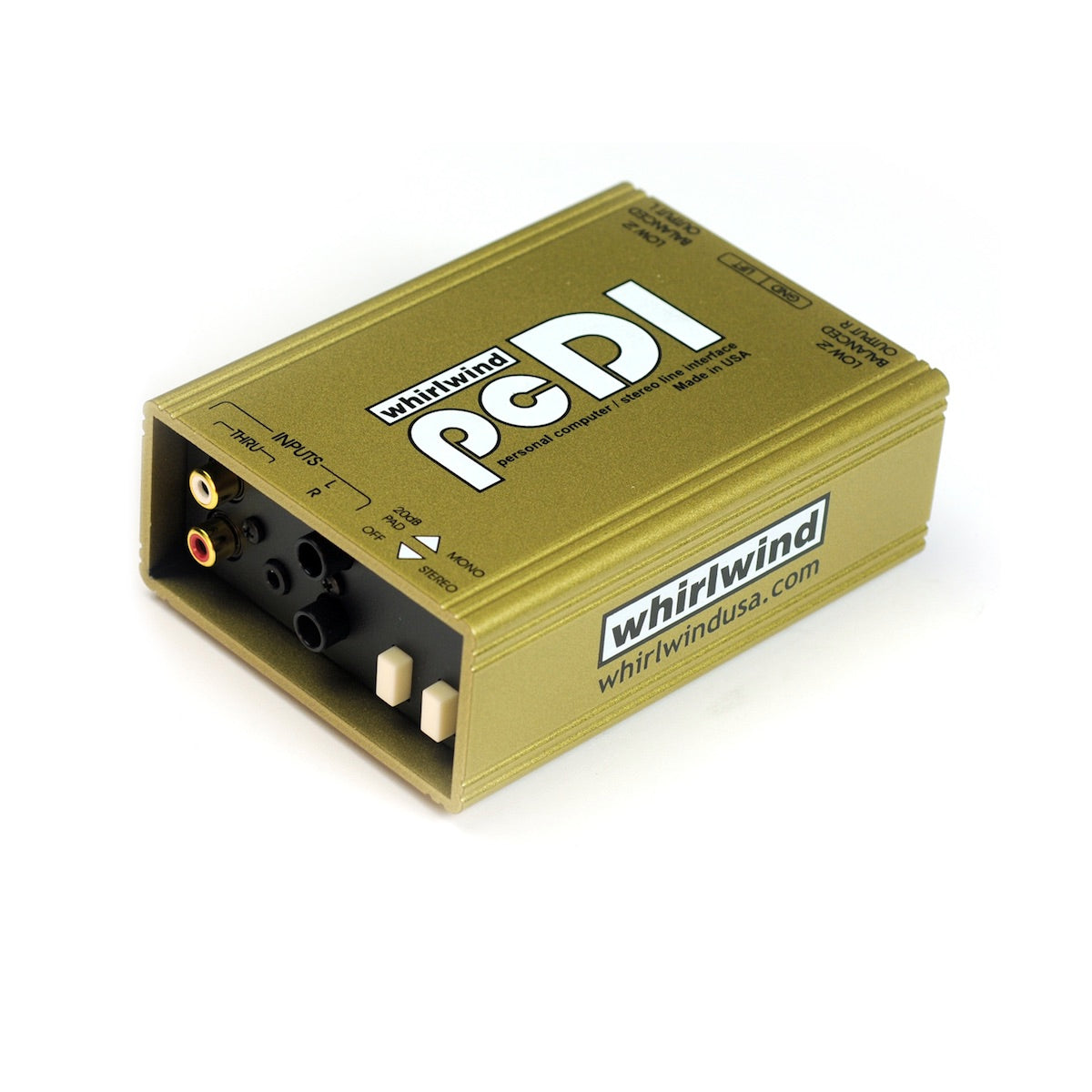

This unit contains two separate DIs - input your signals with one 3.5mm (1/8") mini TRS stereo jack (tip=left +, ring=right +, sleeve=common negative) or two sets of color coded RCA phono type input and through jacks. Output is via corresponding color coded XLRs.

Features
• Color coded RCA phono in / through jacks
• Color coded XLR output jacks
• Ground Lift switch to help eliminate hum and buzz
• Stereo/Mono switch for stereo operation or safely combine both inputs into a mono signal sent to both outputs
• 20dB pad switch for connection to "hot" input signals
• Uses Whirlwind's TRHL-M transformers with metal shield

Specifications
• Impedance Ratio (input to output, per channel): 133:1
• Frequency Response: 20Hz-20kHz +/-1dB
• Level Change (input to output): -20dB (pad out), -40dB (pad in)
