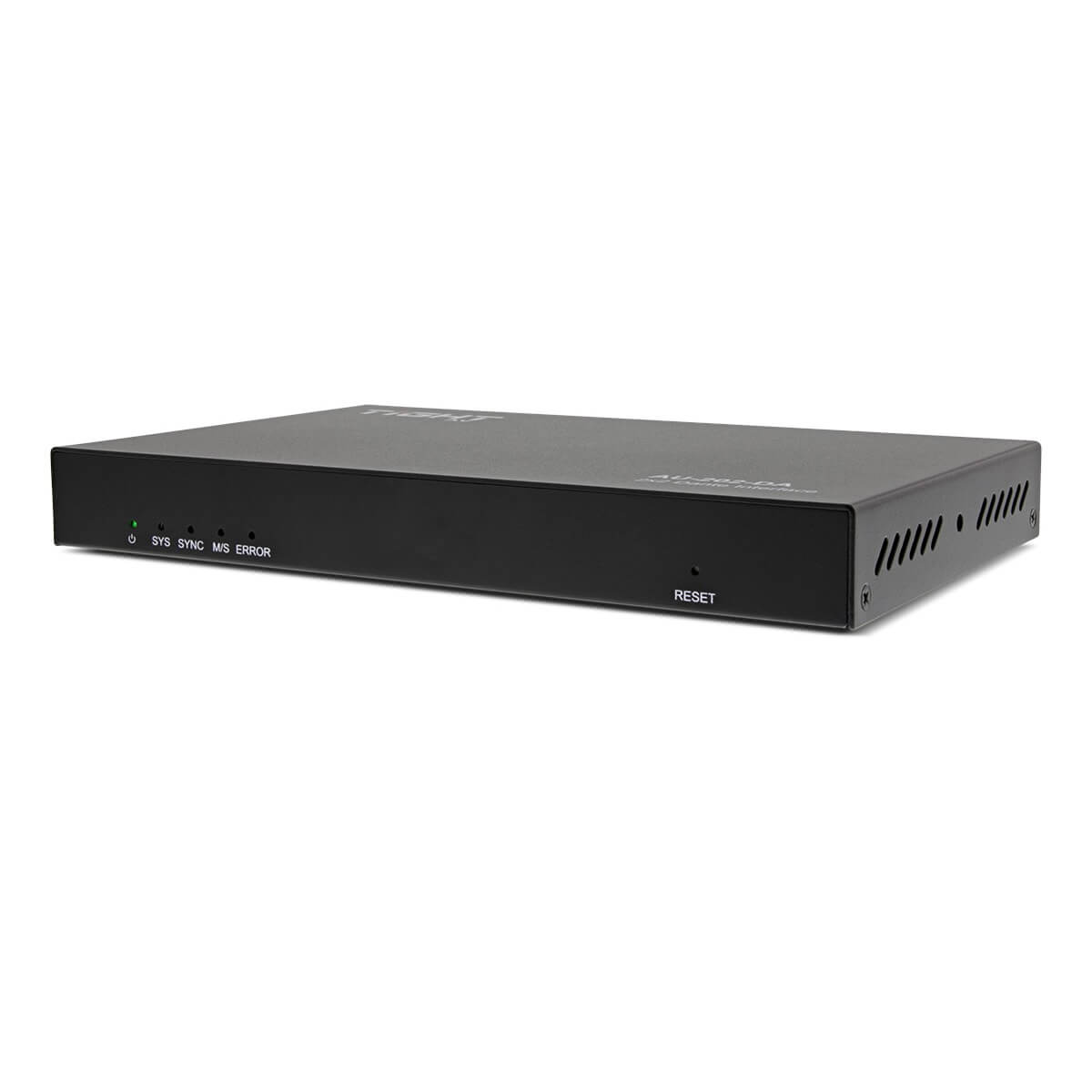

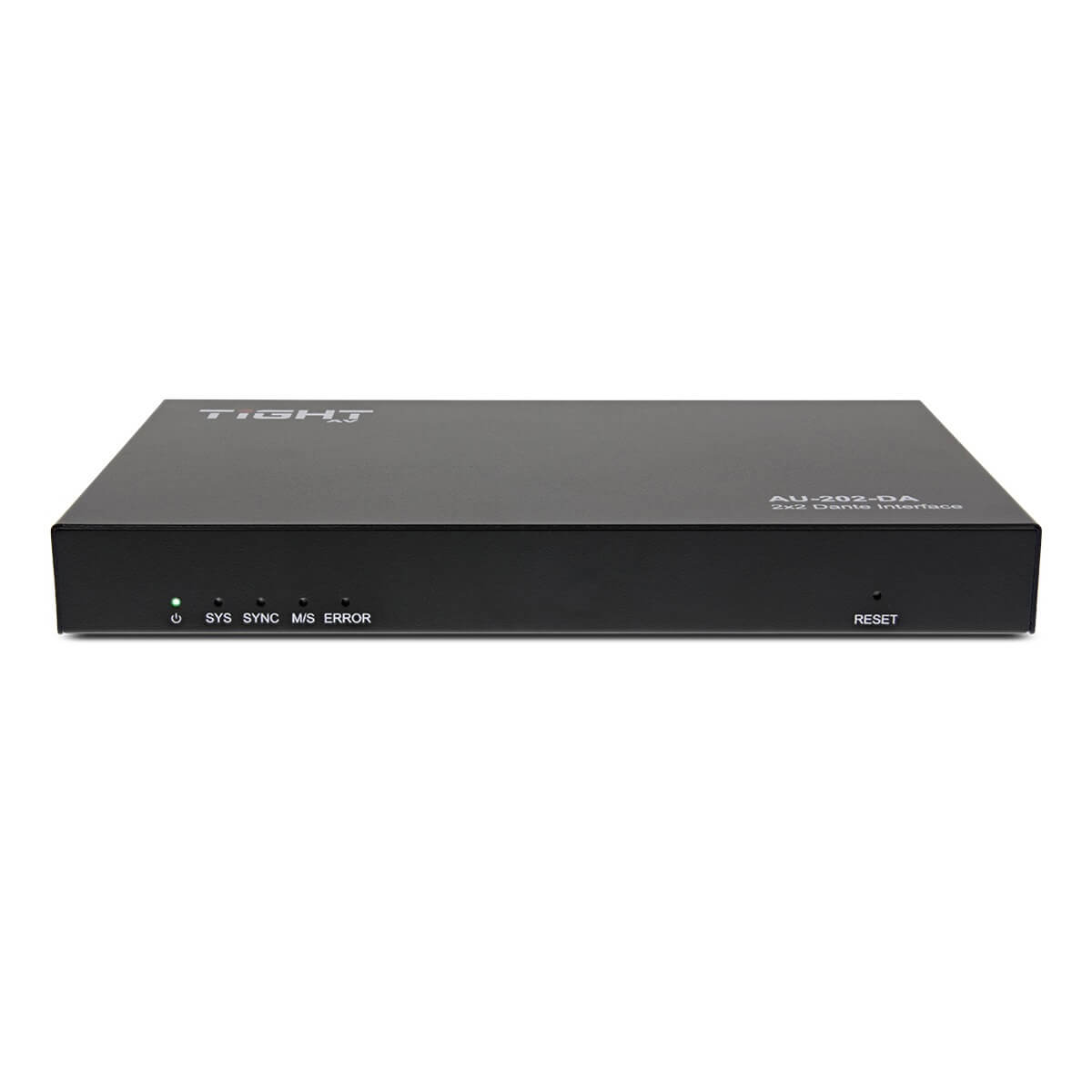

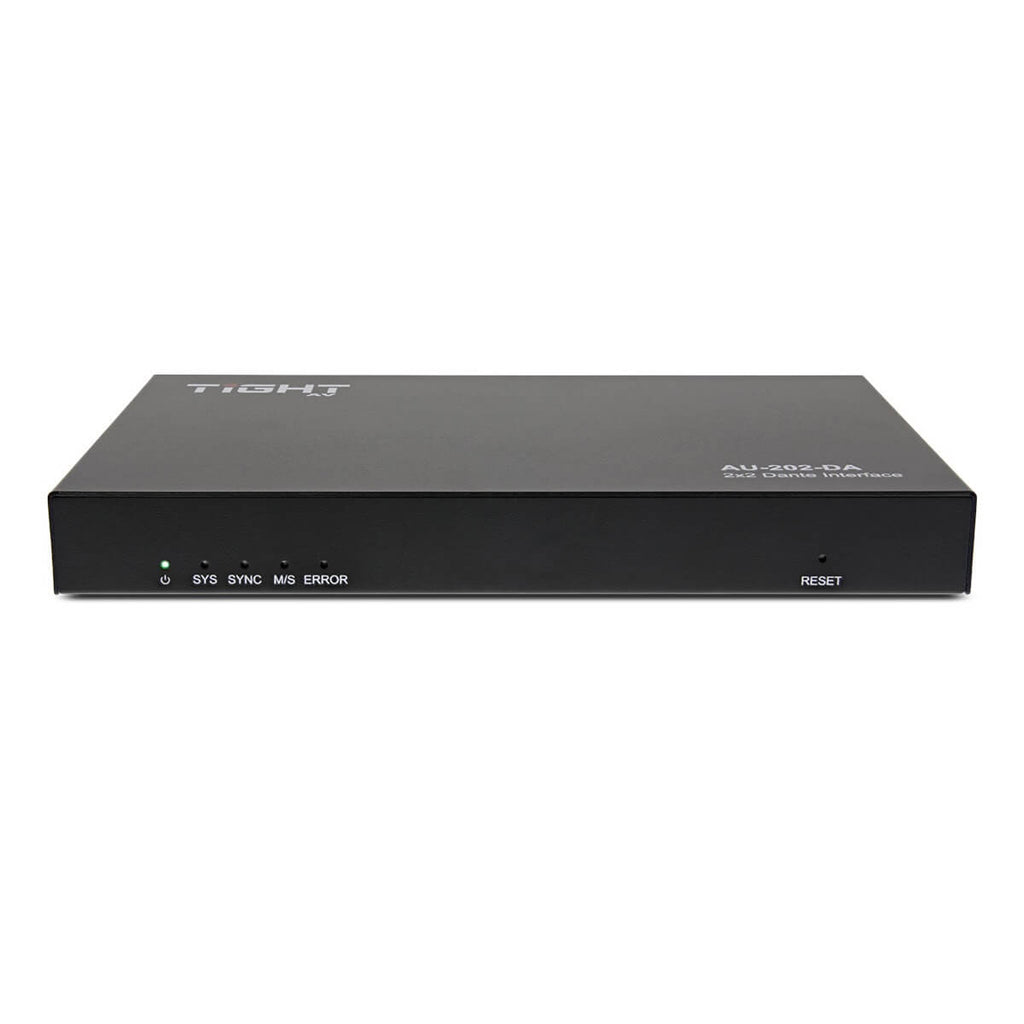

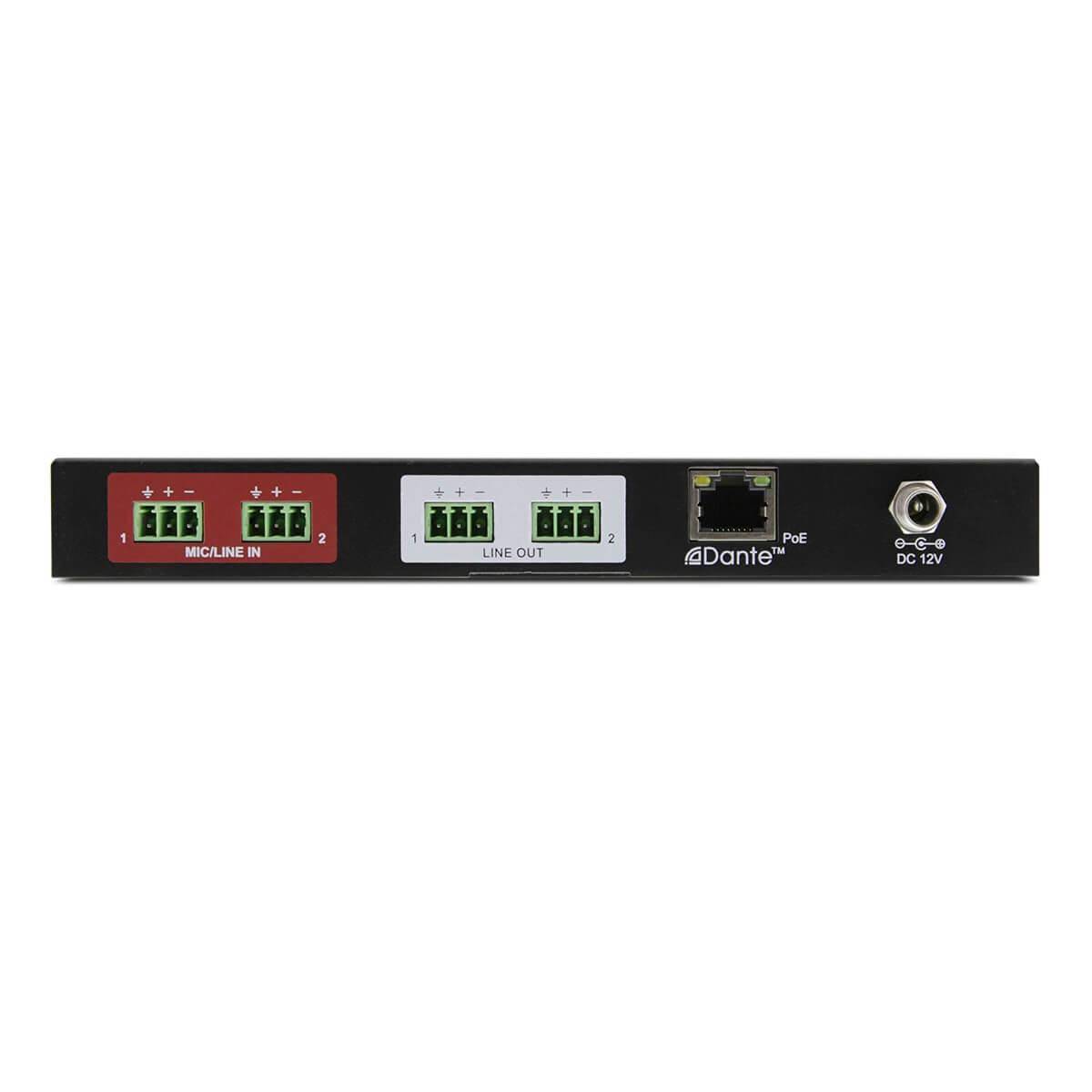

The TiGHT AV AU-202-DA is an install friendly 2x2 Dante interface. AU-202-DA offers a simple way to connect analog audio equipment to Dante devices with a single cable over the network. The two inputs supporting line and microphone levels and can apply +48V phantom power and up to +48dB gain in 6db steps, selectable per input.
AU-202-DA supports 44.1 and 48 kHz sampling rate. The unit is fully Dante Controller and Dante Domain Manager compatible. The AU-202-DA can be controlled and/or monitored via Dante Controller software, the built-in web UI or the open third-party API over TCP/IP.
The unit can be powered over POE or local 12V power supply that is included. The POE support, the small form factor and the included mounting brackets makes the AU-202-DA very easy to install and place where needed.
Features
• 2 analog mic/line inputs, 0 to +48dB gain in 6dB steps.
• +48V phantom power for condenser microphones.
• 2 analog outputs with volume control and mute.
• Dante UltimoX2 chipset. Routing of audio over ethernet in Dante Controller.
• Dante Domain manager compatible.
• Supports 44.1k or 48kHz audio sample rate.
• 12V DC or PoE (802.3af) power options and bracket for surface mounting included.
• Open third-party API for external control and monitoring.
