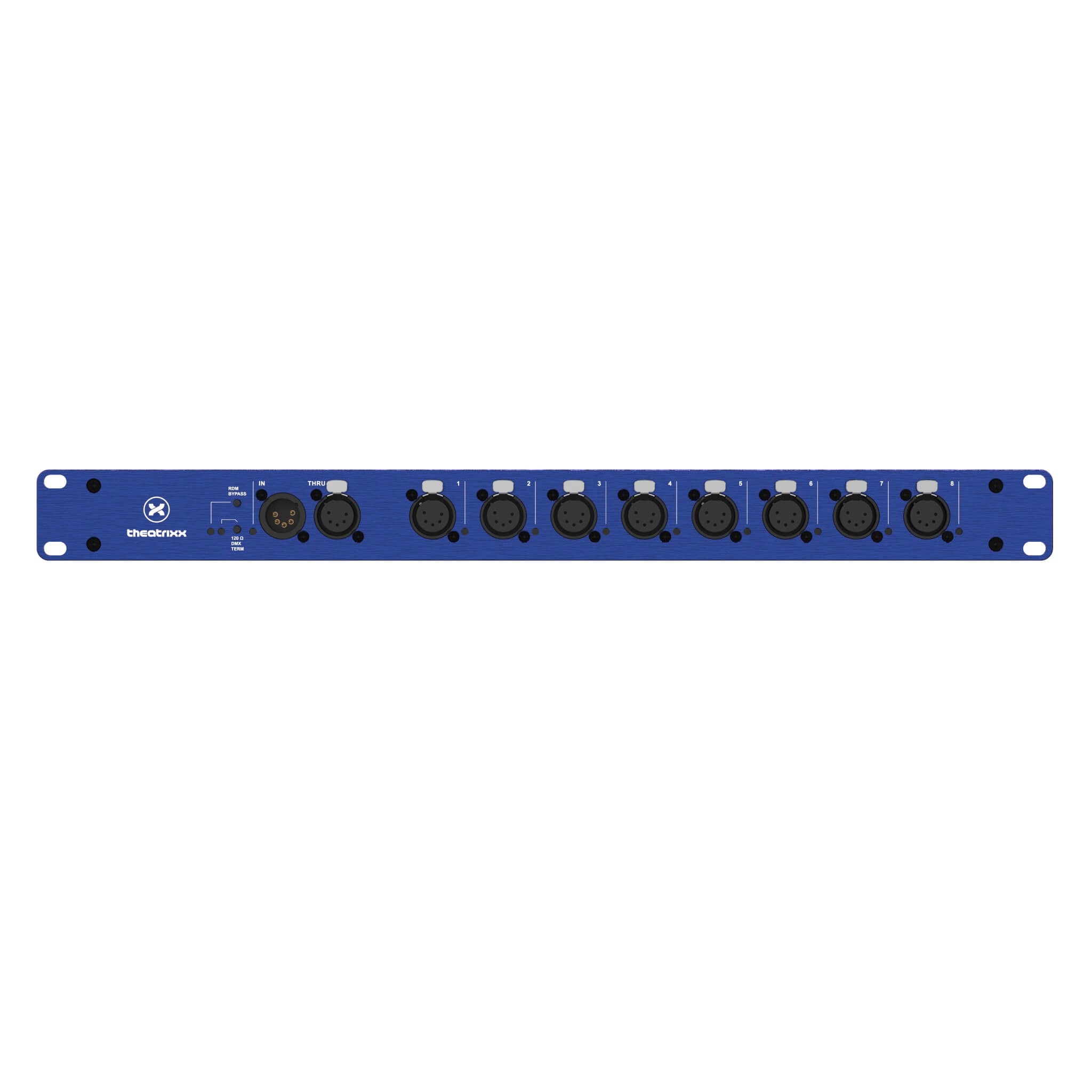

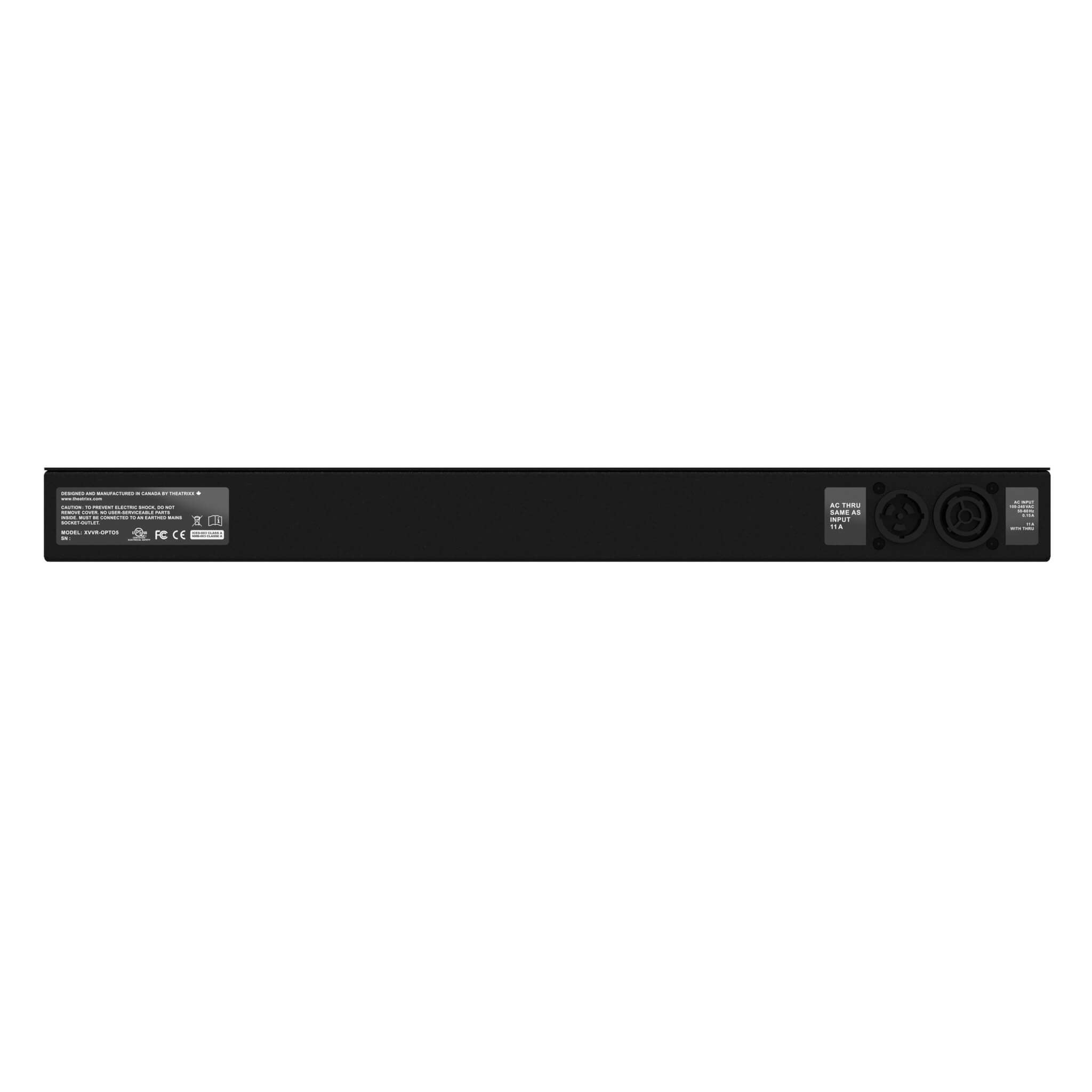

The Theatrixx XVVR-OPTO5 DMX/RDM splitter is a high quality, rugged distribution device for your DMX-512 and RDM signals, with 8 XLR5 outputs.
Available in both traditionnal 1RU, 8 channel form factor, or as a modular, 3 channel unit compatible with Theatrixx’s Award-Winning 8-Bay Reversible Converter System, the product opens up interesting possiblities for high-universe count, high density configurations. For maximal compatibility, the device is offered with a choice of 3-pin or 5-pin XLR connectors.
The input and each output are optically isolated up to 1000 volts, ensuring line failures are contained and do not take down the whole network. RDM data is forwarded to each port, and a special “Timing Safe Mode” bypasses RDM transmissing and boosts the DMX signal quality to ensure compatibility with older-generation fixtures. It is also a handy troubleshooting feature that can be easily switched on or off at the push of a button.
Features
• Compatible with DMX-512A (RDM) and DMX-512 (1990)
• Comprehensive protection against severe electrical faults on DMX lines
• Switchable DMX Termination on input
• Timing-safe mode filters and retimes incoming signal
• Fully isolated input and output ports
• Multi-function LED status indicator for each port
