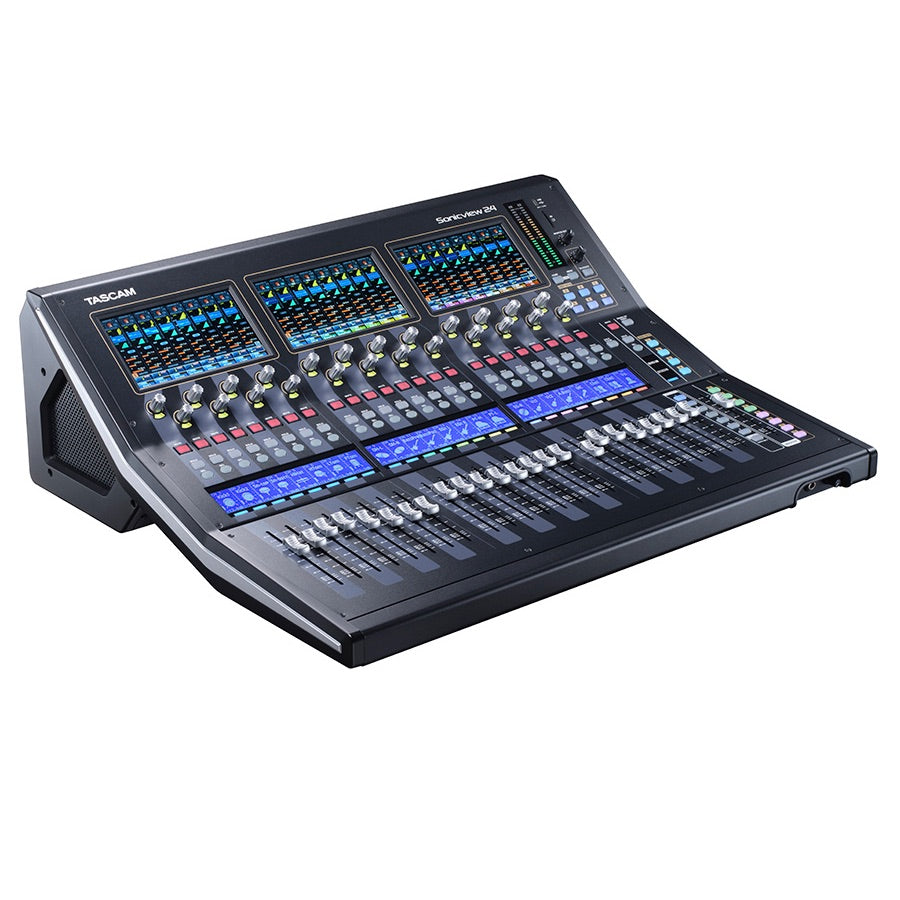

The state-of-the-art TASCAM Sonicview 24XP console integrates into the most sophisticated production environments thanks to its built-in 64-in/64-out Dante networking, 32-bit/96 kHz multi-channel USB audio interface, 32-track multi-track SD recording, Class 1 HDIA mic preamplifiers, and a wealth of I/O. These recording mixers offer no-compromise audio quality, including a 96 kHz, 54-bit float FPGA mixing engine, continuous high-definition 96 kHz sampling, and 32-bit analog-to-digital converters.
Two TASCAM Sonicview models are available, which differ in frame size and the number of physical inputs, mic preamps, faders, and touch screens. The TASCAM Sonicview 24XP offers 24 physical input channels with motorized faders while the TASCAM Sonicview 16XP provides 16. The TASCAM Sonicview 16XP, with its smaller frame size, can be rack-mounted. Internally, the architecture of the two models are the same, with a generous 44 input channels (40 mono channels and 2 stereo channels), 4 stereo FX return channels, 22 flex output buses, and the L/R main bus.
Both units incorporate a new multi-screen user interface called VIEW (Visual Interactive Ergonomic Workflow) to allow easy operation and control of all system parameters using completely customizable touch screens, user-definable buttons, and intuitive control software. Their rich feature set makes the TASCAM Sonicview digital recording and mixing consoles an exceptional choice for touring, installed sound, recording studios, and broadcasting.
Features
• TASCAM VIEW (Visual Interactive Ergonomic Workflow) user interface
• Three 7-inch touch panels display three different system views

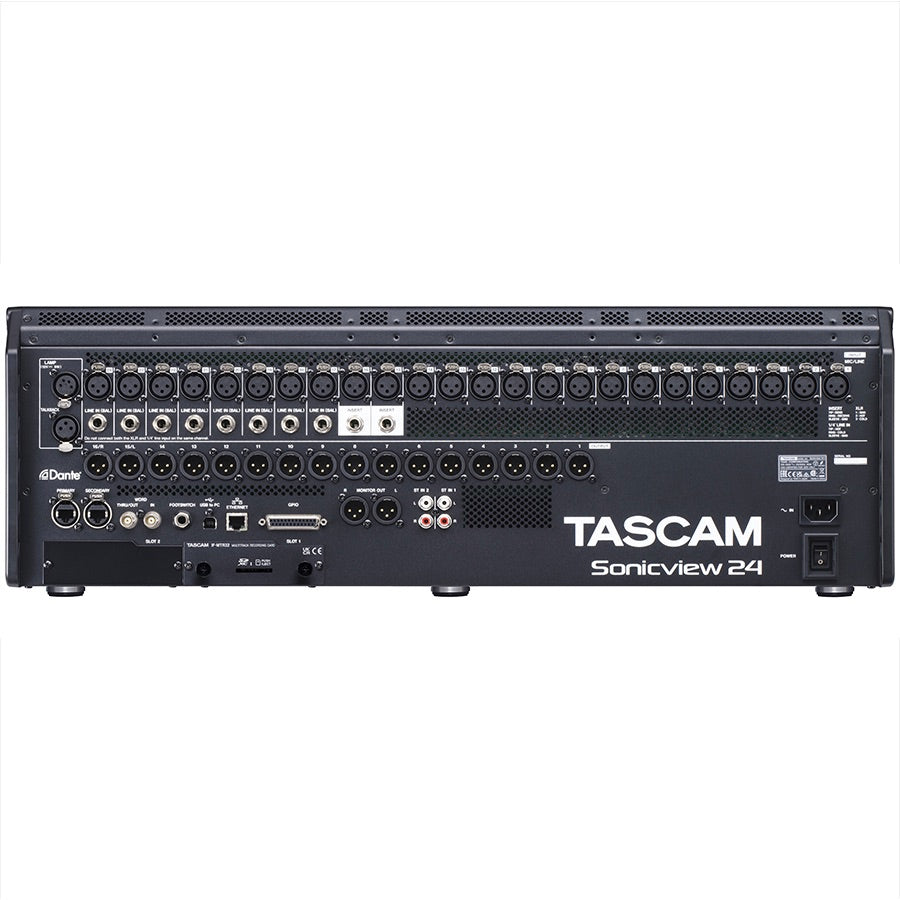

• 24 mic/line inputs, 16 XLR line outputs with flexible routing
• 44 input channels (40 mono channels and 2 stereo channels) and 4 FX returns
• 22 flexible output buses and main L/R bus with 31-band graphic EQ
• 96 kHz, 54-bit float-point FPGA mixing engine
• Ultra-low latency: 2 x samples (20.8μS) in mixing engine, 0.51 ms analog-to-analog
• 32-bit/96 kHz AD/DA conversion
• TASCAM Class 1 HDIA microphone preamplifiers
• 32-in/32-out, 32-bit/96 kHz USB audio interface
• Built-in 32-track SDXC recorder
• 64-in/64-out built-in Dante interface
• 4 multi-effects processors
• TASCAM Sonicview Control software enables remote control and off-line editing
• 2 TASCAM expansion slots
- SDXC multi-track recording card preinstalled in one slot
- Optional MADI, Dante, AES/EBU, and analog cards available for the second slot
