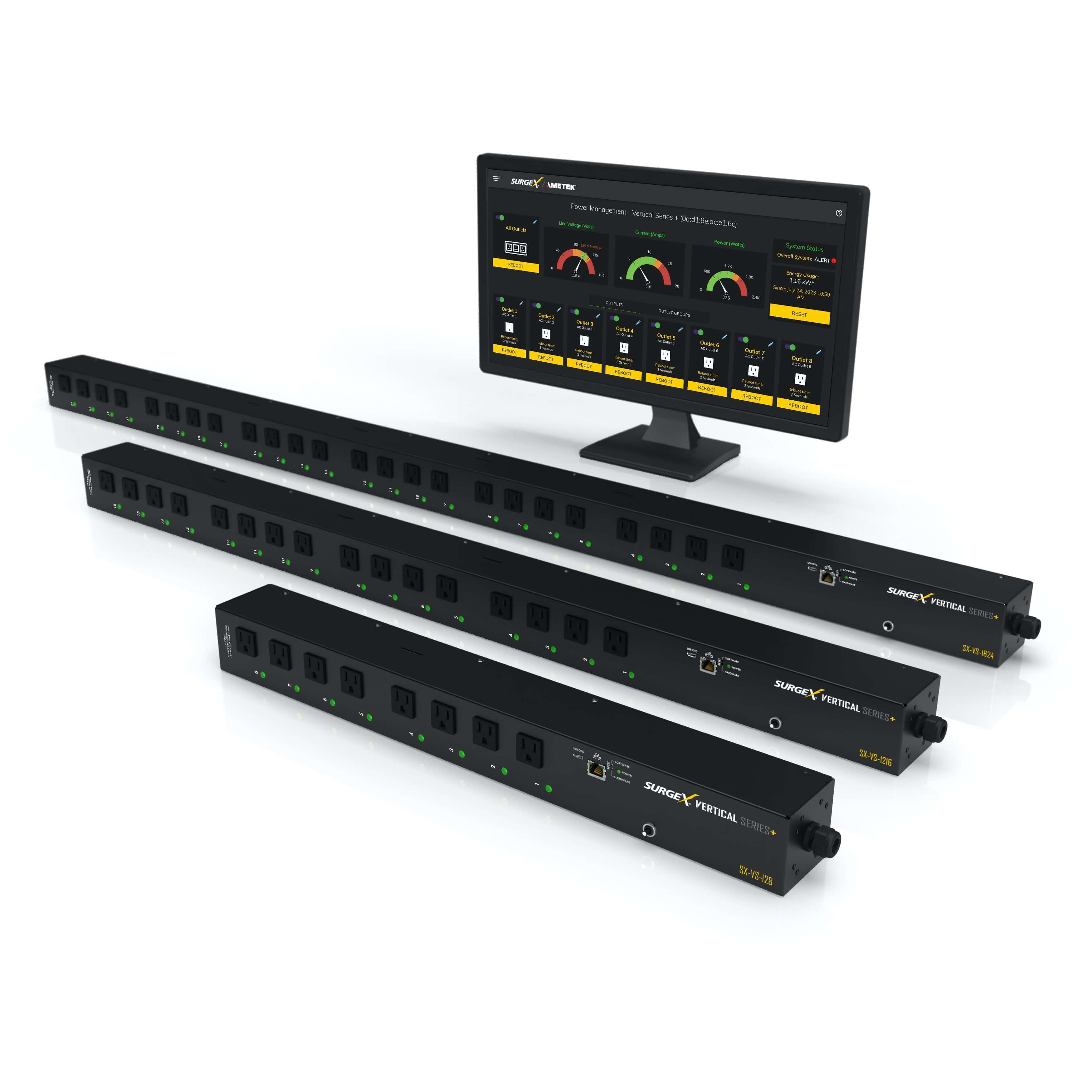

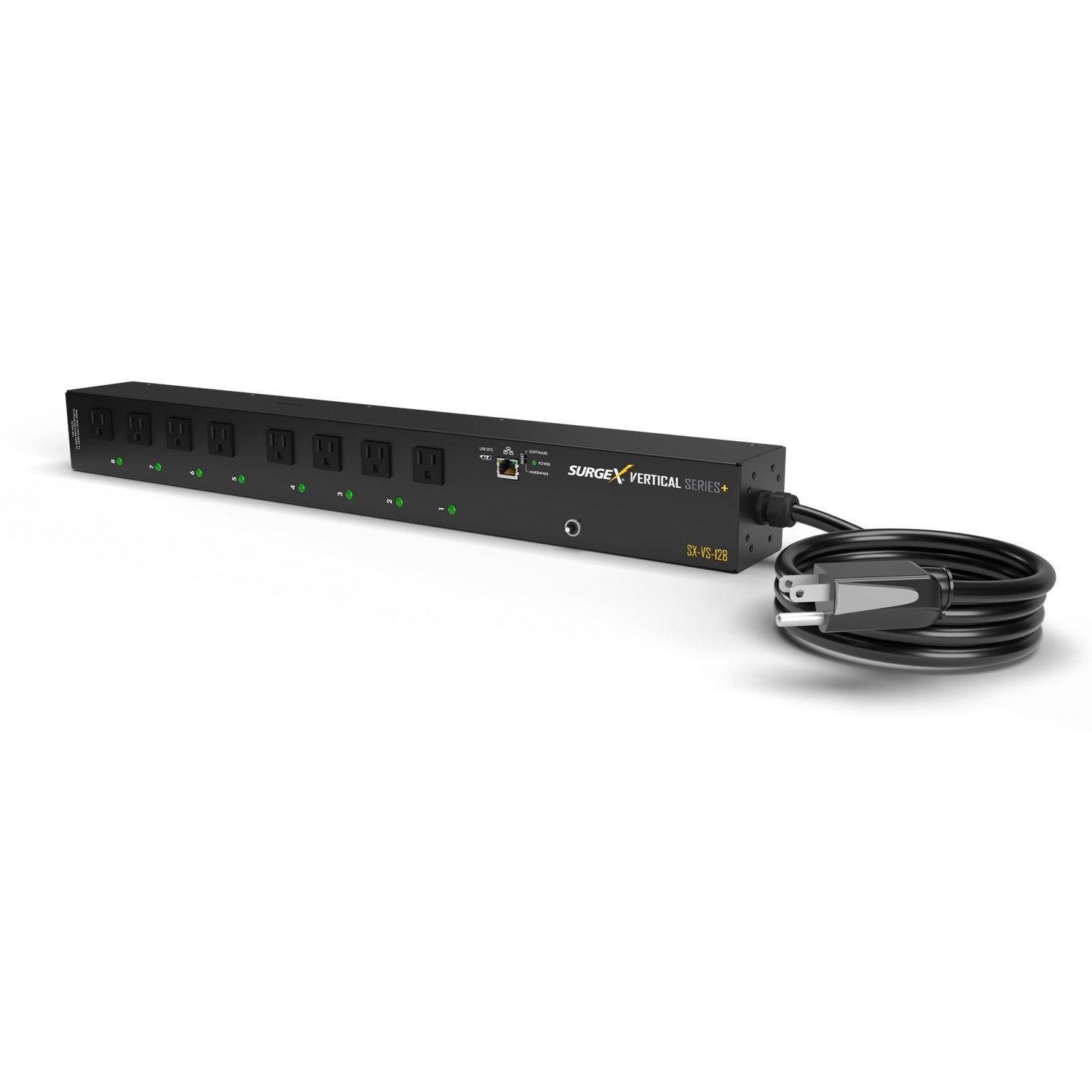

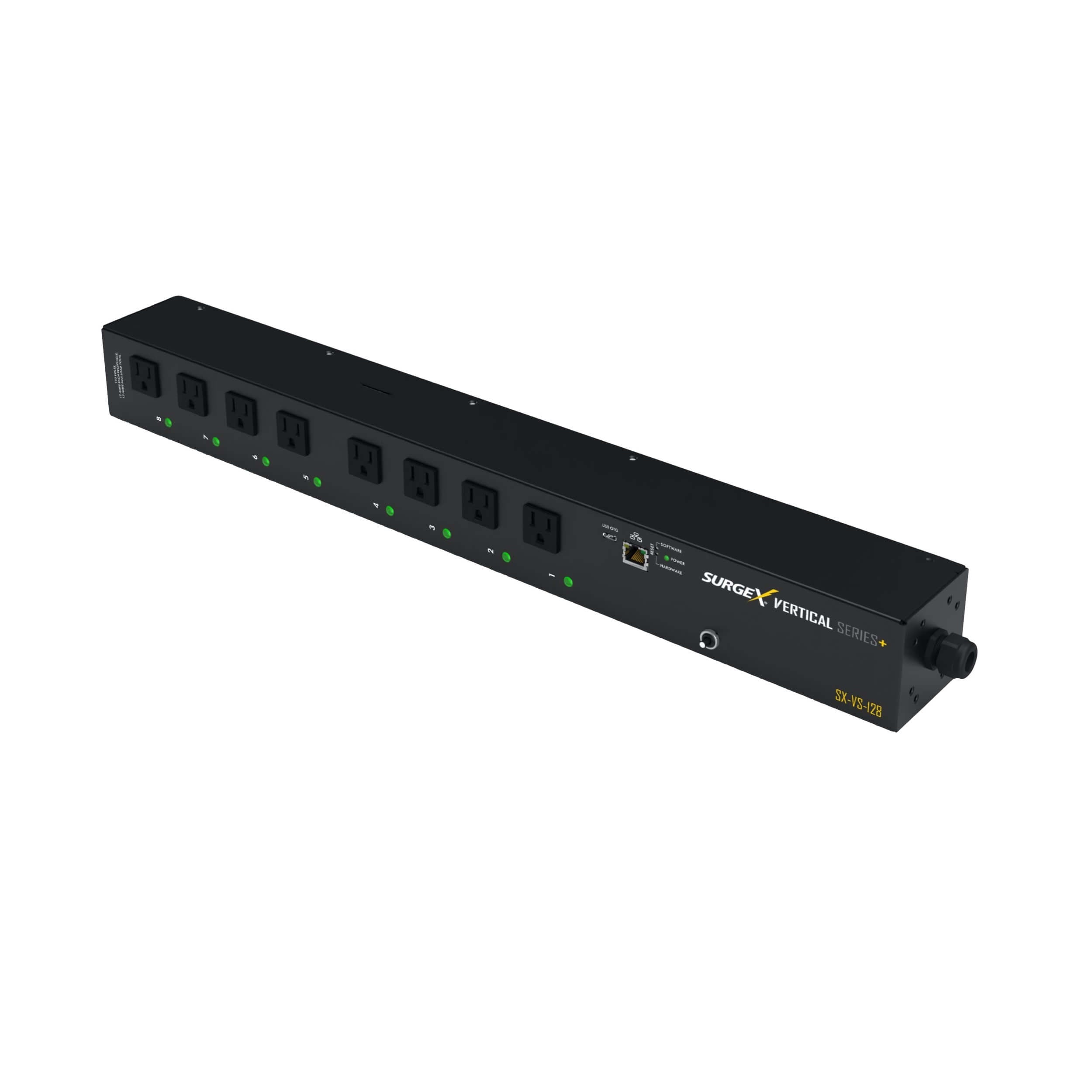

The SurgeX SX-VS-128 Vertical Series+ 12A 120V 8-outlet monitored PDU features IP-controlled power management, analytics and single stage surge protection. The Vertical Series+ is the perfect choice for those seeking space efficiency and intelligent rack power distribution.
The Vertical Series+ includes SurgeX CONNECT, a cloud-based platform that offers real-time power monitoring and management of compatible SurgeX devices in a single, centralized dashboard. It supports remote turn-on capabilities via wired Ethernet, with software activation for remote-on, turn-off, and reboot functions. A wide range of remote control features, including sequencing, scheduling, measurement, AutoPing, and adjustable trigger functions. The supported protocols are wired Ethernet HTTP, HTTPS, SNMPv1, SNMPv3, NTP, mDNS, 802.1x, and LDAP. Measurement capabilities encompass voltage, current, power, frequency, energy, and temperature. Events and measurements are recorded in the internal memory.
Features
• IP-controlled
• 12A, 8 NEMA 5-15R outlet configuration
• Single stage surge protection
• Individually switchable receptacles
• Remote turn on/off, power cycling, and sequencing
• Advanced scheduling, AutoPing, and threshold triggered events
• Remote power management and analytics
• Seamless integration with third-party control systems
• SurgeX CONNECT compatible
• 9 ft. cord length
