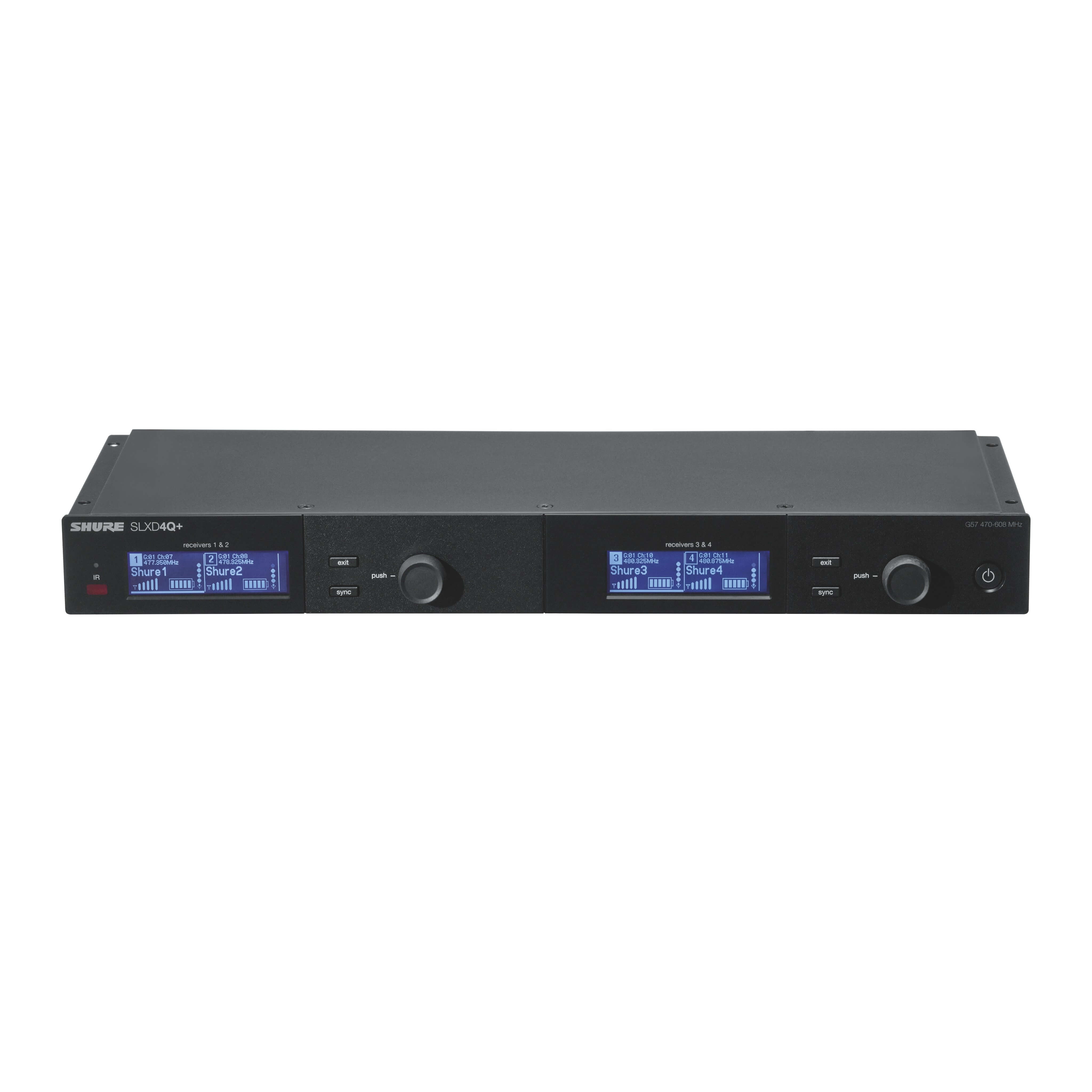

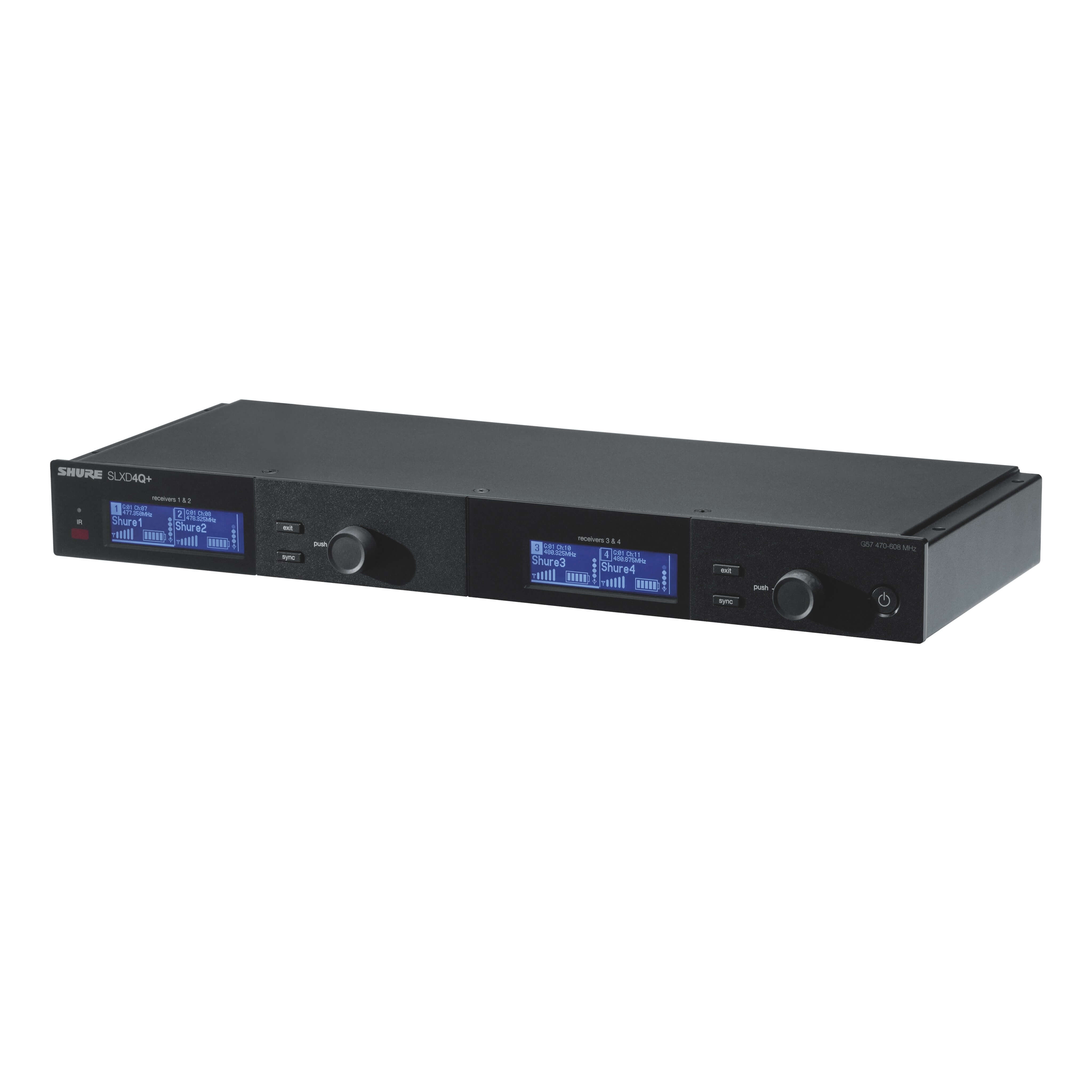

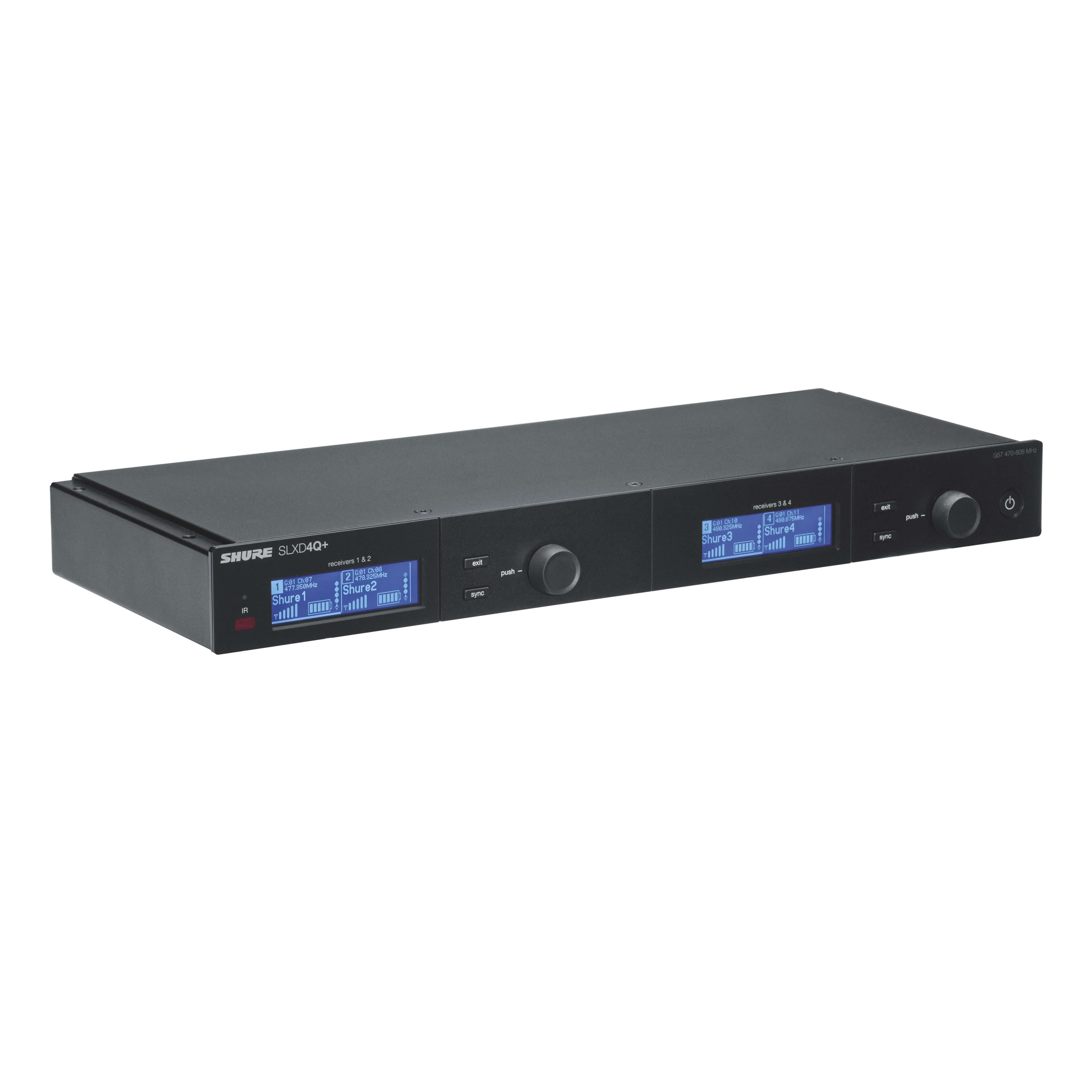

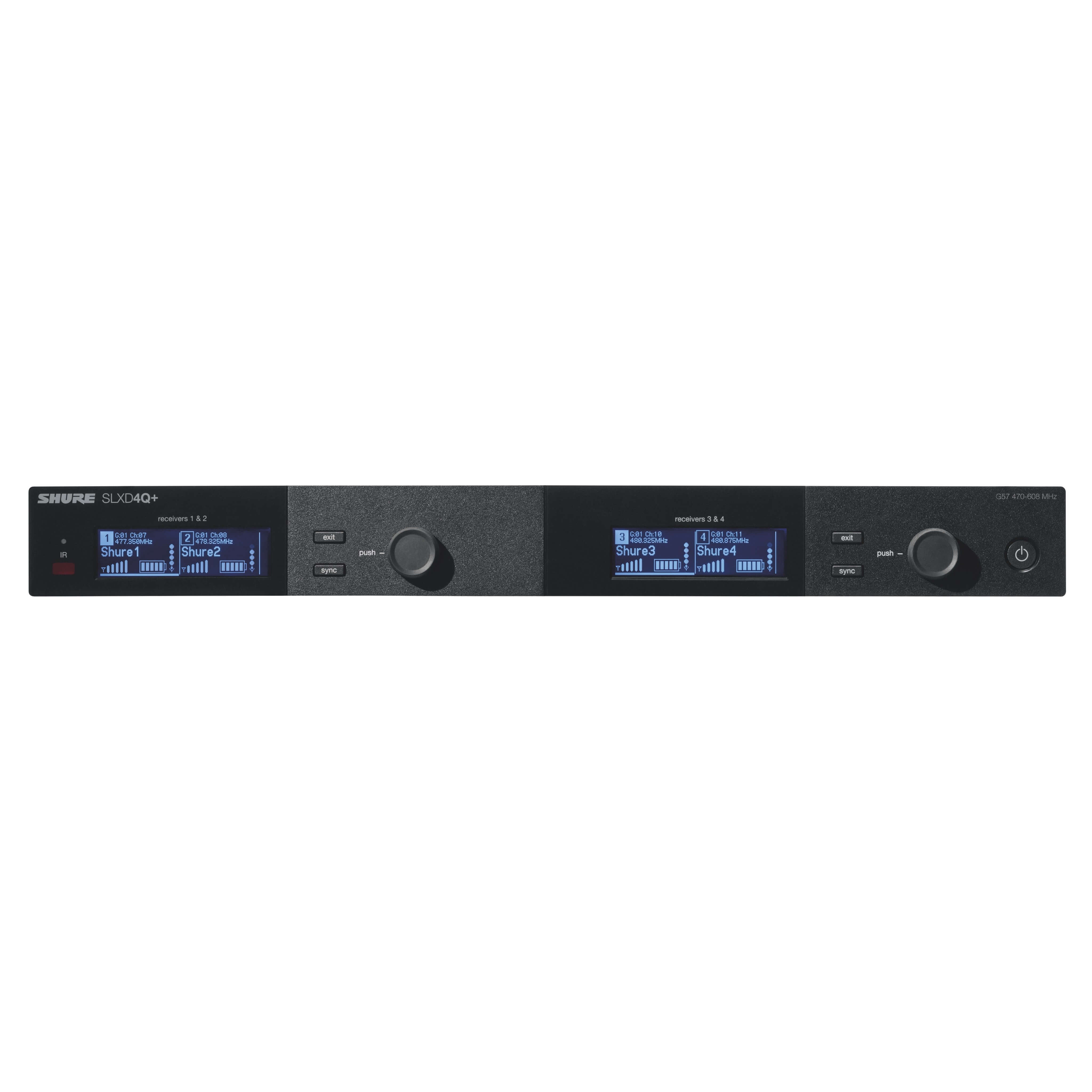

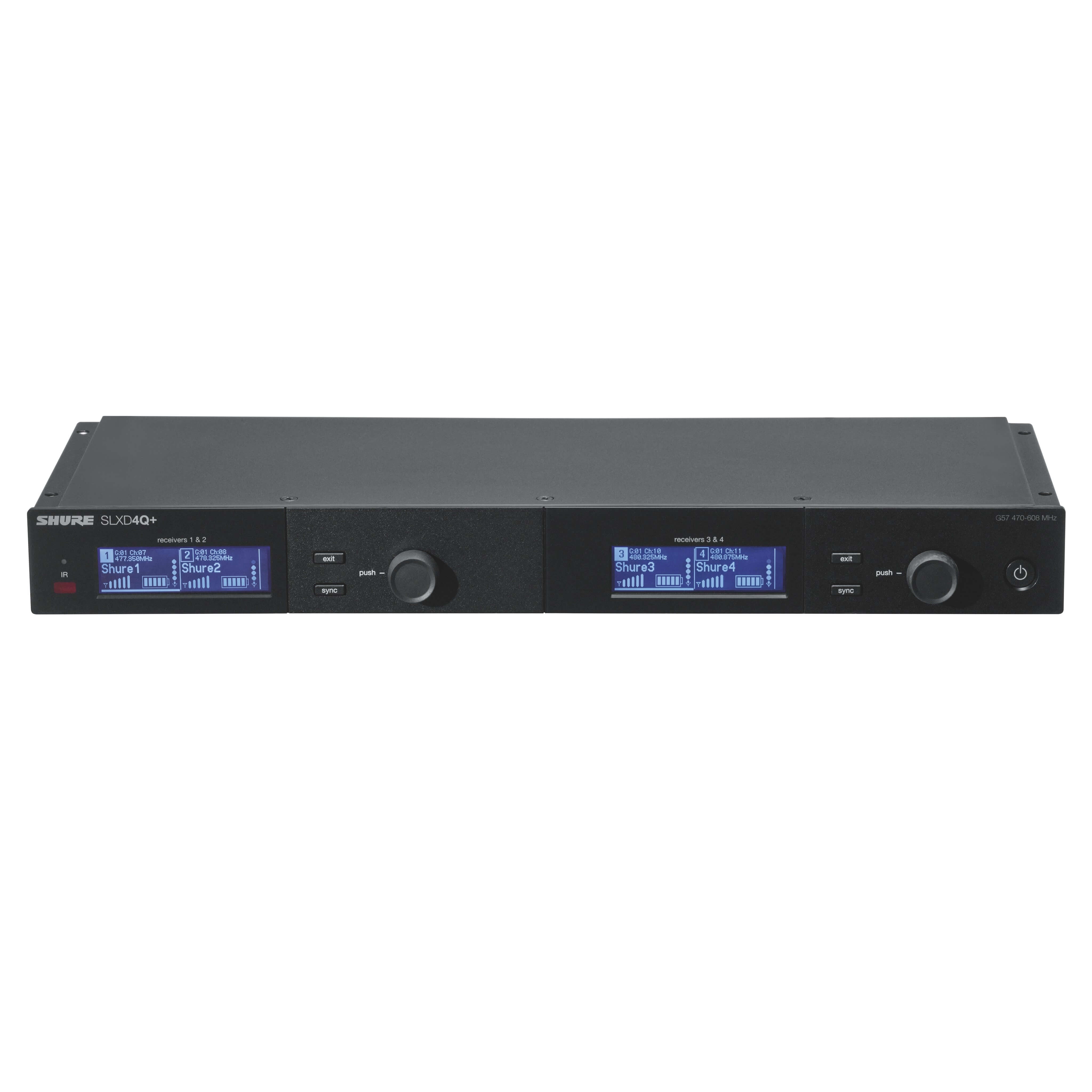

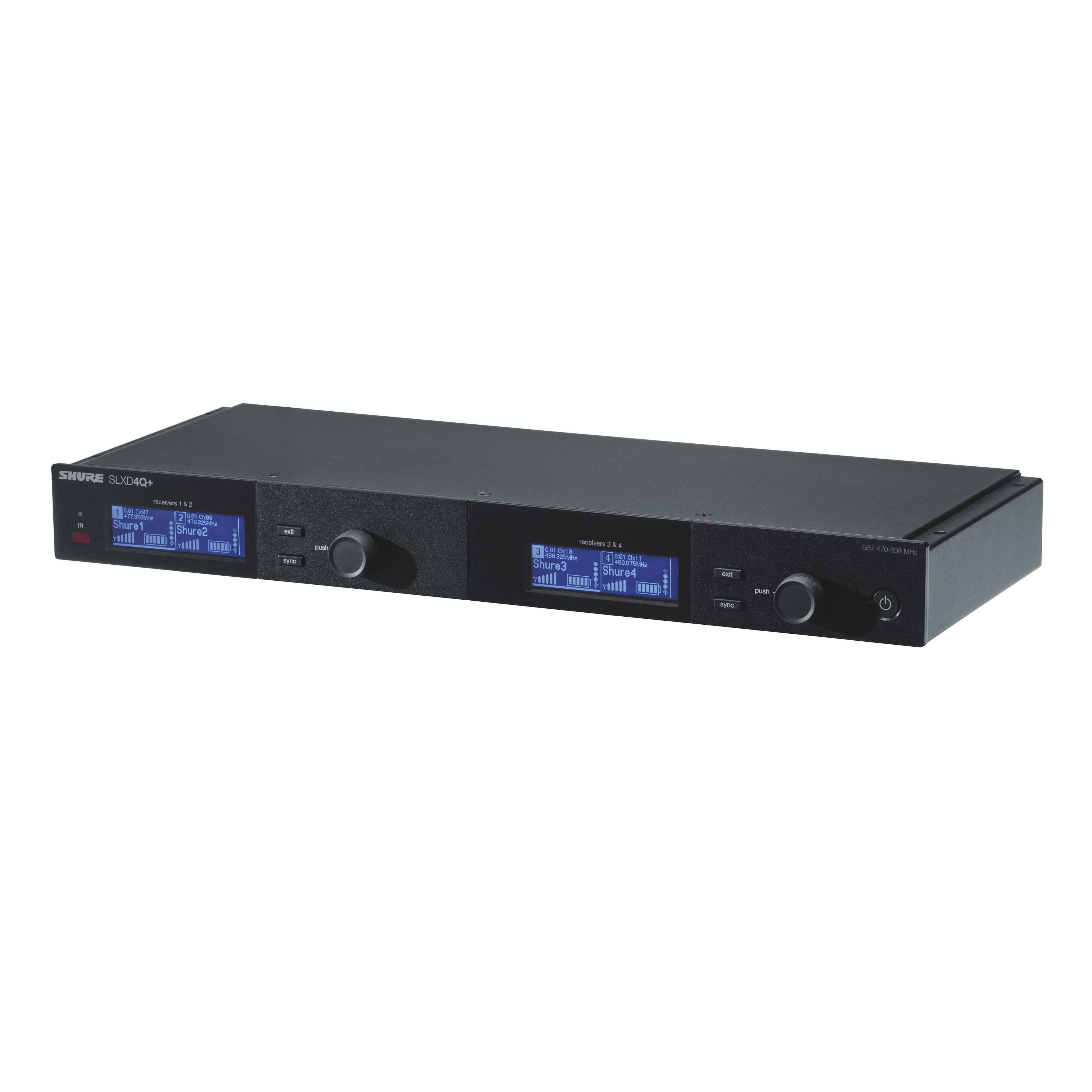

The Shure SLXD4Q+ quad channel digital wireless receiver is compatible with all SLX-D transmitters, housed in a rugged 1RU chassis with Ethernet networking. It delivers flawless 24-bit audio, streamlined setup, and rock solid RF performance for a suite of wireless system configurations. Featuring industry-leading digital wireless technology in a convenient full-rack quad configuration, the SLXD4Q+ efficiently saves space and easily scales to match channel requirements.
Features
• Four channels in one rack space
• G57 Frequency Band (470-616 MHz)
• Wide 138 MHz tuning range
• 32 available channels per frequency band (region dependent)
• Transparent 24-bit digital audio
• 118 dB dynamic range
• Audio Summing matches receiver output to available mixer channels (4,3,2 or 1)

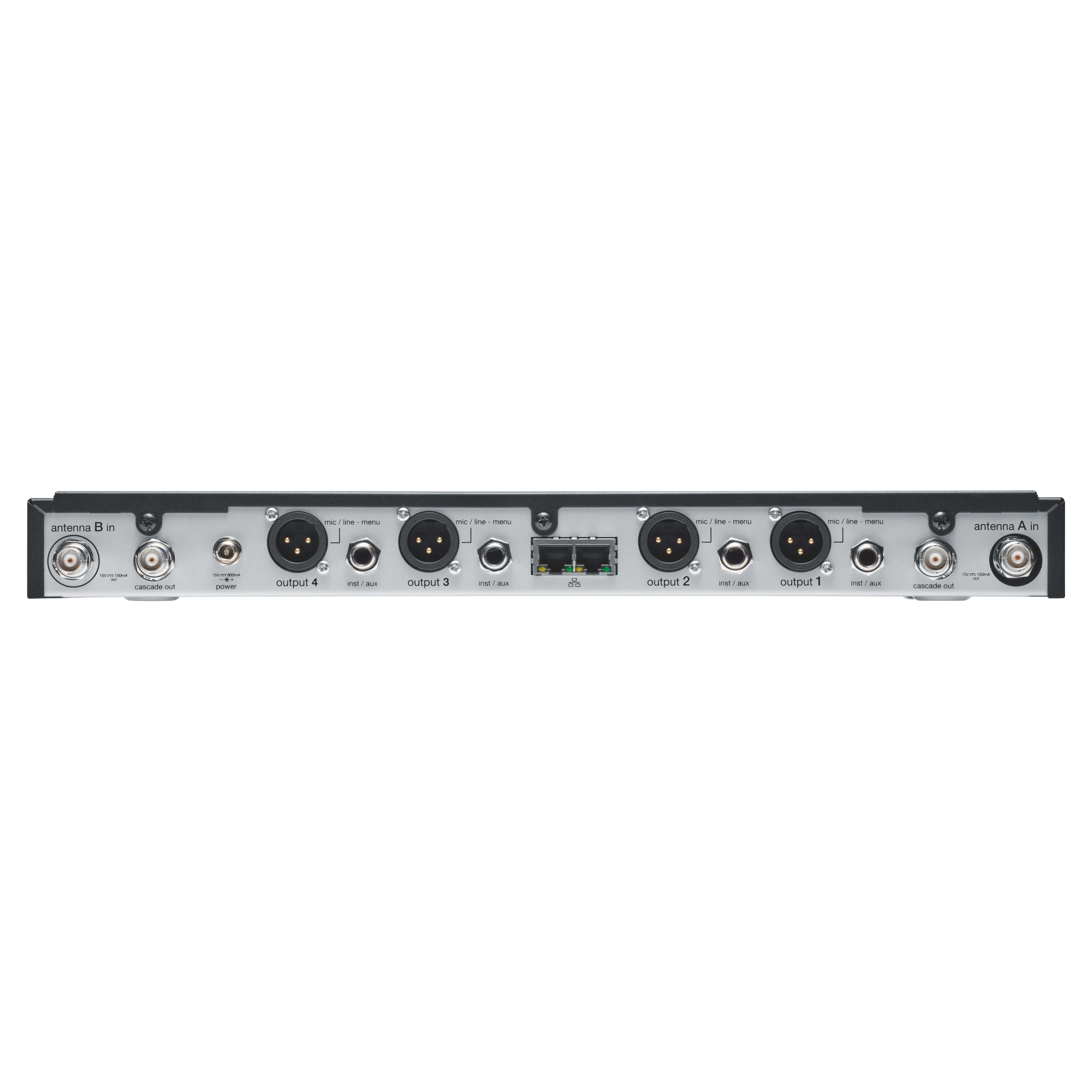

• 4 XLR and 4 1/4" outputs and 2 local ethernet connections
• RF Cascade creates an 8-channel system by linking two SLXD4Q+ together
• Bias Voltage power supply management
• Digital predictive switching diversity
• Easy pairing of transmitters and receivers over IR scan and sync
• Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
• Rugged metal construction
FCC CONSUMER ALERT (U.S.)
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change.
For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov.cgb/wirelessmicrophones.
