The Shure AXT630 Axient Digital Wireless Antenna Distribution System features selectable 60 MHz input filters that match the available frequency bands of Axient transmitters, providing extra protection from strong out-of-band signals and a lower overall RF noise floor. Four BNC antenna output pairs distribute filtered signal to receivers, and an unfiltered RF cascade port is included to connect wideband devices like the Axient Spectrum Manager. Networkable via Ethernet connection, the AXT630 enables Wireless Workbench 6 control of filtering ranges, antenna power and attenuation.
Features
• Selectable input filtering provides protection against strong out-of-band signals
• Wideband filtering option covers multiple bands
• Up to 15 dB of selectable RF attenuation for signal-to-noise optimization

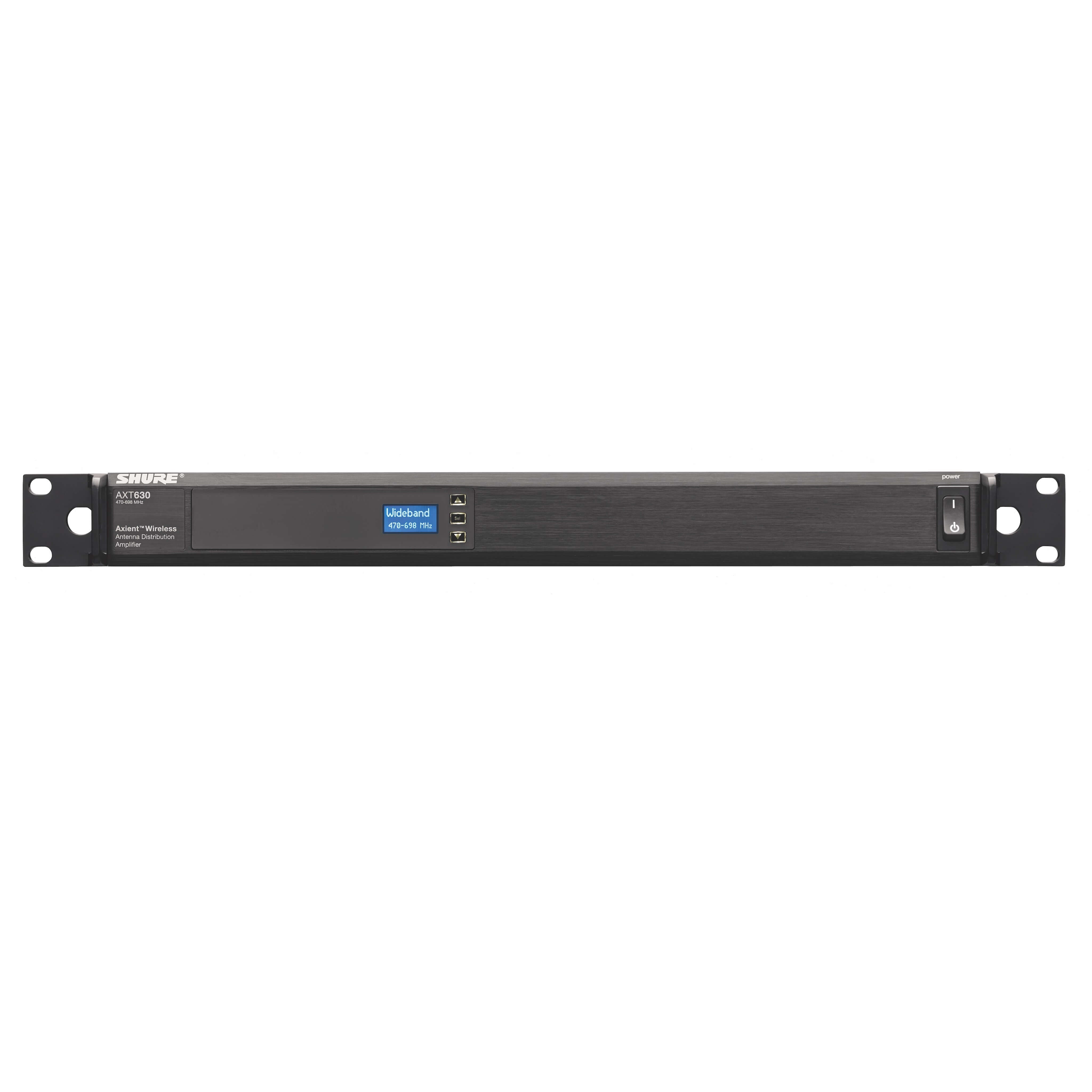

• Front panel interface and WWB6 controls filtering, antenna power, and attenuation

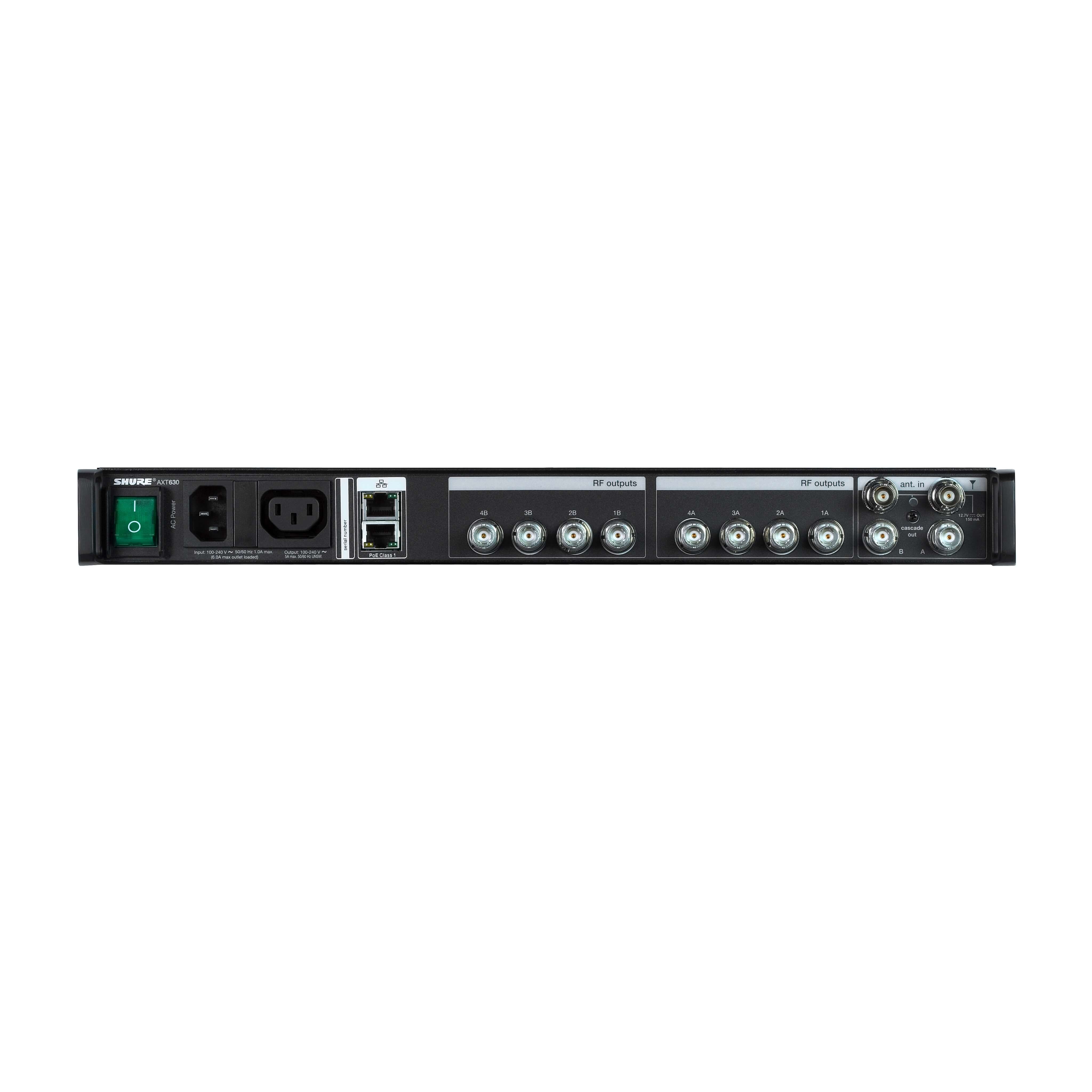

• BNC outputs: 4 antenna output pairs
• RF cascade port with selectable 3 dB make-up gain for wideband devices
• Ethernet Networking: 2 PoE enabled Ethernet ports
• IEC power ports enable daisy-chaining of AC power
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
FCC CONSUMER ALERT (U.S.)
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones.
