The Shure ANX4 is the ultimate high channel count, scalable wireless receiver, receiving up to 16 channels of Shure Axient Digital or 24 channels of Shure ULX-D wireless audio in a single rack space. Delivering maximum flexibility, ANX4 does not ship preconfigured with active wireless channels, allowing you the opportunity to purchase channels in single- and four-channel increments and activate the exact number of channels you need. Licenses can be activated in one ANX4 and later removed and activated in a different ANX4 as needs change. ANX4 channel licenses can be purchased through the same authorized suppliers ANX4 hardware units are sold (or at Shure.com/anx4) and managed via your ShureCloud user account.
All the exceptional features found in award-winning Axient Digital and ULX-D receivers that have made them standards on stages, in facilities, on tour, and on location throughout the world are available in the ANX4**. Whether you operate ANX4 in Axient Digital or ULX-D transmission mode, ANX4 maximizes your budget, rack space, and rack weight in delivering large wireless audio channel counts in a single rack design. What’s more, this 1RU format also enables streamlined antenna configurations for large channel count environments.
Features
• Receives up to 16 ch. of Axient Digital or 24 ch. of ULX-D in a single rack space
• Channel licenses are available in single- and four-channel options*
• Purchased channel licenses can be managed via ShureCloud user account
• Wide tuning range covers 174 MHz to 2 GHz, covering all Axient Digital and ULX-D***
• All Axient Digital or ULX-D features included**
• Large, 6.6-inch front panel color display
• Five-segment Channel Quality meter displays RF signal-to-noise
• ¼-inch front-panel headphone connector for monitoring with Dante Browse
• Streamlined and cost-saving antenna setup for large-scale wireless deployments

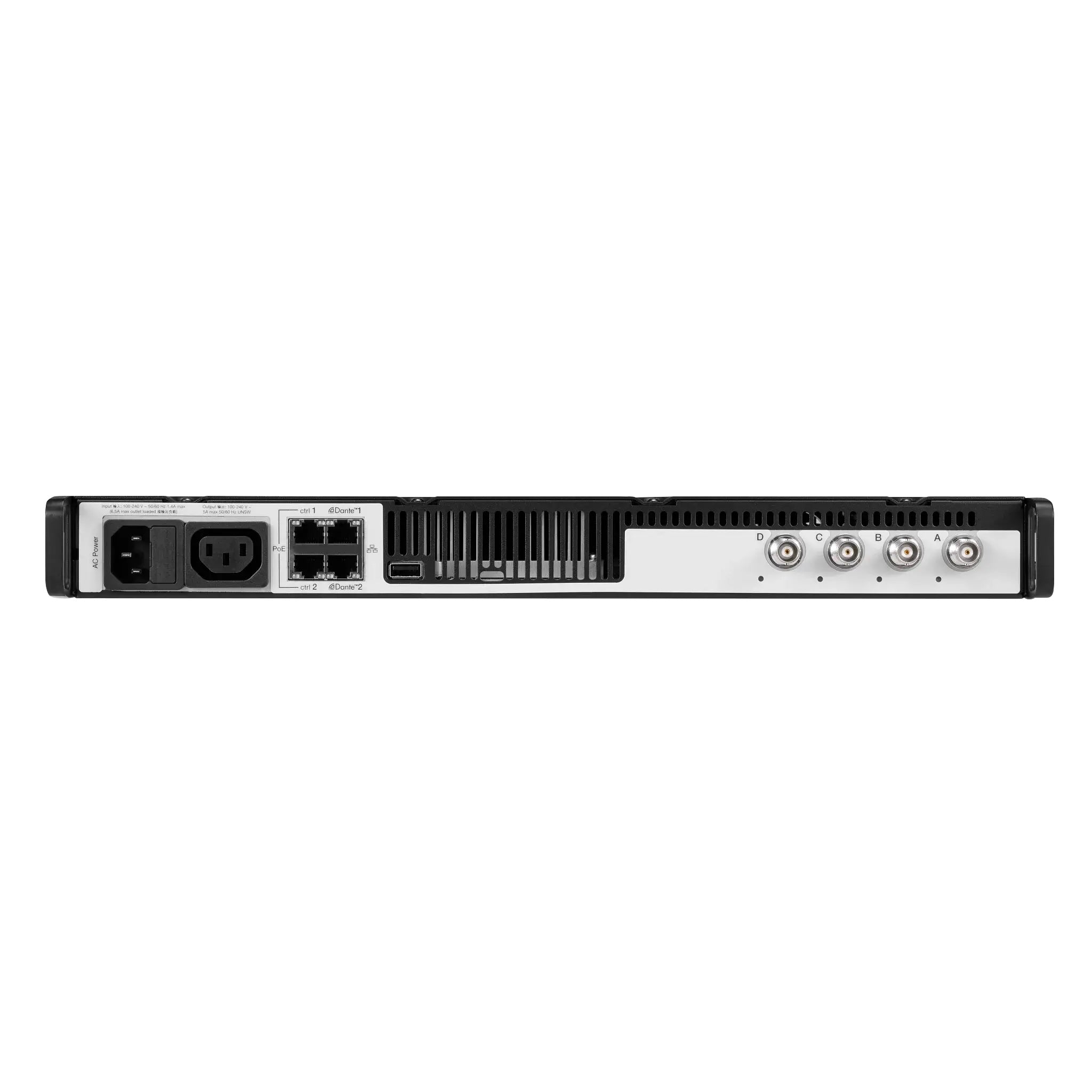

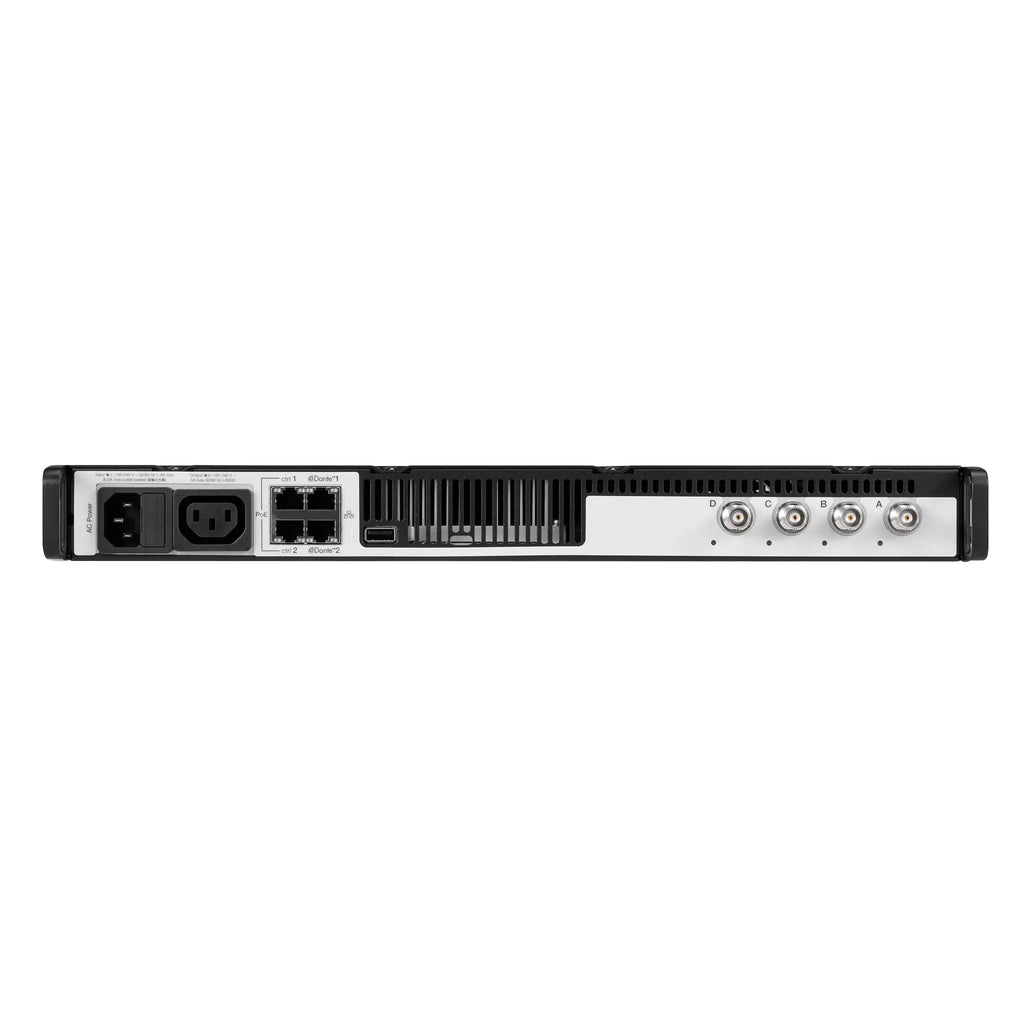

• 4 x Ethernet ports for network control and Dante/AES67 digital output options
• 4 x coaxial RF antenna input connectors support multiple frequency bands
• Networked control with Shure Wireless Workbench for RF monitoring & management

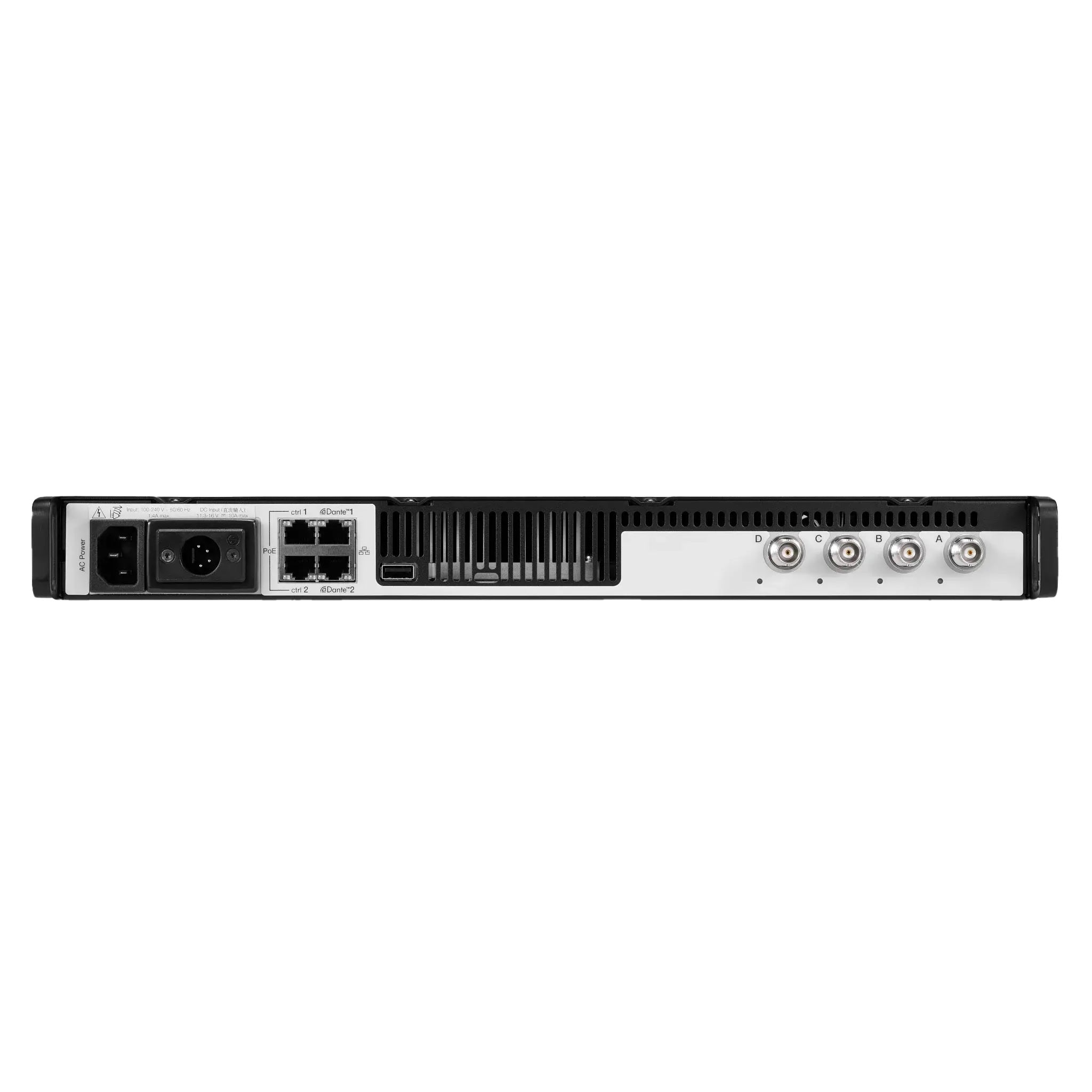

• DC module version available to support redundant power
* ANX4 receiver does not ship preconfigured with active wireless channels. Channel licenses are sold separately and required for operation.
** System features are dependent upon activated transmission mode: Axient Digital or ULX-D (ANX4 does not support both systems at one time).
*** Except for the ULX-D 902 MHz band
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
FCC CONSUMER ALERT (U.S.)
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones.
