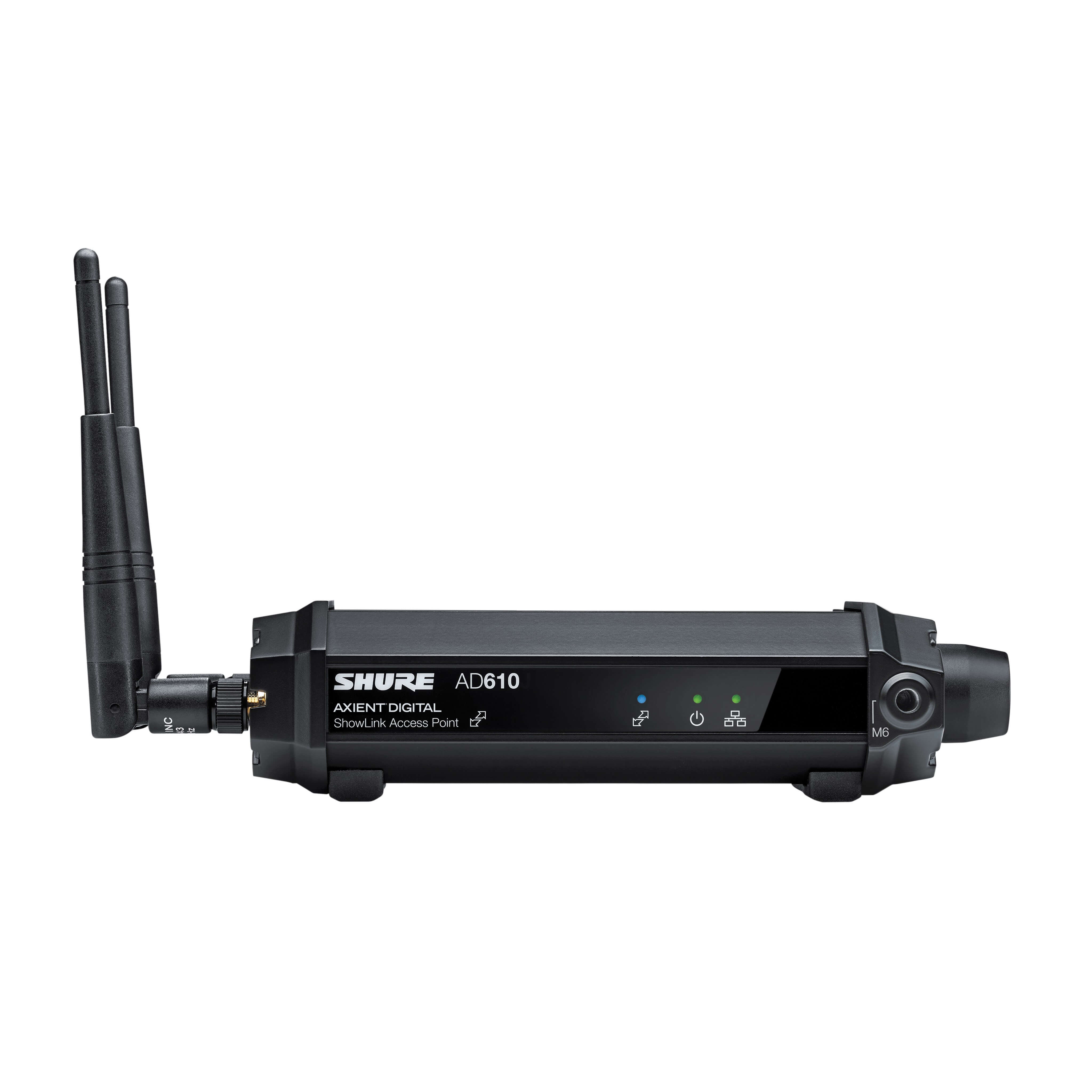

The Shure AD610 ShowLink access point enables real-time remote control of all ShowLink-enabled Axient transmitters, including both ADX and AXT series models. The access point allows comprehensive management of transmitter parameters from the receiver or Wireless Workbench using 2.4 GHz (IEEE 802.15.4) wireless communication. All parameter changes occur without interruption to the performer.

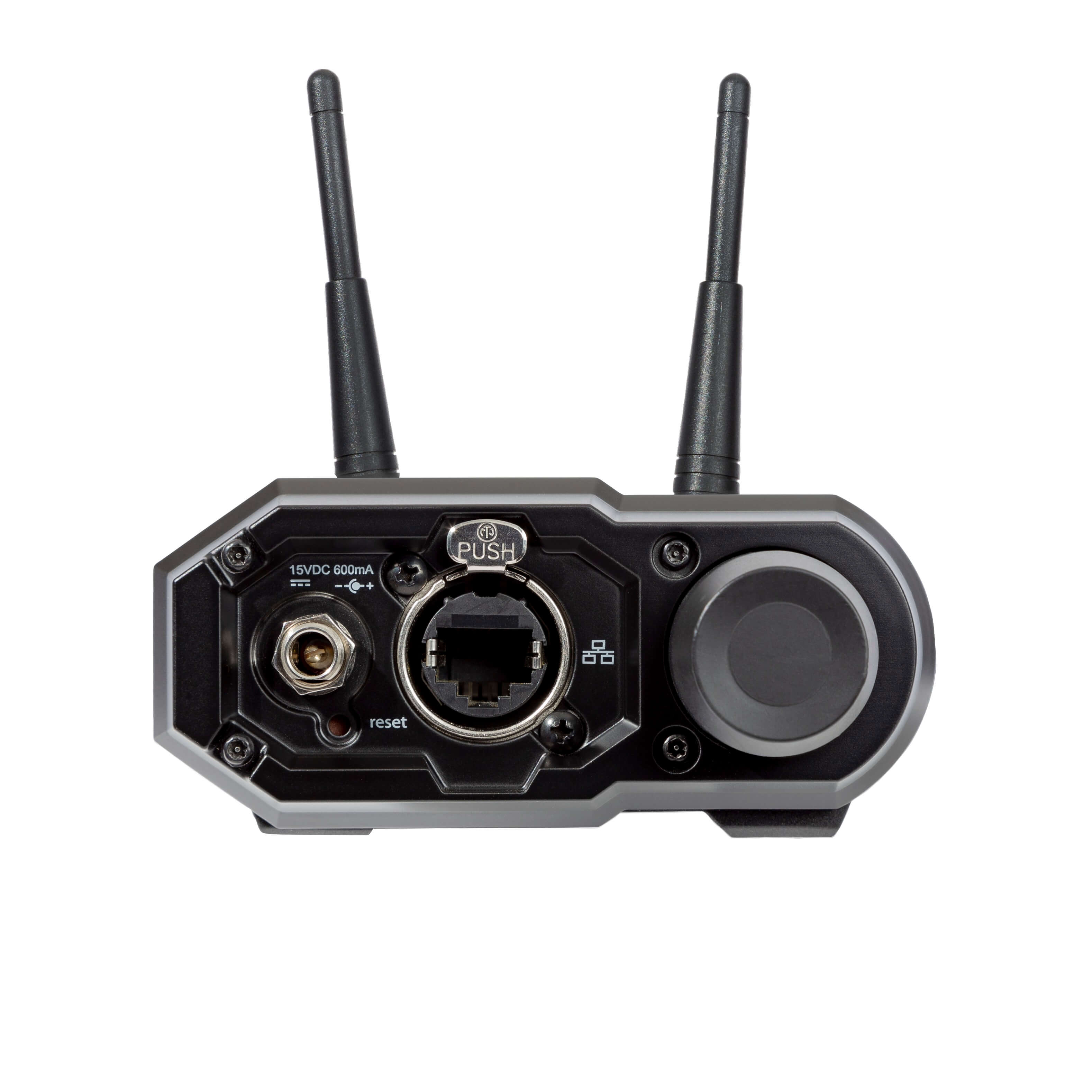

Multiple access points can extend the operational range or increase the number of transmitters supported on the ShowLink network. The access point features true diversity antenna inputs along with mounting points for ¼"-20 and M6 x 1.0 thread.
Features
• Wireless network connectivity between all linked transmitters and access points
• Enables real-time wireless remote control of up to 24 transmitters per access point
• ShowLink offers ability to adjust gain, change frequencies, mute signals, and more
• True Diversity antenna maintains a robust link in the 2.4GHz frequency range
• Automatic channel selection scans the 2.4GHz range for the best channel
• Automatic frequency agility moves the network to the best available channel
• High power option for extended range, accessible via Wireless Workbench
• Compatible with Axient Digital ADX series and Axient analog systems
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
FCC CONSUMER ALERT (U.S.)
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones.
