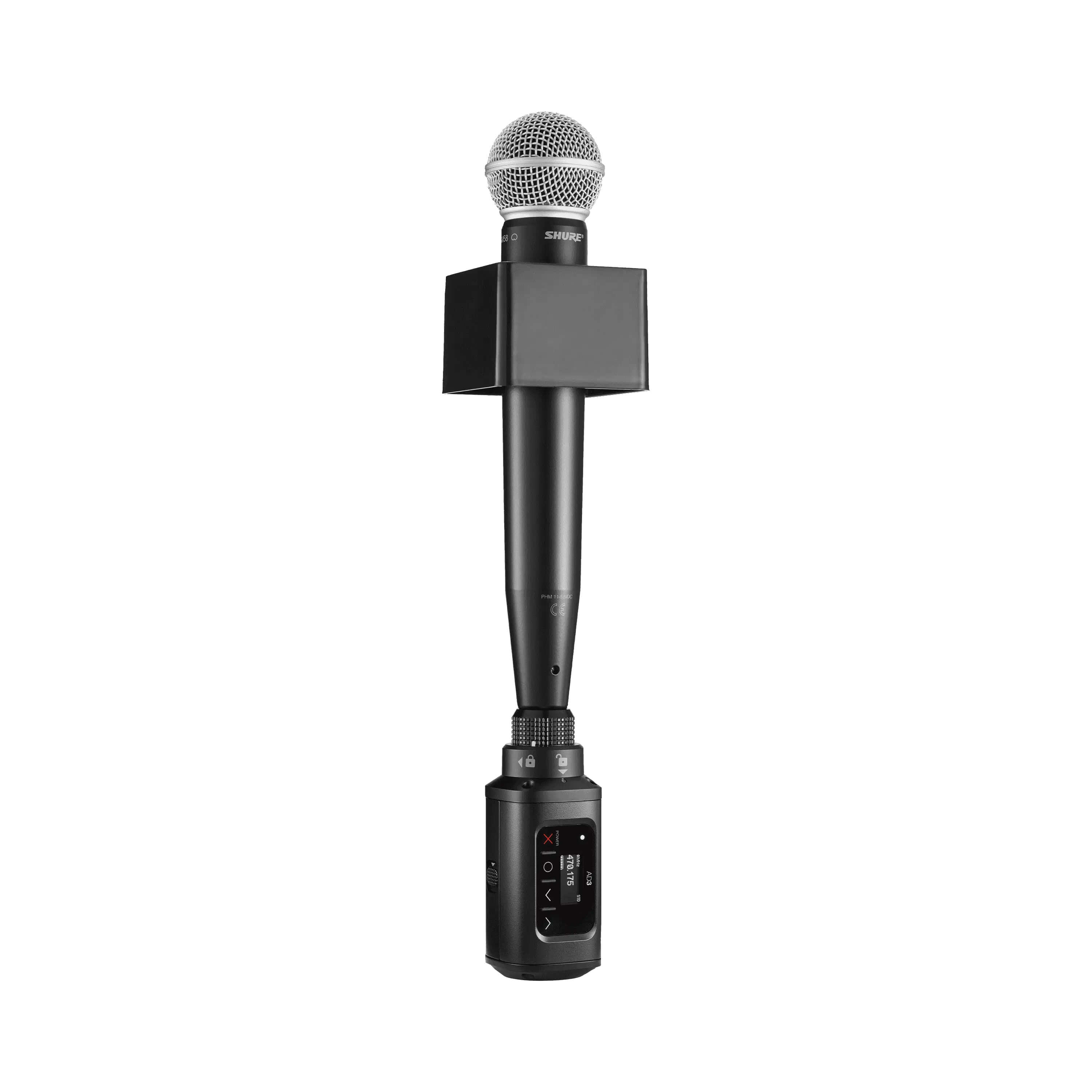

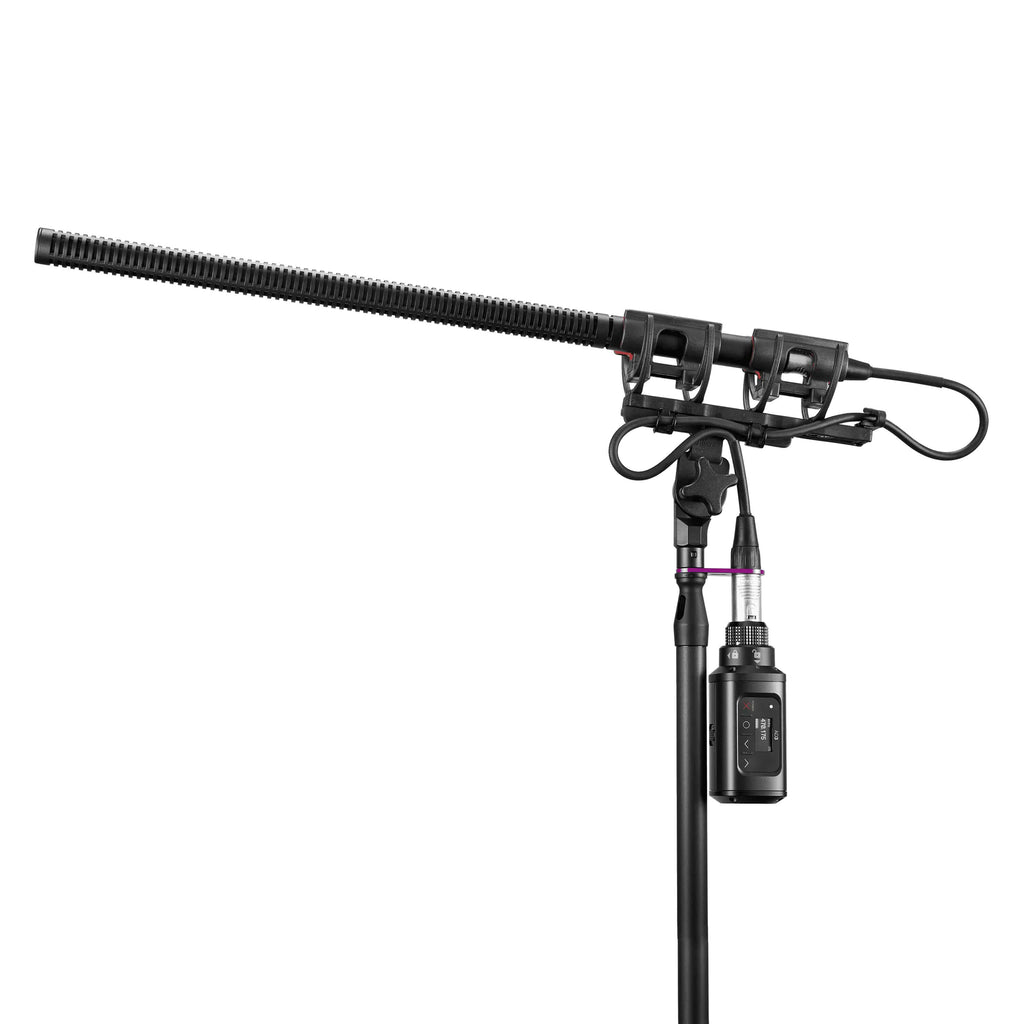

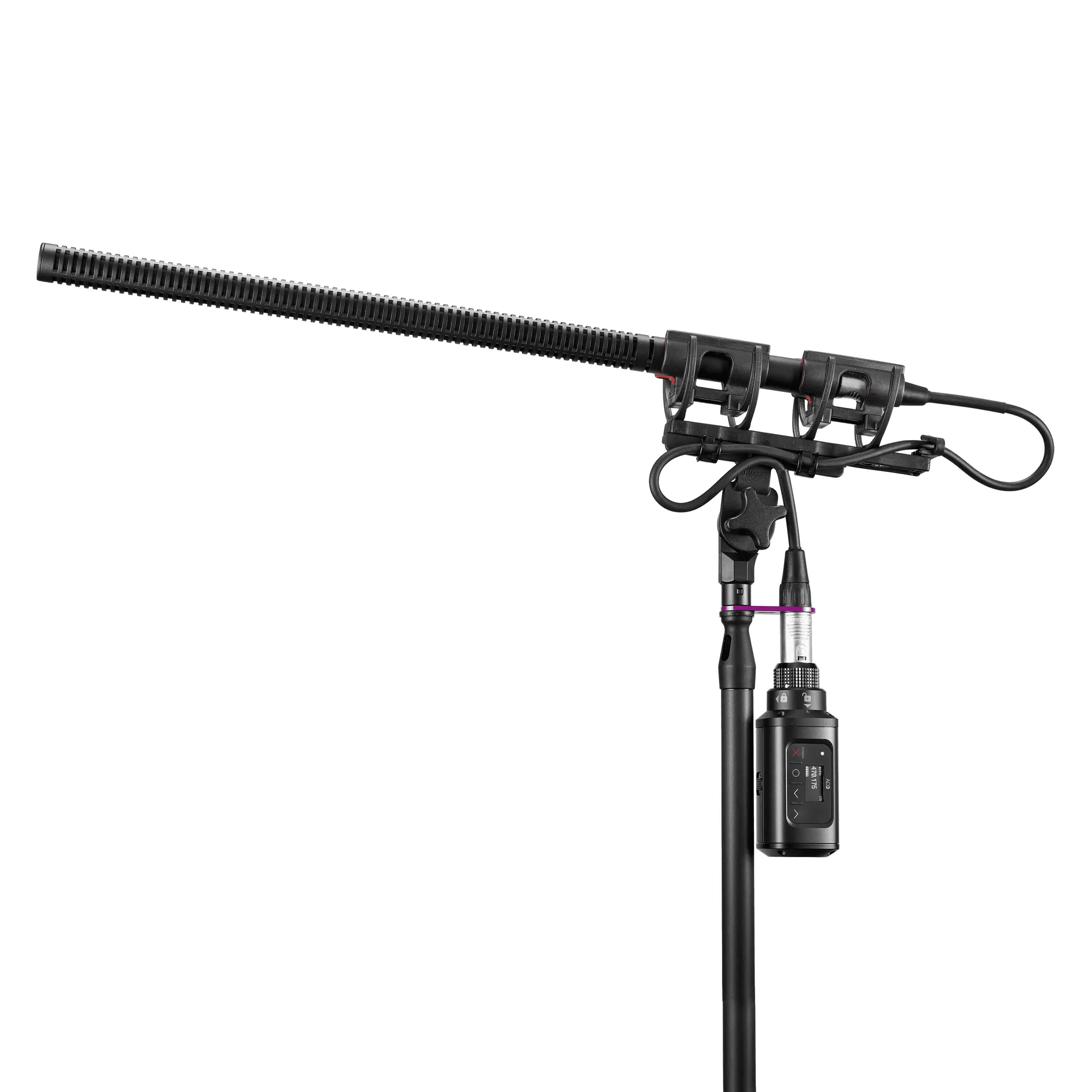

The Shure AD3 Axient Digital Wireless plug-on transmitter transforms any microphone into an advanced, portable Axient Digital AD Series wireless microphone, delivering impeccable audio quality and RF performance, wide-tuning, and encryption features. Compatible with Axient Digital AD4D and AD4Q receivers in Standard or High Density modes, AD3 plug-on microphone transmitter features a custom, fast, and secure XLR connector design, support for both AA and Shure SB900-series rechargeable battery options, and simple, user-friendly controls and menus. The AD3 is housed in a lightweight, rugged, metal chassis and is designed to resist sweat, moisture, and debris.
Features
• Patent-pending locking XLR connector for secure, wobble-free connection

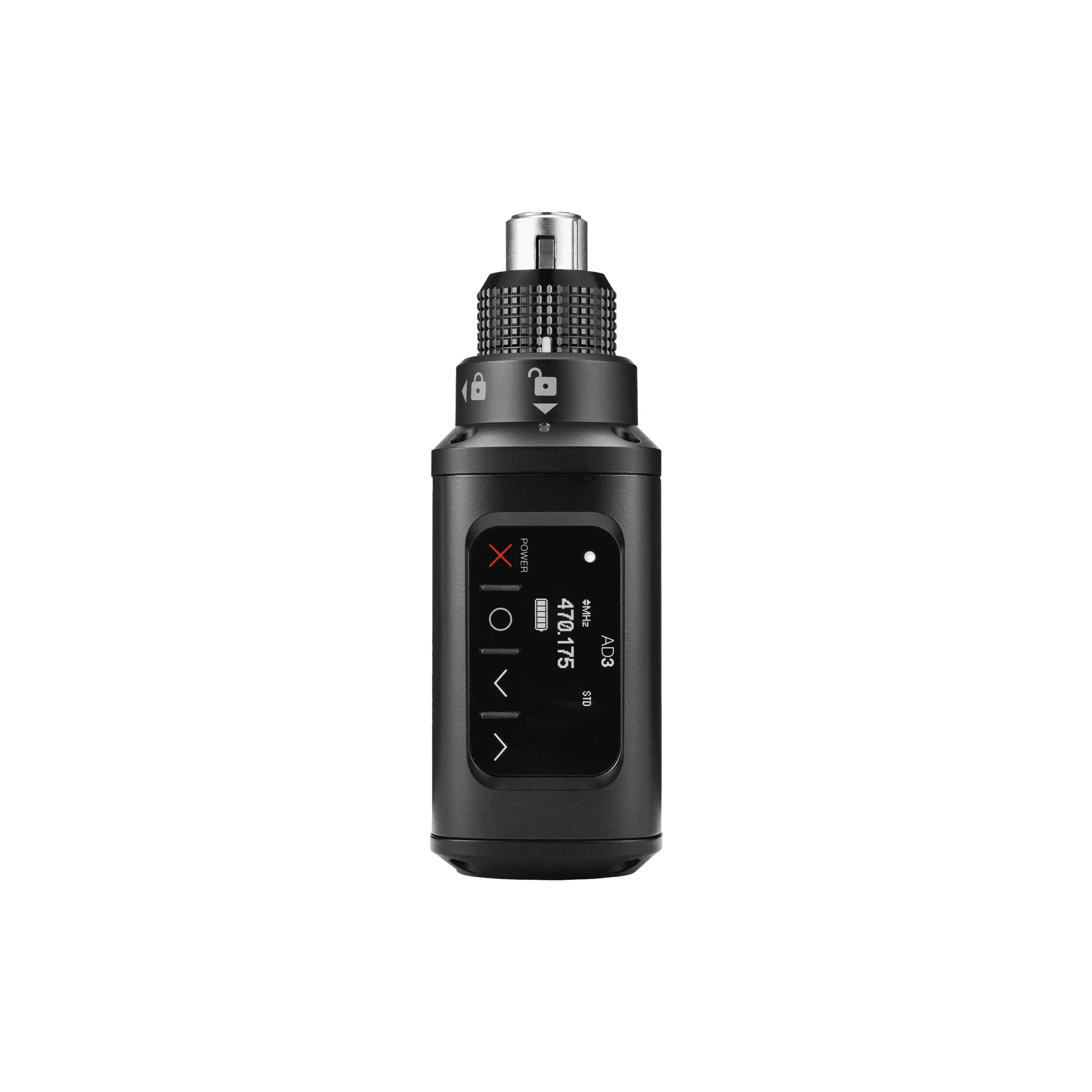

• OLED display with easy-to-navigate menu and controls
• Rugged metal construction that is resistant to dust and moisture
• Automatic input staging optimizes gain setting
• AES 256-bit encryption-enabled for secure transmission
• 300 feet (100 meter) line-of-sight operating range
• Selectable modulation modes optimize performance for spectral efficiency
- Standard – Optimal coverage, low latency
- High density – Dramatic increase in max system channel count
• Switchable power levels (2/10/35 mW, region dependent)

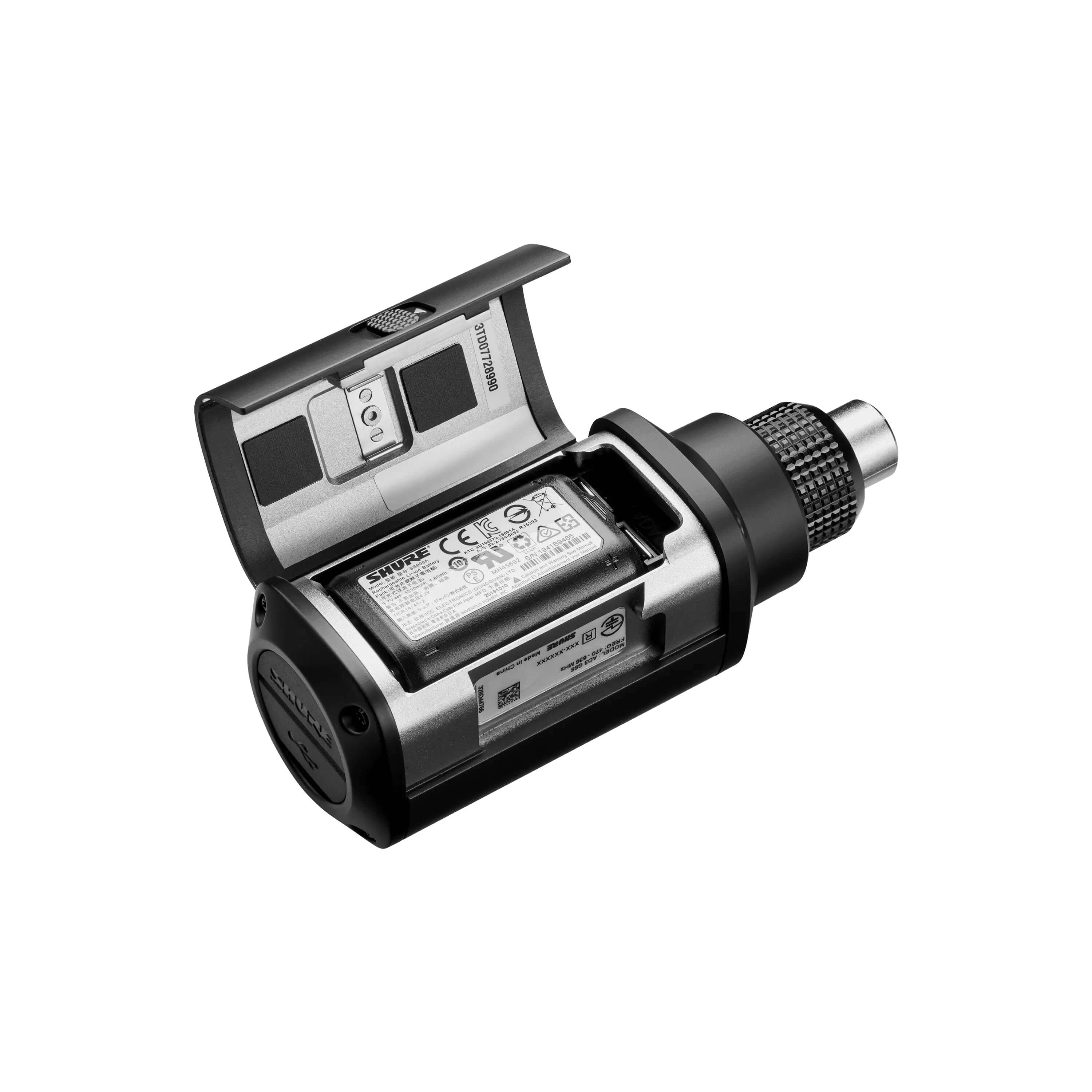

• Optional SB900B Li-ion rechargeable battery provides up to 8 hours of use
• External power and charging option over USB-C port
• Switchable phantom power (off, +12V, +48V)

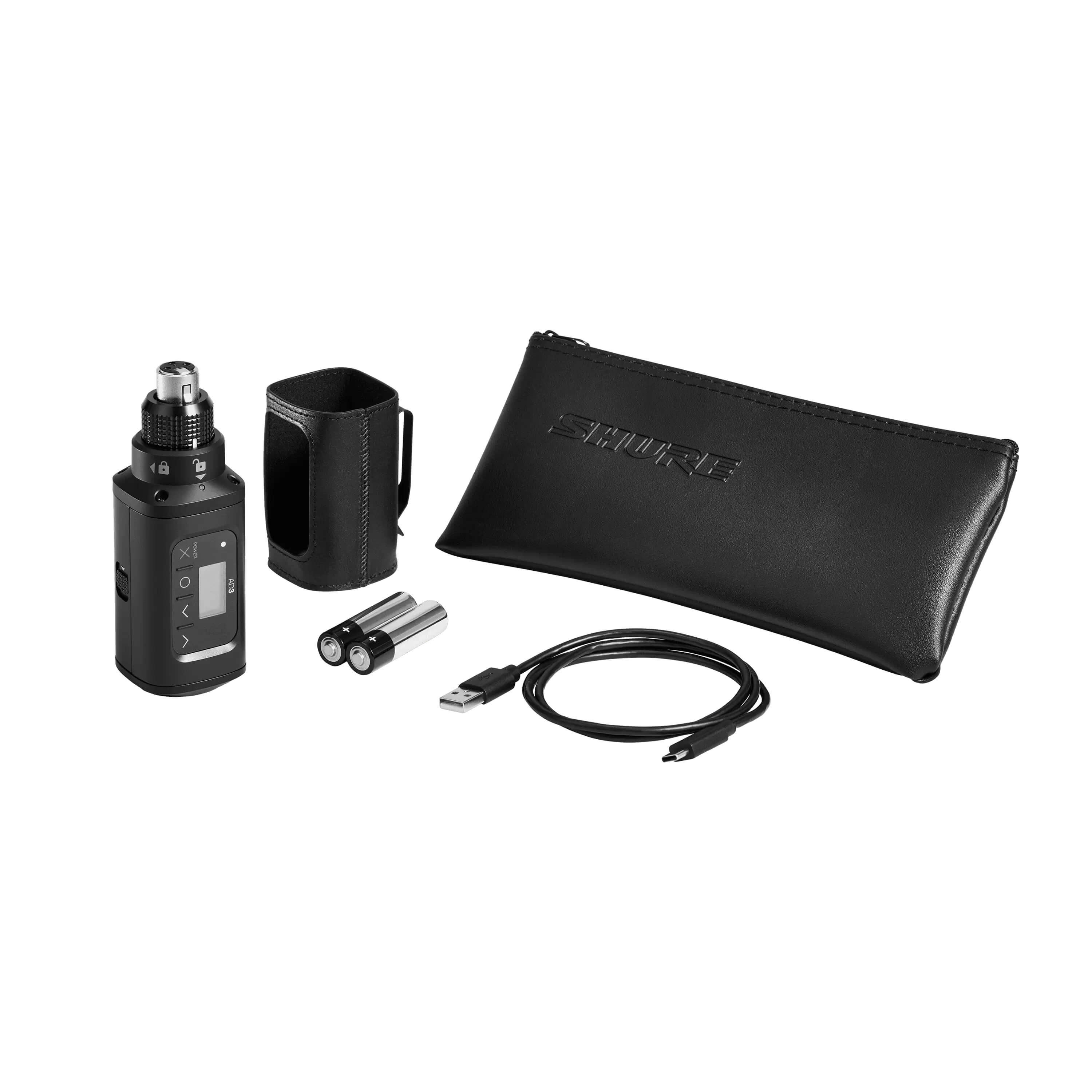

Includes

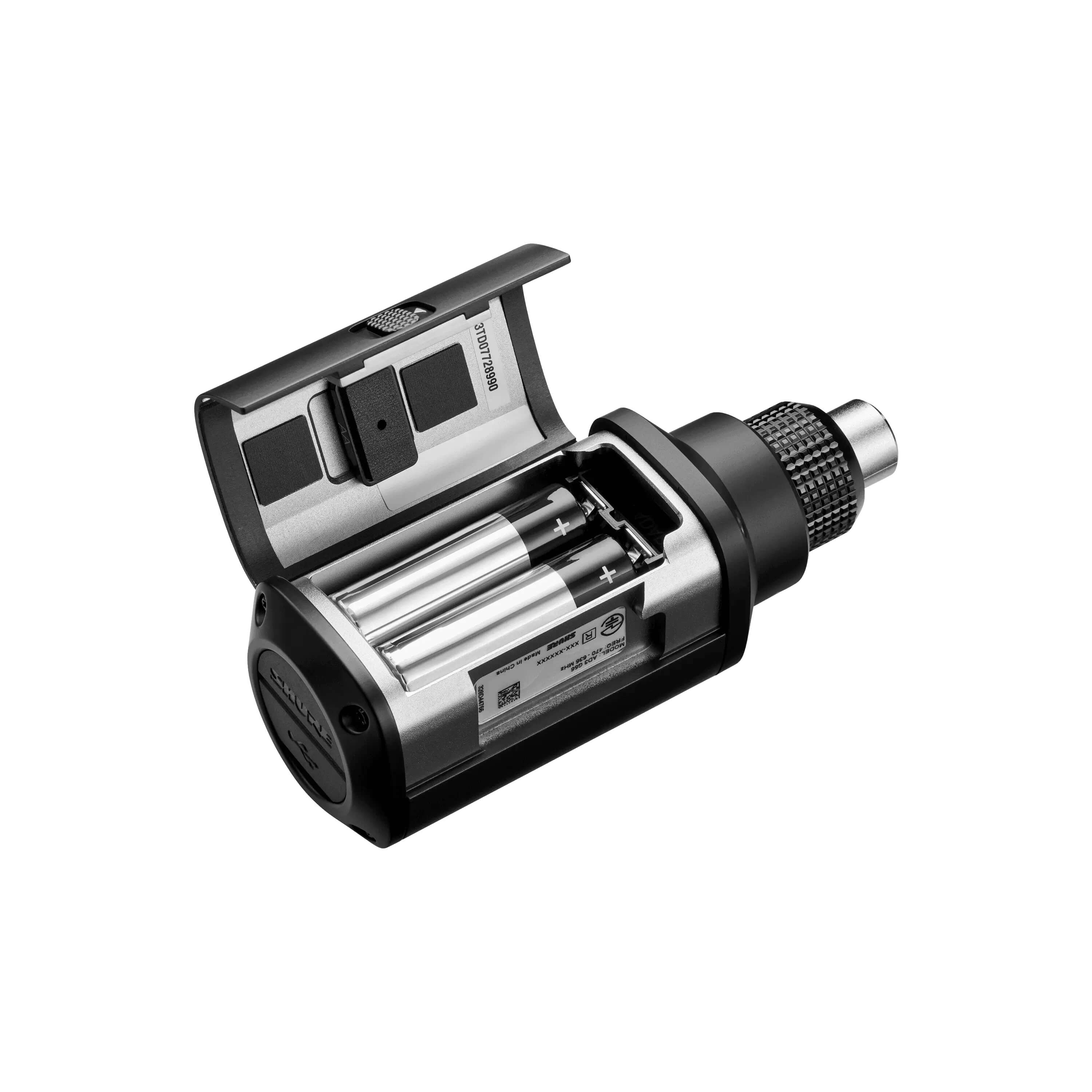

• 2 x AA alkaline batteries
• USB-A to USB-C cable

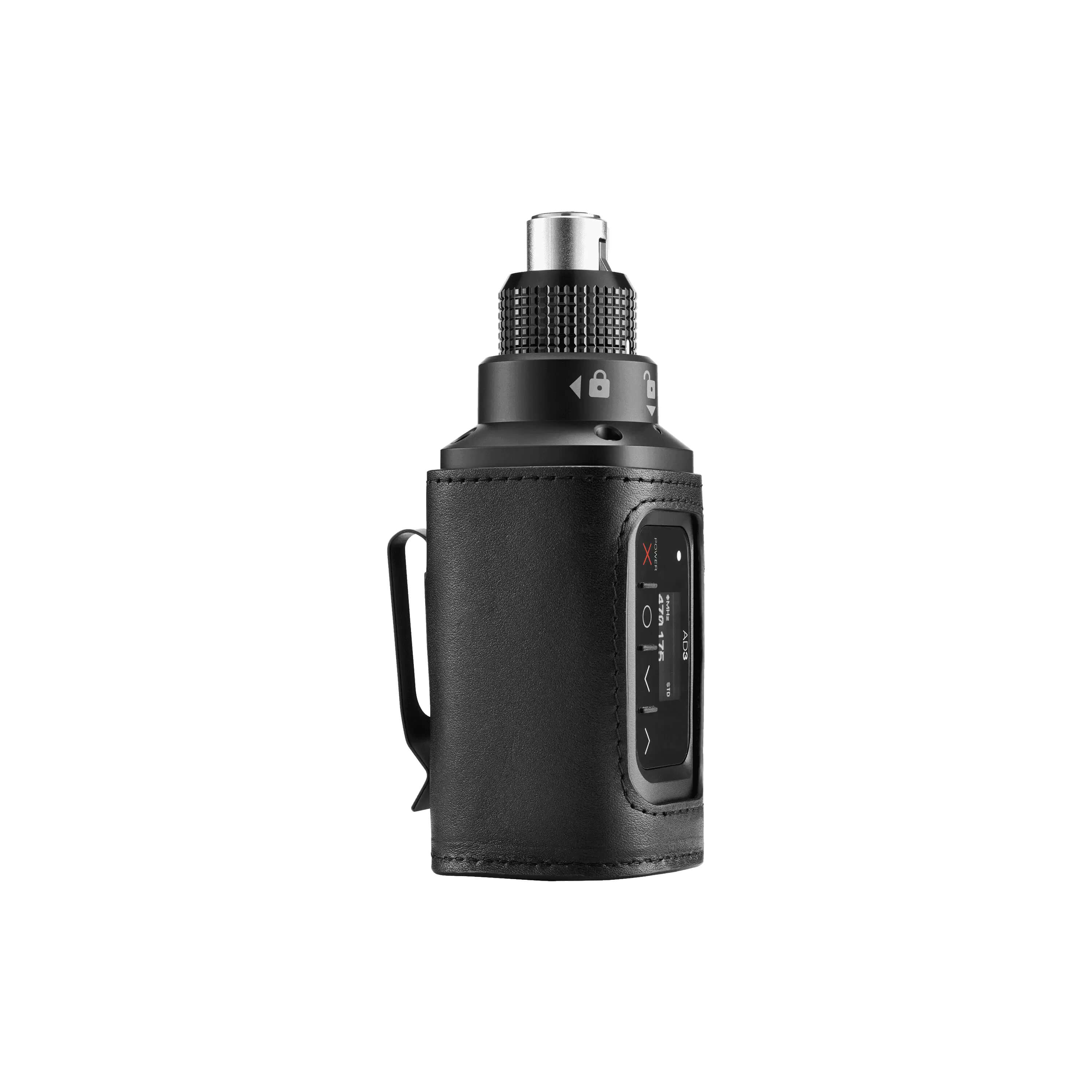

• Belt clip/pouch
• Zippered bag for storage
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
FCC CONSUMER ALERT (U.S.)
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones.
