The Future of Wireless is Here
Sennheiser EW-DX delivers a professional digital UHF system that scales from 2 to hundreds of channels. Multiple hardware and software options create networkable solutions for nearly any environment, while equidistant channel spacing, auto scan, and Bluetooth sync automatically coordinate and set frequencies with the push of a button. Monitor your devices from a distance with tools like Sennheiser Control Cockpit, Wireless Systems Manager, and the Smart Assist app.

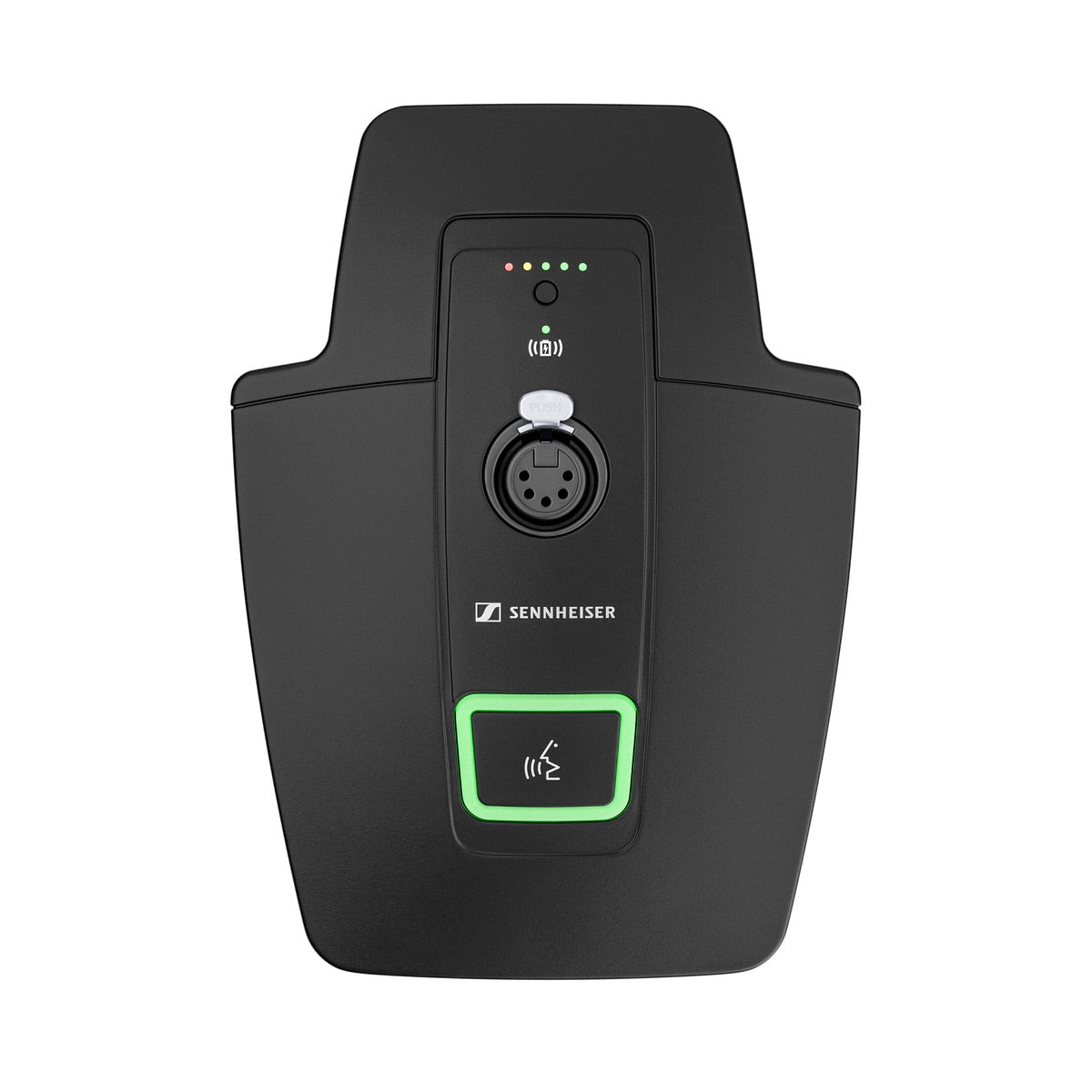

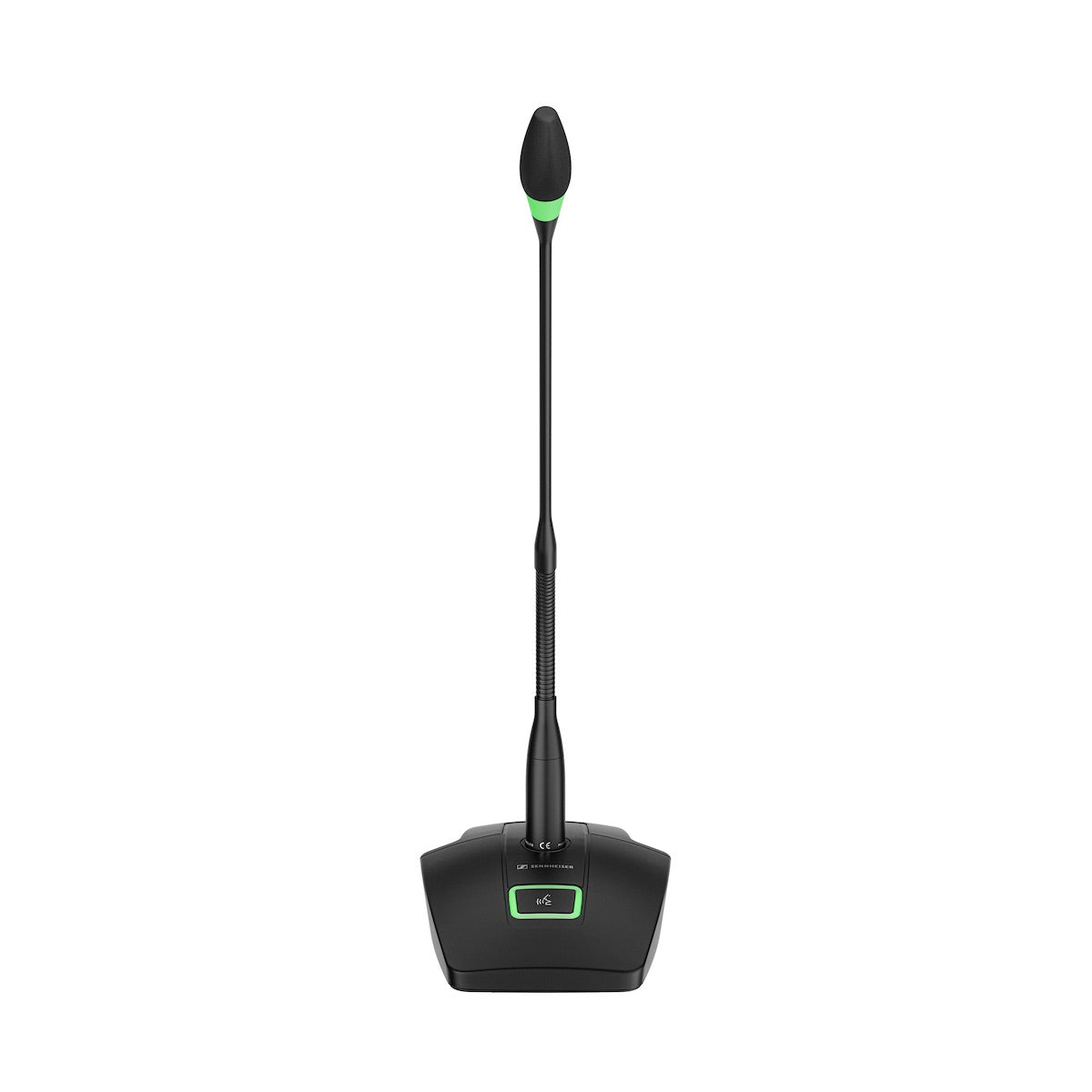

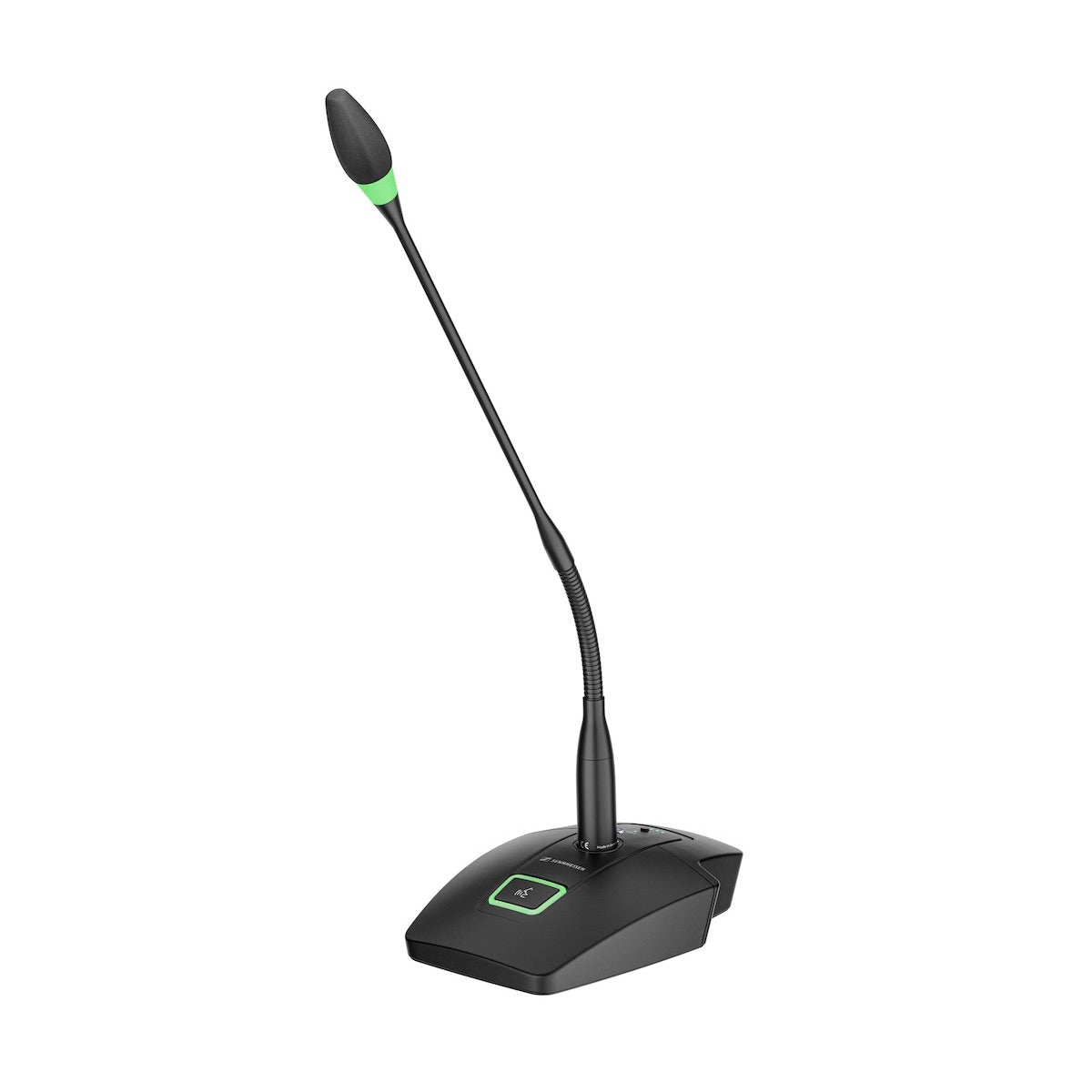

The Sennheiser EW-DX TS 5-PIN is a digital wireless tablestand transmitter with a 5-pin XLR connector for use with Evolution Wireless Digital receivers. Microphone not included.
Features
• 134 dB input dynamic range with Sennheiser Performance Audio Codec (SePAC)
• 10mW fixed RF power for up to 100 m/328 ft of range
• Charging contacts for in-device charging with CHG 70N charger (sold separately)
• Persistent E-Ink display for always-on information
• Up to 12 hours of run time with rechargeable LiIon battery BA 70 (sold separately)
• Programmable mute switch - RF mute, AF mute or disabled
• Digital audio trim
• Test tone generator
• Switchable LED configuration (On/Off)
• Switchable low cut (Off, 30 ,60, 80, 100, 120 Hz)
• Instrument input with cable emulation to simulate cable characteristics
• Versatile charging options optionally available
• Compatible with a wide range of Sennheiser lavalier and headset microphones
• Metal housing
• Worldwide usage (specific frequencies subject to local RF regulations)
Note: All components of the Evolution Wireless Digital Family are designed to interoperate. Please be aware of restrictions of features linked to the respective series, such as switching bandwidth and use of Link Density mode.
CONSUMER ALERT: Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC’s wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones.
