Description

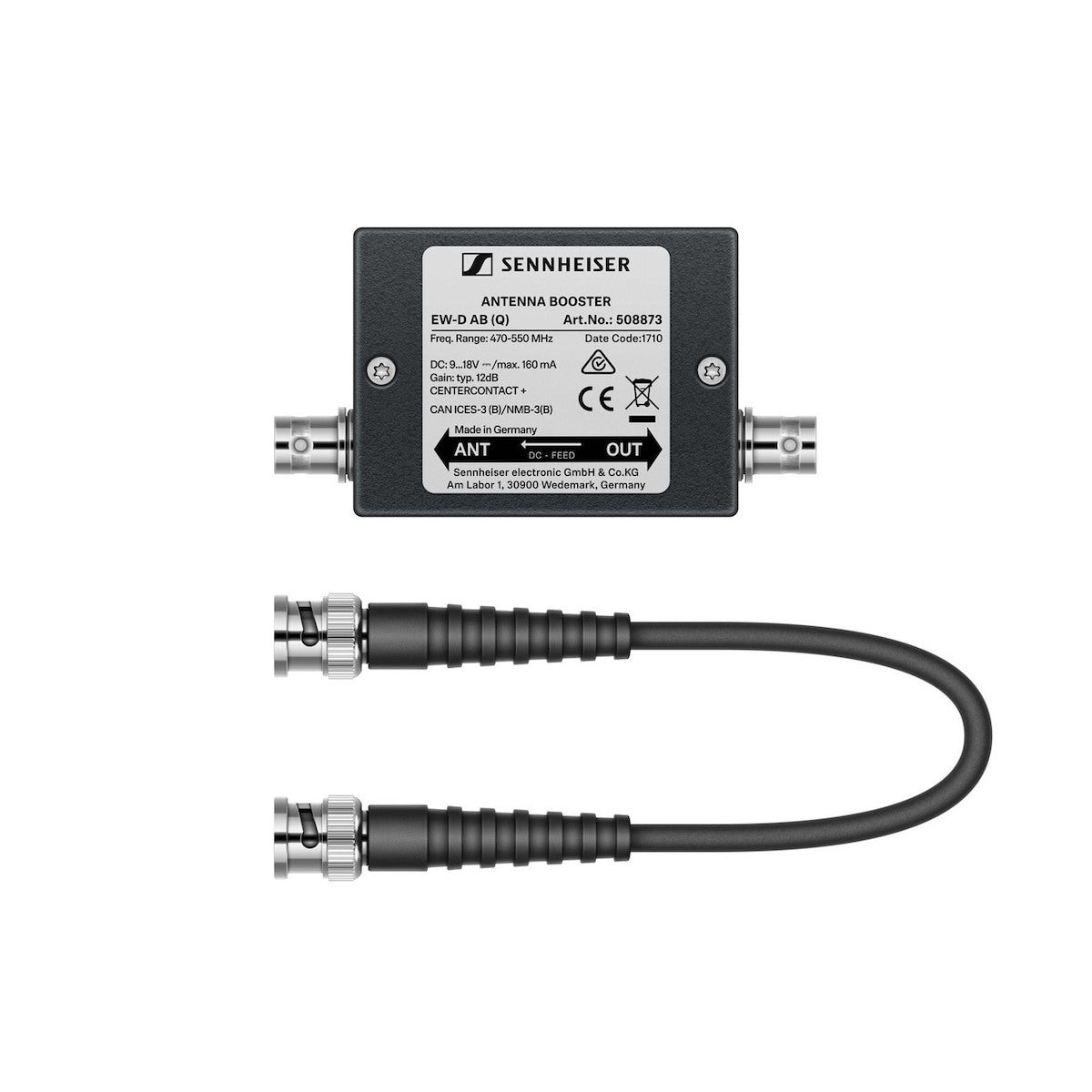

The Sennheiser EW-D AB is an in-line antenna booster for Evolution Digital Wireless systems.
Power supply (DC coupled)
DC 12 V (DC 9 – 18 V) / max. 160 mA @ 12 V, center contact +
IIP3
> 25 dBm
Max. RF input power
+10 dBm
Gain
Typically 12 dB
Impedance
50 Ω
Connections
2x BNC female, DC power supply from OUT to ANT
CONSUMER ALERT: Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC’s wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones.
