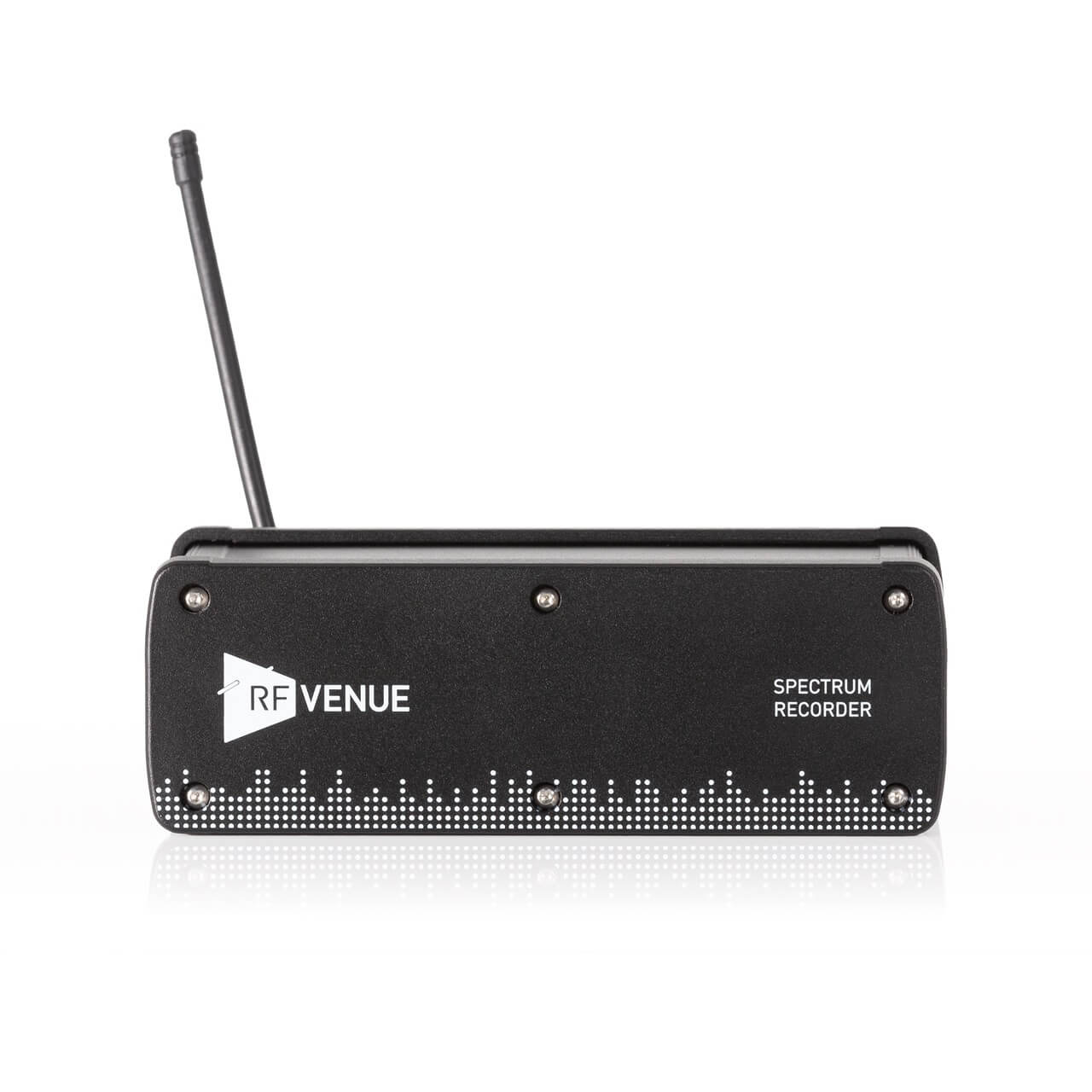

The RF Venue Spectrum Recorder is a compact, standalone data recording device designed to assist in monitoring and optimizing wireless microphone and in-ear monitor systems. Spectrum Recorder continuously captures RF spectrum activity in the 400-700 MHz band, and writes CSV-formatted scan files to its internal storage drive. These time stamped scan files can be retrieved directly with a USB thumb drive or accessed remotely over a local network connection.
Connect Spectrum Recorder directly to your wireless microphone antenna system or use the included whip antenna to capture spectrum for a site survey. PoE capable and battery ready, the Spectrum Recorder is small and lightweight enough to easily ship to a remote location or deploy across many rooms on a fixed installation.

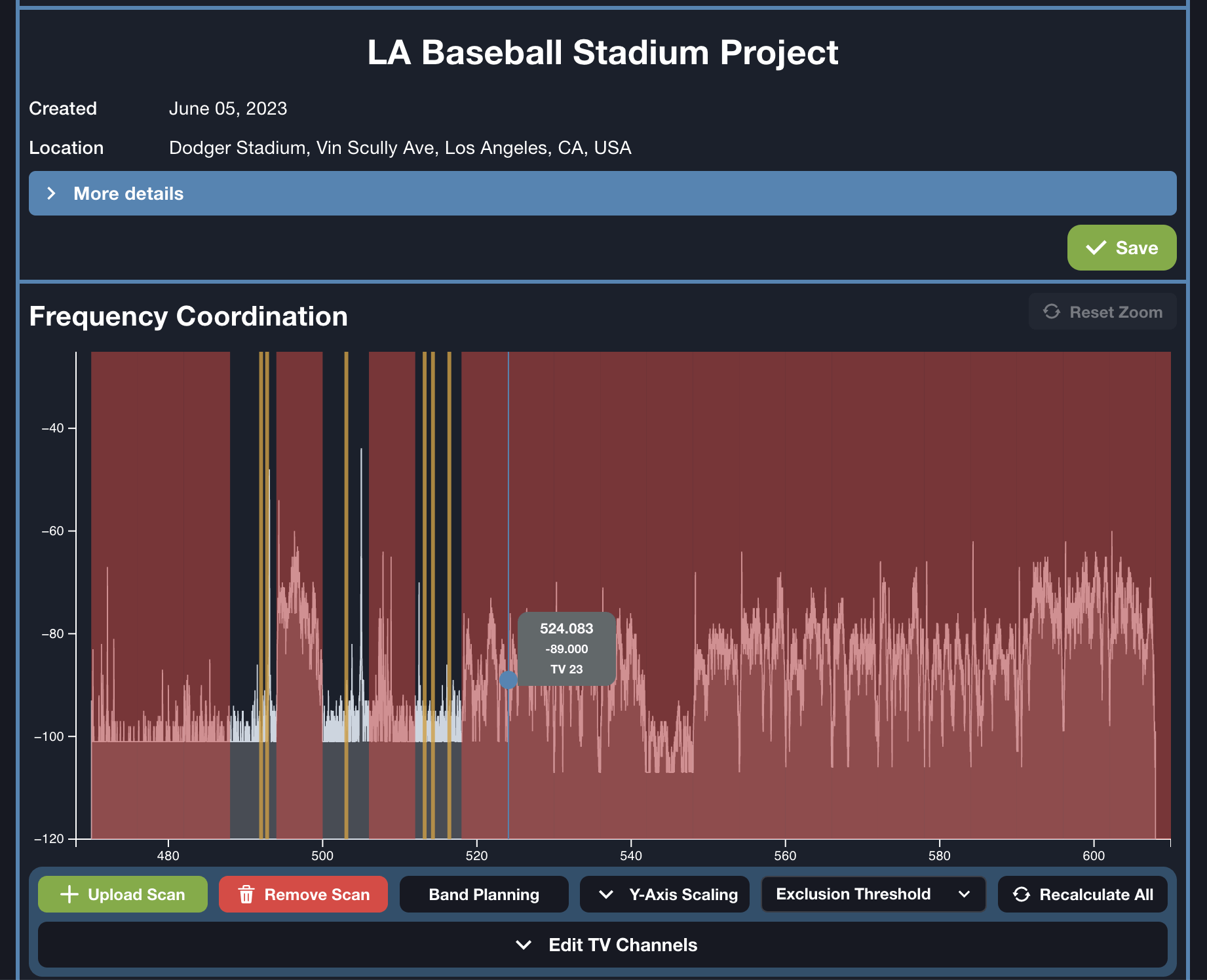

Spectrum Recorder's data can be uploaded to RF Venue's free web-based Wireless System Builder tool for system design and frequency coordination, or imported natively to third party software like Shure® Wireless Workbench and Audio-Technica® Wireless Manager. No software installation is needed, and no cloud subscriptions are required.
Automatic Spectrum Recording
Instant and continuous capture of spectrum activity from 400-700 MHz. No spectrum analyzer or complex test equipment required.
24 Hour Scan Data Capture
See the entire scope of spectrum activity over 24 hours. Max Hold and Average scan views are captured and calculated automatically.
Active Frequencies Scan
Separate fixed transmitters such as DTV stations from surprise interference sources. The Active Scan compiles hard to detect frequencies to help protect your wireless system from interference hits.

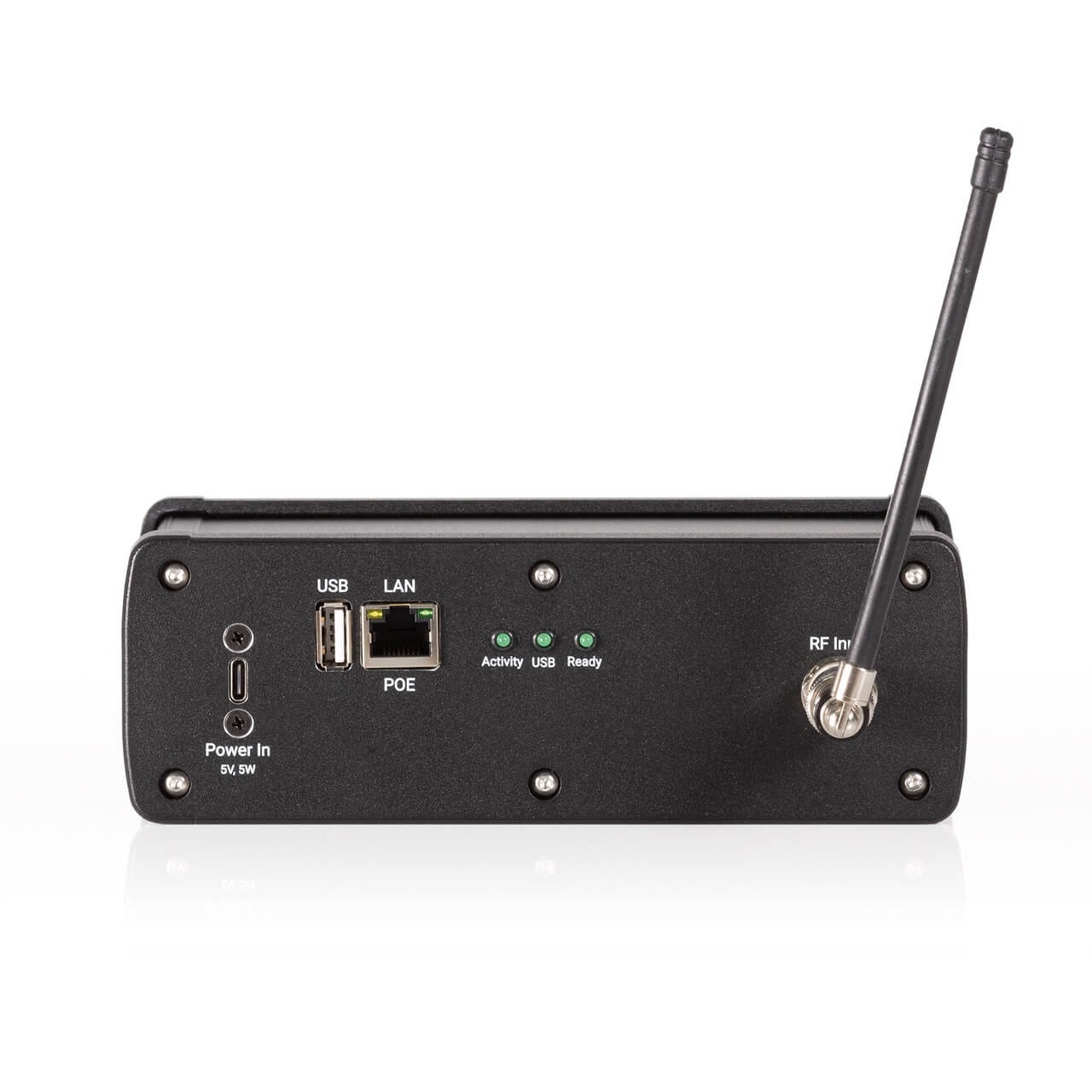

Power Over Ethernet (PoE) Capable
Deploy Spectrum Recorder where needed with just an ethernet connection. Easily cover multiple rooms, buildings, or studios with a network of Spectrum Recorders.
Battery Power Ready
No power? No problem. Spectrum Recorder's 5V USB-C DC power input can accommodate common portable power banks used for charging mobile devices. A 10,000 mAh battery can power Spectrum Recorder for several days.
No Software Installed, No Subscription Fees
Spectrum Recorder does not connect to any outside services or require any onsite software installation. IT professionals can use the Spectrum Recorder MAC address to assign a fixed IP address if desired.
Specifications
• 400-700 MHz scan range
• 25 KHz resolution bandwidth
• 50 Ohm BNC Input
• -130 to +10 dBm Dynamic Range
• -120 dBm Average Noise Floor
• 5V USB-C Power Connector
