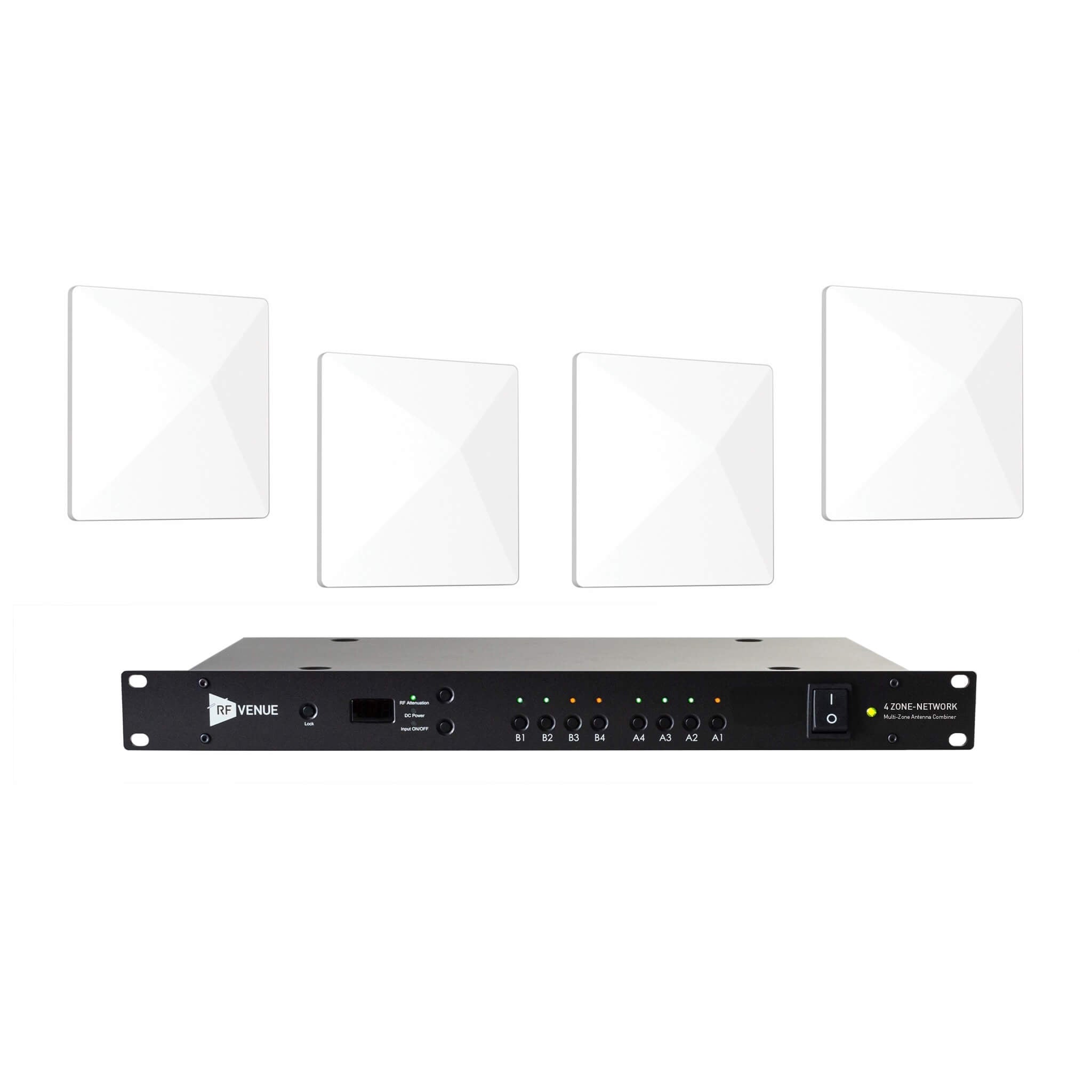

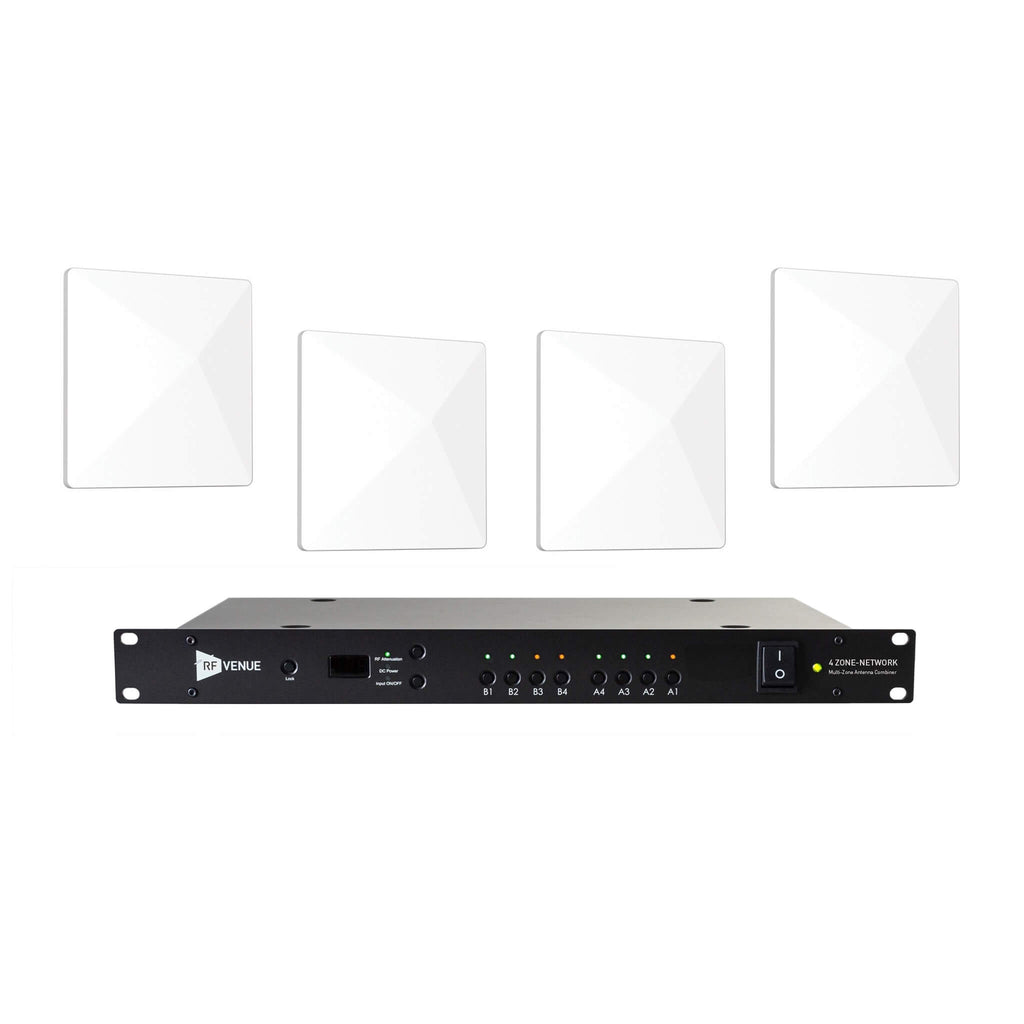

The RF Venue 4ZONE-NET-DARC bundles a 4ZONE Network Multi-Zone Antenna Combiner with four Diversity Architectural Antennas. The addition of LAN-based control gives you the ability to remotely check zone status, toggle zones on/off individually, and adjust settings without needing physical access to the unit. Ideal for pre-event checks and dynamic management during performances. Save and recall presets for frequently used configurations.
The 4ZONE Network active antenna combiner takes the complexity and expense out of multi-zone wireless microphone projects. The 4ZONE Network combines up to four separate pairs of diversity antenna connections for multi-purpose rooms, indoor-outdoor configurations, or main stages with secondary breakout rooms.
The Diversity Architectural Antenna is a high performance antenna system for wireless microphones. Featuring a slim profile enclosure, the Diversity Architectural Antenna can be installed in any position on a wall or ceiling and can be painted to match any interior. Using a unique patent-pending dual-feed antenna design, both A and B diversity connections are provided, so there's no need to install two separately spaced antennas resulting in a more professional look that room designers and architects appreciate.
