These U.S. made handsets are identical to those used on coin telephones, with transducers suitable for intercom use. To prevent feedback and permit high levels, the interior of the handset is partially filled with a dense mastic material, blocking acoustic coupling between the microphone and the ear speaker. A high quality shielded coil cord is then fitted.
The HH10A (passive) consists of the handset with push-to-talk switch, equipped with a coil cord and 4-pin XLR connector, and a wall mount cradle with retaining spring-clip, as shown in the photo above.

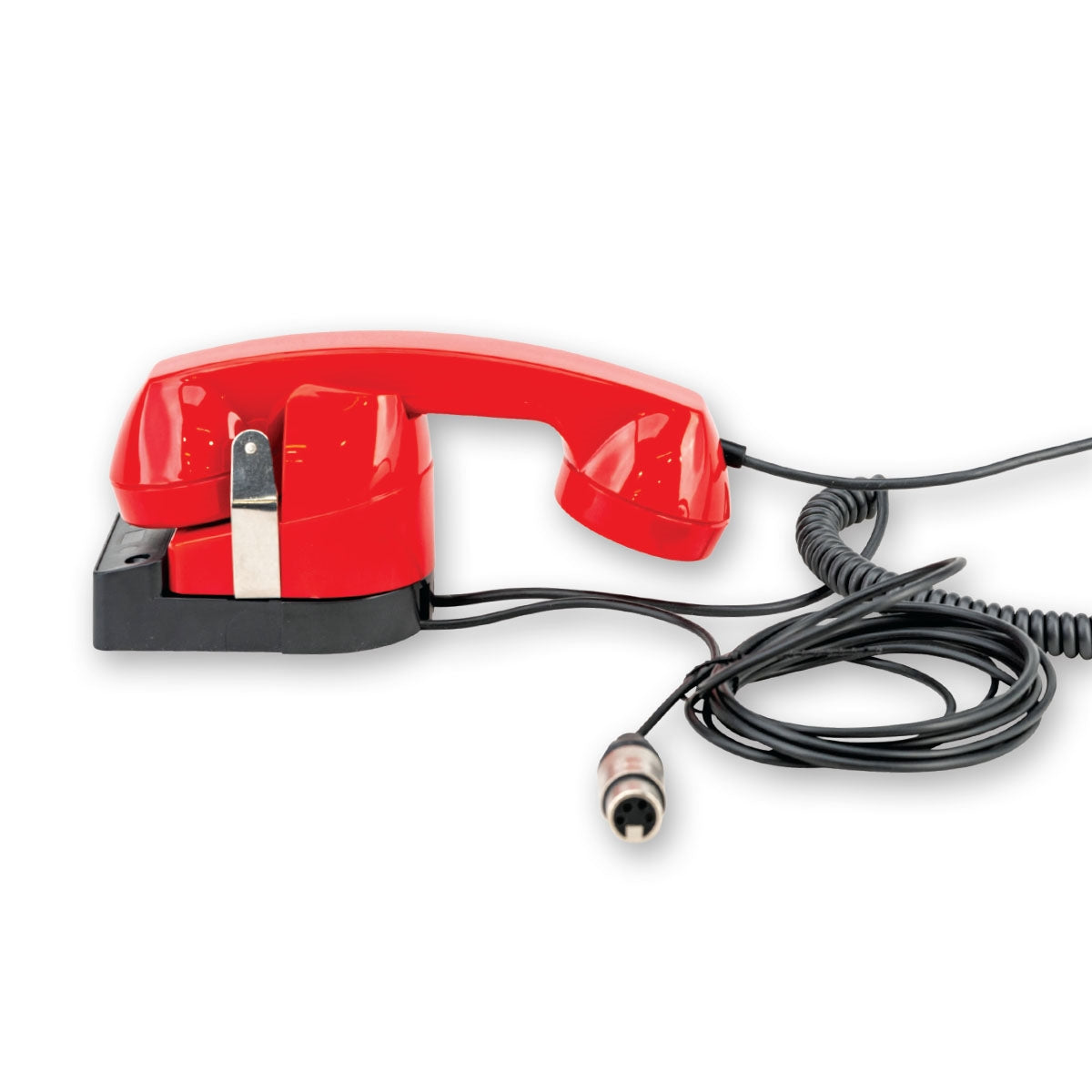

The HH10B (active) consists of the same handset, coil cord and cradle, but the coil cord is wired to a cradle which, in this model, contains a hook-switch to mute the ear speaker when the handset is “hung up”. A ten foot cable is wired to the HH10B cradle, with a 4-pin XLR connector for connection to an intercom station. We recommend the HH10B for quiet environments where the audio from the ear speaker (while the handset is in the cradle) would be a nuisance.
These handsets are molded from telephone quality Marbon Cyolac. No other handset offered for intercom use provides greater resistance to physical damage. The cradle includes a spring-clip, which prevents the handset from being accidentally, dislodged. The push-to-talk switch in the handset and the hook switch in the HH10B cradle are rated for millions of cycles.
Pro Intercom offers these high quality handsets at prices comparable to regular imported plastic handsets.
The HH10A and HH10B are compatible with Clear-Com and other lesser known headset intercom systems.
