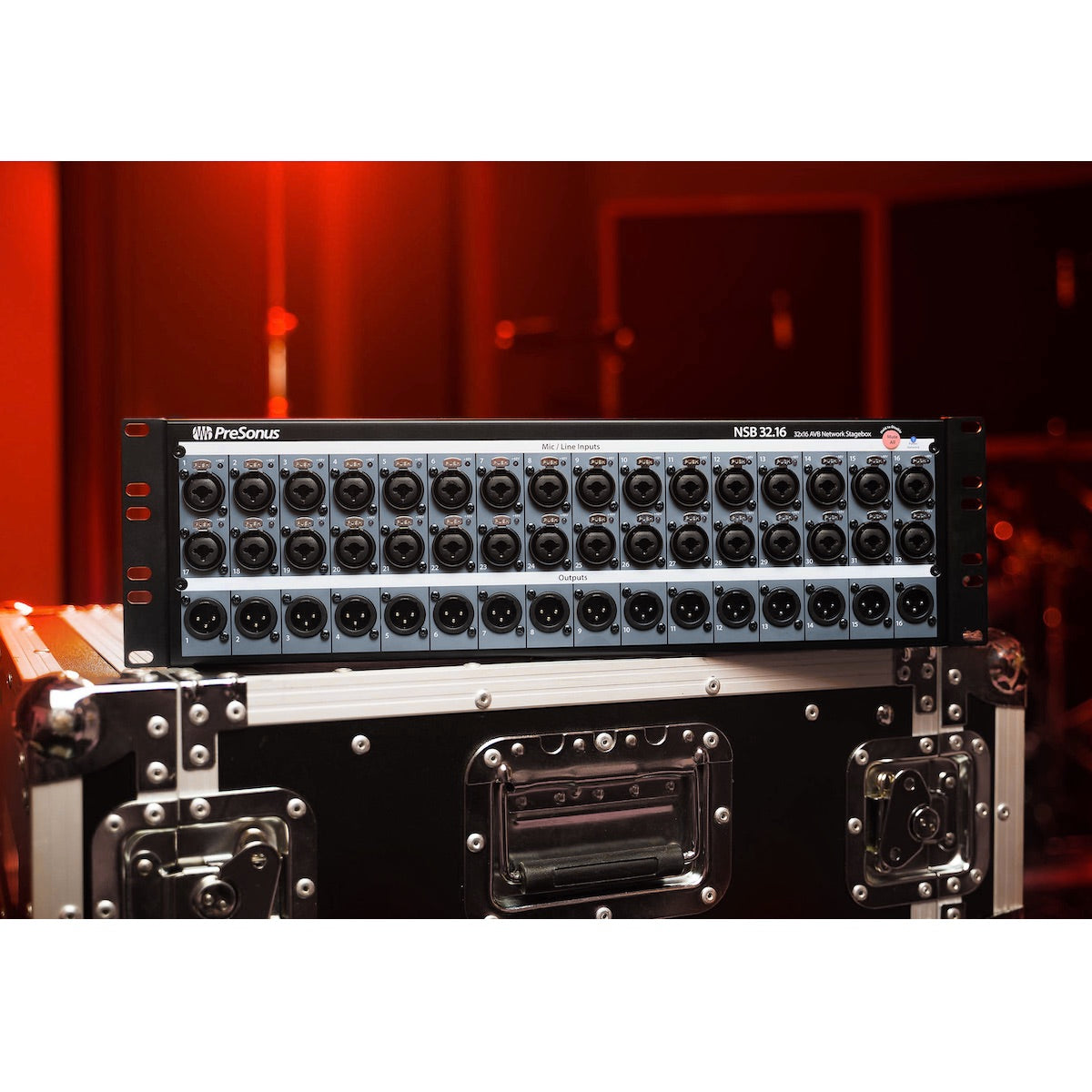

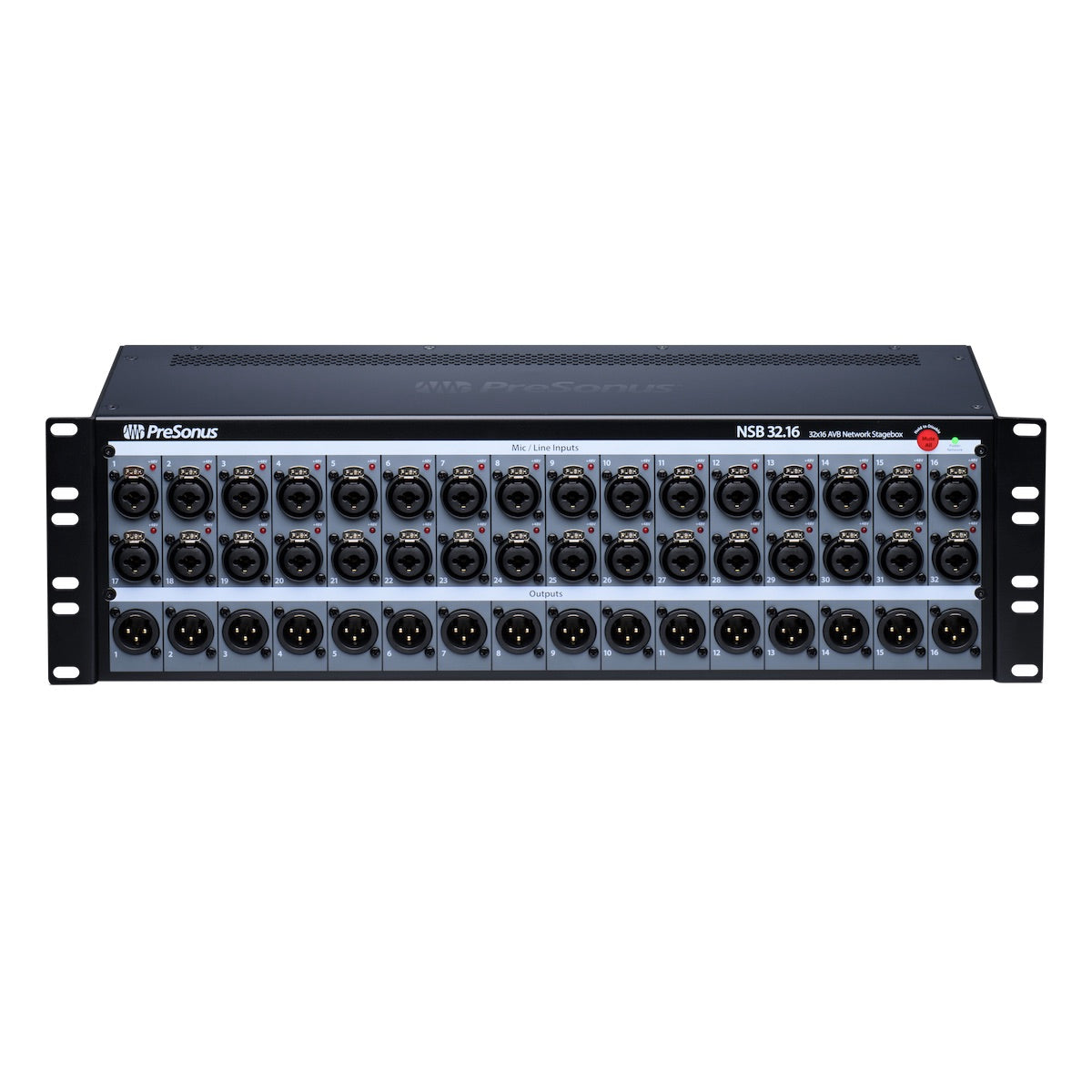

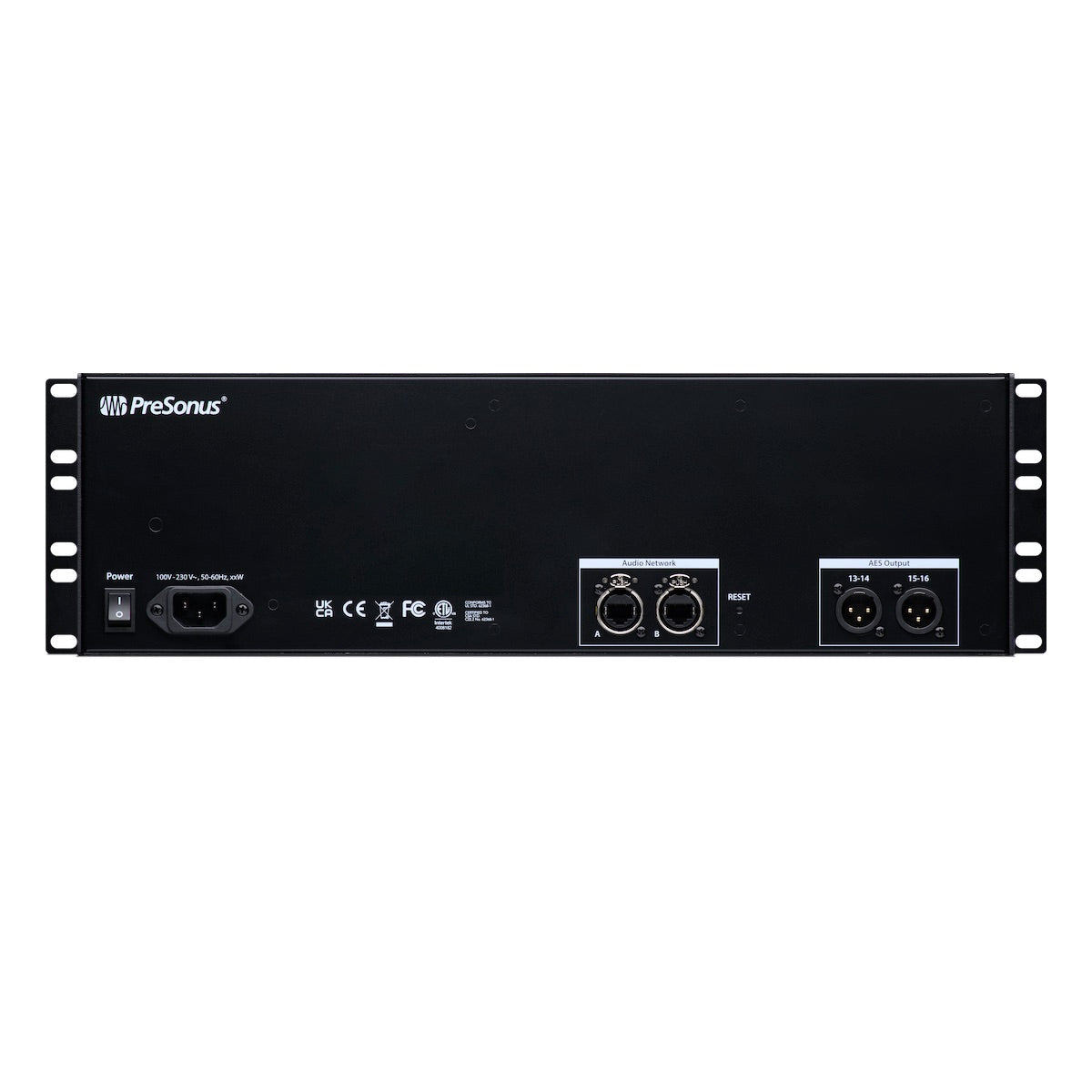

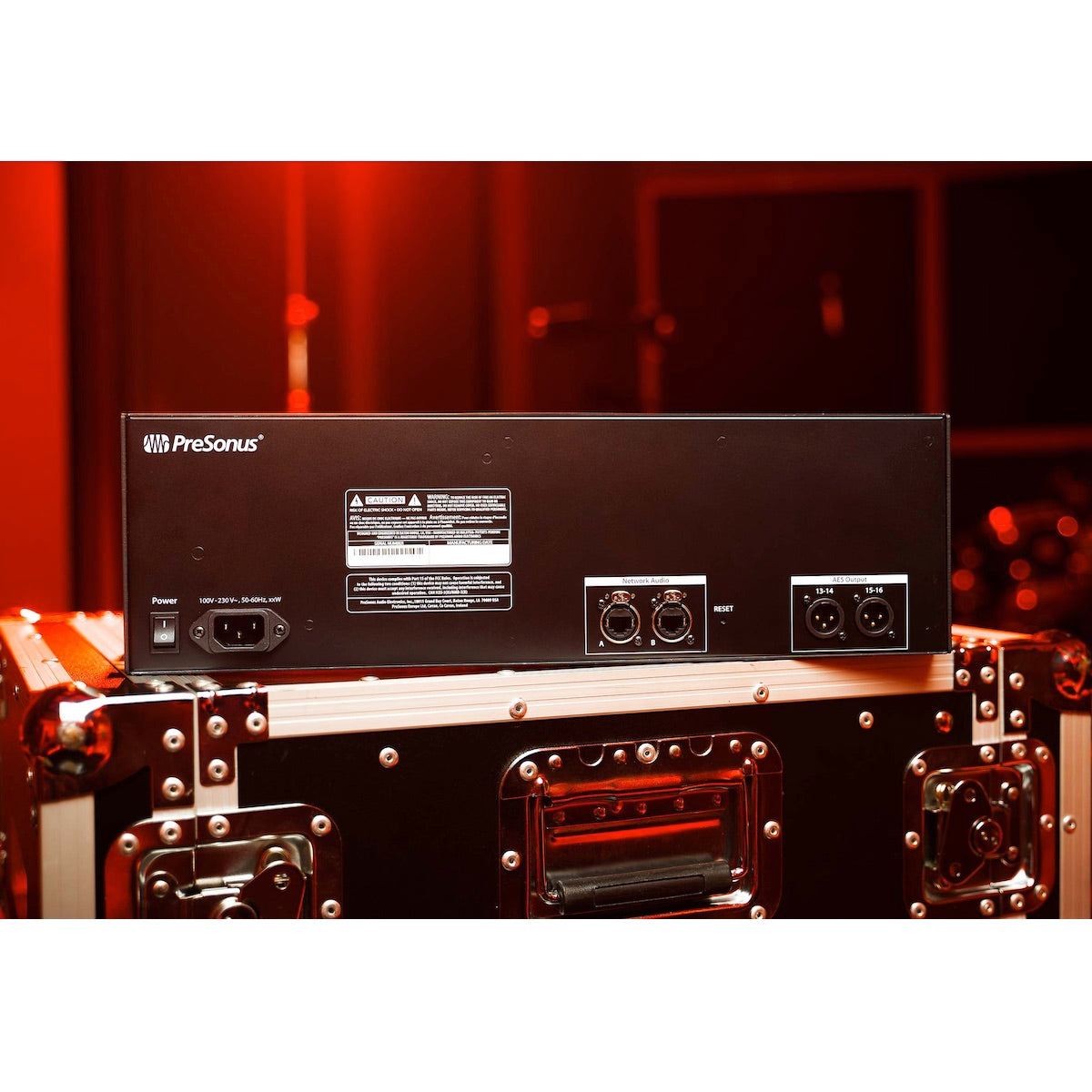

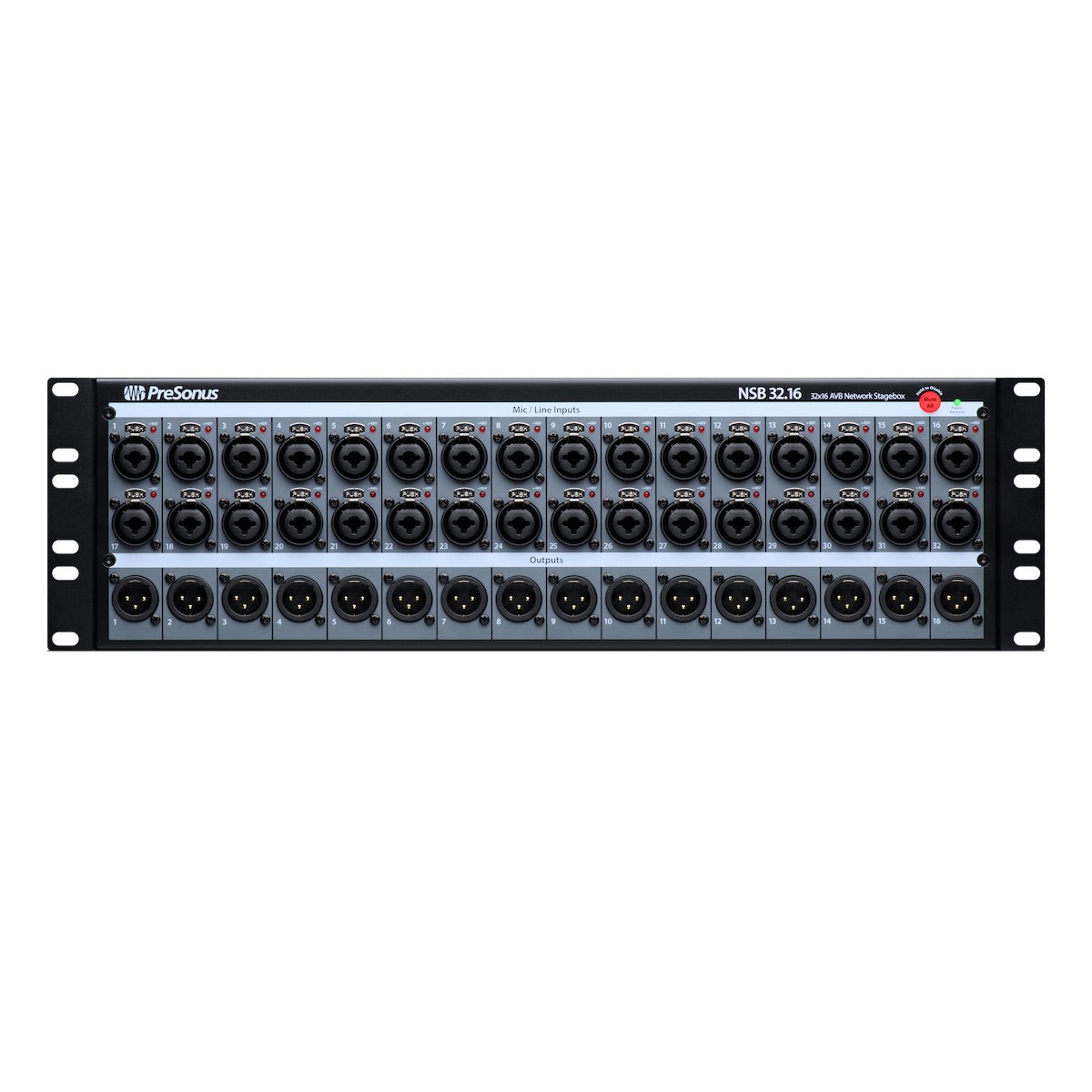

Designed to work seamlessly with PreSonus StudioLive Series III mixers, the PreSonus NSB 32.16 stage box offers 32 locking combo mic/line inputs with remote-controlled XMAX preamps that include gain compensation for shared input scenarios. All inputs can be controlled from a StudioLive Series III console and from free PreSonus UC Surface software. All sixteen outputs employ locking XLR jacks. A built-in 2-port AVB switch lets you daisy-chain multiple units. A rugged steel chassis with multi-position rack ears allows I/O to be available from the front or the rear of the rack and flushed or recessed for flexible installation. As a standard 3U 19-inch rack unit, the NSB 32.16 is compatible with most racks and universal stage pockets.
Features
• Rugged 3U 19-inch rack enclosure with multi-position rack ears
• 32 locking, mic/line inputs and 16 locking XLR line outputs
• 32 remote-controllable XMAX preamps
• Gain compensation provides independent control from multiple mixers
• 2 Stereo AES3 Digital Outputs
• 2 AVB ports with locking XLR Ethernet jacks
• 64x16 AVB (32 direct input channels + 32 gain compensated input channels)
• Mute All button
• +48V indicators
