The Pliant Technologies CXD-32CF is a network interface with Dante and AES67 that enables CrewCom users to send and receive up to 32 channels of digital audio. It significantly expands CrewCom’s input and output capabilities by allowing direct digital connectivity to industry-standard wired intercom systems—no additional hardware or adapters required.
Supporting both Dante and AES67 protocols at 48kHz, this half-rack device offers powerful routing and expansion options within a CrewNet infrastructure through EtherCon and dual LC Fiber connections. The CXD-32CF can be powered via CrewNet copper or the included 48VDC power supply (PPS-48V-02).
Designed for seamless integration with the upcoming CrewWare 2.0 release, the CXD-32CF creates a reliable bridge between CrewCom and widely used digital audio network systems across the industry.
Features
• 32 x 32 I/O Dante-Based Digital Audio I/O
• Includes an AES67 Operation Mode

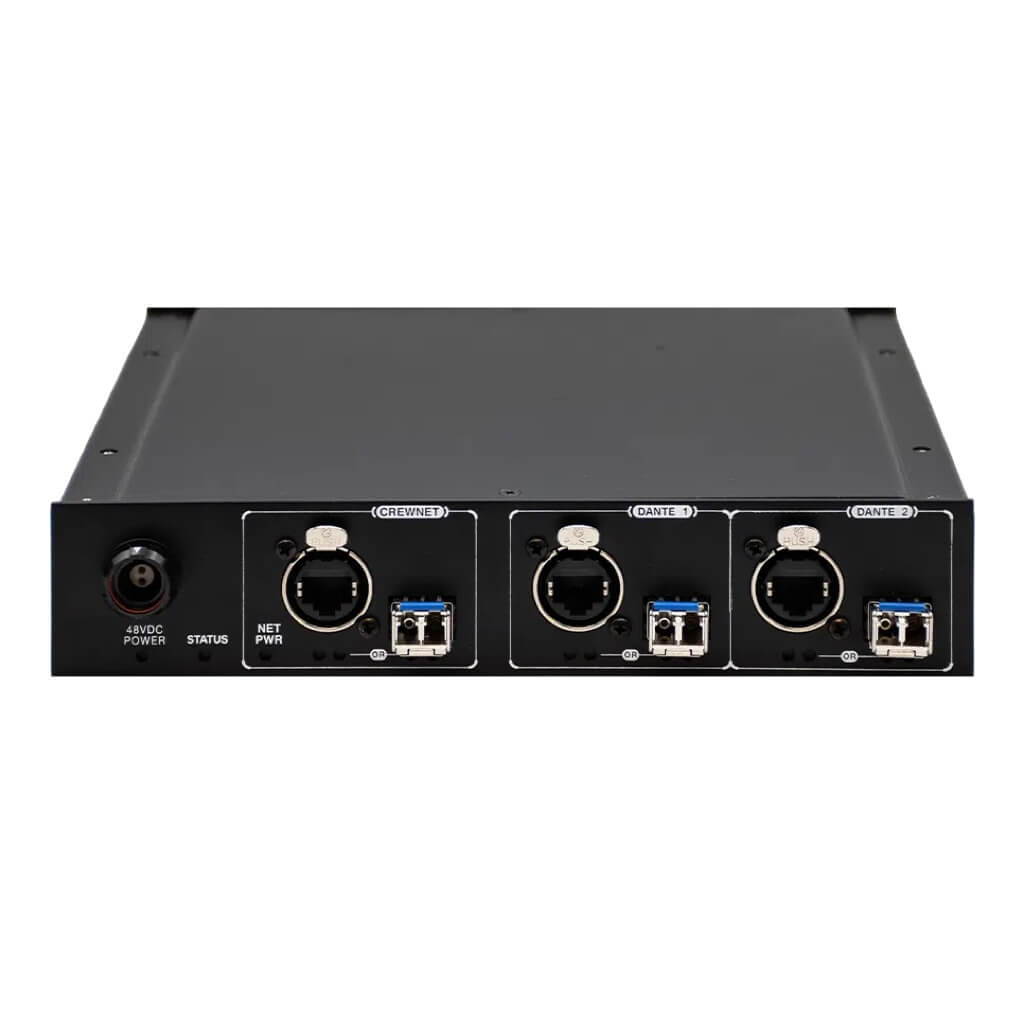

• Single EtherCon/Dual LC Fiber CrewNet Port
• Primary and Secondary Redundant EtherCon/Dual LC Fiber Dante Ports
• Supports 48kHz Sampling Frequency

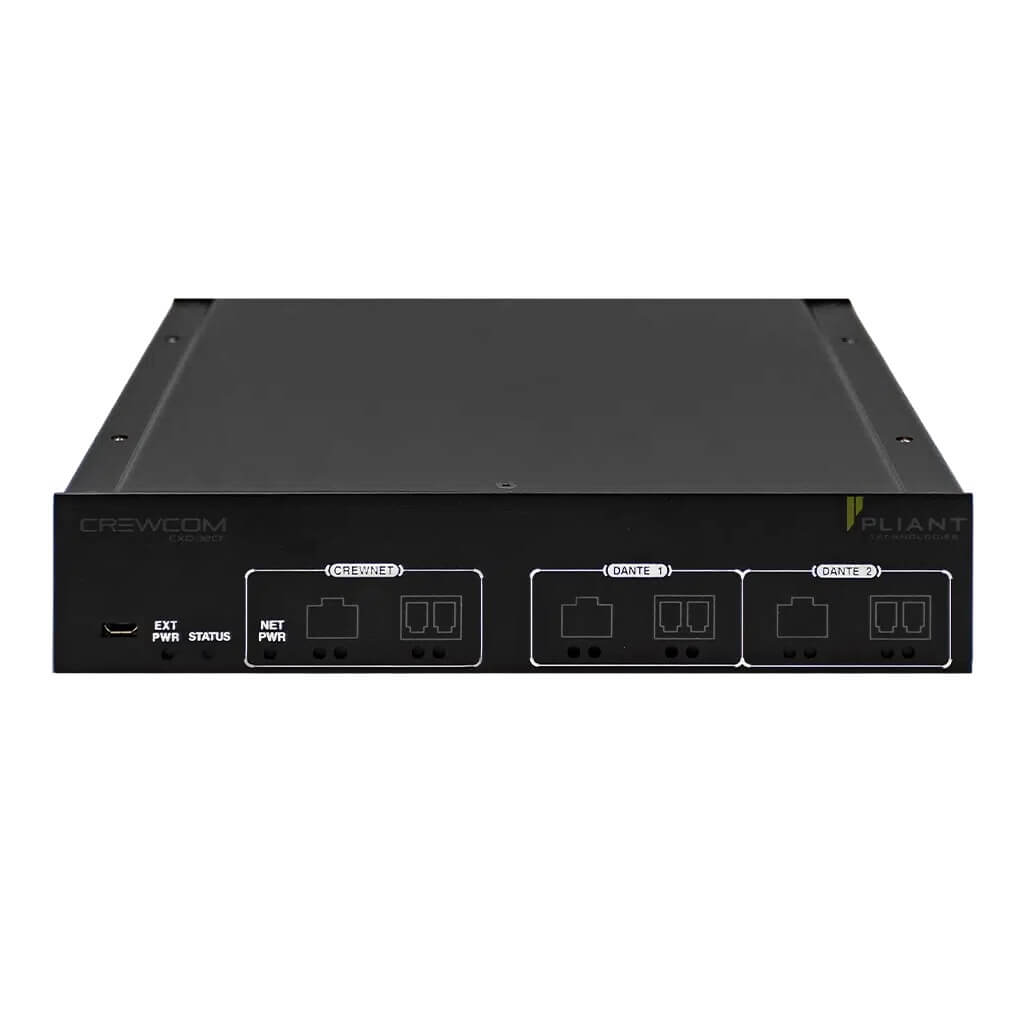

• Front and Rear Panel Status Indicators
• Micro USB Connection for Firmware Updates
• Dual Powering Options
• Network Power (Power over CrewNet)
• External Power (48VDC) (Included with Product)
• Compact 1U Half-Rack Size Chassis Design (rack kits sold separately)
